How To Instal A Train Horn

Thinking about adding a train horn to your vehicle? It's a modification that can certainly make a statement, but it’s not quite as simple as swapping out your factory horn. Incorrect installation can lead to electrical problems, air system failures, and even legal headaches. This guide will walk you through the proper steps to install a train horn safely and effectively, ensuring you get the sound you want without the problems you don’t.

The Problem: Installing a Train Horn Properly

The allure of a train horn is undeniable – that powerful, attention-grabbing sound. However, installing one is far more complex than simply bolting it on. It involves tapping into your vehicle's electrical system, often requiring an onboard air compressor and tank, and ensuring everything is wired and plumbed correctly. If done improperly, you could face a range of issues from a dead battery to a completely disabled vehicle. Furthermore, some areas have strict regulations regarding the use of train horns on public roads, so understanding and adhering to these laws is crucial. Ignoring these factors can result in hefty fines or even legal trouble.

Symptoms of a Poorly Installed Train Horn

A poorly installed train horn can manifest in a variety of ways. Here's a list of common symptoms:

Dead Battery: The air compressor used to power the horn draws a significant amount of electricity. If the wiring isn't properly sized or the compressor runs excessively due to leaks, it can drain your battery quickly.
Blown Fuses: Overloading the circuit with the air compressor or solenoid valve can cause fuses to blow repeatedly.
Air Leaks: Improperly sealed air lines or fittings will result in air leaks, causing the compressor to run constantly and potentially damage it.
Weak Horn Sound: If the air pressure is too low due to leaks or an undersized compressor, the horn won't produce its intended sound.
Electrical Malfunctions: Incorrect wiring can interfere with other electrical systems in the vehicle, leading to dashboard warning lights, erratic behavior, or even damage to the ECU.
Compressor Overheating: If the compressor is working too hard or not receiving adequate ventilation, it can overheat and fail.
Horn Not Working At All: This could be due to a blown fuse, faulty wiring, a malfunctioning solenoid valve, or a dead compressor.

Root Causes of Train Horn Installation Problems

Understanding the root causes of these issues is essential for a successful installation. Here's a breakdown:

Inadequate Wiring: Using wiring that's too thin for the compressor's current draw is a common problem. This can lead to voltage drops, overheating, and ultimately, electrical failure. The gauge of the wire must be appropriately sized based on the amperage of the compressor and the length of the wire run.
Poor Grounding: A weak or improper ground connection can cause all sorts of electrical problems. Ensure the ground is clean, secure, and connected to a solid metal part of the vehicle's frame.
Insufficient Fuse Protection: The fuse should be sized appropriately for the compressor's amperage. Too small, and it will blow constantly. Too large, and it won't protect the circuit from overloads.
Air Leaks: Using cheap fittings, not properly sealing connections with Teflon tape or thread sealant, or damaging air lines during installation can all lead to air leaks.
Undersized Compressor/Tank: Choosing a compressor that's too small to keep up with the demand of the horn will result in a weak sound and potentially damage the compressor. Similarly, a small air tank will require the compressor to run more frequently, shortening its lifespan.
Incorrect Solenoid Valve: The solenoid valve controls the flow of air to the horn. Using the wrong type or a low-quality valve can result in slow response times or failure.
Lack of Understanding of Vehicle's Electrical System: Tapping into the wrong wires or not understanding the vehicle's wiring diagram can lead to serious problems.

What Happens If Installation Problems Are Ignored?

Ignoring the symptoms of a poorly installed train horn can have serious consequences:

Vehicle Damage: Electrical fires, damaged wiring harnesses, and a ruined battery are all potential outcomes of ignoring electrical issues.
Compressor Failure: Running a compressor constantly due to leaks or overloading it with excessive use will significantly shorten its lifespan.
Horn Malfunction: The horn may become unreliable or stop working altogether, defeating the purpose of the installation.
Safety Hazards: Electrical shorts can create a fire hazard, and a sudden electrical failure while driving could be dangerous.
Legal Issues: As mentioned before, using a train horn in unauthorized areas or in a manner that violates local ordinances can result in fines and legal penalties.

Recommended Fixes for Train Horn Installation Issues

Here’s a detailed breakdown of the recommended fixes:

Electrical System

1. Wiring:

Check Wire Gauge: Ensure the wiring gauge meets or exceeds the compressor manufacturer's recommendations. Thicker wire is always better to minimize voltage drop.
Inspect Connections: Verify all connections are secure, clean, and properly crimped or soldered. Use heat shrink tubing to protect connections from corrosion.
Replace Faulty Wiring: Replace any damaged or corroded wiring.

2. Grounding:

Clean Ground Point: Scrape away any paint or rust from the ground point on the vehicle's frame to ensure a solid connection.
Use a Star Washer: Use a star washer between the ground wire and the frame to further improve the connection.
Apply Dielectric Grease: Apply dielectric grease to the ground connection to prevent corrosion.

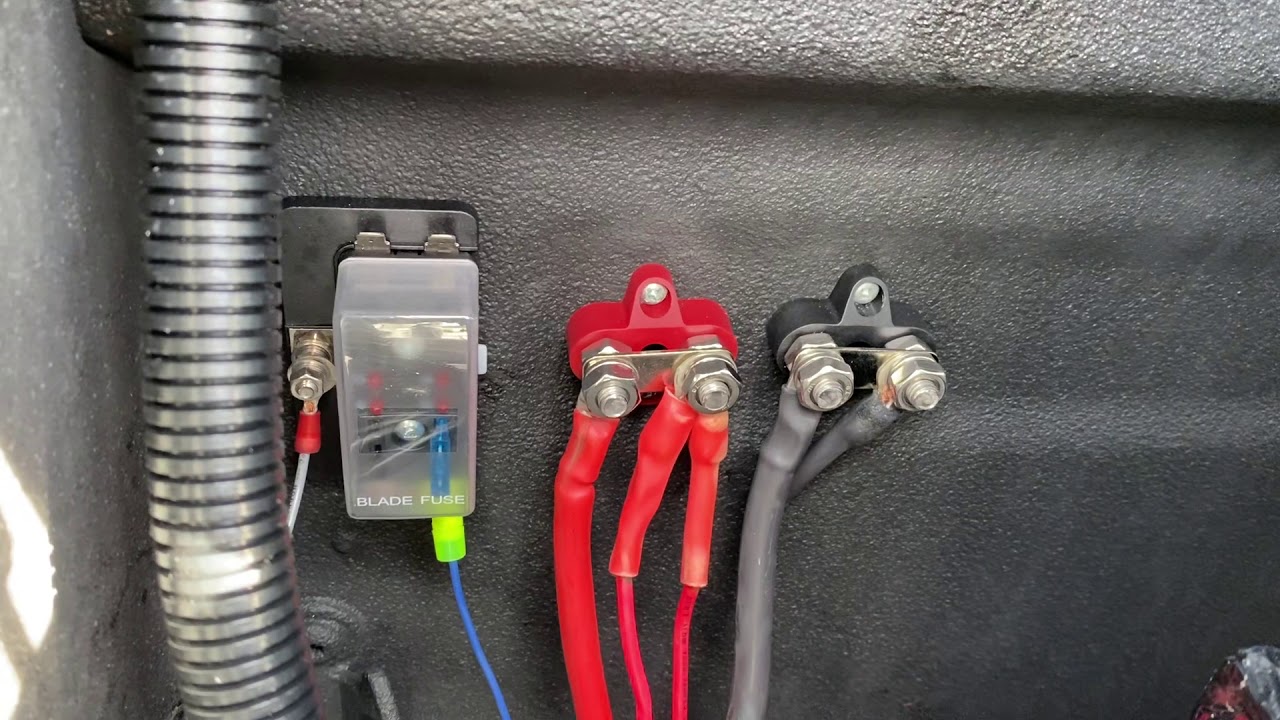

3. Fuses:

Check Fuse Rating: Confirm the fuse rating matches the compressor manufacturer's recommendations.
Use a Quality Fuse Holder: Use a high-quality fuse holder that provides a secure and reliable connection.
Replace Blown Fuses: If a fuse blows, investigate the cause before replacing it. Repeatedly blowing fuses indicates a problem that needs to be addressed.

Air System

1. Air Leaks:

Inspect Fittings: Check all fittings for leaks using soapy water. Bubbles will indicate a leak.
Use Teflon Tape/Thread Sealant: Apply Teflon tape or thread sealant to all threaded connections.
Tighten Fittings Properly: Tighten fittings to the manufacturer's recommended torque.
Replace Damaged Air Lines: Replace any air lines that are cracked, kinked, or damaged.

2. Compressor and Tank:

Size Appropriately: Ensure the compressor and tank are adequately sized for the horn's air consumption.
Check for Leaks: Inspect the compressor and tank for leaks.
Proper Ventilation: Ensure the compressor is properly ventilated to prevent overheating.
Drain Air Tank Regularly: Drain the air tank regularly to remove moisture, which can cause corrosion and damage to the system.

3. Solenoid Valve:

Verify Correct Type: Ensure the solenoid valve is the correct type for the system's voltage and pressure.
Check for Proper Operation: Test the solenoid valve to ensure it opens and closes smoothly and quickly.
Replace if Faulty: Replace the solenoid valve if it's malfunctioning.

General Installation Tips

1. Read the Instructions: Always read and follow the manufacturer's instructions carefully.

2. Use Quality Components: Invest in high-quality components, including the compressor, air tank, fittings, and wiring.

3. Take Your Time: Don't rush the installation. Take your time to ensure everything is done correctly.

4. Test the System: After installation, test the system thoroughly to ensure it's working properly.

5. Consult a Professional: If you're not comfortable working with electrical or air systems, consult a professional mechanic or installer.

6. Research Local Laws: Before installing a train horn, research your local laws and regulations regarding their use.

Cost Estimates and Shop Advice

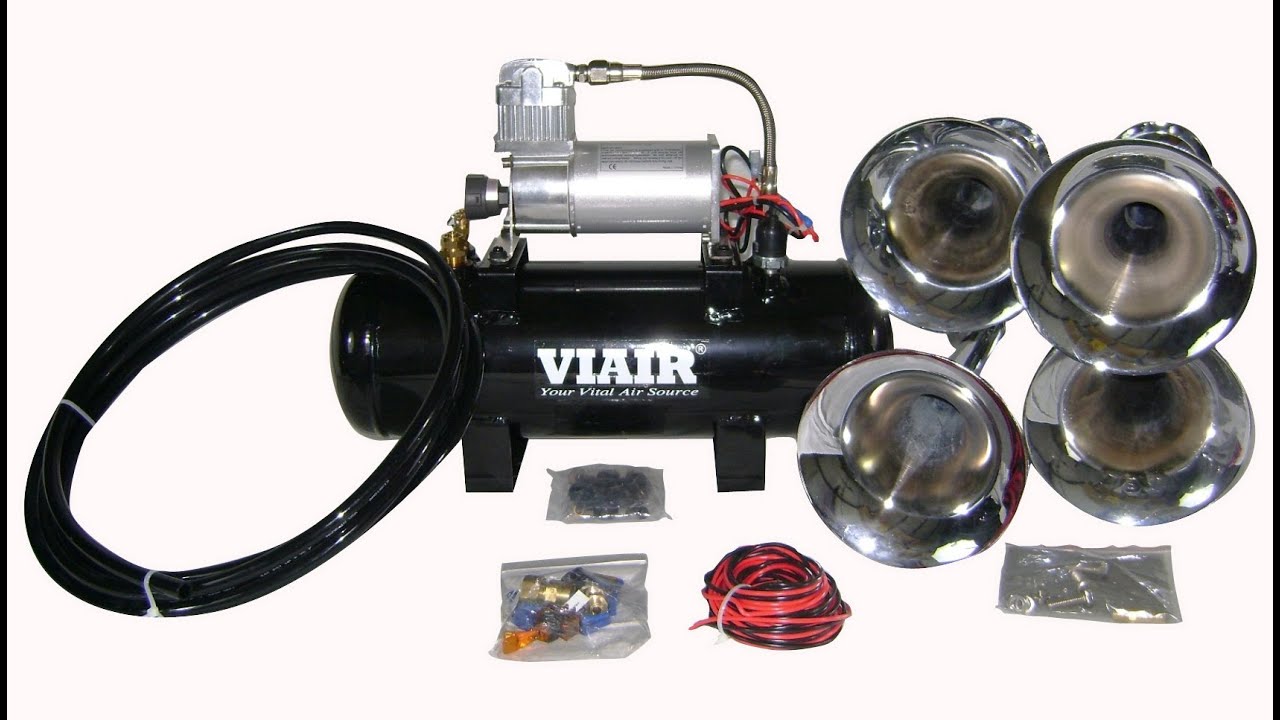

The cost of installing a train horn can vary depending on the quality of the components, the complexity of the installation, and whether you choose to do it yourself or hire a professional. A basic DIY kit with a small compressor and horn can cost around $200-$400. A more comprehensive kit with a larger compressor, air tank, and higher-quality horn can cost $500-$1000 or more. If you hire a professional installer, labor costs can add an additional $200-$500, depending on the shop's hourly rate and the complexity of the job.

Shop Advice: When choosing a shop, look for one with experience in installing aftermarket accessories, particularly air suspension or train horns. Ask for references and check online reviews. Be sure to get a written estimate before work begins, and make sure the estimate includes all parts, labor, and any applicable taxes.

Important Note: There are no specific TSBs (Technical Service Bulletins) directly related to train horn installations, as these are aftermarket modifications. However, it's crucial to check your vehicle's service manual for any relevant information about its electrical system and wiring diagrams. Online forums and communities dedicated to automotive modifications can also provide valuable information and troubleshooting tips.

By following these guidelines and taking the necessary precautions, you can safely and effectively install a train horn on your vehicle and enjoy that powerful sound without the headaches. Remember, a little planning and attention to detail can go a long way in ensuring a successful and trouble-free installation.
