How To Install A Steering Rack

Replacing a steering rack can seem daunting, but with the right tools, preparation, and patience, it’s a task many DIY mechanics can accomplish. This article provides a comprehensive guide to installing a steering rack, covering everything from understanding the importance of a functional steering system to selecting the correct replacement part and navigating the installation process itself.

Why Installing a Steering Rack Matters

The steering rack is a critical component of your vehicle's steering system, responsible for translating the rotational motion of the steering wheel into the linear motion that turns the wheels. A faulty steering rack can compromise your safety and the safety of others on the road. Here's why maintaining a healthy steering rack is essential:

• Safety: A worn or damaged steering rack can lead to sluggish steering, making it difficult to control the vehicle, especially in emergency situations.
• Handling: A malfunctioning rack can result in uneven tire wear, poor alignment, and a general feeling of looseness or play in the steering.
• Comfort: Issues with the steering rack often translate to unpleasant noises like clunking or groaning while turning, detracting from the driving experience.
• Legal Compliance: In some jurisdictions, a failing steering rack can cause your vehicle to fail a safety inspection, preventing you from legally driving it.

Common symptoms indicating a steering rack replacement is needed include:

• Difficulty steering: Feeling resistance or stiffness when turning the wheel.
• Loose steering: Excessive play in the steering wheel before the wheels respond.
• Unusual noises: Clunking, popping, or groaning sounds when turning the steering wheel.
• Leaking power steering fluid: Visible leaks around the steering rack or power steering pump.
• Uneven tire wear: Premature wear on the inner or outer edges of your tires.

How to Choose the Right Steering Rack

Selecting the correct steering rack is crucial for a successful and safe installation. Here's a breakdown of factors to consider:

1. Vehicle Compatibility

The most important factor is ensuring the replacement steering rack is compatible with your vehicle's make, model, and year. Refer to your vehicle's owner's manual or a reliable online parts catalog to identify the correct part number. Using your VIN (Vehicle Identification Number) is the most accurate method.

2. Type of Steering Rack

There are two main types of steering racks:

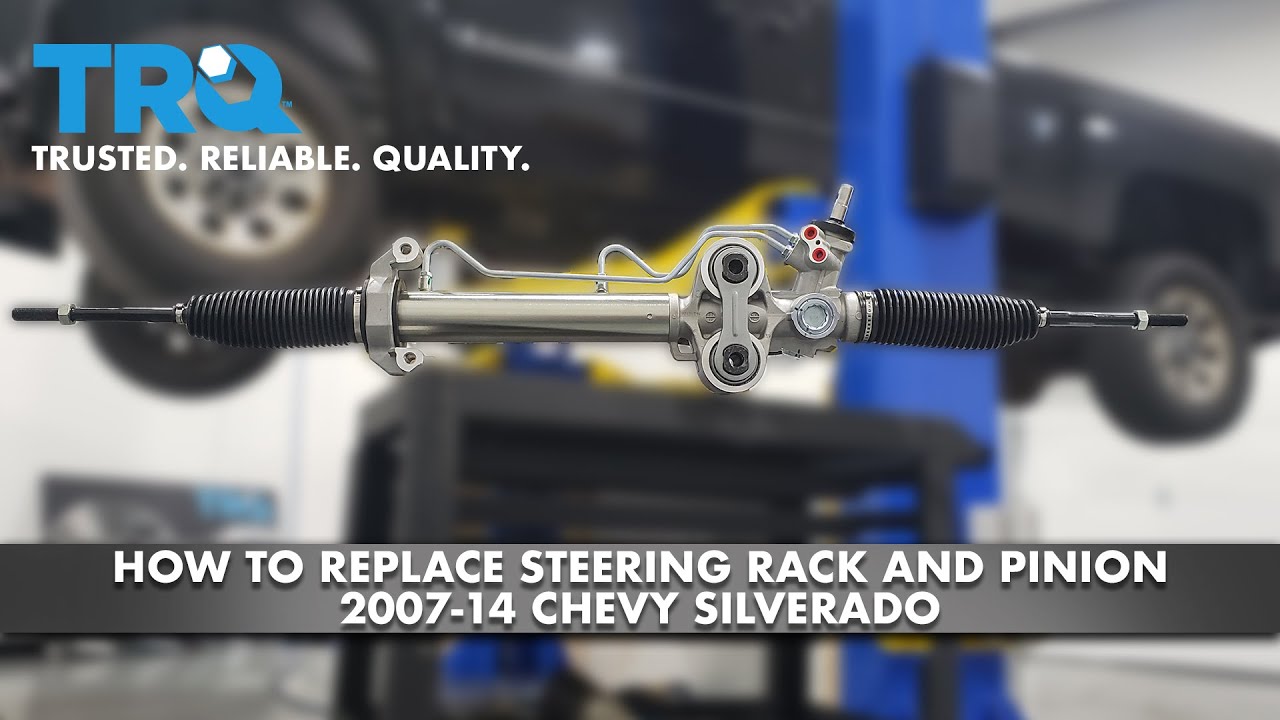

• Power Steering Rack: Uses hydraulic pressure from a power steering pump to assist steering, making it easier to turn the wheel. Most modern vehicles use power steering.

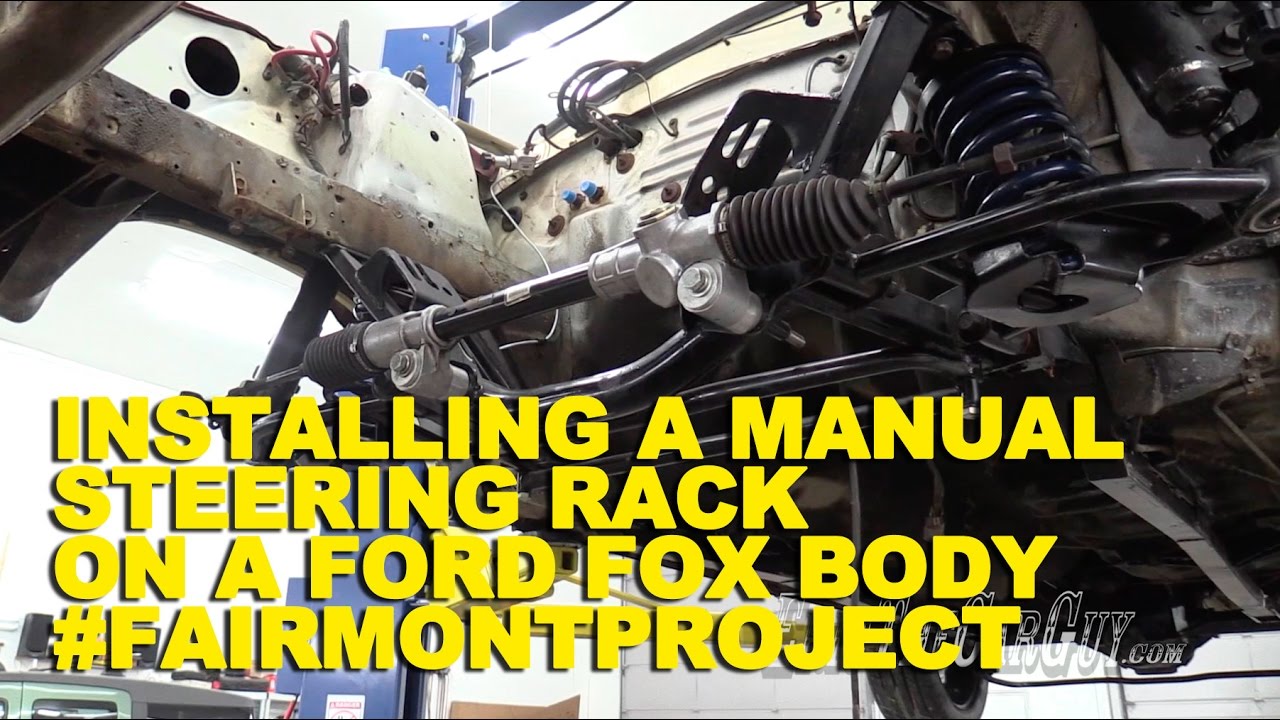

• Manual Steering Rack: Relies solely on the driver's muscle power to turn the wheels. These are typically found in older or smaller vehicles.

Make sure you choose the correct type based on your vehicle's existing system. Do not attempt to convert from manual to power steering without extensive modifications and professional guidance.

3. New vs. Remanufactured

You have the option of purchasing a new or remanufactured steering rack:

• New Steering Rack: Offers the highest level of reliability and longevity. Typically comes with a warranty.
• Remanufactured Steering Rack: A used steering rack that has been disassembled, cleaned, inspected, and rebuilt with new or refurbished components. Generally more affordable than new racks and often come with a warranty, although it may be shorter than a new part warranty.

While remanufactured racks can save you money, choose a reputable supplier that thoroughly tests and inspects their remanufactured units. Consider the warranty offered and read reviews before making a purchase.

4. Features and Specifications

Consider any specific features or specifications that may be relevant to your vehicle, such as:

• Steering Ratio: Affects the amount of steering wheel input required to turn the wheels a certain amount.
• Variable Assist: Some steering racks offer variable power assist, providing more assistance at low speeds and less at high speeds.
• Sport Tuning: Performance-oriented steering racks may offer a quicker steering ratio or a more responsive feel.

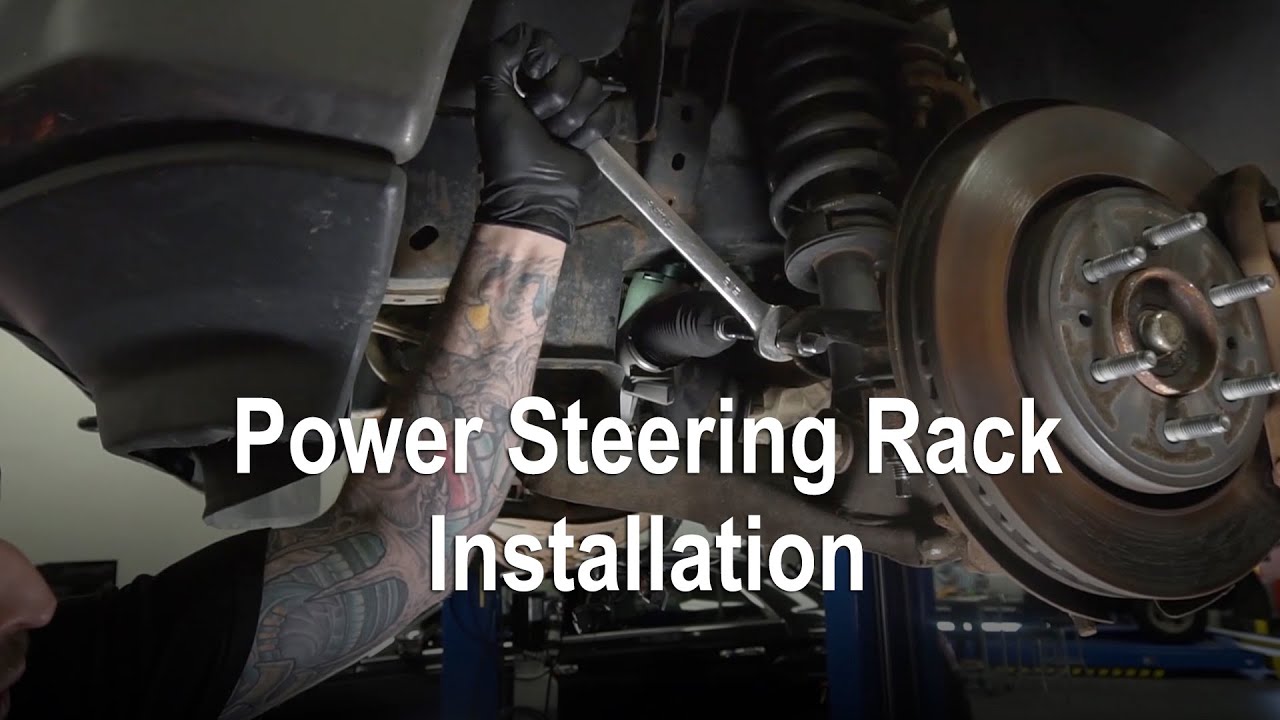

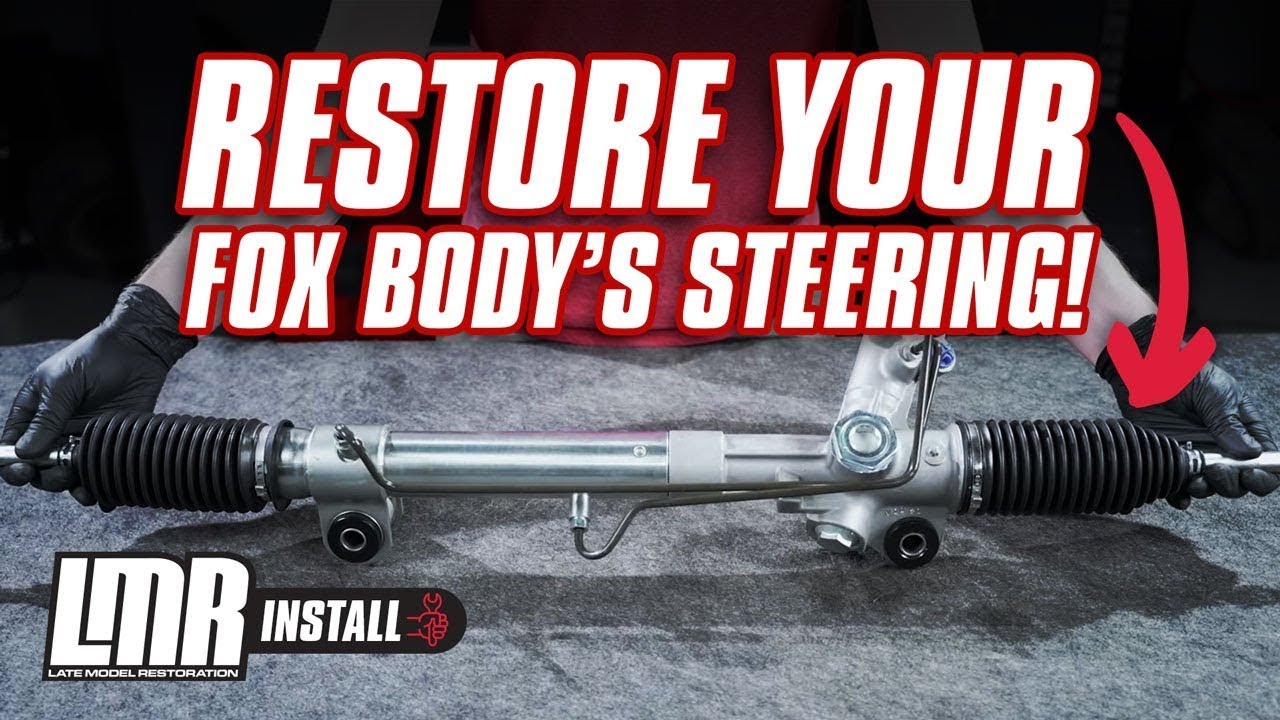

Installing the Steering Rack: A Step-by-Step Guide

Disclaimer: This guide provides general instructions. Always consult your vehicle's repair manual for specific procedures and torque specifications. If you are not comfortable performing this task, seek professional assistance from a qualified mechanic.

Tools and Materials Required:

• New Steering Rack
• Jack and Jack Stands
• Wheel Chocks
• Socket Set
• Wrench Set
• Torque Wrench
• Pliers
• Screwdrivers
• Hammer
• Penetrating Oil
• Power Steering Fluid (if applicable)
• Drain Pan
• Gloves
• Safety Glasses
• Wheel Alignment Tools (or plan to have a professional alignment performed)

Step 1: Preparation

1. Safety First: Disconnect the negative terminal of your battery to prevent electrical shorts.
2. Secure the Vehicle: Park on a level surface, engage the parking brake, and chock the rear wheels. Loosen the lug nuts on the front wheels.
3. Raise the Vehicle: Jack up the front of the vehicle and securely support it with jack stands. Never work under a vehicle supported only by a jack.
4. Remove the Wheels: Remove the front wheels to access the steering components.

Step 2: Disconnect Steering Components

1. Steering Shaft: Locate the steering shaft where it connects to the steering rack. Loosen the bolt(s) connecting the shaft and slide the shaft off the rack's input shaft. You may need to use penetrating oil and a hammer to gently tap the shaft loose.
2. Tie Rod Ends: Use a tie rod end puller or pickle fork to separate the tie rod ends from the steering knuckles. If using a pickle fork, be aware that it can damage the tie rod end boots. Consider marking the position of the tie rod ends on the threads to maintain approximate alignment.
3. Power Steering Lines (if applicable): Place a drain pan under the power steering lines. Carefully disconnect the lines from the steering rack, allowing the fluid to drain. Use caution, as power steering fluid can be corrosive.
4. Mounting Bolts: Locate and remove the bolts securing the steering rack to the vehicle's frame or subframe. You may need to use penetrating oil to loosen stubborn bolts.

Step 3: Remove the Old Steering Rack

1. Carefully Remove: With all connections detached, carefully maneuver the old steering rack out of the vehicle. You may need to rotate or angle it to clear other components.

Step 4: Install the New Steering Rack

1. Position the New Rack: Carefully maneuver the new steering rack into position, aligning it with the mounting points.
2. Install Mounting Bolts: Install the mounting bolts and tighten them to the torque specifications listed in your vehicle's repair manual.
3. Reconnect Tie Rod Ends: Reconnect the tie rod ends to the steering knuckles, tightening the nuts to the specified torque.
4. Reconnect Steering Shaft: Slide the steering shaft back onto the rack's input shaft and tighten the bolt(s) securely.
5. Reconnect Power Steering Lines (if applicable): Reconnect the power steering lines to the steering rack, ensuring they are properly tightened.

Step 5: Final Steps

1. Refill Power Steering Fluid (if applicable): Refill the power steering fluid reservoir with the correct type of fluid. Bleed the system according to your vehicle's repair manual.
2. Reinstall Wheels: Reinstall the front wheels and tighten the lug nuts to the specified torque.
3. Lower the Vehicle: Carefully lower the vehicle to the ground.
4. Final Tightening: Once the vehicle is on the ground, re-torque the lug nuts.
5. Wheel Alignment: A wheel alignment is essential after replacing a steering rack. Drive the vehicle to a qualified alignment shop to have the alignment adjusted.

Real-World Owner Experiences

Many DIYers have successfully replaced their steering racks, saving money on labor costs. However, some challenges are common:

• Rust and Corrosion: Dealing with rusted bolts and corroded fittings can be frustrating. Penetrating oil and patience are key.
• Tight Spaces: Accessing certain bolts or components can be difficult in confined spaces.
• Bleeding the Power Steering System: Properly bleeding the power steering system to remove air bubbles is crucial for smooth operation.

Tip: Take pictures throughout the process to help you remember the order of disassembly and reassembly. Label any disconnected hoses or wires to avoid confusion.

Frequently Asked Questions (FAQs)

Q: How long does it take to replace a steering rack?

A: The time required varies depending on your experience and the complexity of the vehicle. On average, expect the job to take anywhere from 4 to 8 hours.

Q: How much does it cost to have a steering rack replaced professionally?

A: Professional steering rack replacement can cost anywhere from $500 to $1500 or more, including parts and labor. DIY replacement can significantly reduce the cost.

Q: Can I drive my car with a bad steering rack?

A: Driving with a bad steering rack is not recommended. It can compromise your safety and potentially damage other steering components.

Q: What is power steering fluid, and why is it important?

A: Power steering fluid is a hydraulic fluid that transmits pressure from the power steering pump to the steering rack, assisting with steering. Maintaining the correct fluid level and using the proper type is essential for proper steering function.

Q: How often should I have my steering rack inspected?

A: It's a good idea to have your steering rack inspected periodically, especially if you notice any of the warning signs mentioned earlier. Regular inspections can help prevent more serious problems down the road.
