How To Install Clutch Slave Cylinder

Is your car exhibiting a soft or spongy clutch pedal? Are you having trouble shifting gears, or experiencing a grinding noise when trying to engage the clutch? You might be facing a failing or failed clutch slave cylinder. Replacing it can restore proper clutch function, giving you back smooth shifts and confident control. Addressing this issue promptly is crucial for maintaining the safety and reliability of your vehicle, preventing potential damage to other drivetrain components, and avoiding being stranded.

Recognizing the Symptoms of a Failing Clutch Slave Cylinder

A faulty clutch slave cylinder often presents with a number of telltale signs. Identifying these symptoms early can save you from more significant problems down the road. Here are some of the most common indicators:

• Soft or Spongy Clutch Pedal: This is one of the earliest and most noticeable symptoms. The pedal may feel unusually soft or require more travel than usual before the clutch engages.
• Difficulty Shifting Gears: You might find it hard to get the car into gear, especially first gear or reverse. The gears may grind or clash when you try to shift.
• Clutch Pedal Staying on the Floor: In severe cases, the clutch pedal may stick to the floor after being depressed, requiring you to manually pull it back up.
• Loss of Clutch Pressure: Over time, you might experience a gradual loss of clutch pressure, making it increasingly difficult to shift gears smoothly.
• Grinding Noise When Shifting: A grinding noise when attempting to shift gears is a strong indication that the clutch is not fully disengaging due to insufficient pressure from the slave cylinder.
• Fluid Leakage: Inspect around the clutch slave cylinder and the bellhousing of the transmission for brake fluid leaks. Brake fluid has a distinct smell and can damage paint.
• Low Brake Fluid Level: Because the clutch and brake systems often share a reservoir, a leak in the clutch slave cylinder can lead to a noticeable drop in the brake fluid level. Monitor your brake fluid level regularly!

Understanding the Root Cause: How the Clutch Slave Cylinder Works (And Why It Fails)

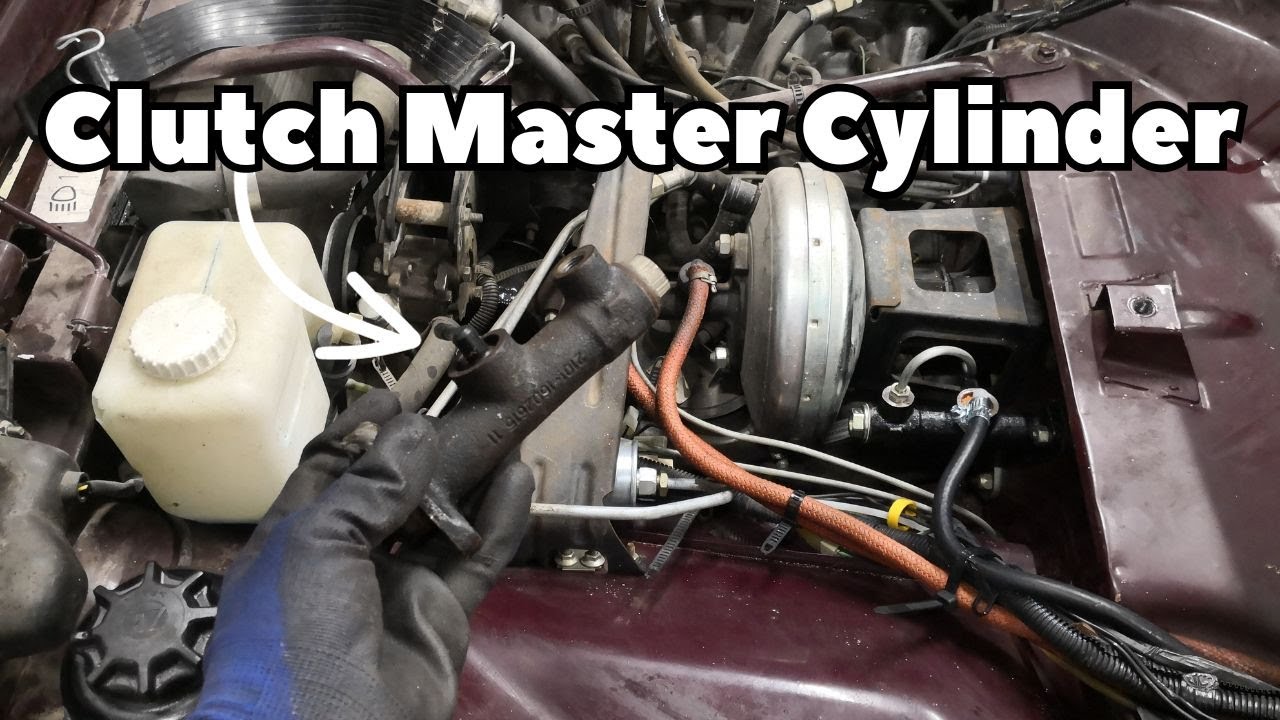

The clutch slave cylinder is a vital component in a hydraulic clutch system. It acts as a hydraulic actuator, converting hydraulic pressure from the clutch master cylinder into mechanical force to disengage the clutch. Here's how it works:

1. When you depress the clutch pedal, the clutch master cylinder pushes brake fluid through a hydraulic line.
2. This fluid travels to the clutch slave cylinder, which is typically mounted on the transmission bellhousing.
3. Inside the slave cylinder, the fluid pressure pushes a piston, which in turn pushes a rod.
4. This rod contacts the clutch fork (or lever), which then disengages the clutch, allowing you to shift gears.

The most common reason for clutch slave cylinder failure is internal seal degradation. Over time, the seals within the cylinder can become brittle, cracked, or worn due to age, heat, and exposure to contaminants in the brake fluid. This leads to fluid leakage and a loss of hydraulic pressure. Other potential causes include:

• Contaminated Brake Fluid: Old or contaminated brake fluid can damage the seals within the slave cylinder. Regular brake fluid flushes are essential for maintaining the health of the entire hydraulic system.
• Corrosion: Corrosion within the cylinder can also damage the seals and cause leakage.
• Physical Damage: Although less common, the slave cylinder can be damaged by road debris or impacts.

The Consequences of Ignoring a Failing Clutch Slave Cylinder

Ignoring the symptoms of a failing clutch slave cylinder can lead to more serious problems and costly repairs. Here's what can happen if you delay addressing the issue:

• Inability to Shift Gears: Eventually, the clutch will become completely inoperable, leaving you stranded and unable to shift gears.
• Damage to the Clutch Disc and Pressure Plate: Continuing to drive with a slipping clutch can cause excessive wear and tear on the clutch disc and pressure plate, potentially requiring their replacement.
• Damage to the Transmission: Forcing the gears while the clutch is not fully disengaged can damage the synchronizers and other internal components of the transmission, leading to expensive repairs.
• Increased Safety Risk: A malfunctioning clutch can be dangerous, especially in emergency situations where you need to quickly change gears or stop suddenly.

Recommended Fix: Clutch Slave Cylinder Replacement

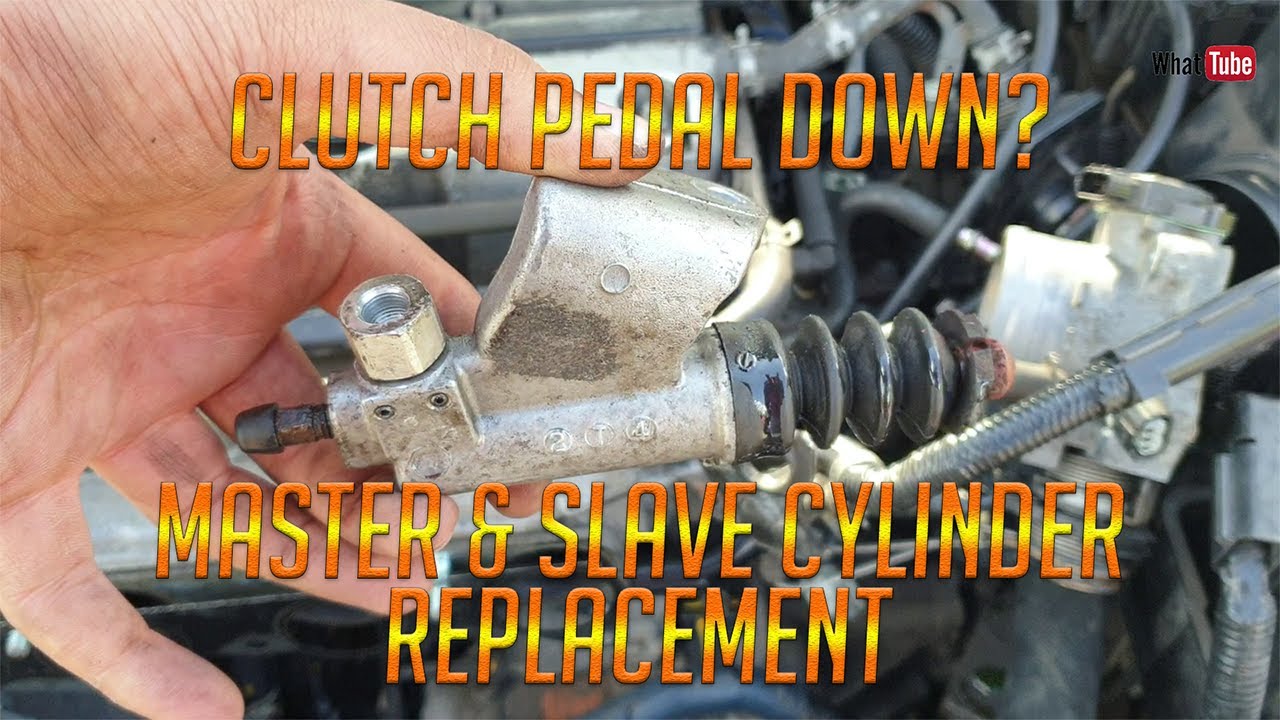

The most effective solution for a failing clutch slave cylinder is replacement. While some attempts can be made to rebuild them, it's generally recommended to install a new unit for reliability and peace of mind. Here's a general outline of the replacement process. Always consult your vehicle's service manual for specific instructions and torque specifications.

1. Gather your tools and materials: You'll need a new clutch slave cylinder, the correct type of brake fluid (check your owner's manual), wrenches, sockets, a brake bleeder kit or assistant, safety glasses, and gloves.
2. Locate the Slave Cylinder: The slave cylinder is typically mounted on the transmission bellhousing, near where the transmission connects to the engine.
3. Disconnect the Hydraulic Line: Carefully disconnect the hydraulic line from the slave cylinder. Be prepared for some brake fluid to spill. Use a rag to catch any drips.

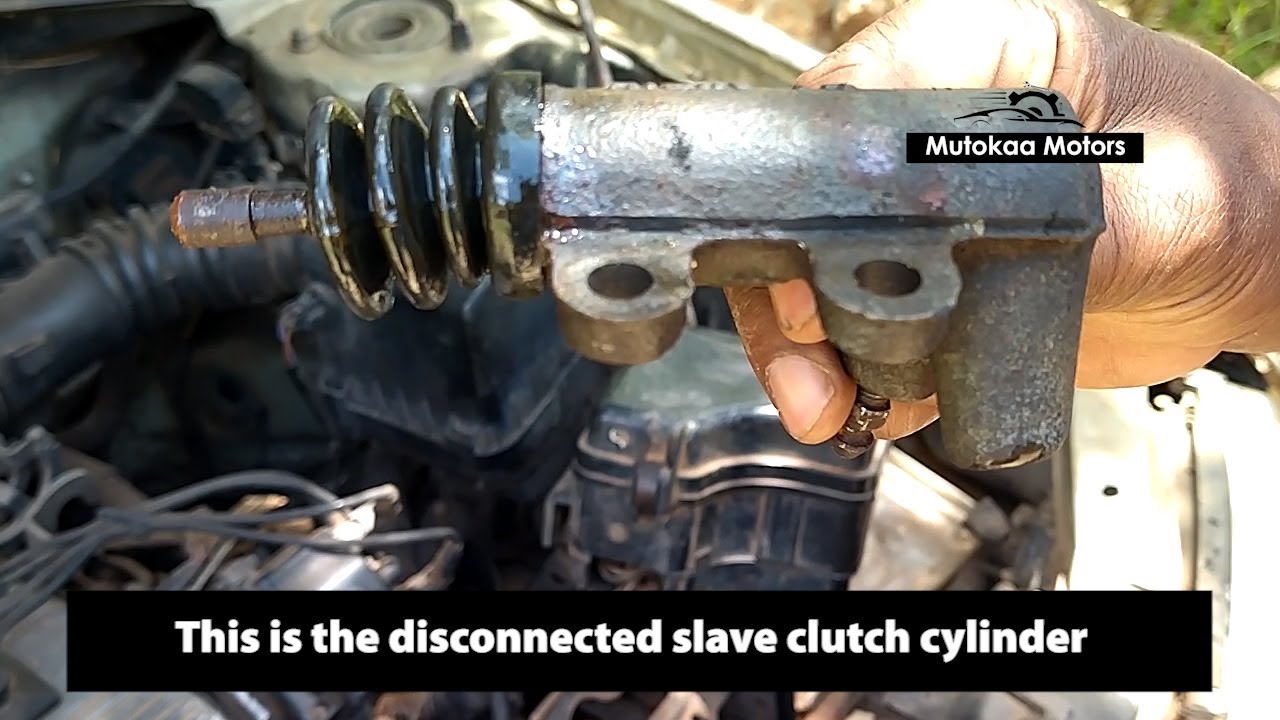

4. Remove the Old Slave Cylinder: Unbolt the old slave cylinder from the bellhousing.
5. Install the New Slave Cylinder: Install the new slave cylinder in the reverse order of removal. Make sure the mounting bolts are properly torqued to specification.
6. Connect the Hydraulic Line: Reconnect the hydraulic line to the new slave cylinder.

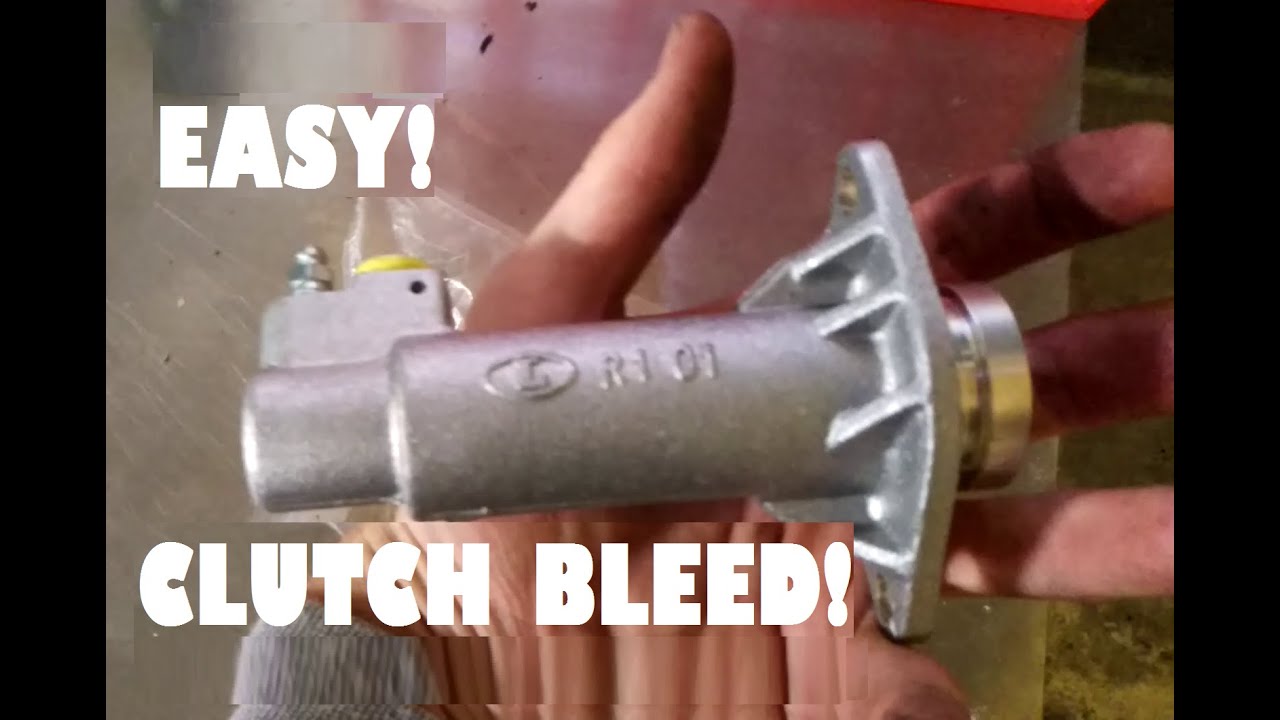

7. Bleed the Clutch System: This is a critical step. Bleed the clutch system to remove any air bubbles from the hydraulic line. Use a brake bleeder kit or have an assistant pump the clutch pedal while you open and close the bleeder valve on the slave cylinder. Continue until all air bubbles are gone and a steady stream of brake fluid emerges.
8. Test the Clutch: Start the engine and test the clutch pedal. Ensure it feels firm and that you can shift gears smoothly.
9. Check for Leaks: Inspect the slave cylinder and hydraulic line connections for any leaks.

Important Considerations:

• Brake Fluid Type: Use the correct type of brake fluid specified for your vehicle (DOT 3, DOT 4, etc.). Mixing different types of brake fluid can damage the hydraulic system.
• Proper Bleeding: Bleeding the clutch system thoroughly is essential for proper clutch function. If you're not comfortable with this process, it's best to have a professional mechanic do it.
• Self Adjusting Mechanisms: Some vehicles require special procedures or tools to properly set up the clutch linkage after replacing the slave cylinder. Consult your vehicle's repair manual.

Cost Estimates and Shop Advice

The cost of replacing a clutch slave cylinder can vary depending on the make and model of your vehicle, the brand of the replacement part, and the labor rates in your area.

• Parts: A new clutch slave cylinder typically costs between $50 and $200.
• Labor: Labor costs can range from $100 to $300, depending on the complexity of the job and the shop's hourly rate.
• Total Cost: You can expect to pay between $150 and $500 for a clutch slave cylinder replacement at a professional repair shop.

If you're comfortable working on your own car, you can save on labor costs by replacing the slave cylinder yourself. However, if you're not experienced with hydraulic systems or brake bleeding, it's best to have a qualified mechanic perform the repair. A qualified mechanic will also be able to diagnose any other underlying issues that may be contributing to the problem.

Shop Advice: When choosing a repair shop, look for one with experience in clutch and transmission repairs. Ask for a written estimate before authorizing any work. Be sure the shop uses quality replacement parts and offers a warranty on their work.

Credibility and Common Failure Points

Clutch slave cylinder failures are a relatively common issue, particularly in vehicles with high mileage or those that are subjected to heavy use. Online automotive forums and communities often discuss this issue, providing valuable insights and experiences from other owners. Some manufacturers have even issued Technical Service Bulletins (TSBs) related to clutch slave cylinder problems on specific models.

For example, some older Honda models are known to have issues with their clutch master and slave cylinders, leading to similar symptoms mentioned above. Many owners report failures occurring around 100,000 to 150,000 miles, but this can vary depending on driving habits and maintenance. Regularly checking your brake fluid level and inspecting the clutch system for leaks can help you identify potential problems early and prevent more serious damage. Maintaining your vehicle's hydraulic system with regular fluid flushes is essential in prolonging the life of all its components.
