How To Keep Steering Wheel Controls With Aftermarket Radio

So, you're ditching that factory radio for a shiny new aftermarket unit, complete with Bluetooth, Apple CarPlay, or maybe even a fancy touchscreen. Excellent! But you're also dreading losing those convenient steering wheel controls (SWC). No need to fret! This article will walk you through the process of retaining your SWC functionality when installing an aftermarket radio, turning what seems like a daunting task into a manageable DIY project.

Understanding the Factory System

Before diving into the aftermarket side, let's understand how your factory SWC system works. Knowing the basics is key to a successful integration.

The CAN Bus vs. Analog Resistance

Modern vehicles primarily use one of two methods for transmitting SWC signals: the CAN bus (Controller Area Network) or analog resistance circuits. Older vehicles, generally pre-2005, are far more likely to use analog resistance. Newer cars have migrated to CAN bus systems.

Analog Resistance Systems:

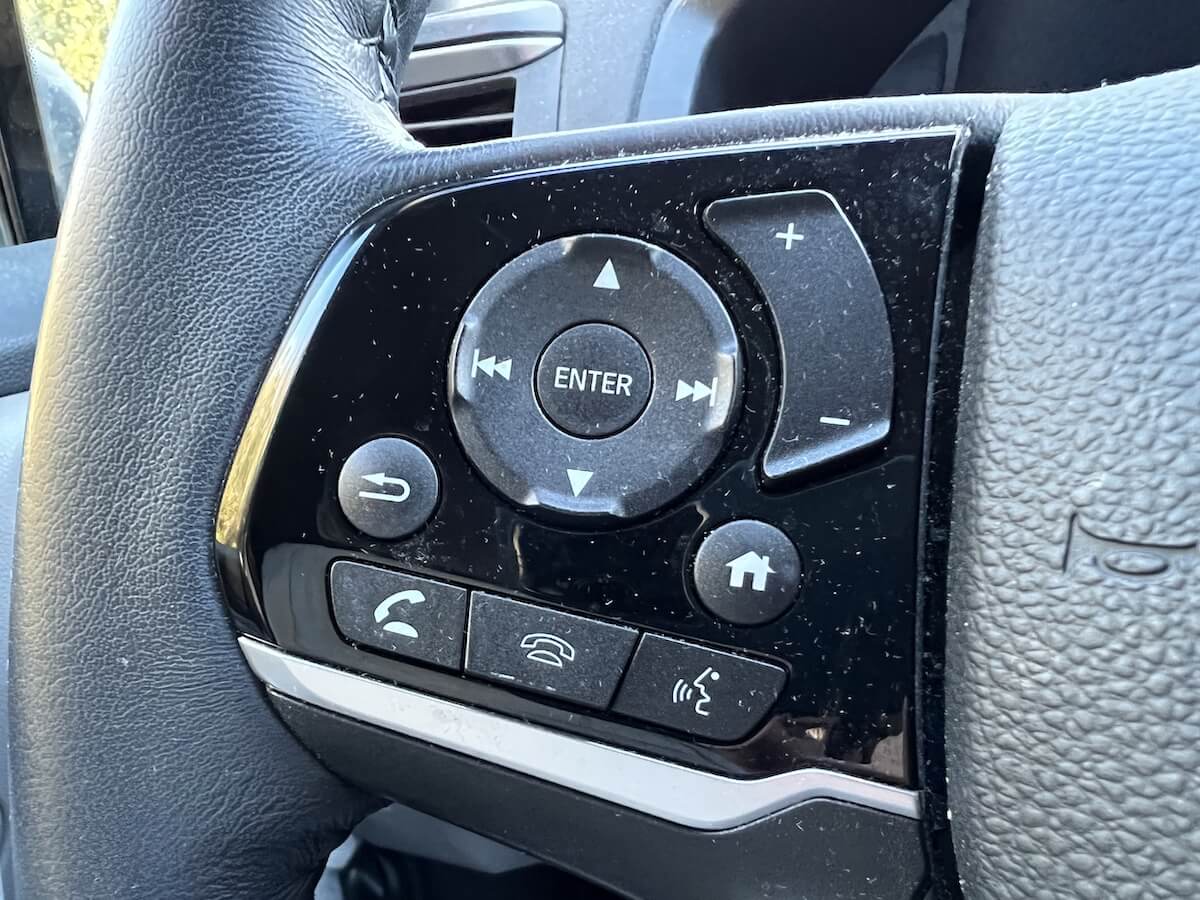

In an analog resistance system, each button on your steering wheel connects to a specific resistor. When you press a button, the circuit's resistance changes. This change in resistance is detected by the factory radio, which interprets it as a specific command. The radio then carries out the command, such as increasing the volume or changing the track. Think of it like a simple dimmer switch – each position (button) offers a different resistance level.

CAN Bus Systems:

CAN bus systems are far more complex. Instead of a direct connection between the steering wheel buttons and the radio, the buttons send data signals across the CAN bus network. The Body Control Module (BCM), or another dedicated module, interprets these signals and then transmits commands to the radio, or other relevant modules like the instrument cluster, to perform the desired action. The CAN bus is like a digital highway where different modules can communicate with each other, sharing information. This allows for far more functionality and customization than the older analog systems.

Identifying which system your car uses is crucial. You can usually determine this by looking up your vehicle's wiring diagrams, consulting online forums specific to your car model, or using a multimeter to test the wires connected to the factory radio. If you see multiple wires dedicated to the steering wheel controls going into the factory radio (often a separate connector), it's likely an analog system. A CAN bus system will typically have only a few wires for CAN High and CAN Low.

The Aftermarket Solution: SWC Adapters

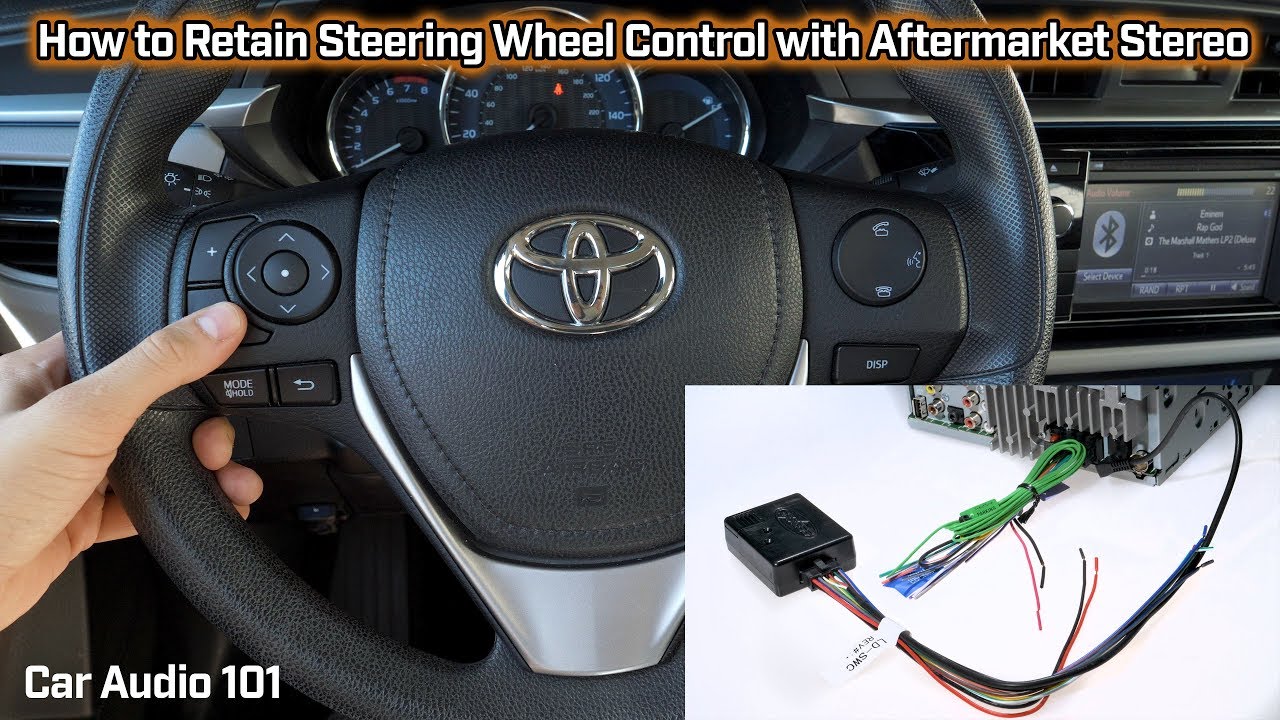

To retain your SWC, you'll need an SWC adapter. These adapters act as translators, taking the signals from your car's SWC system (either analog resistance or CAN bus) and converting them into a format that your aftermarket radio can understand. Most aftermarket radios don't natively support the factory SWC protocols, hence the need for an adapter.

How SWC Adapters Work

The adapter connects to both your car's wiring harness (specifically the SWC wires) and your aftermarket radio. It then uses its internal microcontroller to interpret the signals from the steering wheel buttons and send corresponding signals to the radio. These signals are typically sent through a single wire called the SWC input or remote input on the back of your aftermarket radio. The adapter usually needs to be programmed to recognize which resistance value (for analog systems) or CAN bus message (for CAN bus systems) corresponds to each button function.

Choosing the Right Adapter

Selecting the correct SWC adapter is paramount. You need an adapter specifically designed for your vehicle's make, model, and year. There are universal adapters, but these often require more configuration and may not support all SWC functions. Brands like Metra Axxess, PAC Audio, and iDatalink Maestro are reputable manufacturers of SWC adapters. The iDatalink Maestro, in particular, offers advanced integration features, sometimes allowing you to retain factory features like parking sensors, climate controls, and vehicle information displays, in addition to the steering wheel controls.

Installation Steps

Here's a general overview of the installation process:

Disconnect the Battery: Always disconnect the negative terminal of your car battery before working on any electrical components. This prevents accidental shorts and potential damage.
Remove the Factory Radio: Use the appropriate tools to safely remove your factory radio. This usually involves removing trim panels and unscrewing mounting brackets.
Connect the SWC Adapter: Connect the SWC adapter to your car's wiring harness. This will typically involve matching wires by color or using a wiring diagram specific to your vehicle and the adapter. Carefully solder or use high-quality crimp connectors to ensure secure connections.
Connect the Adapter to the Aftermarket Radio: Connect the SWC output wire from the adapter to the SWC input wire on your aftermarket radio.
Power and Ground: Connect the power and ground wires of the SWC adapter to a reliable power and ground source in your vehicle.
Program the Adapter: This is the crucial step! Most SWC adapters require programming to tell them which buttons on your steering wheel correspond to which functions on the radio. This is typically done by following the instructions provided with the adapter, which may involve pressing buttons on the steering wheel in a specific sequence. Some adapters are "self-programming" or can be programmed via a computer using a USB cable.
Test the SWC: Before reassembling everything, test all the steering wheel controls to ensure they are working correctly. If a button isn't working, double-check your wiring and programming.
Reassemble: Once you're satisfied that everything is working correctly, carefully reassemble the dashboard and reinstall the aftermarket radio.
Reconnect the Battery: Finally, reconnect the negative terminal of your car battery.

Common Issues and Troubleshooting

Incorrect Wiring: The most common issue is incorrect wiring. Double-check your wiring connections against the wiring diagrams for both your vehicle and the SWC adapter.
Programming Issues: If the adapter isn't programmed correctly, the buttons may not work or may perform the wrong functions. Carefully follow the programming instructions in the adapter's manual.
Adapter Compatibility: Ensure the adapter is compatible with both your vehicle and your aftermarket radio. Some radios may have specific requirements for SWC adapters.
Grounding Issues: A poor ground connection can cause intermittent or unreliable SWC functionality. Ensure the adapter has a solid ground connection to the vehicle's chassis.
CAN Bus Interference: In rare cases, the SWC adapter may interfere with other CAN bus systems in the vehicle. This is usually due to a faulty adapter or incorrect wiring.

Do's and Don'ts

DO thoroughly research which SWC adapter is compatible with your vehicle and aftermarket radio.
DO use high-quality wiring connectors and soldering techniques for reliable connections.
DO carefully follow the programming instructions for the SWC adapter.
DO test all SWC functions after installation before reassembling the dashboard.
DON'T cut or splice factory wiring unless absolutely necessary. Use wiring harnesses designed for your vehicle to avoid damaging the factory wiring.
DON'T assume that all SWC adapters are created equal. Read reviews and choose a reputable brand.
DON'T skip the programming step. The adapter won't work correctly without proper programming.
DON'T force anything. If something isn't fitting or working correctly, stop and re-evaluate the situation.

Conclusion

Retaining your steering wheel controls with an aftermarket radio is entirely achievable with the right tools, knowledge, and patience. By understanding how your factory SWC system works, choosing the correct SWC adapter, and following the installation steps carefully, you can enjoy the enhanced features of your new radio without sacrificing the convenience and safety of your steering wheel controls. While universal adapters are available, I strongly recommend choosing a vehicle-specific adapter from a reputable brand like Metra Axxess, PAC Audio, or iDatalink Maestro. These adapters offer better compatibility, easier installation, and often support more advanced features, ensuring a seamless integration experience.
