How To Know If My Car Has Abs

Many modern vehicles are equipped with an Anti-lock Braking System (ABS), a crucial safety feature that can significantly improve braking performance, especially in slippery conditions. Knowing whether your car has ABS isn't just a matter of curiosity; it's essential for understanding how your car handles and what to expect during emergency braking situations. This article will guide you through several methods to determine if your vehicle is equipped with ABS, providing both visual and practical checks.

Understanding ABS: A Brief Background

Before diving into the diagnostic process, let's briefly review what ABS is and why it's important. ABS is designed to prevent your car's wheels from locking up during hard braking. Wheel lockup can lead to skidding, loss of steering control, and increased stopping distances, particularly on wet, icy, or gravel-covered roads. ABS modulates the brake pressure to each wheel individually, allowing the tires to maintain traction with the road surface. This allows you to steer while braking, a critical advantage in avoiding obstacles.

The history of ABS dates back several decades, with early versions appearing on aircraft. However, it wasn't until the 1980s that ABS became more widely available on passenger vehicles. Early systems were relatively simple, but modern ABS systems are highly sophisticated, often integrated with other safety features like Electronic Stability Control (ESC) and Traction Control System (TCS).

Technical Breakdown: How ABS Works

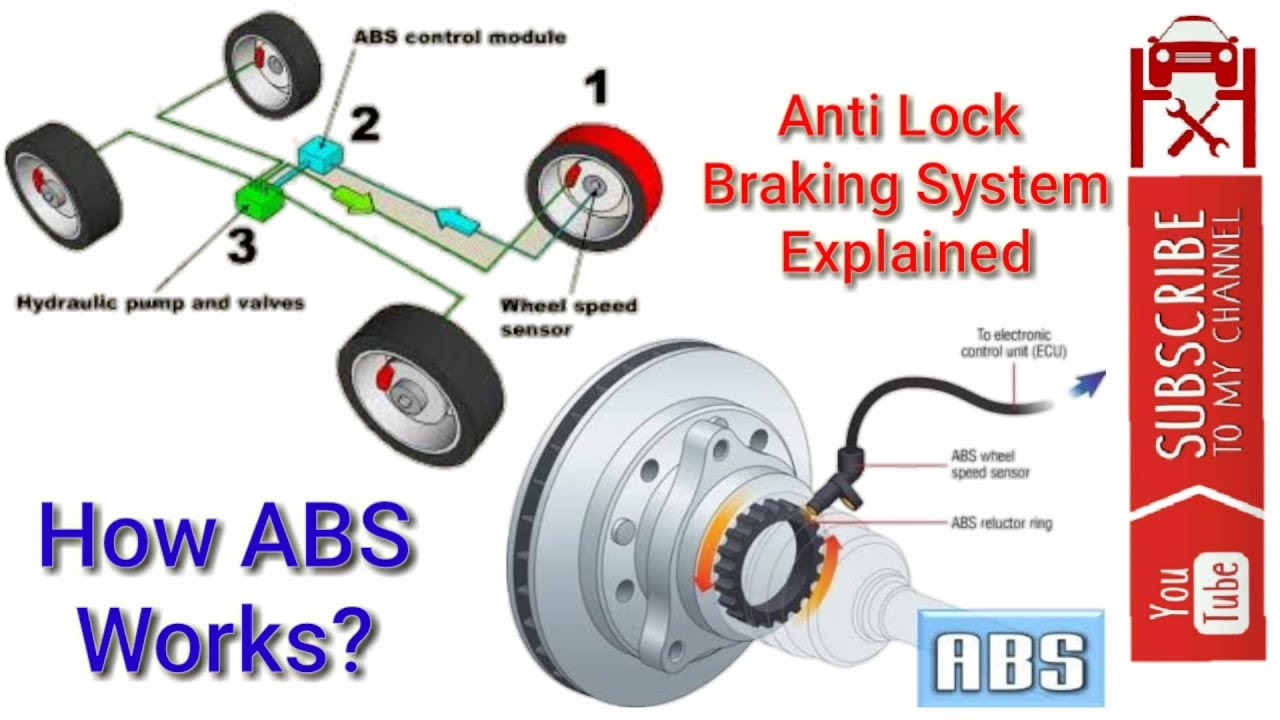

At the heart of the ABS system are several key components:

Wheel Speed Sensors: These sensors are located at each wheel and monitor the rotational speed of the wheel. They send data to the ABS control module. The sensors can be variable reluctance sensors, Hall effect sensors, or magneto-resistive sensors. The output of these sensors is a signal that corresponds to the wheel speed. A locked wheel condition is detected by comparing the speed of individual wheels.
ABS Control Module (ECU): This is the "brain" of the ABS system. It receives data from the wheel speed sensors and determines if a wheel is about to lock up. Based on this information, it sends commands to the hydraulic control unit. The ECU uses a PID (Proportional-Integral-Derivative) controller to achieve optimal brake pressure regulation.
Hydraulic Control Unit (HCU): This unit contains valves and a pump that modulate the brake pressure to each wheel. When the ECU detects a wheel lockup, the HCU rapidly cycles the brake pressure, releasing and reapplying it several times per second. The HCU contains solenoid valves which are individually controlled to increase, hold or decrease brake pressure at each wheel cylinder. An accumulator stores brake fluid at high pressure for use by the pump.
Brake Lines and Calipers: These components are part of the conventional braking system, but they are also essential for ABS functionality.

The system works as follows: When you apply the brakes, the wheel speed sensors constantly monitor the wheel speeds. If one or more wheels start to decelerate rapidly, indicating an impending lockup, the ABS control module activates the hydraulic control unit. The HCU reduces brake pressure to the affected wheel(s), preventing them from locking up. This allows the tires to maintain traction, enabling you to steer and control the vehicle. The rapid cycling of brake pressure is what causes the pulsating sensation you feel in the brake pedal during ABS activation.

Identifying ABS in Your Vehicle: Practical Methods

Here are several ways to determine if your car has ABS:

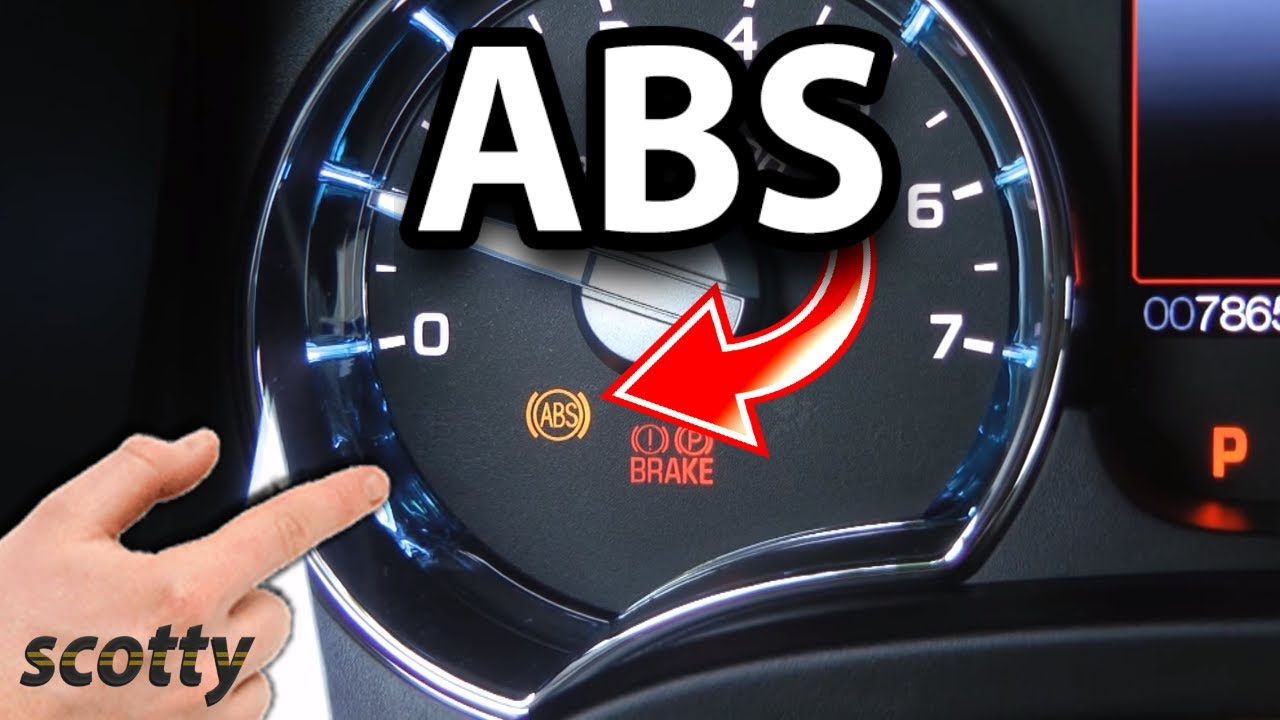

Check the Instrument Cluster: The easiest way to check for ABS is to look for an ABS indicator light on your instrument cluster. This light usually illuminates briefly when you start the car as part of the system's self-test. If the light remains on, it indicates a problem with the ABS system. The symbol is usually "ABS" or a circle surrounding the letters "ABS".
Consult the Owner's Manual: Your owner's manual will provide detailed information about your car's features, including whether or not it has ABS.
Inspect the Wheel Hubs: Look behind each wheel at the brake assembly. If your car has ABS, you should see a wire and a sensor connected to the wheel hub, near the brake rotor. This is the wheel speed sensor. It is usually a circular or rectangular device. The wire is usually sheathed to protect it from the elements.
Perform a Simulated Emergency Stop (in a Safe Area): Find a safe, open area with no traffic (like an empty parking lot). Accelerate to a moderate speed (e.g., 25-30 mph) and then apply the brakes firmly, as if you were performing an emergency stop. If your car has ABS, you should feel a pulsating sensation in the brake pedal, and you may hear a clicking or grinding noise. Also, the car should not skid. Be very careful when performing this test, and ensure that you have plenty of space to stop safely.

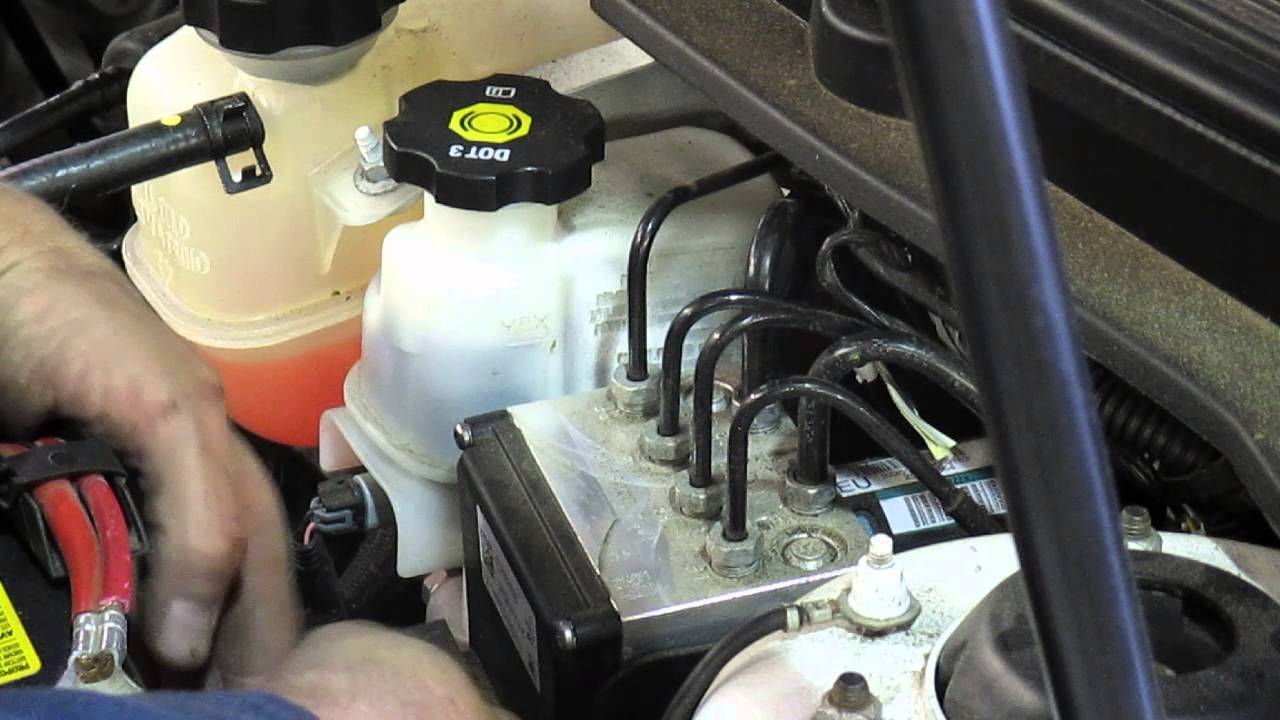

Check the Master Cylinder Area: Open the hood and locate the brake master cylinder. If your vehicle has ABS, you will likely see an additional hydraulic unit (the HCU) with several brake lines connected to it. This unit is typically larger and more complex than a standard master cylinder.
Scan the Vehicle's Computer (OBD-II Scanner): If you have an OBD-II scanner, you can connect it to your car's diagnostic port and check for ABS-related trouble codes. Even if the ABS warning light isn't illuminated, there may be stored codes that indicate a problem with the system. Look for codes that start with the letter "C" which are chassis related codes. A generic code such as C0031 would indicate a fault with the left front wheel speed sensor.

Common ABS Issues and Maintenance Concerns

Like any automotive system, ABS can experience problems over time. Here are some common issues:

Wheel Speed Sensor Failure: These sensors are exposed to harsh conditions (dirt, moisture, road salt) and can fail. A faulty wheel speed sensor can trigger the ABS warning light and disable the system. Symptoms include the ABS light being on and the car defaulting to standard brakes.
Hydraulic Control Unit Malfunction: The HCU is a complex electro-hydraulic unit, and it can fail due to internal component wear, corrosion, or electrical issues.
ABS Control Module Failure: The ABS control module can fail due to electrical problems or internal component failure.
Low Brake Fluid: While not directly an ABS issue, low brake fluid can affect the overall braking system and potentially trigger the ABS warning light. Always ensure your brake fluid is at the correct level.
Air in the Brake Lines: Air in the brake lines can cause a soft or spongy brake pedal and may also interfere with ABS operation.

Regular maintenance is crucial for ensuring the ABS system functions correctly. This includes:

Checking Brake Fluid Level and Condition: Brake fluid absorbs moisture over time, which can corrode internal brake components and reduce braking performance. Replace brake fluid according to your car's maintenance schedule.
Inspecting Brake Pads and Rotors: Worn brake pads or rotors can affect braking performance and potentially impact ABS operation. Replace these components as needed.
Inspecting Wheel Speed Sensors: Visually inspect the wheel speed sensors for damage or corrosion. Clean the sensors if necessary.

Do's and Don'ts for ABS-Equipped Vehicles

Here are some important do's and don'ts to keep in mind when driving a car with ABS:

Do maintain firm and constant pressure on the brake pedal during emergency braking. Do not pump the brakes. The ABS system is designed to modulate the brake pressure automatically.
Do steer around obstacles while braking. ABS allows you to maintain steering control even during hard braking.
Don't be alarmed by the pulsating sensation in the brake pedal. This is normal when ABS is activated.
Don't ignore the ABS warning light. If the light comes on, have the system inspected by a qualified mechanic.
Do be aware that ABS may not work as effectively on loose gravel or deep snow. In these conditions, it may be necessary to modulate the brake pressure manually.
Don't assume that ABS guarantees shorter stopping distances in all situations. Stopping distances can still be affected by factors such as road conditions, tire condition, and vehicle speed.

Conclusion

Knowing whether your car has ABS is essential for understanding its braking capabilities and responding appropriately in emergency situations. By using the methods described in this article, you can quickly determine if your vehicle is equipped with ABS. Regular maintenance and awareness of the system's operation will help ensure that your ABS system functions correctly and provides you with the safety and control you need on the road. If you're unsure or experience any issues with your braking system, consult a qualified mechanic for professional diagnosis and repair.
