How To Lower Nox For Smog Test

Failing a smog test due to high NOx (Nitrogen Oxides) emissions can be a frustrating experience for any car owner. It's not just about getting your car to pass; understanding why your vehicle is emitting excessive NOx and how to reduce it is crucial for both environmental responsibility and maintaining optimal engine performance. This article delves into the science behind NOx formation, the common culprits behind high readings, and the various strategies you can employ to lower those numbers and pass that dreaded smog test.

Understanding the NOx Problem: A Tiny Engine's Big Headache

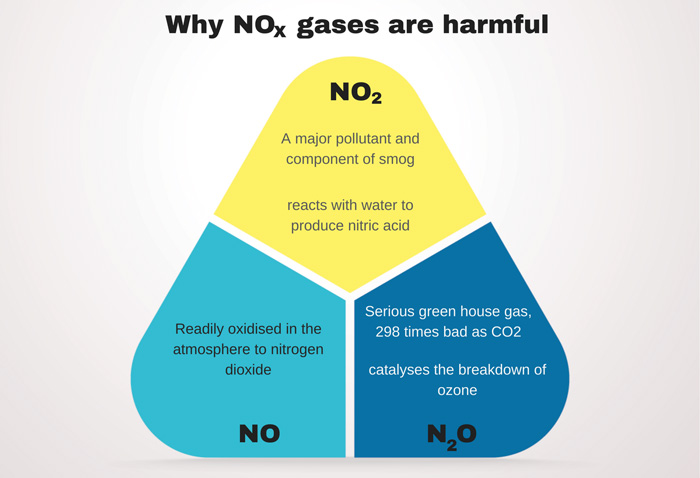

Imagine your engine as a miniature, meticulously controlled explosion chamber. Fuel and air combine, ignite, and push your pistons, ultimately powering your wheels. Now, imagine that explosion getting a little too hot, like overcooking a meal. At excessively high temperatures, the nitrogen (N₂) and oxygen (O₂) molecules in the air start to react with each other, forming various nitrogen oxides (NOx). These oxides, primarily NO and NO₂, are potent pollutants that contribute to smog and acid rain. They also present a health hazard, irritating the respiratory system.

Think of it like this: you're baking cookies. If your oven is set too high, you won't just burn the edges; you'll also create undesirable byproducts like burnt sugar and acrid smells. Similarly, excessive engine combustion temperatures lead to the creation of NOx.

How the System Works: A Deep Dive into NOx Control

Modern vehicles employ several strategies to mitigate NOx emissions. The primary component dedicated to NOx reduction is the Catalytic Converter, specifically a three-way catalytic converter. This converter, typically located in the exhaust system, uses chemical reactions to break down pollutants. Within the converter, precious metals like platinum, palladium, and rhodium act as catalysts, speeding up these reactions.

The Role of the Three-Way Catalytic Converter

The three-way catalytic converter gets its name from its ability to simultaneously address three major pollutants: hydrocarbons (HC), carbon monoxide (CO), and nitrogen oxides (NOx). For NOx reduction, rhodium is the key player. It promotes the following reaction:

2NOx → N₂ + xO₂

In simpler terms, the NOx molecules are broken down into harmless nitrogen gas (N₂), which makes up the majority of the air we breathe, and oxygen (O₂).

EGR: Exhaust Gas Recirculation - Cooling the Fire

Another critical system for NOx control is the Exhaust Gas Recirculation (EGR) system. EGR works by re-circulating a portion of the exhaust gases back into the intake manifold. This might sound counterintuitive – why would you want to feed exhaust back into the engine? The answer lies in temperature control. Exhaust gas is inert (it doesn't burn readily) and displaces some of the fresh air. Introducing exhaust gas lowers the peak combustion temperature within the cylinders, thus reducing NOx formation. The percentage of exhaust gas recirculated is carefully controlled by the EGR valve, often regulated by the engine control unit (ECU) based on various parameters like engine load, speed, and temperature.

Lean vs. Rich: The Air-Fuel Ratio and NOx

The air-fuel ratio plays a significant role in NOx emissions. A lean mixture (more air than fuel) tends to burn hotter and produce more NOx, while a rich mixture (more fuel than air) burns cooler but can produce higher HC and CO emissions. The ECU constantly adjusts the air-fuel ratio based on feedback from oxygen sensors in the exhaust stream to maintain a stoichiometric ratio (around 14.7:1 for gasoline engines) – the ideal balance for efficient combustion and minimal emissions. However, if oxygen sensors are faulty, or there are vacuum leaks introducing unmetered air, the air-fuel mixture can be thrown off, leading to increased NOx.

Troubleshooting High NOx: Finding the Culprits

Several factors can contribute to elevated NOx emissions. Here's a breakdown of the common suspects:

Faulty Catalytic Converter: The most common cause. Over time, the catalyst material in the converter can degrade, reducing its efficiency in converting NOx. This is especially true for older vehicles or those that have been subjected to excessive wear and tear.
Malfunctioning EGR System: If the EGR valve is stuck closed or the EGR system is otherwise malfunctioning, the combustion temperatures will be higher, leading to increased NOx. Carbon buildup in the EGR valve is a common issue, preventing it from opening properly.
Vacuum Leaks: Vacuum leaks allow unmetered air to enter the engine, creating a lean condition that raises combustion temperatures.
Overheated Engine: Problems with the cooling system, such as a faulty thermostat or radiator, can cause the engine to overheat, leading to higher NOx emissions.
Lean Fuel Mixture: Faulty oxygen sensors, fuel injectors, or a malfunctioning mass airflow (MAF) sensor can cause the engine to run lean, increasing NOx.
Timing Issues: Incorrect ignition timing can also contribute to higher combustion temperatures.
Carbon Buildup: Excessive carbon buildup inside the combustion chamber can increase compression, leading to higher temperatures.

Strategies to Lower NOx: A Practical Guide

Now that you understand the causes of high NOx, let's explore some practical solutions:

Catalytic Converter Replacement: If your catalytic converter is old or damaged, replacing it is often the most effective solution. However, ensure you're using a CARB-compliant converter (in California and other states with similar regulations) to ensure it meets emission standards. Pros: Most effective solution. Cons: Can be expensive.
EGR System Cleaning or Repair: Cleaning the EGR valve and passages can often restore its proper function. If the valve is severely damaged, replacement may be necessary. Pros: Relatively inexpensive. Cons: May not be effective if the valve is severely damaged. Manufacturer Example: Many online guides exist showing how to clean EGR valves on specific Honda and Toyota models.
Vacuum Leak Repair: Inspect all vacuum lines for cracks or leaks and replace them as needed. Using a smoke machine can help locate hard-to-find leaks. Pros: Relatively inexpensive. Cons: Requires careful inspection.
Cooling System Maintenance: Ensure your cooling system is functioning properly. Check the coolant level, inspect the radiator for leaks, and replace the thermostat if needed. Pros: Relatively inexpensive, prevents other engine problems. Cons: May not directly address NOx if other issues are present.
Oxygen Sensor Replacement: Replace faulty oxygen sensors to ensure proper air-fuel mixture control. Pros: Improves fuel economy and emissions. Cons: Requires proper diagnosis.
Fuel Injector Cleaning or Replacement: Dirty or clogged fuel injectors can disrupt the fuel spray pattern, leading to incomplete combustion and higher emissions. Consider fuel injector cleaning or replacement. Pros: Improves fuel economy and emissions. Cons: Requires specialized equipment or professional service.
Timing Adjustment: If your vehicle has adjustable ignition timing, have it checked and adjusted by a qualified mechanic. Pros: Can improve performance and emissions. Cons: Requires specialized tools and knowledge.
Fuel Additives: Some fuel additives claim to reduce NOx emissions by cleaning fuel injectors and combustion chambers. While their effectiveness can vary, they may provide a small improvement. Pros: Inexpensive. Cons: Effectiveness is debatable.
Run Premium Fuel (Maybe): While not always a guaranteed fix, some vehicles benefit from running premium fuel, especially if the engine is designed for it or if you're experiencing knock. Premium fuel can burn more completely and cooler, potentially reducing NOx. Pros: Easy to try. Cons: Can be more expensive.
Seafoam Treatment (Caution): Using a Seafoam treatment before a smog test may help clean carbon deposits. Caution: Follow instructions exactly. Incorrect use can damage your engine. Pros: Can clean carbon deposits. Cons: Requires careful use.

Real-World Insights and Recommendations

Lowering NOx for a smog test often involves a combination of troubleshooting and preventative maintenance. Before diving into expensive repairs, start with the basics: check for vacuum leaks, ensure your cooling system is functioning correctly, and consider a fuel injector cleaning. If your vehicle is older and has never had a catalytic converter replacement, that's often the first and most effective step. Remember to use a CARB-compliant converter if required in your area.

For EGR system issues, cleaning the valve is a good starting point. Numerous online resources and videos provide detailed instructions for specific vehicle makes and models. If cleaning doesn't resolve the problem, replacement may be necessary.

Finally, consider the age and overall condition of your vehicle. If it's nearing the end of its lifespan, investing in major repairs may not be the most cost-effective solution. In some cases, it may be more practical to consider replacing the vehicle altogether.

Important Note: Always consult a qualified mechanic if you're unsure about any repairs or procedures. Improper repairs can damage your vehicle and lead to even higher emissions. Furthermore, tampering with emissions control systems is illegal in many jurisdictions.
