How To Manually Raise Power Window

So, your power window's stuck. We've all been there. Maybe it's pouring rain, maybe you just need to grab your parking ticket. Regardless, a malfunctioning power window can be a major inconvenience. While modern cars make things *easier* most of the time, they also add complexity. This article provides a guide on how to manually raise a power window, not just in an emergency, but also to diagnose the root cause of the problem for proper repairs.

Understanding the Power Window System

Before we get our hands dirty, let's quickly review how a power window system generally works. This understanding will help you troubleshoot and prevent future issues.

The Components

A typical power window system consists of the following primary components:

Power Window Motor: This is the heart of the system. It's a small, reversible DC (Direct Current) motor that provides the rotational force to move the window regulator.

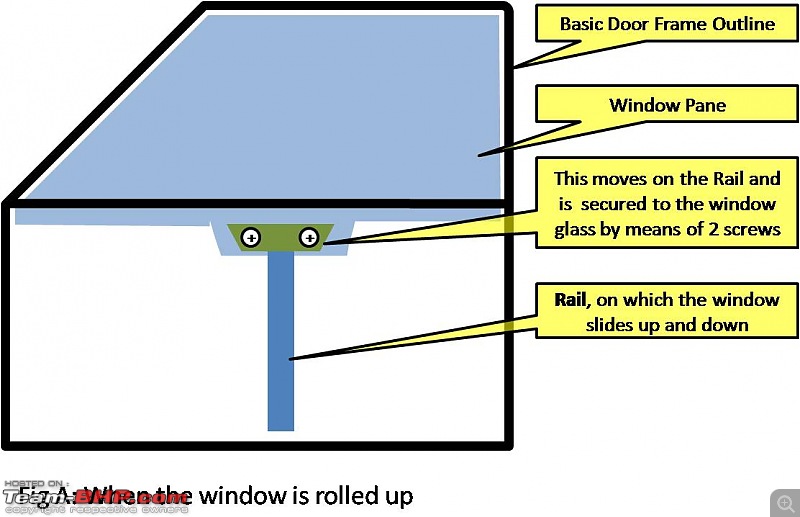

Window Regulator: This is a mechanical assembly connected to the motor. There are typically two types:

Cable-Type Regulator: Uses a series of cables and pulleys to move the window. These are more common in modern vehicles because they are lighter and less expensive.
Scissor-Type Regulator: Employs a scissor-like mechanism to raise and lower the window. These are older, heavier, but often more durable.

Window Switch: This is the electrical switch that the driver or passenger uses to control the window. It sends a signal to the motor to move in either the up or down direction.
Wiring Harness: A network of wires that connects all the components of the system.
Fuse/Circuit Breaker: A safety device that protects the electrical circuit from overcurrent.
Window Glass and Guides: The window itself, and the tracks (guides) that it moves within. Cleanliness and proper lubrication of these guides are essential for smooth operation.

How it Works (In Simple Terms)

When you press the window switch, it completes an electrical circuit that powers the window motor. The motor rotates, which, in turn, drives the window regulator. The regulator's mechanical action raises or lowers the window glass within its guides. The polarity (positive and negative) of the voltage applied to the motor determines the direction of rotation (up or down).

Manually Raising a Power Window: The Techniques

Now for the crucial part: getting that window up. There are several methods, ranging from simple to slightly more involved. Remember to always prioritize safety and disconnect the battery if you're working directly with electrical components.

Method 1: The "Tap and Pray" (Sometimes Works)

This is the simplest method, best used as a first attempt when you suspect a sticky motor:

Turn the ignition to the "ON" position (without starting the engine).
Press and hold the window switch in the "UP" position.
Simultaneously, gently but firmly tap the door panel near the window motor with your fist or a rubber mallet. The vibration *might* dislodge a stuck motor.
If the window moves even slightly, keep tapping and holding the switch until it's fully closed.

Why it works: Sometimes the motor brushes can get stuck or debris can obstruct the motor's rotation. The tapping can jolt things loose. This is a temporary fix at best.

Method 2: Direct Motor Manipulation (More Involved)

This method requires access to the window motor. You'll need some basic tools:

Screwdrivers (various types, depending on your car)
Pliers
Multimeter (optional, for testing voltage)

Safely disconnect the battery: This is crucial to prevent electrical shock or damage to the electrical system.

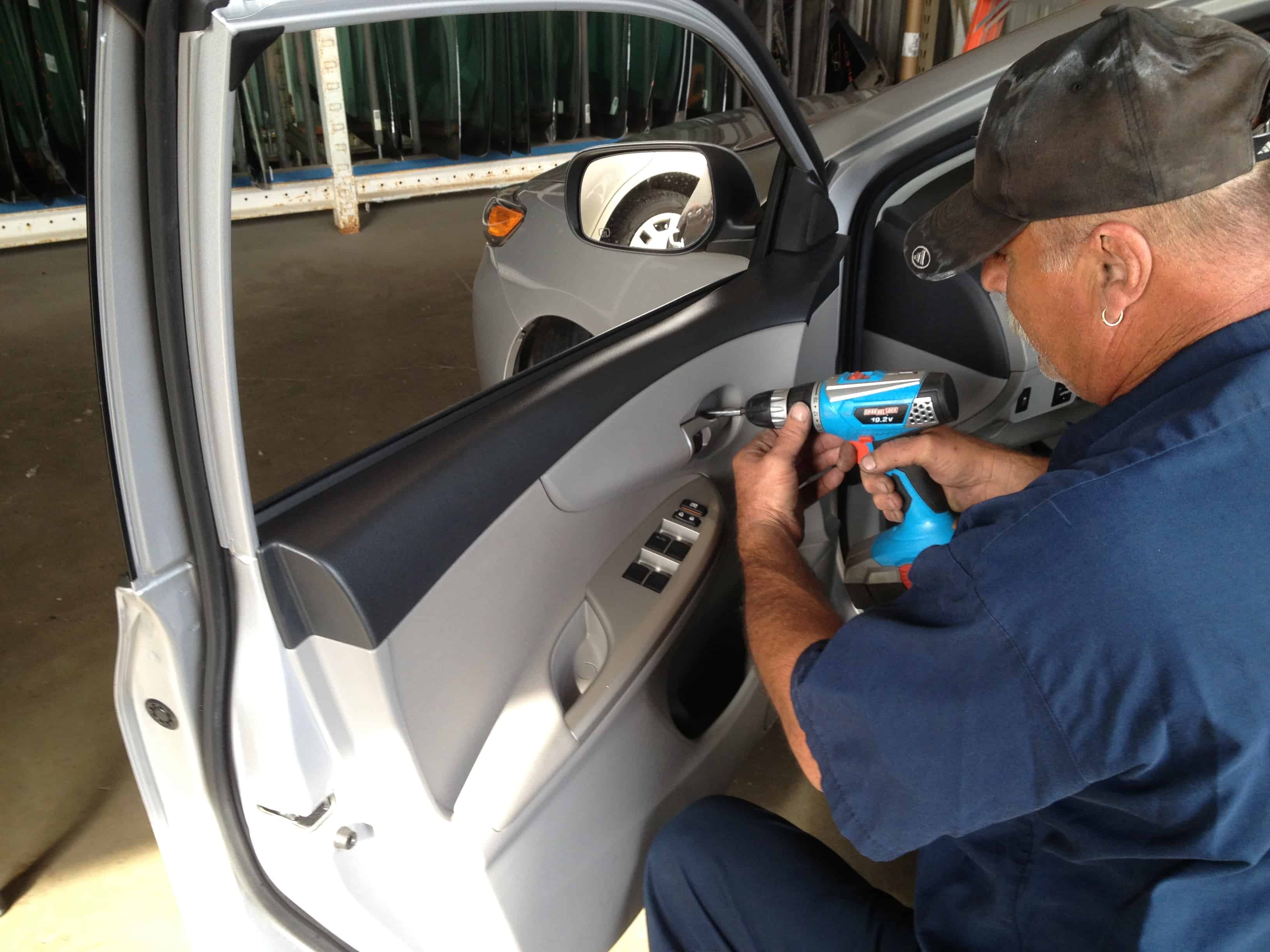

Remove the door panel: This usually involves removing screws (often hidden under plastic covers) and using a trim tool to gently pry the panel away from the door frame. Be careful not to damage the plastic clips.
Locate the window motor: It's usually a small, cylindrical motor attached to the window regulator. Consult your vehicle's repair manual (if you have one) for the exact location.
Disconnect the motor connector: Unplug the electrical connector from the motor.

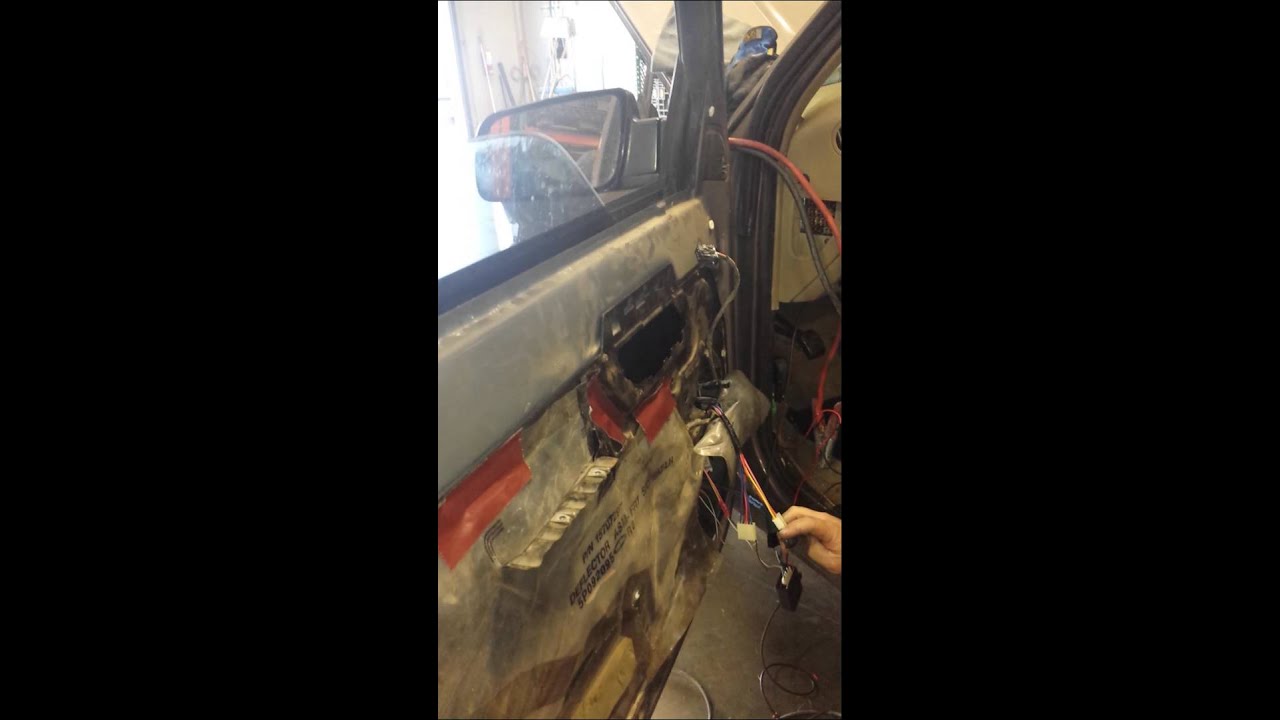

Directly power the motor (advanced):
- If you're comfortable with electrical work: You can try to apply 12V DC directly to the motor terminals using jumper wires connected to a spare battery. Pay attention to the polarity! Reversing the polarity will make the motor run in the opposite direction. You might have to test different polarity to make the window go up. Important! Use caution and ensure the wires are securely connected to avoid short circuits.
- If you're *not* comfortable: Skip this step and proceed to manually manipulating the regulator.
Manually manipulate the regulator:
- Cable-Type Regulator: Look for the spool where the cable winds. Use pliers to carefully turn the spool in the direction that raises the window. This may be difficult and require significant force.
- Scissor-Type Regulator: Look for the main drive gear on the motor or the gear that connects the motor to the mechanism. Use a wrench or pliers to turn this gear, raising the window. Again, this may require significant force.
Once the window is fully up, secure it in place: You may need to use wedges or tape to prevent it from sliding back down while you diagnose the problem.
Reconnect the battery.
Reinstall the door panel.

Why it works: Bypassing the electrical system allows you to directly control the window mechanism. Manipulating the regulator directly overcomes any potential issues with the switch, wiring, or motor.

Method 3: Window Wedge and Manual Lift (Last Resort)

This method is the most basic and potentially the most damaging. Use this only when other methods fail, and only if necessary to secure the vehicle:

Use a rubber or plastic wedge (like those used for installing windows) to create a small gap between the window glass and the door frame, near the top of the window.
Carefully and gradually increase the size of the gap by inserting larger wedges or by working the existing wedge further in.
Once you have enough of a gap, try to manually lift the window glass. This will be difficult because the regulator is designed to hold the window in place. You may need to use significant force. Be careful not to break the glass or damage the regulator.
Once the window is fully up, secure it in place.

Why it works: Forces the window up. This method can *easily* damage the window, regulator, or door frame if not done carefully. Use with extreme caution!

Common Issues and Maintenance Concerns

Once you've manually raised the window, it's time to diagnose the problem. Here are some common causes:

Blown Fuse: Check the fuse for the power windows. Replace it with a fuse of the correct amperage.
Faulty Window Switch: The switch itself might be defective. You can test it with a multimeter to see if it's sending the correct signals.
Bad Window Motor: The motor might be worn out or damaged. You can test it by applying 12V DC directly to the terminals (as described above). If it doesn't run, the motor is likely the problem.
Wiring Problems: Damaged or corroded wires can disrupt the electrical circuit. Inspect the wiring harness for any signs of damage.
Sticking Window Regulator: The regulator mechanism might be binding or obstructed. Lubricate the moving parts with a silicone-based lubricant.
Window Off Track: The window glass might have come out of its tracks (guides). This can happen if the regulator is damaged or if the window has been forced.

Preventative Maintenance: Regularly lubricate the window tracks and regulator mechanism with a silicone-based lubricant. Avoid slamming the doors with the windows partially open, as this can put stress on the regulator.

Do's and Don'ts / Best Practices

DO disconnect the battery before working on the electrical system.
DO use the correct tools for the job.
DO consult your vehicle's repair manual for specific instructions.
DO be careful when working with glass to avoid cuts.
DON'T force anything. If something is difficult to move, investigate the cause before applying more force.
DON'T use excessive force when manually manipulating the regulator. You could damage it.
DON'T neglect preventative maintenance. Lubrication can prevent many problems.
Best Practice: If you're not comfortable working on electrical systems, take your car to a qualified mechanic.

Conclusion

Manually raising a power window is a useful skill, especially in emergencies. However, it's important to remember that it's usually a temporary fix. While the "tap and pray" method might offer a quick resolution, diagnosing and repairing the underlying issue is essential for long-term reliability. If you're an experienced DIYer, tackling the repair yourself can save you money. However, if you're unsure of your abilities, seeking the expertise of a trusted mechanic is always the safest and most reliable option. Remember to prioritize safety and always disconnect the battery when working on electrical components. Ultimately, a properly functioning power window system contributes to your comfort and safety on the road.
