How To Open Hood Of Car With Dead Battery

A dead battery. It's a situation every car owner dreads. Often, the first step in resolving this issue – whether you're jump-starting, charging, or replacing the battery – requires you to open the hood. But what happens when the very component needed to activate the hood release, your battery, is the problem? This article provides a comprehensive guide for experienced DIYers on how to bypass the standard hood release mechanism and access the engine bay when your battery is flat.

Understanding the Hood Release System

Before diving into the bypass methods, it's crucial to understand how the standard hood release system functions. Knowing the system's design will enable you to identify potential weaknesses and leverage them for a successful manual override.

The Mechanical Linkage

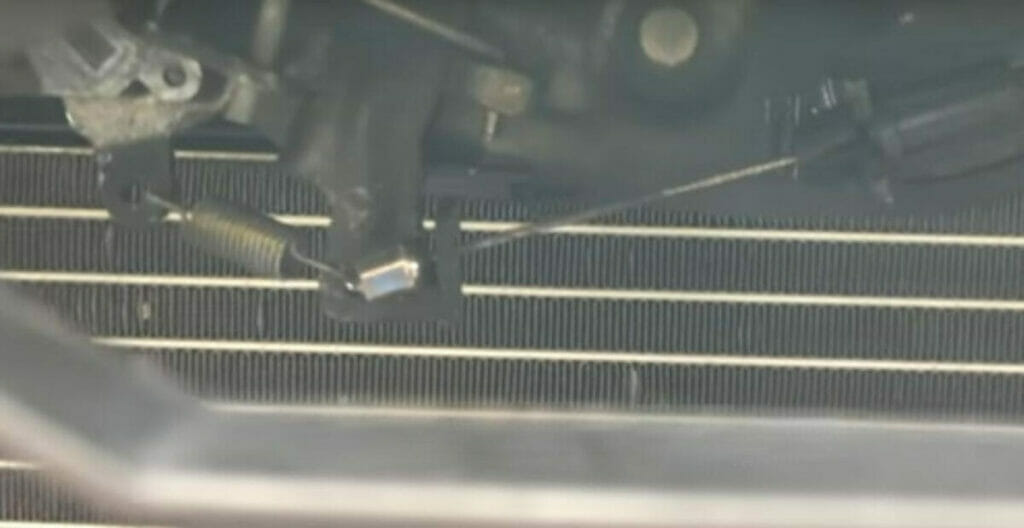

In most vehicles, the hood release system is a mechanical linkage. When you pull the hood release lever inside the car (typically located under the dashboard on the driver's side), you're pulling on a steel cable. This cable runs from the lever, through the firewall, and terminates at a latch mechanism located under the hood, usually near the center, or slightly offset to one side. The latch mechanism is designed to disengage a hook or pin securing the hood to the vehicle's chassis.

A secondary safety latch is almost universally present. This small lever or tab, usually bright yellow or red, must be manually operated after the main hood latch is released. This prevents the hood from flying open completely if the primary latch fails during driving. The safety latch typically resides directly under the front edge of the hood.

Variations and Complexity

While the core principle of a cable-operated latch remains the same, variations exist. Some vehicles, particularly newer or higher-end models, may incorporate electronic hood releases as part of an overall anti-theft system, where a solenoid controls the latch and the interior release is a switch instead of a physical cable. These systems often default to a mechanically actuated release in case of electrical failure, but it's still essential to understand your specific car's design. Refer to your vehicle's service manual for details.

Technical Breakdown: Bypassing the Dead Battery

With a dead battery, the interior hood release lever becomes useless since the solenoid in case of the electronic release will be inoperative. The goal is to manually actuate the latch mechanism from outside the vehicle. Here's a breakdown of common methods:

Method 1: The External Cable Reach (The Simplest Approach)

This method relies on gaining access to the hood release cable itself. This is only viable if a small portion of the cable is exposed, or is at least reachable.

1. Identify Cable Location: Look for the hood release cable where it exits the firewall, usually in the engine bay, right behind where the hood release lever would be on the driver's side. Often, you can access it from underneath the car.
2. Gain Access: Use a jack and jack stands to safely lift the front of the car (if necessary). Always use proper safety precautions when working under a vehicle. Never rely solely on a jack.
3. Reach and Pull: Using a long, thin tool, such as a straightened coat hanger, pliers, or a specialized cable puller, try to grab the cable and pull it towards the front of the car. Simulate the pulling action of the interior release lever.
4. Engage Secondary Latch: Once you feel or hear the main latch release, locate the secondary safety latch under the hood and disengage it.

Method 2: Accessing the Latch Mechanism Directly

This is a more involved method, requiring you to visually locate and manipulate the latch mechanism itself.

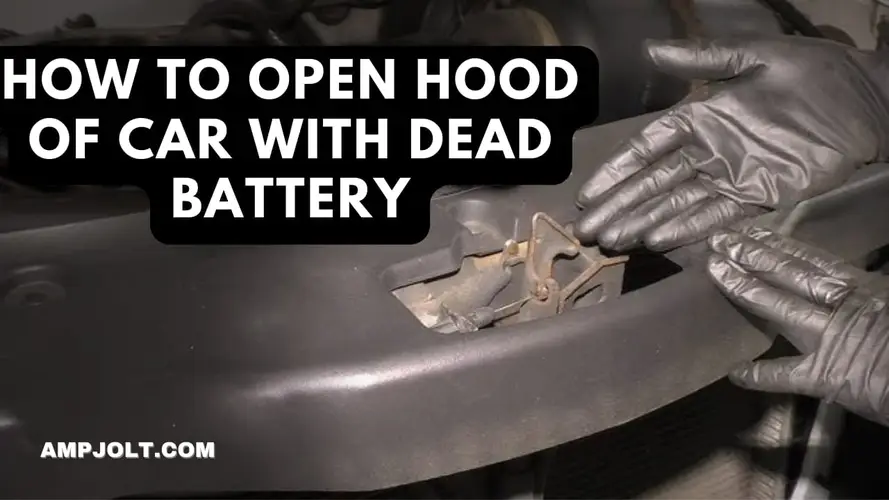

1. Locate the Latch: Determine the position of the hood latch. It's usually centered under the hood or slightly off to one side, directly above the grille.
2. Create Access: Depending on the car's design, you may need to create a small gap to view the latch mechanism. This might involve carefully prying up the edge of the hood slightly (protect the paint with a soft cloth) or removing the front grille (often held in place by clips or screws).
3. Visualize and Identify: Using a flashlight, inspect the latch mechanism. Look for the lever or arm that the cable would normally pull.
4. Manipulate the Latch: Using a long, thin tool (screwdriver, coat hanger), carefully reach into the engine bay and try to manually move the lever or arm on the latch mechanism. Experiment with different angles and pressures until the latch releases.
5. Engage Secondary Latch: As before, once the main latch is released, locate and disengage the secondary safety latch.

Method 3: Bypassing Through the Wheel Well (If Applicable)

Some vehicles have openings or access panels in the wheel wells that allow you to reach into the engine bay, potentially offering a route to the hood release mechanism.

1. Remove Wheel Well Liner: Remove the screws or clips holding the wheel well liner in place on the side of the car closest to the hood latch (determined by its position). This may require partially or fully removing the wheel.
2. Identify Access Points: Look for any openings or gaps that provide a view or access to the engine bay.
3. Reach and Manipulate: Using a long tool, attempt to reach the hood release cable or latch mechanism and manipulate it as described in the previous methods.
4. Engage Secondary Latch: Remember to disengage the secondary safety latch once the main latch is released.

Common Issues and Maintenance Concerns

The hood release system is typically reliable, but issues can arise that might exacerbate a dead battery situation:

• Cable Corrosion and Stiffness: Over time, the hood release cable can corrode or become stiff, making it harder to pull, even with a functional battery. Regular lubrication with a cable lubricant can prevent this.
• Latch Mechanism Corrosion: The latch mechanism itself can also corrode, causing it to bind or stick. Cleaning and lubricating the latch mechanism with a suitable lubricant (like white lithium grease) is recommended during routine maintenance.
• Broken Cable: The hood release cable can snap, rendering the interior release lever useless. A broken cable requires replacement.
• Loose Cable Connection: The cable can detach from either the release lever or the latch mechanism. Regularly inspect the cable connections for security.
• Electronic Fault (Electronic Release Systems): In systems with electronic releases, a faulty solenoid, wiring issue, or module failure can prevent the hood from opening. This usually requires diagnostic equipment and specialized knowledge to troubleshoot.

Do's and Don'ts / Best Practices

• DO use proper safety precautions when working under a vehicle. Use jack stands, wear eye protection, and disconnect the negative battery cable (if possible, even if it's dead) to prevent accidental shorts.
• DO protect the paint on your vehicle. Use soft cloths to prevent scratches when prying or manipulating the hood or grille.
• DO consult your vehicle's service manual for specific instructions and diagrams related to your model.
• DON'T use excessive force when prying or manipulating the hood or latch mechanism. You could damage the components.
• DON'T work alone. Having a second person can be invaluable for spotting issues, providing assistance, and ensuring safety.
• DON'T attempt these methods if you are uncomfortable or lack the necessary skills and tools. Seek professional assistance from a qualified mechanic.

Conclusion

Opening the hood of a car with a dead battery can be a frustrating situation, but with a methodical approach and a little ingenuity, it's often achievable. By understanding the hood release system's design and employing the techniques outlined above, experienced DIYers can bypass the standard mechanism and gain access to the engine bay. Remember to prioritize safety, consult your vehicle's service manual, and don't hesitate to seek professional help if needed. Regular maintenance of the hood release system, including lubricating the cable and latch mechanism, can prevent future issues. Addressing the dead battery issue, whether jump-starting, charging, or replacement, follows logically once you've successfully opened the hood.
