How To Plug A Car Tire

A flat tire. The bane of every driver's existence. It always seems to happen at the worst possible time, leaving you stranded on the side of the road. While calling for roadside assistance is often the go-to solution, there's a quicker, cheaper, and surprisingly satisfying alternative: plugging the tire. This article provides an in-depth look at the process, mechanics, and considerations surrounding tire plugging, aimed at those curious about how it works and whether it's the right solution for them.

The Case for Tire Plugging: A Punctured Scenario

Imagine this: You're cruising down the highway, enjoying a scenic drive, when suddenly you hear that dreaded "thump-thump-thump" of a flat tire. Pulling over, you inspect the damage and discover a nail firmly embedded in the tread. This is a prime example of a situation where a tire plug can be a lifesaver. Instead of waiting for a tow truck or attempting to wrestle with a spare tire (which may be under-inflated or even nonexistent in some modern vehicles), you could potentially repair the tire yourself in a matter of minutes and get back on the road.

How Tire Plugging Works: A Mechanical Deep Dive

The principle behind tire plugging is remarkably simple: to fill the puncture hole with a pliable, adhesive material that prevents air from escaping. Let's break down the process and the tools involved:

The Tools of the Trade

Tire Plug Kit: This typically includes a reaming tool (also called a rasp or insertion tool), an insertion tool, and several self-vulcanizing rubber plugs.
Pliers or Vice Grips: For removing the offending object (nail, screw, etc.).
Utility Knife or Razor Blade: To trim excess plug material after installation.
Tire Inflator: A portable air compressor or even a bicycle pump to re-inflate the tire.
Optional: Tire pressure gauge, work gloves, eye protection, and a small container of soapy water for leak testing.

The Plugging Process: Step-by-Step

Preparation: Locate the puncture. If it's not immediately obvious, listen for a hissing sound or use soapy water to identify the source of the leak.
Object Removal: Use pliers or vice grips to carefully remove the nail, screw, or other foreign object from the tire. Take note of the angle of the object, as this will help you determine the direction of the puncture.

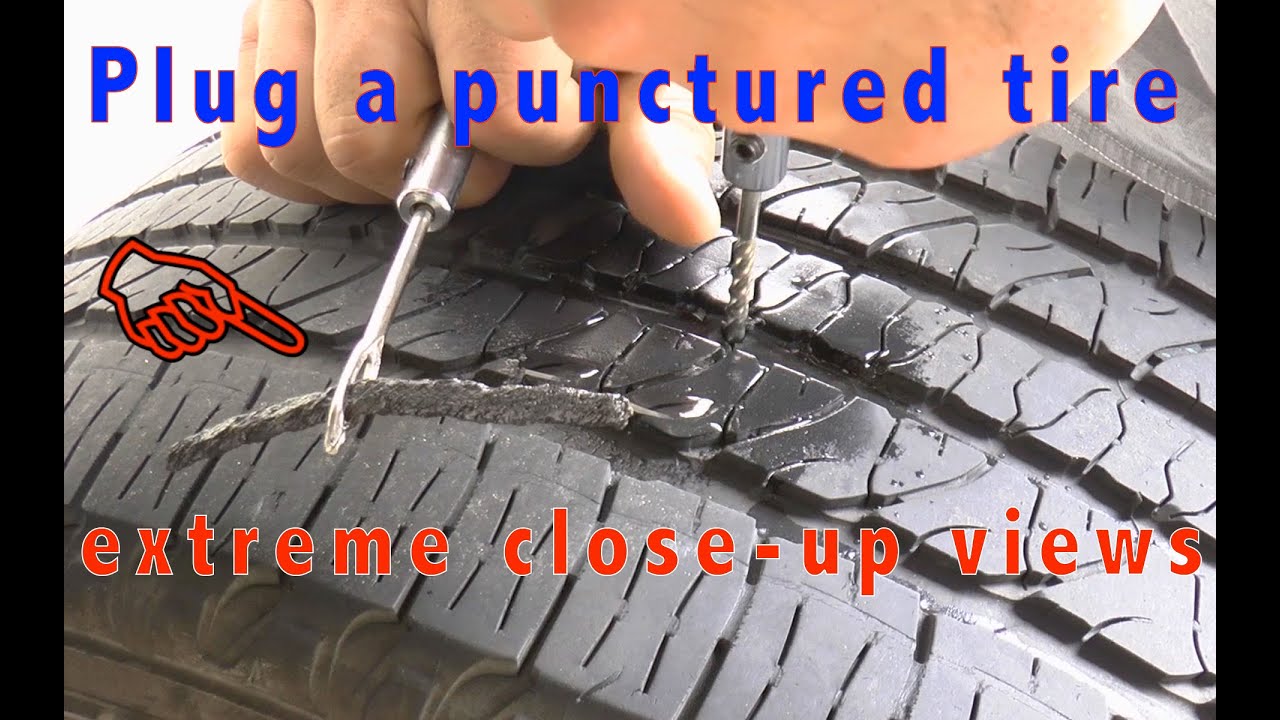

Reaming the Hole: The reaming tool is used to clean and enlarge the puncture hole, creating a rough surface for the plug to adhere to. Insert the reaming tool into the hole and push it in and out several times, twisting as you go. This step is crucial for ensuring a proper seal.
Plug Insertion: Thread a self-vulcanizing rubber plug through the eye of the insertion tool, positioning it so that the plug is centered. Apply a small amount of rubber cement (if included in the kit) to the plug to aid in adhesion.

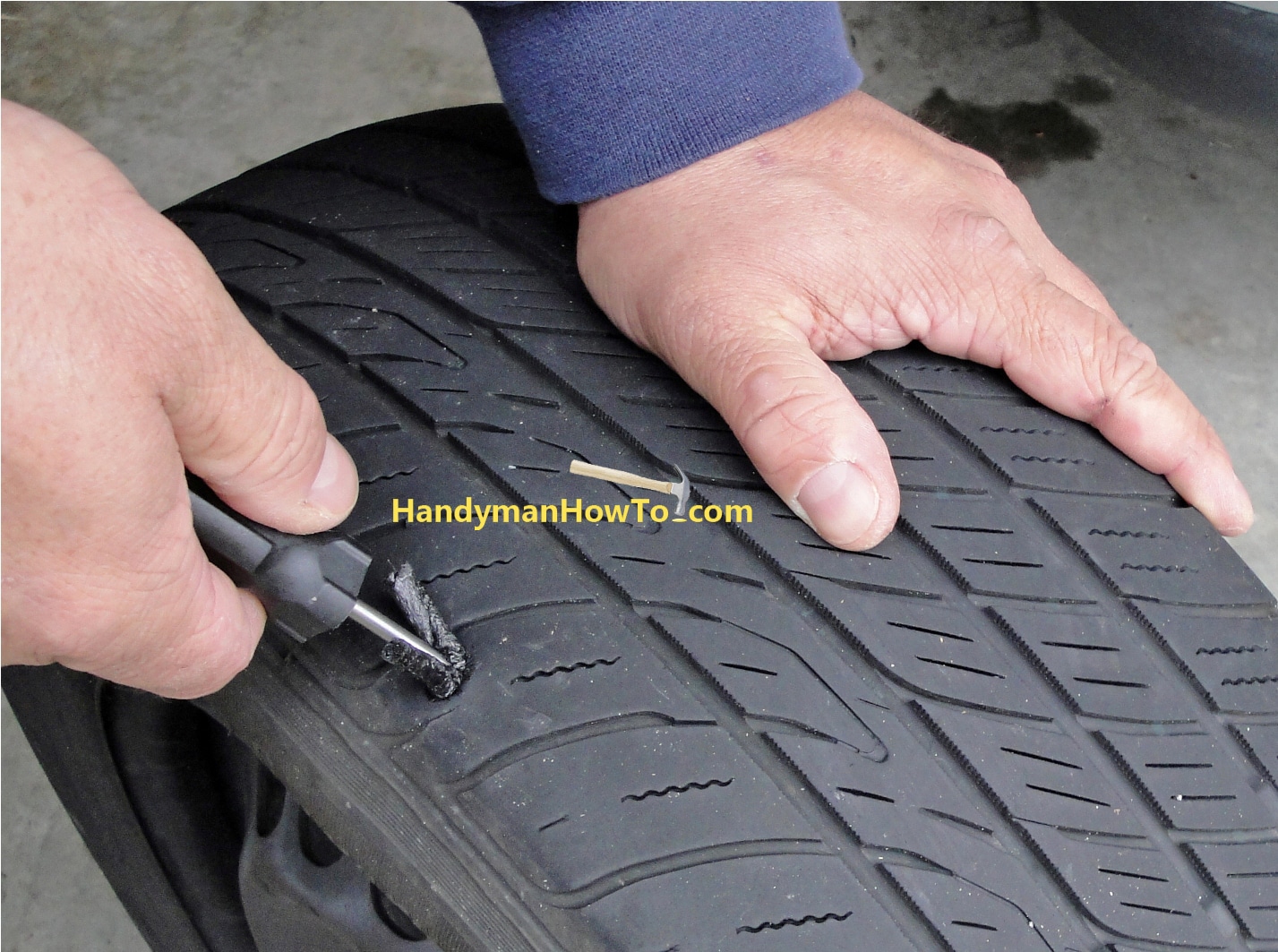

Inserting the Plug: Insert the insertion tool (with the plug) into the prepared hole. Push it in firmly until only about ½ inch of the plug remains exposed.
Removing the Insertion Tool: While holding the plug in place, carefully withdraw the insertion tool. The plug should remain securely lodged in the tire.
Trimming the Excess: Use a utility knife or razor blade to trim the excess plug material flush with the tire tread.
Inflation and Leak Test: Inflate the tire to the manufacturer's recommended pressure (found on the tire sidewall or door jamb). Apply soapy water to the plugged area to check for leaks. If bubbles appear, the plug is not sealing properly, and you may need to try again with a new plug or seek professional assistance.

The Science Behind Self-Vulcanizing Rubber

The magic of tire plugs lies in the self-vulcanizing rubber they're made from. This material contains chemical additives that cause it to bond with the surrounding tire rubber over time, creating a strong, airtight seal. This process, known as vulcanization, involves cross-linking the polymer chains in the rubber, making it more durable and resistant to heat and aging. While not as strong as a professionally patched tire, a properly installed plug can provide a reliable temporary repair.

Pros and Cons of Tire Plugging

Like any repair method, tire plugging has its advantages and disadvantages:

Pros:

Convenience: Can be performed quickly and easily on the side of the road.
Cost-Effective: Tire plug kits are relatively inexpensive compared to tire replacement or professional repair.
No Tire Removal Required: The tire does not need to be removed from the wheel, saving time and effort.

Cons:

Not a Permanent Repair: Tire plugs are generally considered a temporary fix and should be replaced with a professional patch as soon as possible.
Limited to Tread Area: Tire plugs should only be used to repair punctures in the tread area. Sidewall punctures are not suitable for plugging.
Potential for Failure: A poorly installed plug can leak or even come loose, leading to a sudden loss of tire pressure.
Impact on Tire Integrity: Repeated plugging in the same area can weaken the tire's structure.

Use Cases and Limitations

Tire plugging is best suited for small punctures (typically ¼ inch or less) caused by nails, screws, or other small objects in the tread area. It is not recommended for the following situations:

Sidewall Punctures: The sidewall is the most vulnerable part of the tire, and plugging it is extremely dangerous.
Large Punctures: Holes larger than ¼ inch are unlikely to be sealed effectively with a plug.
Shoulder Punctures: Punctures near the edge of the tread (the shoulder) are also more prone to failure.
Existing Damage: If the tire already has significant damage, such as cuts, bulges, or exposed cords, plugging it is not advisable.

Manufacturer Examples and Industry Standards

Numerous companies manufacture tire plug kits, including Slime, ARB, and Boulder Tools. While the basic principles are the same, the quality and design of the tools can vary significantly. Some kits include features such as ergonomic handles, built-in CO2 inflators, and high-quality plugs. While there isn't a single universal industry standard for tire plugging, most manufacturers recommend that plugged tires be inspected and professionally patched or replaced as soon as possible. It's crucial to consult your tire manufacturer's recommendations for specific guidelines regarding tire repair.

Importantly, most tire manufacturers and tire industry professionals consider a proper tire repair to be a patch applied to the inside of the tire, often with a stem that fills the puncture hole. This method requires removing the tire from the rim and properly preparing the inner surface for adhesion. Plugging from the outside is generally viewed as a temporary emergency measure.

Real-World Insights and Recommendations

In real-world use, tire plugs can be incredibly useful in getting you out of a jam. However, it's essential to approach the process with caution and understanding. Here are some key recommendations:

Invest in a Quality Kit: A cheap tire plug kit with flimsy tools and poor-quality plugs is more likely to fail. Spend a little extra for a reputable brand with durable tools and self-vulcanizing plugs.
Follow Instructions Carefully: Read and understand the instructions provided with your tire plug kit before attempting to use it.
Err on the Side of Caution: If you're unsure about the severity or location of the puncture, it's always best to err on the side of caution and seek professional assistance.
Monitor the Plugged Tire: After plugging a tire, check the tire pressure frequently and inspect the plug for leaks. If you notice any problems, have the tire professionally repaired or replaced immediately.
Get it Professionally Repaired: A tire plug is not a substitute for a professional patch. Have the tire professionally repaired or replaced as soon as possible after plugging it. This is especially important for high-speed driving or heavy loads.
Consider a Tire Repair Specialist: Some tire shops specialize in tire repair and can assess the damage and determine the best course of action. They may be able to perform a safe and reliable patch that extends the life of your tire.

Ultimately, plugging a car tire can be a convenient and cost-effective solution for minor tread punctures. However, it's crucial to understand the limitations of this repair method and to prioritize safety above all else. By following these guidelines and seeking professional assistance when needed, you can ensure that your tires are properly maintained and that you're driving safely on the road.
