How To Program Nissan Key Chip

Losing your car keys is a universal dread, but with modern vehicle security systems, getting a replacement isn’t as simple as visiting a locksmith. Programming a new key to your Nissan, especially one with a transponder chip, requires understanding the underlying technology. This article will demystify the process, providing intermediate car owners, modders, and DIY mechanics with the knowledge to potentially program a Nissan key chip themselves, while highlighting crucial precautions and limitations.

Background: Nissan’s Immobilizer System

The foundation of Nissan's key security is the Nissan Anti-Theft System (NATS), often referred to as an immobilizer. This system prevents the engine from starting unless a valid, pre-programmed key is present. Think of it as a digital handshake between the key and the car's computer. The immobilizer system has evolved over the years, with earlier versions being simpler and later versions incorporating more robust security measures. The NATS system typically consists of the following components:

Transponder Chip: Embedded within the key itself, this chip stores a unique electronic identification code.
Antenna Coil: Located around the ignition switch, this coil transmits a radio frequency (RF) signal to energize the transponder chip in the key when inserted.
Immobilizer Control Unit (ICU): Receives the data transmitted from the key's transponder chip. This unit also contains the vehicle's unique security code and is responsible for verifying the key's validity. It is typically integrated with the Engine Control Module (ECM) or Body Control Module (BCM).
Engine Control Module (ECM): The "brain" of the engine. If the ICU verifies the key, it sends a signal to the ECM, allowing the engine to start.

This system greatly reduces car theft, as hot-wiring the ignition alone is insufficient to start the engine. A valid key, electronically verified by the immobilizer system, is required.

Technical Breakdown: How Key Programming Works

The process of programming a Nissan key chip involves teaching the vehicle's immobilizer system to recognize a new key's unique transponder code. This can be achieved using several methods, each with varying levels of complexity and required equipment. The core principle remains the same: communicating the new key's identification to the ICU and storing it in the system's memory.

Programming Methods:

Using a Pre-programmed Key (Limited Models): Some older Nissan models allow for a relatively simple key programming procedure if you already have a working key. This often involves a specific sequence of inserting and removing the working key, followed by inserting the new key and waiting for the security light to indicate successful programming. This method relies on a function within the ECU/BCM allowing addition of new keys when a valid key is presented. However, this method is less common in newer models. Important note: If you do not have a working key, this process cannot be used.
Using a Diagnostic Scan Tool: This is the most common and reliable method, requiring a specialized diagnostic scan tool capable of communicating with the vehicle's immobilizer system. These tools, like Autel, Launch, or Snap-on, have proprietary software and hardware that allow you to read and write data to the vehicle's ECUs. The process generally involves:
1. Connecting the scan tool to the vehicle's OBD-II (On-Board Diagnostics II) port, typically located under the dashboard.
2. Selecting the vehicle's make, model, and year in the scan tool's software.
3. Navigating to the "Immobilizer" or "Key Programming" menu.
4. Following the on-screen instructions, which may involve entering a security code (PIN code), erasing existing key data, and then programming the new key. The scan tool communicates with the ICU, reading the unique ID of the transponder chip in the new key and storing it in the immobilizer's memory.
5. Some scan tools require you to enter a PIN code to access the security functions. This code is usually tied to the vehicle's VIN (Vehicle Identification Number) and can sometimes be obtained from a Nissan dealership or a specialized key programming service.

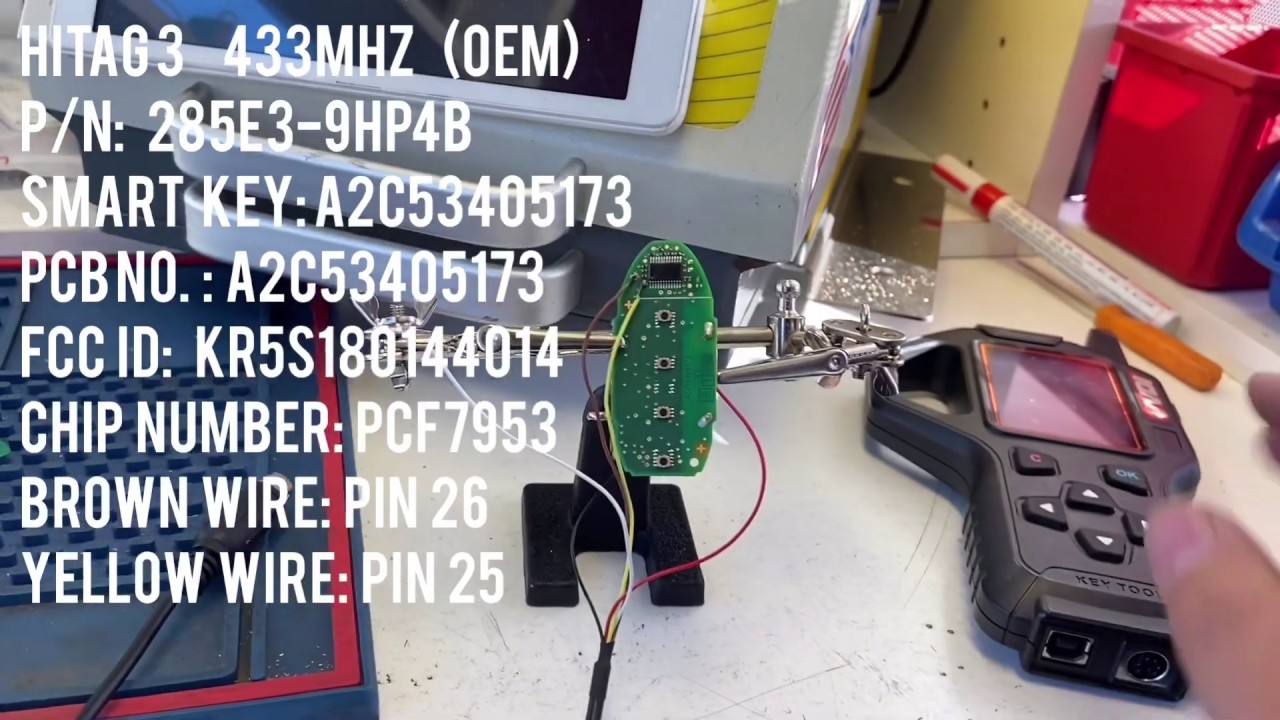

EEPROM Programming (Advanced): This is the most advanced and technically challenging method, often employed when all keys are lost or when the immobilizer system is damaged. It involves directly accessing and modifying the EEPROM (Electrically Erasable Programmable Read-Only Memory) chip within the ICU or ECM. This requires desoldering the EEPROM chip from the circuit board, reading its contents using a specialized EEPROM programmer, modifying the data to include the new key's information, and then re-soldering the chip back onto the board. This is a delicate process that requires specialized tools and expertise in microelectronics. Mistakes can render the immobilizer system inoperable.

Understanding Transponder Chips

Transponder chips come in different types. Some are fixed code, meaning their code is static and cannot be altered. Others are crypto or rolling code, which use encryption to protect the key's data and change the code each time the key is used, making them more secure. Nissan uses different types of transponder chips depending on the model and year. It is crucial to use the correct type of transponder chip for your vehicle, as an incompatible chip will not be recognized by the immobilizer system.

Common Issues and Maintenance Concerns

Incorrect Key Type: Using an incorrect transponder chip or a key blank that is not compatible with your vehicle.
Low Battery in Key Fob: While not directly related to the transponder chip, a low battery in the key fob can affect remote functions like door locking and unlocking.
Immobilizer System Malfunction: Damage to the ICU or ECM can prevent key programming.
Lost PIN Code: For many models, you will need the PIN code. Without it, even advanced scan tools will not allow programming.
Damaged Antenna Coil: If the antenna coil around the ignition switch is damaged, it may not be able to communicate with the transponder chip.
Scan Tool Compatibility: Not all scan tools are created equal. Some scan tools may not be able to access the immobilizer system or program keys for specific Nissan models.

Do’s and Don’ts / Best Practices

Do’s:

Consult your owner's manual: Check your owner's manual for any specific key programming instructions or recommendations.
Use reputable key blanks and transponder chips: Ensure the key blanks and transponder chips you are using are compatible with your vehicle and are from a reputable source.
Double-check the PIN code: If you need to enter a PIN code, verify that you have the correct code for your vehicle.
Disconnect the battery (Sometimes): Before starting the key programming procedure, disconnect the vehicle's battery for a few minutes to reset the system. Note: Some vehicles this can cause complications so research first.
Keep all keys present: The programming process sometimes requires reprogramming all keys simultaneously. Ensure you have all working keys available.

Don’ts:

Attempt EEPROM programming without proper training: This is a complex and delicate procedure that should only be performed by experienced professionals.
Force the key: If the key does not turn smoothly in the ignition switch, do not force it. This could damage the ignition switch or the key.
Ignore warning lights: Pay attention to any warning lights that appear on the dashboard during the key programming process. These lights can indicate potential problems.
Use cheap, unbranded keys: They might not work properly, or might damage your vehicle's system.

Conclusion

Programming a Nissan key chip can range from a relatively simple procedure to a complex technical challenge, depending on the vehicle model, year, and the programming method used. While some methods, such as using a pre-programmed key or a diagnostic scan tool, may be within reach for experienced DIYers, EEPROM programming should be left to professionals due to the high risk of damaging the immobilizer system. Purchasing a quality scan tool, that is compatible with your specific Nissan vehicle, can prove a valuable investment. However, if you're unsure about any aspect of the process, it's always best to seek professional help from a qualified automotive locksmith or a Nissan dealership. Always prioritize the security and functionality of your vehicle over attempting a potentially risky DIY procedure.
