How To Program Toyota Ecu Manually

Tuning an engine is a deep dive into the heart of automotive performance. While modern vehicles boast sophisticated Engine Control Units (ECUs) that adapt to driving conditions, enthusiasts often seek to fine-tune these parameters for improved horsepower, fuel efficiency, or specialized driving scenarios. In this article, we'll explore the intricacies of manually programming a Toyota ECU, focusing on the process, potential pitfalls, and essential considerations for success. This is an advanced procedure, and while we'll cover the key concepts, it's crucial to acknowledge the inherent risks involved. Incorrect modifications can lead to engine damage or decreased vehicle reliability.

Background: The Toyota Engine Management System

Toyota has a long history of reliable and technologically advanced engine management systems. Their ECUs, manufactured by companies like Denso, control various engine functions, including:

Fuel Injection: Determining the amount and timing of fuel injected into the cylinders.
Ignition Timing: Controlling when the spark plugs fire to ignite the air-fuel mixture.
Idle Speed Control: Maintaining a stable engine idle speed.
Variable Valve Timing (VVT): Adjusting the valve timing for optimal performance at different engine speeds (present on many Toyota engines like the 1ZZ-FE, 2ZZ-GE, and newer GR series).
Electronic Throttle Control (ETC): Controlling the throttle plate electronically, eliminating the direct mechanical linkage between the accelerator pedal and the throttle body.
Emissions Control: Managing systems like the catalytic converter and oxygen sensors to reduce emissions.

The ECU uses a complex network of sensors to monitor engine conditions, including:

Mass Airflow Sensor (MAF) or Manifold Absolute Pressure (MAP) Sensor: Measuring the amount of air entering the engine.
Throttle Position Sensor (TPS): Indicating the throttle plate angle.
Crankshaft Position Sensor (CKP): Monitoring the crankshaft's position and speed.
Camshaft Position Sensor (CMP): Monitoring the camshaft's position.
Oxygen Sensors (O2 Sensors): Measuring the oxygen content in the exhaust gas.
Coolant Temperature Sensor (CTS): Monitoring the engine coolant temperature.
Knock Sensor: Detecting engine knock or detonation.

Based on the sensor data, the ECU adjusts the engine parameters to achieve the desired performance, fuel efficiency, and emissions levels. Factory ECU programming is designed for a wide range of conditions and driver preferences. However, aftermarket modifications, such as installing performance parts like headers, intakes, or superchargers, often require recalibrating the ECU to fully realize the benefits and prevent engine damage. This is where manual ECU programming comes in.

Technical Breakdown: How Manual ECU Programming Works

Manually programming a Toyota ECU involves modifying the calibration data stored within the ECU's memory. This data consists of maps or tables that define the relationship between various engine parameters. For example, a fuel map might specify the amount of fuel to inject at different engine speeds and loads. Ignition timing maps dictate the spark advance angle under various conditions.

Here's a general overview of the process:

Identifying the ECU: The first step is to identify the specific ECU model installed in your Toyota. This information is typically found on a sticker or label on the ECU itself. Knowing the ECU model is crucial because it determines the compatibility of tuning software and the availability of calibration data.
Acquiring Tuning Software: Specialized tuning software is required to read, modify, and write calibration data to the ECU. Popular options for Toyota ECUs include (but are not limited to):
- EcuFlash: A free and open-source tuning software that supports a wide range of ECUs, often used with OpenPort interfaces.
- HP Tuners: A powerful tuning platform that offers extensive features and supports many Toyota vehicles. It requires a dedicated interface.
- EfiLive: Another professional-grade tuning software that provides advanced capabilities and comprehensive support.
- Standalone ECU solutions: While this article focuses on remapping factory ECUs, it's worth mentioning standalone ECUs like AEM, Haltech, and Motec as options for heavily modified vehicles. They offer greater flexibility but require more extensive setup and wiring.
Choose software that is compatible with your ECU model and offers the features you need. Be aware that some software may require a license fee.

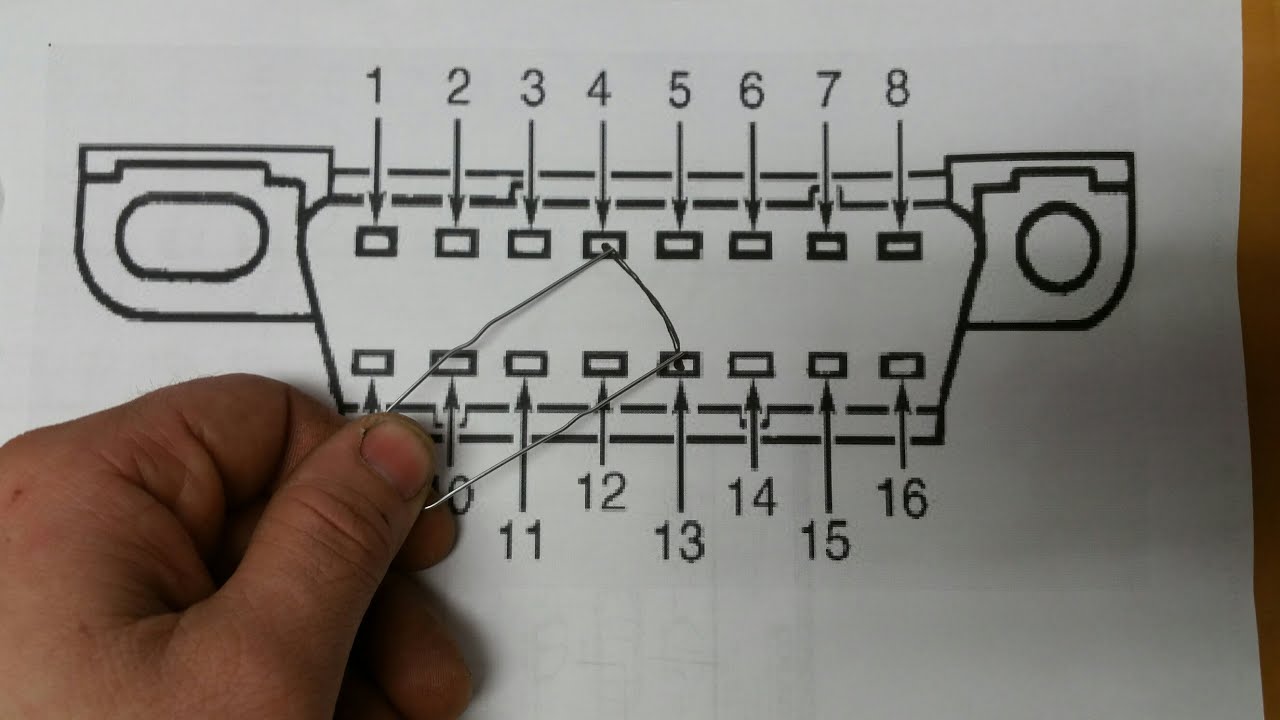

Connecting to the ECU: A specialized interface cable is used to connect your computer to the ECU's diagnostic port (typically the OBD-II port). Common interfaces include the OpenPort 2.0, Tactrix OpenPort, and those specific to HP Tuners or EfiLive. Install the necessary drivers for the interface cable on your computer.
Reading the ECU's Calibration Data: Using the tuning software, you can download the current calibration data from the ECU. This data is often stored in a file format like .bin or .hex. Always back up the original calibration data before making any changes. This backup allows you to revert to the factory settings if needed.
Modifying the Calibration Data: This is the core of the process. You will use the tuning software to view and modify the various maps and tables within the calibration data. Common adjustments include:
- Fuel Map Adjustments: Increasing fuel delivery at higher engine speeds and loads to compensate for performance modifications.
- Ignition Timing Adjustments: Advancing ignition timing to improve power output (while carefully monitoring for knock).
- VVT Adjustments: Optimizing VVT settings for different engine speeds and loads.
- Throttle Mapping Adjustments: Modifying the relationship between the accelerator pedal position and the throttle plate angle to improve throttle response.
- Rev Limiter Adjustment: Increasing the rev limiter (with caution, as exceeding the engine's safe RPM limit can cause damage).
It's crucial to understand the implications of each modification and to proceed cautiously. Incorrect adjustments can lead to engine damage, poor performance, or increased emissions. Consider consulting with an experienced tuner or using a dynamometer (dyno) to properly tune the engine under controlled conditions.
Writing the Modified Calibration Data to the ECU: Once you've made the desired changes, you can upload the modified calibration data back to the ECU using the tuning software. This process is often referred to as "flashing" or "reflashing" the ECU. Ensure that the battery voltage is stable during the flashing process to avoid data corruption.
Testing and Monitoring: After flashing the ECU, it's essential to test the engine thoroughly and monitor its performance. Use a scan tool or data logging software to monitor parameters such as engine speed, load, fuel trims, ignition timing, and knock. Listen for any unusual noises or signs of engine distress.

Common Issues and Maintenance Concerns

Several potential issues can arise when manually programming a Toyota ECU:

Incorrect Calibration Data: Using incorrect or corrupted calibration data can lead to severe engine problems. Always verify the compatibility of the calibration data with your ECU model and engine.
Data Corruption During Flashing: Interruptions during the flashing process (e.g., power loss) can corrupt the ECU's memory, rendering it unusable. Ensure a stable power supply and a reliable connection before flashing the ECU.
Knock or Detonation: Aggressive ignition timing adjustments can cause engine knock or detonation, which can damage pistons and other engine components. Monitor for knock using a knock sensor or data logging software and reduce ignition timing if necessary.
Overheating: Increased power output can generate more heat, potentially leading to overheating. Ensure that the cooling system is adequate for the increased demands.
Emissions Problems: Modifying the ECU can affect emissions levels, potentially causing the vehicle to fail emissions tests.

Regular maintenance is also crucial after tuning the ECU. This includes:

Oil Changes: More frequent oil changes may be necessary due to the increased stress on the engine.
Spark Plug Inspection: Inspect spark plugs regularly for signs of wear or damage.
Coolant System Check: Ensure that the cooling system is functioning properly and that there are no leaks.

Do’s and Don’ts / Best Practices

Do's:

Do your research thoroughly and understand the implications of each modification.
Do back up your original ECU calibration data before making any changes.
Do use high-quality tuning software and interface cables.
Do monitor engine parameters carefully after flashing the ECU.
Do consult with an experienced tuner or use a dynamometer for optimal results.
Do start with small, incremental changes and test thoroughly before making further adjustments.
Do ensure the battery is fully charged during flashing.

Don'ts:

Don't use pirated or unreliable tuning software.
Don't make drastic changes to the calibration data without understanding the consequences.
Don't ignore warning signs such as knock, overheating, or unusual noises.
Don't flash the ECU with the engine running.
Don't attempt to tune the ECU if you lack the necessary knowledge or experience.

Conclusion

Manually programming a Toyota ECU can be a rewarding experience, allowing you to optimize your engine's performance and tailor it to your specific needs. However, it's a complex and potentially risky procedure that requires a solid understanding of engine management principles, specialized tools, and careful execution. If you're not comfortable with the risks involved or lack the necessary expertise, it's best to seek professional assistance from a qualified tuner. A professional tuner possesses the knowledge, experience, and equipment to safely and effectively tune your ECU, ensuring optimal performance and preventing potential engine damage. Proceed with caution, prioritize safety, and always err on the side of caution when modifying your engine's control system.
