How To Put Nissan Rogue In Reverse

The Nissan Rogue, a popular compact SUV, offers a smooth and reliable driving experience. Engaging reverse gear is a fundamental operation, but understanding the mechanics behind it provides a deeper appreciation for automotive engineering. This article delves into the process of putting a Nissan Rogue in reverse, exploring both the user-facing steps and the underlying mechanisms.

Solving the "Reverse Gear Mystery"

At its core, putting a car in reverse involves telling the transmission to rotate the output shaft in the opposite direction. While seemingly simple, this requires a coordinated effort between the driver, the shift lever, and the intricate internal workings of the transmission. In the Nissan Rogue, this process is typically straightforward, but understanding the "why" behind the "how" is key.

Imagine you're building a complex gear system with LEGOs. To make one gear turn the opposite way, you'd need to introduce an idler gear between them. This intermediate gear reverses the direction of rotation, enabling the final gear to spin in the opposite direction of the initial one. The transmission in your Rogue uses a similar principle for reverse.

A Deep Dive: How Reverse Actually Works

The Nissan Rogue, depending on the model year, can have either a traditional automatic transmission or a Continuously Variable Transmission (CVT). While the precise implementations differ, the fundamental principle for achieving reverse remains the same: altering the direction of the output shaft's rotation.

Automatic Transmission (Traditional)

In a traditional automatic transmission, reverse gear is achieved through a planetary gear set. This set consists of a sun gear, planet gears, a ring gear, and a carrier. The carrier holds the planet gears, which mesh with both the sun and ring gears. By locking or freeing different components of this planetary gear set, the transmission can achieve different gear ratios, including reverse.

Here's a simplified breakdown of how reverse works in a typical automatic transmission:

Driver Input: The driver moves the shift lever to the 'R' (Reverse) position.
Valve Body Activation: This action sends a signal to the transmission's valve body, a complex hydraulic control system.
Hydraulic Pressure: The valve body directs hydraulic pressure to specific clutches and bands within the transmission.
Planetary Gear Set Manipulation: These clutches and bands engage and lock certain components of the planetary gear set. Specifically, engaging the reverse gear typically involves locking the sun gear, forcing the planet gears to rotate around it within the ring gear.
Reversed Output: This specific configuration causes the output shaft to rotate in the opposite direction of the input shaft, resulting in reverse motion. The idler gear in our LEGO analogy is essentially represented by the specific configuration and locking of the planetary gear set components.

Continuously Variable Transmission (CVT)

The CVT, common in many Nissan Rogues, operates differently than a traditional automatic. Instead of fixed gears, it uses a belt-and-pulley system to provide a continuously variable range of gear ratios. Two pulleys, each consisting of two cones, are connected by a high-strength belt. By varying the distance between the cones on each pulley, the effective gear ratio is changed.

Engaging reverse in a CVT is slightly more complex. Since the belt-and-pulley system inherently only allows for forward rotation, a separate reversing gear set is required. This is typically a small, dedicated set of gears that engages only when reverse is selected.

Here's how reverse typically functions in a Rogue equipped with a CVT:

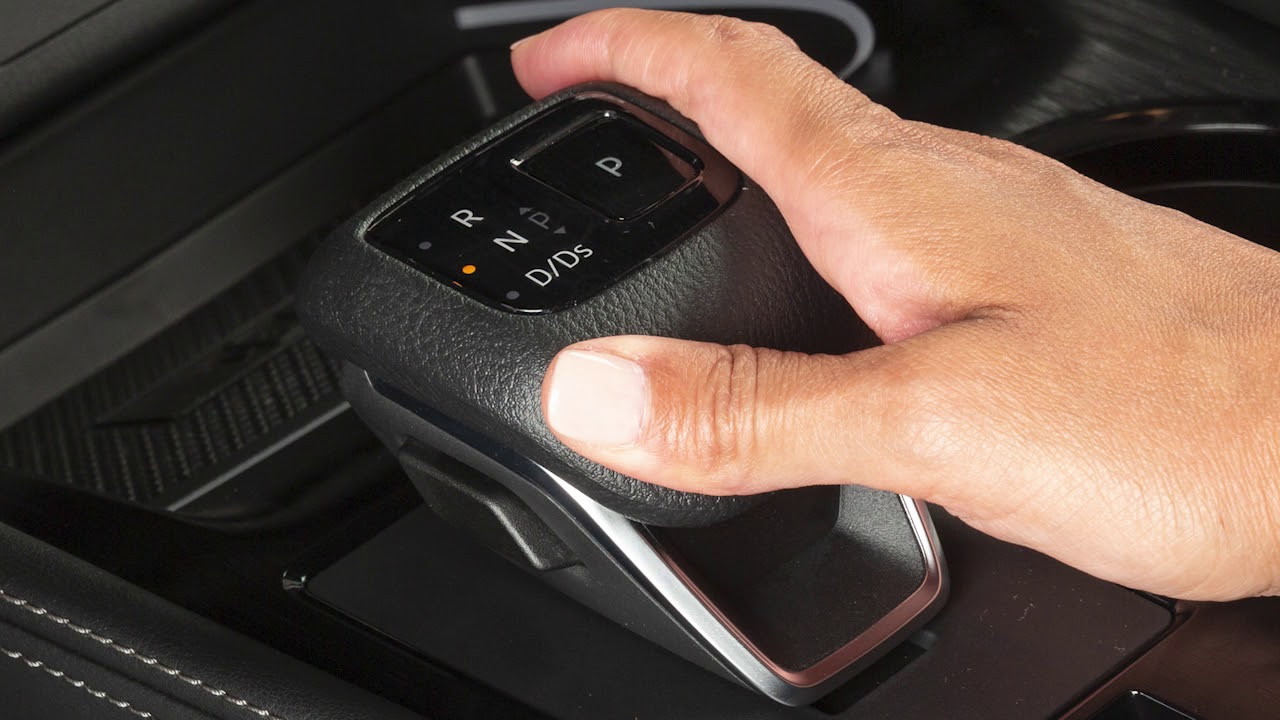

Driver Input: The driver moves the shift lever to the 'R' (Reverse) position.
Control Unit Activation: This sends a signal to the transmission control unit (TCU).
Reversing Gear Engagement: The TCU activates a hydraulic or electric actuator to engage the reversing gear set. This set of gears functions similarly to the planetary gear set in an automatic transmission, using a combination of gears to reverse the direction of rotation.
Belt and Pulley Adjustment: Once the reversing gear is engaged, the CVT's belt and pulley system are adjusted to provide the appropriate reverse gear ratio.
Reversed Output: The output from the reversing gear set is then fed into the CVT's belt and pulley system, resulting in the wheels turning in reverse.

Pros, Cons, and Use Cases of Reverse Gear

Pros:

Maneuverability: Essential for parking, navigating tight spaces, and correcting driving errors.
Loading/Unloading: Facilitates backing up to loading docks or areas for easier access.

Cons:

Limited Speed: Reverse gear is typically geared low, limiting the vehicle's speed in reverse. This is for safety reasons.
Potential for Damage: Improper use or excessive speed in reverse can strain the transmission components.
Blind Spots: Backing up relies heavily on mirrors and backup cameras to mitigate blind spots, which can still be significant.

Use Cases:

Parallel Parking: The classic scenario requiring precise maneuvering in reverse.
Exiting Driveways: Backing out of a driveway into traffic requires careful observation and controlled reverse movement.
Off-Road Recovery: In certain off-road situations, reverse can be used to back out of obstacles.
Trailer Maneuvering: Reversing is crucial for maneuvering trailers, often requiring significant skill and practice.

Manufacturer Examples and Variations

While the fundamental principles remain the same, different manufacturers implement reverse gear in slightly different ways. Some manufacturers might use different types of planetary gear sets in their automatic transmissions, while others might employ different actuators for engaging the reversing gear set in their CVTs.

For example, some older Nissan Rogue models might have a simpler automatic transmission with fewer gears, leading to a less refined reverse gear engagement. Newer models with advanced CVT technology may offer a smoother and more responsive reverse experience.

Furthermore, some high-performance vehicles may incorporate features like launch control, which can also affect how reverse gear is engaged and functions. These systems typically optimize the transmission and engine control for maximum acceleration, but can also impact the smoothness of reverse engagement.

Real-World Insights and Recommendations

Putting a Nissan Rogue in reverse, or any vehicle for that matter, is not just about shifting the lever. It's about understanding the limitations of the gear, being aware of your surroundings, and using the technology available to you effectively. Here are some practical recommendations:

Always check your surroundings: Before engaging reverse, thoroughly check your mirrors and use the backup camera (if equipped) to ensure there are no obstacles or pedestrians in your path.
Maintain a slow and controlled speed: Reverse gear is geared low for a reason. Avoid excessive speed to prevent damage to the transmission and maintain better control of the vehicle.
Be mindful of the surface: Uneven or slippery surfaces can affect traction in reverse, making it more difficult to control the vehicle.
Utilize parking sensors and cameras: Modern vehicles often come equipped with parking sensors and cameras to aid in reversing. Use these tools to your advantage, but don't rely on them exclusively.
Regular maintenance: Proper transmission maintenance, including fluid changes, is crucial for ensuring smooth and reliable reverse gear operation. Consult your owner's manual for recommended maintenance intervals.
Listen for unusual noises: If you hear any unusual noises when engaging or operating in reverse, such as grinding or clunking, have your vehicle inspected by a qualified mechanic. These noises could indicate a problem with the transmission.

In conclusion, engaging reverse in a Nissan Rogue, while a seemingly simple action, involves a complex interplay of mechanical components and control systems. By understanding the fundamentals of how reverse gear works, drivers can operate their vehicles more safely and efficiently, and appreciate the engineering marvel that makes modern automobiles possible. Regularly checking your surroundings and keeping up with vehicle maintenance will ensure a smooth and safe driving experience in reverse, and every other gear.
