How To Read Air Fuel Ratio Gauge

So, your car's been acting up, and you've started looking at the Air Fuel Ratio (AFR) gauge. Maybe it's fluctuating wildly, staying stubbornly high or low, or maybe you just installed one and want to understand what it's telling you. Understanding this gauge is absolutely crucial for diagnosing and resolving engine performance issues, and it can even prevent expensive repairs down the road. This article will walk you through how to read your AFR gauge, the symptoms of imbalances, what causes them, and how to get things running smoothly again.

Understanding Your Air Fuel Ratio (AFR) Gauge

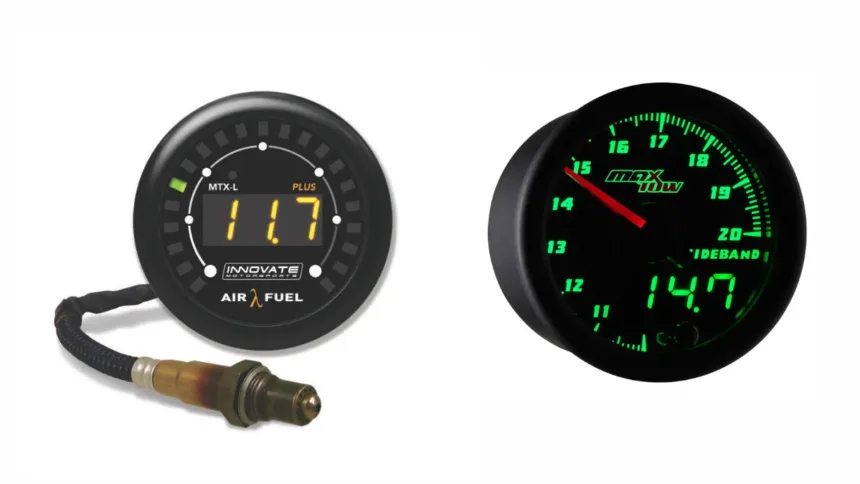

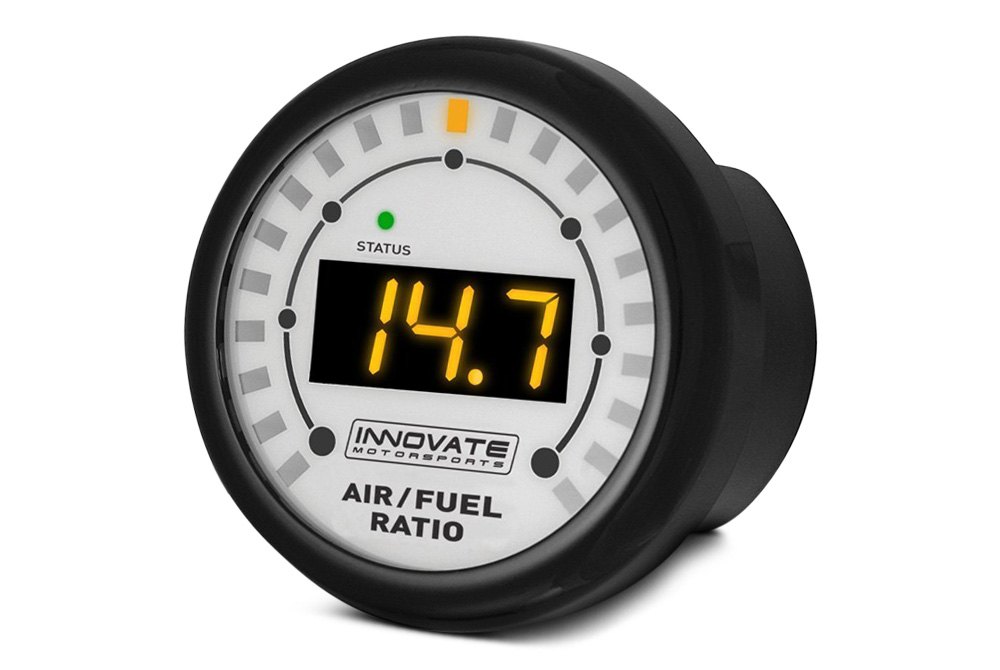

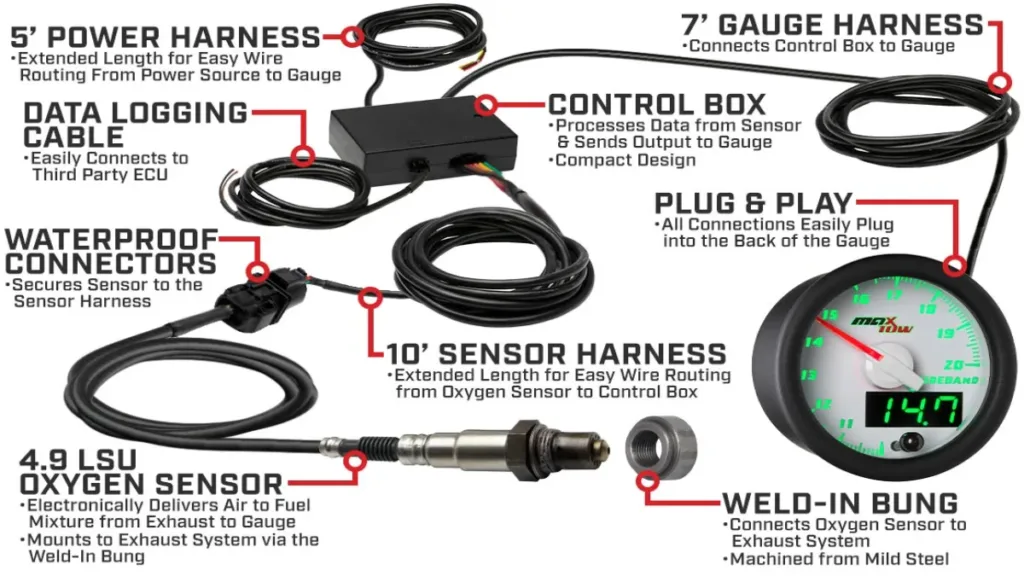

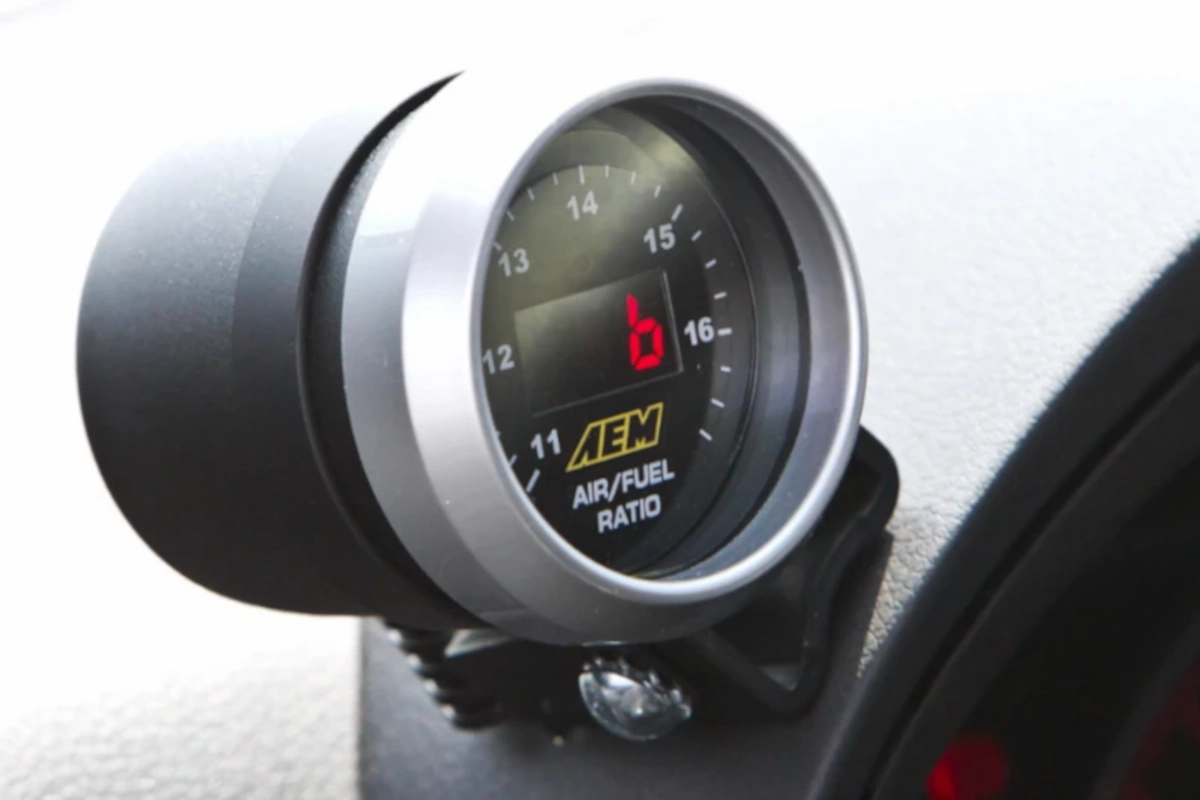

The AFR gauge displays the ratio of air to fuel entering your engine. Ideally, you want this ratio to be close to 14.7:1 for gasoline engines under normal cruising conditions – this is known as stoichiometric ratio. This means that for every 14.7 parts of air, there should be 1 part of fuel. Deviations from this ideal ratio can indicate various problems, from minor tuning issues to serious engine malfunctions. Why is it important? A correct AFR optimizes fuel efficiency, minimizes emissions, and ensures peak engine performance and longevity. A lean mixture (too much air) can lead to overheating and engine damage, while a rich mixture (too much fuel) can foul spark plugs, dilute oil, and decrease fuel economy.

Common Symptoms of AFR Imbalances

Here's a breakdown of the symptoms you might experience if your AFR is off:

Poor Fuel Economy: One of the first signs of an AFR problem. A rich mixture dumps excess fuel into the engine, which gets wasted, leading to significantly reduced MPG. Conversely, an excessively lean mixture can also reduce fuel economy as the engine struggles to maintain power.
Rough Idling: An unstable AFR can cause the engine to idle erratically. You might notice the engine sputtering, shaking, or even stalling at idle.
Hesitation or Stumbling During Acceleration: If the AFR isn't optimal when you accelerate, the engine might hesitate or stumble before responding to your throttle input. This feels like a lag or a lack of power.
Engine Knock or Ping: A lean mixture can cause the engine to run hotter than normal. This can lead to pre-ignition or detonation, which manifests as a knocking or pinging sound, especially under load. This is extremely damaging to your engine.
Black Smoke from Exhaust: This indicates a rich mixture. The engine is burning too much fuel, and the unburnt fuel is exiting the exhaust as black smoke.
White Smoke from Exhaust: While white smoke is often associated with coolant leaks, a very lean mixture can also cause it. It's crucial to determine the source.
Check Engine Light (CEL): An AFR imbalance often triggers the CEL. Common codes associated with AFR issues include P0171 (System Too Lean), P0172 (System Too Rich), P0174 (System Too Lean Bank 2), and P0175 (System Too Rich Bank 2).
Engine Overheating: A lean mixture burns hotter, potentially leading to engine overheating.
Smell of Fuel: A strong fuel smell, especially after the engine is warmed up, often indicates a rich mixture and potential fuel leaks.
Spark Plug Fouling: A rich mixture can cause spark plugs to become fouled with carbon deposits, leading to misfires and poor performance.

Root Causes of AFR Imbalances

Several factors can cause your AFR to go out of whack. Here's a detailed look at some common culprits:

Vacuum Leaks: These are one of the most frequent causes of lean AFRs. A vacuum leak allows unmetered air to enter the engine, leaning out the mixture. Common areas for vacuum leaks include intake manifold gaskets, vacuum hoses, and throttle body seals. Use a vacuum gauge or spray a small amount of carb cleaner around potential leak areas while the engine is running to pinpoint the source. A change in engine RPM indicates a leak.
Faulty Oxygen Sensors (O2 Sensors): These sensors provide feedback to the engine control unit (ECU) about the exhaust gas oxygen content. If an O2 sensor is faulty, it can send incorrect readings to the ECU, causing it to adjust the fuel mixture incorrectly. O2 sensors typically have a lifespan of 60,000 to 100,000 miles.
Faulty Mass Air Flow (MAF) Sensor: The MAF sensor measures the amount of air entering the engine. A dirty or faulty MAF sensor can send inaccurate readings to the ECU, leading to an incorrect AFR. You can try cleaning the MAF sensor with a MAF sensor cleaner. If that doesn't help, replacement may be necessary.
Fuel Injector Problems: Clogged or leaking fuel injectors can disrupt the fuel delivery, causing either a lean or rich mixture. Injector cleaning or replacement might be required.
Fuel Pump Issues: A weak or failing fuel pump can't deliver enough fuel to the engine, resulting in a lean mixture, especially under high load.
Fuel Pressure Regulator Problems: The fuel pressure regulator maintains a constant fuel pressure to the fuel injectors. A malfunctioning regulator can cause fluctuations in fuel pressure, leading to AFR imbalances.
Exhaust Leaks: An exhaust leak before the oxygen sensor can introduce air into the exhaust stream, causing the O2 sensor to read lean and the ECU to richen the mixture.
ECU Issues: In rare cases, the ECU itself can be the problem. A faulty ECU might misinterpret sensor data or incorrectly control the fuel injectors. This is typically a last resort diagnosis.
Aftermarket Modifications: Modifications like aftermarket intakes, exhausts, or tunes can significantly affect the AFR. If not properly calibrated, these modifications can throw off the engine's air-fuel balance.

What Happens If You Ignore AFR Imbalances?

Ignoring AFR imbalances can lead to serious engine damage and costly repairs. Here's what you risk:

Catalytic Converter Failure: A consistently rich mixture can damage the catalytic converter, a vital component for reducing emissions. Replacing a catalytic converter is an expensive repair.
Engine Damage: A lean mixture can cause detonation and overheating, which can damage pistons, valves, and cylinder heads. Severe detonation can even lead to engine failure.
Increased Emissions: An imbalanced AFR leads to higher emissions, potentially causing you to fail emissions tests.
Reduced Engine Life: Running an engine with an incorrect AFR shortens its lifespan.
Complete Engine Failure: In extreme cases, a prolonged AFR imbalance can cause catastrophic engine failure, requiring a complete engine rebuild or replacement.

Recommended Fixes

The fix for an AFR imbalance depends on the root cause. Here are some recommended troubleshooting steps and solutions:

Visual Inspection: Start by visually inspecting all vacuum hoses, fuel lines, and connections for cracks, leaks, or damage.
Check for Vacuum Leaks: Use a vacuum gauge or carb cleaner to check for vacuum leaks, as described above.
Clean or Replace MAF Sensor: Clean the MAF sensor with a MAF sensor cleaner. If cleaning doesn't resolve the issue, consider replacing the sensor.
Check Fuel Pressure: Use a fuel pressure gauge to check the fuel pressure at the fuel rail. Compare the reading to the manufacturer's specifications.
Inspect Fuel Injectors: Inspect the fuel injectors for leaks or damage. Consider having them professionally cleaned or replaced.
Replace Oxygen Sensors: If your O2 sensors are old or suspected to be faulty, replace them. Use OEM or high-quality aftermarket sensors.
Check for Exhaust Leaks: Inspect the exhaust system for leaks, especially near the O2 sensors.
Scan for Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to retrieve any DTCs stored in the ECU. Research the codes to help pinpoint the problem.
Consult a Professional: If you're not comfortable performing these repairs yourself, or if you've tried these steps and the problem persists, consult a qualified mechanic.

Cost Estimates and Shop Advice

Repair costs can vary widely depending on the specific issue and your location. Here's a general idea of what you might expect to pay:

Vacuum Leak Repair: $50 - $200, depending on the location and complexity of the repair.
MAF Sensor Cleaning: $20 - $50 (DIY cost for cleaner).
MAF Sensor Replacement: $100 - $300, including parts and labor.
O2 Sensor Replacement: $100 - $300 per sensor, including parts and labor. (Some vehicles have multiple O2 sensors.)
Fuel Injector Cleaning: $50 - $150 (professional cleaning service).
Fuel Injector Replacement: $100 - $400 per injector, including parts and labor.
Fuel Pump Replacement: $300 - $800, including parts and labor.
Fuel Pressure Regulator Replacement: $100 - $300, including parts and labor.
Catalytic Converter Replacement: $500 - $1500, including parts and labor.

Shop Advice: When choosing a mechanic, look for one with experience diagnosing and repairing AFR-related issues. Ask for a detailed estimate before authorizing any repairs. Don't be afraid to get a second opinion. Also, check online reviews and ask for referrals from friends or family.

Credibility and Common Failure Points

Many automotive manufacturers have released Technical Service Bulletins (TSBs) related to AFR issues. For example, some Subaru models have known issues with faulty MAF sensors. Similarly, certain Ford vehicles have TSBs addressing vacuum leaks in the intake manifold. Checking TSBs for your specific vehicle can provide valuable insights into common problems and repair procedures. Online automotive forums and communities are also excellent resources for information. Many users share their experiences with AFR issues, including symptoms, causes, and solutions. O2 sensor failures are a very common cause of AFR problems, and they often occur around 75,000 to 100,000 miles.

By understanding how to read your AFR gauge, recognizing the symptoms of imbalances, and knowing the potential causes and fixes, you can proactively address these issues and keep your engine running smoothly and efficiently. Remember, addressing these problems early can save you significant money and prevent major engine damage in the long run.
