How To Read Codes On Obd2

Facing a pesky check engine light? Don't panic! It's your car's way of telling you something needs attention. Reading your car's OBD2 codes (On-Board Diagnostics II) is the first step to understanding what's going on under the hood. This article will guide you through the process, helping you diagnose the problem and take appropriate action. Understanding these codes empowers you to make informed decisions about your car's repair and potentially save money by avoiding unnecessary trips to the mechanic. It's important because ignoring the check engine light can lead to more serious and costly repairs down the line.

Symptoms of OBD2 Problems

The check engine light itself is the most obvious symptom, but it often comes with other clues that can help pinpoint the problem. Keep an eye out for these accompanying issues:

Reduced Engine Performance: Your car might feel sluggish, especially when accelerating.
Poor Fuel Economy: Noticeably decreased miles per gallon.
Rough Idling: The engine vibrates or shakes excessively when stopped.
Stalling: The engine unexpectedly shuts off while driving or idling.
Unusual Noises: Clicking, hissing, or knocking sounds coming from the engine.
Difficulty Starting: The engine takes longer to start than usual, or fails to start at all.
Visible Smoke: Blue, black, or white smoke coming from the exhaust.
Transmission Issues: Erratic shifting, slipping gears, or failure to shift.

Understanding the Root Cause of OBD2 Codes

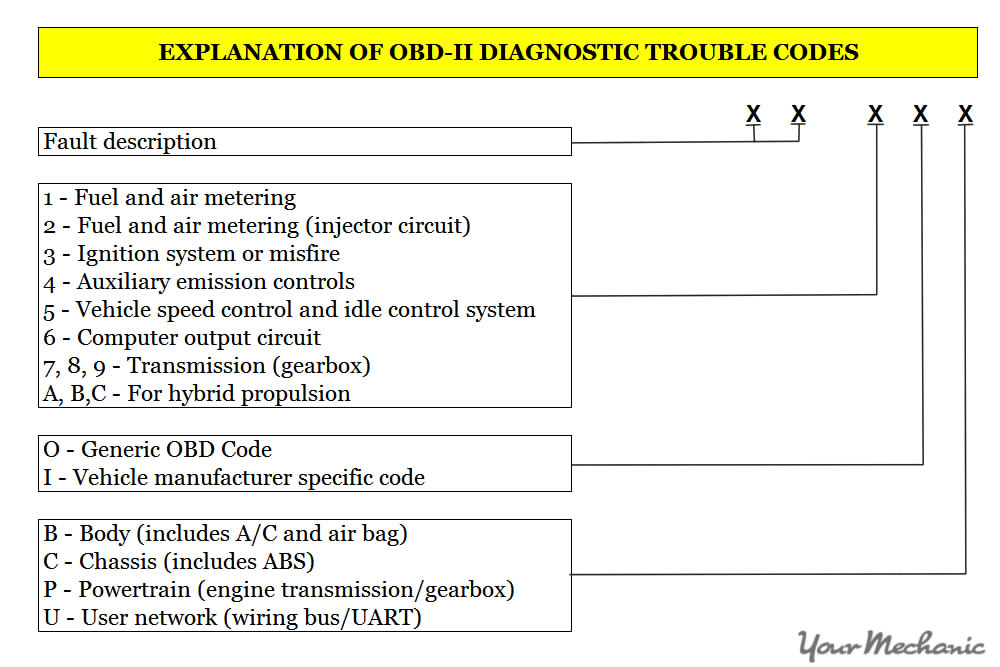

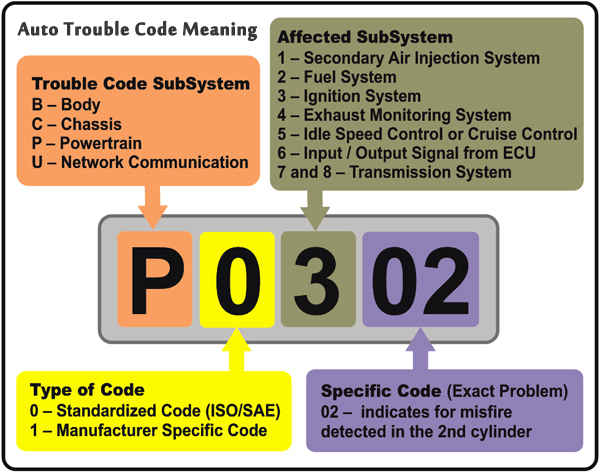

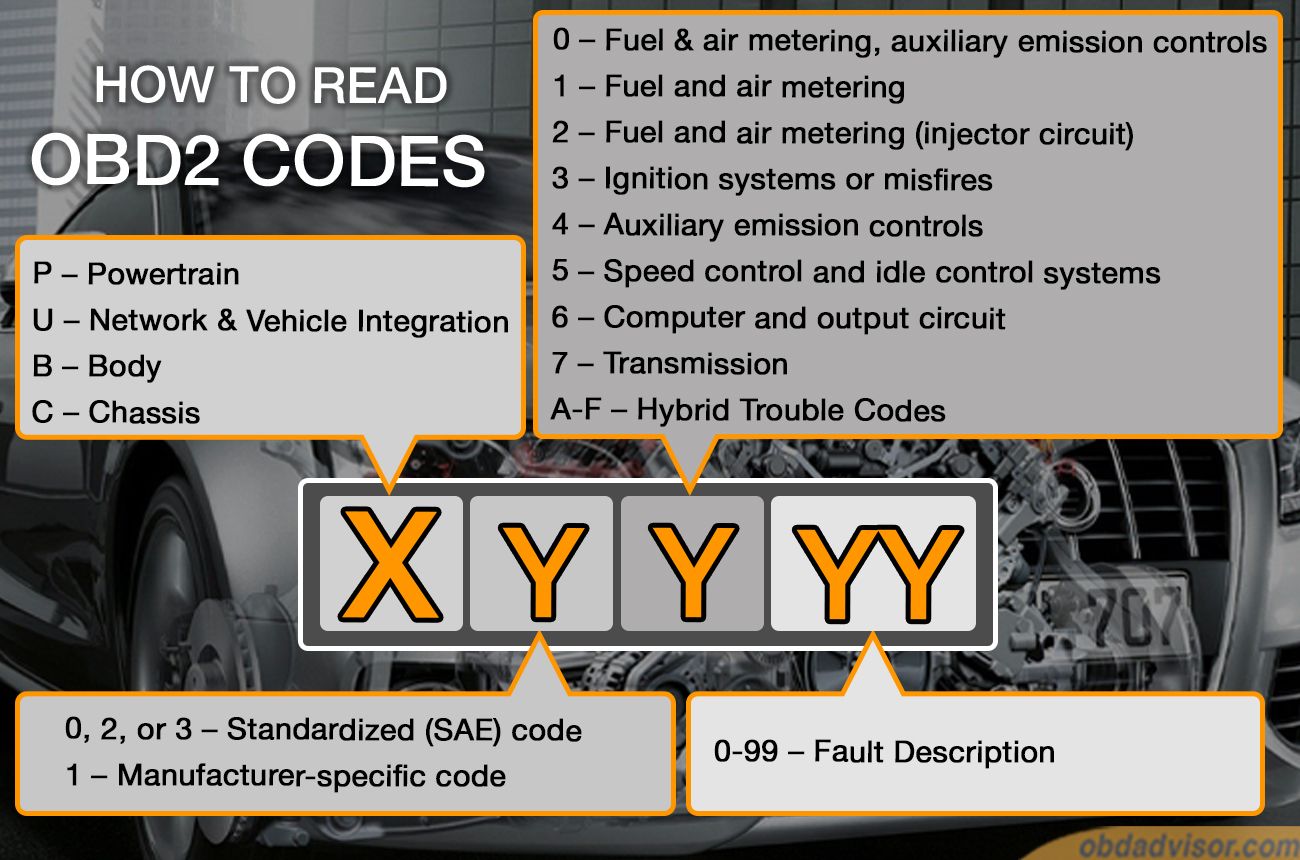

The OBD2 system is a standardized diagnostic system used in most vehicles since 1996. It monitors various engine and vehicle systems, and when it detects a problem, it stores a Diagnostic Trouble Code (DTC) in the car's computer. These codes are standardized, meaning a P0300 code, for example, signifies a random misfire in any OBD2-compliant vehicle.

These DTCs aren't always straightforward, though. For instance, a P0301 code indicates a misfire in cylinder #1. However, the *cause* of that misfire could be anything from a faulty spark plug or ignition coil to a vacuum leak or a problem with the fuel injector. That's where further diagnosis comes in. The code provides a starting point; it doesn't magically fix the problem.

Common causes behind check engine lights and OBD2 codes include:

Loose Gas Cap: Surprisingly common! A loose gas cap can trigger evap system codes.
Faulty Oxygen Sensors: These sensors monitor the oxygen levels in the exhaust and are crucial for proper fuel mixture.
Catalytic Converter Problems: The catalytic converter reduces harmful emissions.
Mass Airflow (MAF) Sensor Issues: The MAF sensor measures the amount of air entering the engine.
Spark Plug or Ignition Coil Problems: Spark plugs ignite the air-fuel mixture, and ignition coils provide the necessary voltage.
Vacuum Leaks: Leaks in vacuum lines can disrupt the engine's air-fuel mixture.
EGR Valve Problems: The EGR valve recirculates exhaust gases to reduce emissions.

Consequences of Ignoring OBD2 Codes

Ignoring a check engine light isn't just about tolerating an annoying light on your dashboard. It can have serious consequences. Even if the car *seems* to be running fine, the underlying problem could be causing damage.

Here's what can happen if you ignore those OBD2 codes:

Increased Fuel Consumption: A malfunctioning sensor or a vacuum leak can throw off the engine's air-fuel mixture, leading to poor fuel economy.
Reduced Engine Performance: The engine might lose power, hesitate during acceleration, or stall.
Damage to the Catalytic Converter: A misfire or other engine problem can overheat and damage the catalytic converter, which is an expensive repair.
More Expensive Repairs Down the Line: What starts as a small problem can snowball into a major repair if left unchecked. For example, a small vacuum leak can cause the engine to run lean, potentially damaging valves or pistons over time.
Emissions Test Failure: Many areas require vehicles to pass emissions tests. A check engine light will almost certainly result in a failure.
Potential for a Breakdown: In some cases, ignoring a check engine light can lead to a complete breakdown, leaving you stranded.

Recommended Fixes and Troubleshooting

Here's a step-by-step guide to addressing OBD2 codes:

Read the Codes: You'll need an OBD2 scanner. These range from basic handheld units to more advanced scanners with features like live data streaming. Plug the scanner into the OBD2 port (usually located under the dashboard on the driver's side) and follow the instructions to read the codes.
Research the Codes: Once you have the codes, research them online. A good starting point is a website like OBD-Codes.com. Understand the potential causes and common symptoms associated with each code.
Inspect the Obvious: Before jumping to expensive repairs, check the simple things first. Is the gas cap tightened properly? Are all vacuum lines connected and in good condition? Are there any obvious signs of damage to wires or sensors?
Clear the Codes (Carefully): After addressing the potential issue, you can clear the codes using the scanner. This will turn off the check engine light. However, if the problem persists, the light will come back on.
Test Drive the Car: After clearing the codes, take the car for a test drive to see if the problem has been resolved. Monitor the car's performance and fuel economy.
Further Diagnosis (If Needed): If the check engine light returns, or if you're unsure about how to proceed, it's time for more in-depth diagnosis. This may involve using a multimeter to test sensors, performing a compression test, or using a smoke machine to find vacuum leaks.
Repair or Replace Faulty Parts: Once you've identified the problem, repair or replace the faulty parts.

Specific Fixes Based on Common Codes

P0171/P0174 (System Too Lean): Check for vacuum leaks, faulty MAF sensor, or a clogged fuel filter.
P0300-P030x (Misfire Codes): Check spark plugs, ignition coils, fuel injectors, and compression.
P0420 (Catalytic Converter Efficiency Below Threshold): This could indicate a failing catalytic converter, but also check for exhaust leaks or faulty oxygen sensors.
P0440-P0457 (Evaporative Emission Control System Leak): Check the gas cap, charcoal canister, and related hoses.
P0102/P0103 (MAF Sensor Circuit Low/High Input): Clean the MAF sensor with MAF sensor cleaner or replace it.

Using a Multimeter for Testing

A multimeter is an invaluable tool for diagnosing electrical problems related to OBD2 codes. You can use it to test the voltage, resistance, and continuity of sensors, wires, and components. For example, you can check the voltage output of an oxygen sensor or the resistance of a spark plug wire.

Cost Estimates and Shop Advice

Repair costs can vary widely depending on the problem and the labor rates in your area. Here's a rough estimate of common repairs:

Loose Gas Cap: Free (just tighten it!)
Replacing an Oxygen Sensor: $100 - $300
Replacing a Spark Plug: $20 - $100 (for all plugs)
Replacing an Ignition Coil: $50 - $200
Replacing a MAF Sensor: $100 - $400
Replacing a Catalytic Converter: $500 - $2000

When to Visit a Shop: If you're not comfortable working on your car, or if the problem is complex, it's best to take it to a qualified mechanic. Look for a shop that has experience with OBD2 diagnostics and offers a warranty on their work. Also, be wary of shops that immediately recommend replacing expensive parts without thorough diagnosis. A good mechanic will perform tests to confirm the source of the problem before recommending any repairs.

TSBs (Technical Service Bulletins): Before taking your car to a shop, it's a good idea to check for TSBs related to your vehicle and the specific OBD2 code you're seeing. TSBs are issued by manufacturers to address common problems and provide repair procedures. Websites like NHTSA.gov often have TSB information.

Community Data: Online forums and car enthusiast communities can also be a valuable resource. You can often find information about common problems and fixes for your specific vehicle model. However, remember that online advice should be taken with a grain of salt. Always verify information with a reliable source before making any repairs.

Common Mileage for Failure: Some components, like oxygen sensors and catalytic converters, have a limited lifespan and are more likely to fail as your vehicle ages. Oxygen sensors often need replacing around 80,000-100,000 miles, while catalytic converters can last much longer, but may fail after 100,000-150,000 miles, especially if the engine has been running poorly.

By understanding how to read and interpret OBD2 codes, you can take control of your car's maintenance and make informed decisions about repairs. Remember to research the codes, inspect the obvious, and don't hesitate to seek professional help when needed. A little knowledge can go a long way in keeping your car running smoothly and avoiding costly repairs.
