How To Remove A Clutch Fan From A Water Pump

Removing a clutch fan from a water pump can seem like a daunting task, but with the right tools and a methodical approach, it's a job that many DIY mechanics can handle. This article provides a comprehensive guide to safely and effectively removing a clutch fan, explaining the importance of proper removal, helping you choose the right tools, sharing real-world experiences, and answering frequently asked questions.

Why Removing a Clutch Fan Matters

The clutch fan plays a crucial role in your vehicle's cooling system. It's designed to engage when the engine temperature rises, drawing air through the radiator to help dissipate heat. However, over time, the clutch fan can become worn or damaged, leading to several problems:

Overheating: A faulty clutch fan may not engage properly, leading to insufficient cooling and potential engine overheating.
Reduced Fuel Efficiency: A clutch fan that is always engaged can put unnecessary strain on the engine, reducing fuel economy.
Noise: A worn clutch fan can produce excessive noise, indicating a problem with its bearings or internal components.
Water Pump Damage: A failing clutch fan can sometimes put undue stress on the water pump bearing, accelerating its wear and potentially causing a water pump failure.

Removing the clutch fan might be necessary for several reasons, including replacing a faulty fan clutch, replacing the water pump itself, or simply to gain better access to other engine components during maintenance. Ignoring these issues can lead to more serious engine damage and costly repairs. Therefore, understanding how to safely and effectively remove a clutch fan is essential for maintaining your vehicle's health.

Choosing the Right Tools for the Job

Having the right tools is paramount for a successful and safe clutch fan removal. Using the wrong tools can damage the fan, the water pump, or even yourself. Here's a list of the essential tools you'll need:

Clutch Fan Wrench Set: This specialized wrench set is designed to hold the water pump pulley in place while you loosen the fan clutch nut. These wrenches come in various sizes to fit different vehicles, so ensure you select the correct set for your specific make and model. A universal set is a good option if you plan on working on multiple vehicles.
Fan Clutch Holding Tool: Similar to the wrench set, this tool is designed to keep the water pump pulley from rotating. It often takes the form of a bar with pins or slots that engage with the pulley bolts. This is sometimes included in a clutch fan wrench set.
Hammer or Mallet: A hammer or mallet might be necessary to gently tap the clutch fan wrench if the nut is particularly stubborn. Use a rubber or plastic mallet to avoid damaging the wrench.
Penetrating Oil: Applying penetrating oil to the fan clutch nut several hours (or even the day before) before attempting removal can significantly ease the process. This helps to loosen any rust or corrosion that may be binding the nut.
Socket Set and Ratchet: A standard socket set and ratchet will be needed for removing any other components that may be obstructing access to the clutch fan.
Gloves and Safety Glasses: Protecting your hands and eyes is crucial when working on any automotive project. Wear gloves to protect your hands from sharp edges and chemicals, and safety glasses to shield your eyes from debris.
Work Light: Adequate lighting is essential for seeing what you're doing. A good work light will allow you to clearly see the fan clutch nut and surrounding components.

Choosing the right tools not only makes the job easier but also minimizes the risk of damage to your vehicle and injury to yourself. Invest in quality tools that are specifically designed for clutch fan removal.

Step-by-Step Guide to Removing a Clutch Fan

Follow these steps carefully to safely and effectively remove the clutch fan from your water pump:

Safety First: Disconnect the negative battery cable to prevent any electrical accidents. Allow the engine to cool completely before starting.
Gain Access: Remove any shrouds or other components that are obstructing access to the clutch fan. This may involve removing hoses, belts, or other accessories.
Apply Penetrating Oil: Apply penetrating oil to the fan clutch nut and let it soak for several hours, or preferably overnight.
Secure the Water Pump Pulley: Use the clutch fan wrench set or fan clutch holding tool to prevent the water pump pulley from rotating. It's crucial to hold the pulley securely to avoid damaging the water pump.

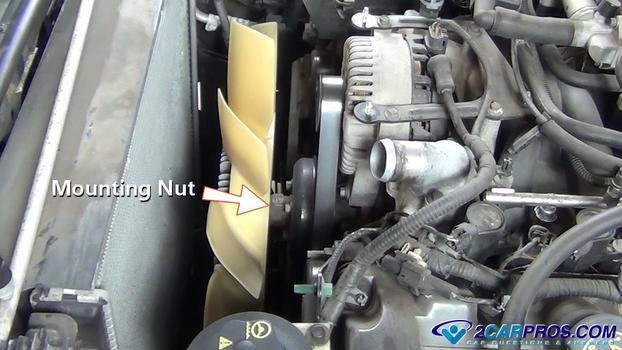

Loosen the Fan Clutch Nut: Using the appropriate wrench (usually a large open-end wrench), loosen the fan clutch nut. Remember that the fan clutch nut typically has a left-handed (reverse) thread, meaning you'll need to turn it clockwise to loosen it. Check your vehicle's repair manual to confirm the thread direction. You may need to use a hammer or mallet to gently tap the wrench to break the nut loose.
Remove the Fan Clutch Nut: Once the nut is loosened, continue turning it until it is completely removed. Be careful, as the fan and clutch assembly may now be free to fall.
Remove the Clutch Fan: Carefully remove the clutch fan assembly from the water pump. Note the orientation of any shims or spacers for reinstallation.

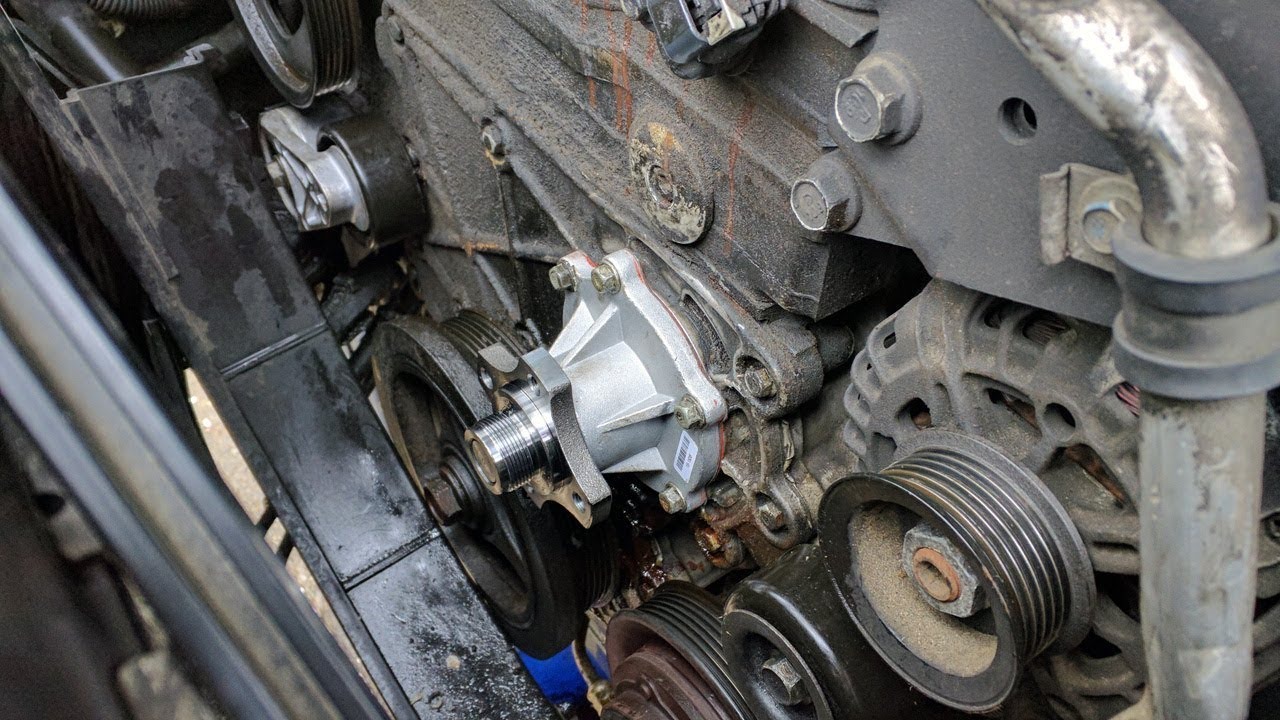

Inspection: Inspect the water pump and fan clutch for any signs of damage or wear. If either component is damaged, replace it.

Important Considerations:

Thread Direction: Always double-check the thread direction of the fan clutch nut. Forcing the nut in the wrong direction can damage the threads on the water pump shaft.
Stubborn Nuts: If the nut is extremely difficult to loosen, try applying more penetrating oil and using a longer wrench for increased leverage. You can also try heating the nut with a heat gun (exercise extreme caution when using heat near flammable materials).
Component Protection: Protect the radiator from accidental damage by placing a piece of cardboard or cloth in front of it while working.

Real-World Owner Experiences

Here are some insights and lessons learned from other vehicle owners who have tackled clutch fan removal:

Experience 1 (Ford Truck Owner): "I spent hours trying to get my fan clutch off with just a wrench and a screwdriver to hold the pulley. I ended up rounding off the nut and almost damaging the radiator. Finally, I bought the proper clutch fan wrench set, and it came off in minutes! Lesson learned: use the right tools!"
Experience 2 (Jeep Wrangler Owner): "The penetrating oil is your best friend! I sprayed it on the day before and the nut came right off. Also, be careful when removing the fan; it's heavier than it looks."
Experience 3 (Chevy Sedan Owner): "I thought I could get away with using a regular wrench, but the clutch fan wrench is shaped differently and gives you a much better grip. It's definitely worth the investment."
Experience 4 (Toyota SUV Owner): "Make sure you know the thread direction before you start wrenching! I almost broke the water pump shaft because I was turning it the wrong way. Thankfully, I stopped before doing any real damage."

These experiences highlight the importance of using the correct tools, applying penetrating oil, and understanding the thread direction of the fan clutch nut. Learning from the mistakes of others can save you time, money, and frustration.

Frequently Asked Questions (FAQs)

Here are some frequently asked questions about clutch fan removal:

Q: What is a clutch fan, and what does it do?: A: A clutch fan is a cooling fan that is attached to the water pump and uses a clutch mechanism to engage and disengage based on engine temperature. It helps to cool the engine by drawing air through the radiator.
Q: How do I know if my clutch fan is bad?: A: Signs of a bad clutch fan include overheating, reduced fuel efficiency, excessive noise, and a visibly damaged fan clutch.
Q: Can I replace the clutch fan myself?: A: Yes, with the right tools and a methodical approach, most DIY mechanics can replace the clutch fan. However, if you are not comfortable working on your vehicle, it's best to take it to a qualified mechanic.
Q: What should I do if the fan clutch nut is stuck?: A: Apply penetrating oil, use a longer wrench for more leverage, and gently tap the wrench with a hammer or mallet. You can also try heating the nut with a heat gun (exercise extreme caution). If all else fails, you may need to seek professional assistance.
Q: What is the difference between a standard fan and a clutch fan?: A: A standard fan is directly connected to the engine and rotates constantly. A clutch fan, on the other hand, engages and disengages based on engine temperature, improving fuel efficiency and reducing noise.
Q: Do I need to replace the water pump when I replace the clutch fan?: A: Not necessarily, but it's a good idea to inspect the water pump for any signs of wear or damage while you have the clutch fan removed. If the water pump is nearing the end of its lifespan, it may be wise to replace it at the same time to save on labor costs in the future.
Q: What does it mean if the nut has a "reverse thread?": A: Reverse thread, or left-handed thread, means you turn the nut clockwise to loosen it. This is opposite of most nuts and bolts and is important to know before trying to loosen the fan clutch nut.

By following these guidelines, you can confidently and safely remove a clutch fan from your water pump. Remember to always prioritize safety, use the correct tools, and consult your vehicle's repair manual for specific instructions.
