How To Remove A Fuel Pump Lock Ring

Removing a fuel pump lock ring can seem like a daunting task, but with the right tools, information, and a little patience, it's a manageable DIY project for many car owners. This article will guide you through the process, offering advice on tool selection, safety precautions, and common challenges you might encounter.

Why Removing a Fuel Pump Lock Ring Matters

The fuel pump lock ring, also known as a fuel tank lock ring, serves a critical purpose: it securely holds the fuel pump module within the fuel tank. This module contains the fuel pump itself, the fuel level sensor, and often a fuel filter. Removing the lock ring is necessary whenever you need to access or replace any of these components. Common reasons for needing to access the fuel pump include:

• Fuel Pump Failure: The fuel pump may stop working altogether, preventing the engine from receiving fuel. This is the most common reason for fuel pump replacement.
• Fuel Level Sensor Issues: An inaccurate or malfunctioning fuel level sensor can provide incorrect fuel readings, leaving you guessing about how much fuel you actually have.
• Fuel Filter Replacement: While some fuel filters are located elsewhere in the fuel system, many are integrated into the fuel pump module. Regular filter replacement is important for maintaining fuel system health.
• Fuel Tank Repair or Cleaning: In some cases, you might need to remove the fuel pump to access the fuel tank for cleaning or repair.

Understanding the function of the lock ring and the reasons for its removal highlights the importance of doing the job correctly. A loose or improperly installed lock ring can lead to fuel leaks, pressure loss, and even potential fire hazards.

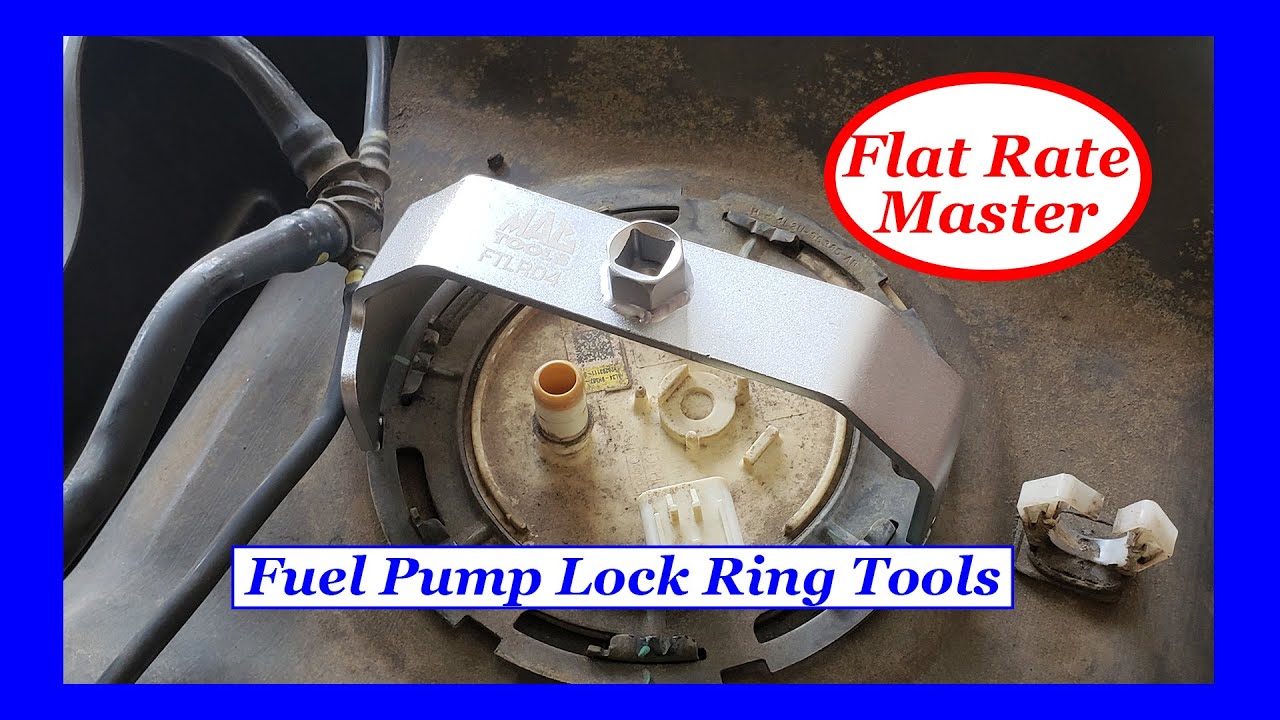

How to Choose the Right Fuel Pump Lock Ring Tool

The *most crucial* aspect of removing a fuel pump lock ring is using the correct tool. Trying to use makeshift methods, like a hammer and screwdriver, is highly discouraged as it can damage the ring, the fuel tank, or even cause sparks, leading to a dangerous situation. There are several types of tools available, each with its own advantages:

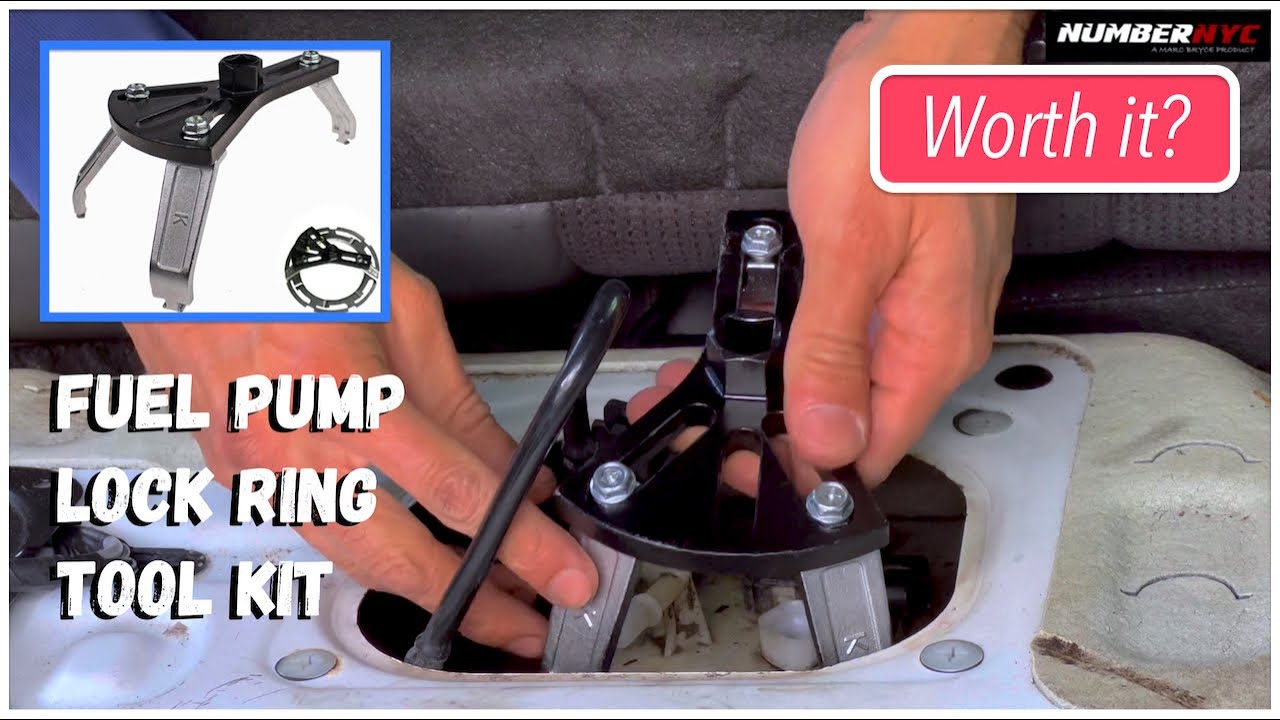

Universal Fuel Pump Lock Ring Wrench

These wrenches are adjustable and designed to fit a wide range of vehicles. They typically feature jaws or arms that grip the lock ring and allow you to turn it. Universal wrenches are a good option if you work on a variety of vehicles or don't want to invest in a specialized tool for each car. Consider the following when selecting a universal wrench:

• Adjustability Range: Ensure the wrench can adjust to the diameter of your vehicle's lock ring.
• Grip Strength: Look for a wrench with a secure grip to prevent slippage, which can damage the ring.
• Durability: Choose a wrench made from sturdy materials like steel to withstand the force required to loosen the lock ring.

Specialized Fuel Pump Lock Ring Tools

Some vehicles require specialized tools that are specifically designed for their lock ring design. These tools offer a more precise fit and can be easier to use than universal wrenches, particularly on vehicles with awkwardly positioned fuel pumps. Checking your vehicle's repair manual or an online database is crucial to determine if a specialized tool is recommended for your specific make and model. When considering a specialized tool, make sure it's compatible with your vehicle's year and engine.

Consider These Factors When Choosing a Tool:

• Vehicle Make and Model: As mentioned, some vehicles require specific tools.
• Accessibility: Consider the location of the fuel pump in your vehicle. Some pumps are in hard-to-reach locations, requiring a tool with a long handle or offset design.
• Budget: Universal wrenches tend to be more affordable than specialized tools.
• Quality: Investing in a higher-quality tool will save you frustration and potential damage in the long run.

Real-World Owner Experiences & Tips

Here are some insights gathered from real-world experiences of car owners who have tackled fuel pump lock ring removal:

• Soak the Lock Ring with Penetrating Oil: Before attempting to remove the lock ring, spray it generously with penetrating oil. Let it sit for at least 30 minutes (or even overnight) to help loosen any rust or corrosion that may be binding the ring to the tank. This is especially important on older vehicles.
• Tap Lightly with a Rubber Mallet: After applying penetrating oil, gently tap the lock ring with a rubber mallet. This can help break free any stubborn bonds. Avoid using a metal hammer, as it can damage the ring or create sparks.
• Take Your Time: Don't rush the process. Apply steady, even pressure when turning the wrench. If the ring is difficult to move, stop and reapply penetrating oil. Forcing it can damage the ring or the fuel tank.
• Clean the Area Thoroughly: Before removing the fuel pump, clean the area around the fuel tank opening. This will prevent dirt and debris from falling into the tank, which can contaminate the fuel and damage the fuel system.
• Mark the Lock Ring and Fuel Tank: Before removing the lock ring, use a marker to create alignment marks on both the ring and the fuel tank. This will make it easier to reinstall the ring in the correct position.
• Ventilation is Key: Work in a well-ventilated area to avoid inhaling fuel vapors. Fuel vapors are flammable and can be harmful to your health. Consider using a fan to circulate air.
• Disconnect the Battery: Disconnecting the negative battery terminal is a crucial safety precaution. This prevents accidental electrical sparks during the process, which could ignite fuel vapors.
• Wear Safety Glasses and Gloves: Protect your eyes from fuel splashes and debris by wearing safety glasses. Gloves will protect your hands from fuel and sharp edges.

One owner shared, "I spent hours fighting with a stubborn lock ring until I finally soaked it with penetrating oil overnight. The next day, it came off with minimal effort. Patience is key!" Another commented, "I accidentally broke my fuel pump lock ring trying to remove it with a screwdriver. Don't make the same mistake I did! Invest in the right tool."

Safety First!

Working with fuel systems requires extreme caution. Fuel is flammable and its vapors are explosive. Always prioritize safety by:

• Disconnecting the Negative Battery Terminal: This prevents sparks.
• Working in a Well-Ventilated Area: This prevents the buildup of flammable vapors.
• Having a Fire Extinguisher Nearby: Just in case.
• Avoiding Smoking or Open Flames: Obvious, but important to reiterate.
• Wearing Safety Glasses and Gloves: Protect your eyes and skin.

Fuel Pump Lock Ring Removal: Step-by-Step

While specific steps may vary slightly depending on your vehicle, here's a general outline of the process:

1. Prepare the Vehicle: Disconnect the negative battery terminal. Ensure the fuel tank is as empty as possible.
2. Access the Fuel Pump: This usually involves removing the rear seat or accessing an access panel in the trunk. Consult your vehicle's repair manual for specific instructions.
3. Disconnect Electrical Connectors: Carefully disconnect all electrical connectors attached to the fuel pump module.
4. Disconnect Fuel Lines: Disconnect the fuel lines from the fuel pump module. Be prepared for a small amount of fuel to spill. Have rags handy to clean up any spills immediately. Special fuel line disconnect tools may be needed.
5. Clean the Area: Thoroughly clean the area around the fuel pump lock ring to prevent debris from falling into the fuel tank.
6. Apply Penetrating Oil: Spray the lock ring with penetrating oil and let it soak for at least 30 minutes.
7. Position the Lock Ring Tool: Position the fuel pump lock ring tool onto the lock ring, ensuring a secure grip.
8. Loosen the Lock Ring: Apply steady, even pressure to the tool to loosen the lock ring. Turn the ring counterclockwise. If the ring is very tight, tap it gently with a rubber mallet while applying pressure to the tool.
9. Remove the Lock Ring: Once the lock ring is loose, carefully remove it from the fuel tank.
10. Remove the Fuel Pump Module: Carefully lift the fuel pump module out of the fuel tank.

Reinstallation is the Reverse

When reinstalling the fuel pump and lock ring, follow these guidelines:

• Inspect the New Fuel Pump Module (if applicable): Ensure the new fuel pump module is in good condition and that all components are properly connected.
• Install the Fuel Pump Module: Carefully lower the fuel pump module into the fuel tank, aligning it properly.
• Install the Lock Ring: Position the lock ring over the fuel pump module and align it with the marks you made earlier.
• Tighten the Lock Ring: Use the fuel pump lock ring tool to tighten the lock ring, turning it clockwise. Ensure the ring is properly seated and securely tightened. Do not overtighten.
• Reconnect Fuel Lines and Electrical Connectors: Reconnect all fuel lines and electrical connectors.
• Test for Leaks: After reconnecting the battery, start the engine and check for fuel leaks around the fuel pump module.

FAQs About Fuel Pump Lock Ring Removal

Q: Can I reuse the old fuel pump lock ring?

A: It is generally recommended to replace the fuel pump lock ring whenever you remove it. Over time, the ring can become worn or corroded, which can compromise its ability to seal properly.

Q: How tight should I tighten the fuel pump lock ring?

A: Tighten the lock ring until it is securely seated. Do not overtighten, as this can damage the ring or the fuel tank. Consult your vehicle's repair manual for the recommended torque specification, if available.

Q: What if I can't get the lock ring to budge?

A: Be patient! Reapply penetrating oil and let it soak for a longer period. Try tapping the ring gently with a rubber mallet. Ensure you are using the correct tool and applying even pressure. If all else fails, consider seeking professional assistance.

Q: Can I do this myself, or should I take it to a mechanic?

A: If you are comfortable working on cars and have the necessary tools, you can likely handle this job yourself. However, if you are not confident in your abilities or if you encounter any difficulties, it is best to take your vehicle to a qualified mechanic.

By following these guidelines and taking the necessary precautions, you can successfully remove and reinstall a fuel pump lock ring and get your vehicle back on the road safely.
