How To Remove A Oil Pan

Dropping the oil pan might seem like a straightforward task, but it's a job where attention to detail and a systematic approach are critical. Whether you're chasing an oil leak, replacing a damaged pan, or cleaning out sludge buildup, understanding the process and potential pitfalls will save you time, money, and potential headaches. This guide walks you through the process, assuming you have some existing mechanical experience and basic tools. We'll cover everything from preparation to reinstallation, including common snags and best practices.

Understanding the Oil Pan System

The oil pan, also known as the oil sump, is a reservoir located at the bottom of your engine. It's a crucial component of the lubrication system, serving as the collection point for oil after it has circulated throughout the engine, lubricating critical parts like the crankshaft, connecting rods, pistons, camshaft, and valve train. Gravity pulls the oil back down into the pan, where it's stored until the oil pump picks it up again and recirculates it. The pan also acts as a heat sink, helping to dissipate some of the engine's heat.

Components within the Oil Pan System

Several components interact with the oil pan directly:

• Oil Pump: This pump, typically driven by the crankshaft, draws oil from the pan through the oil pickup tube.
• Oil Pickup Tube: A pipe that extends from the oil pump into the oil pan, usually near the bottom, with a screen (oil pickup screen) to filter out large debris.
• Oil Drain Plug: Located at the bottom of the pan, used to drain the oil during oil changes.
• Oil Level Sensor (if equipped): Some vehicles have a sensor in the oil pan to monitor the oil level and alert the driver if it gets too low.
• Gasket or Sealant: Creates a leak-proof seal between the oil pan and the engine block.

Technical Breakdown: Removing the Oil Pan

Here’s a step-by-step guide to safely and effectively remove an oil pan. Always consult your vehicle's service manual for specific instructions and torque specifications. This guide provides general procedures that may need to be adapted to your particular make and model.

1. Preparation is Key

• Safety First: Wear safety glasses and gloves. Work in a well-ventilated area.
• Gather Your Tools: You'll need:
  • Wrenches and sockets (metric or SAE, depending on your vehicle)
  • Torque wrench
  • Oil drain pan
  • Jack and jack stands
  • Wheel chocks
  • Scrapers (plastic or metal, depending on the material of the gasket surface)
  • Cleaning solvent (brake cleaner or similar degreaser)
  • New oil pan gasket or sealant (matching the original type)
  • Optional: Penetrating oil
• Raise and Secure the Vehicle: Chock the rear wheels. Loosen the lug nuts on the front wheels. Jack up the front of the vehicle and securely place it on jack stands. Never work under a vehicle supported only by a jack.
• Drain the Oil: Locate the oil drain plug on the oil pan. Place the oil drain pan underneath. Using the appropriate wrench or socket, loosen and remove the drain plug, allowing the oil to drain completely. Reinstall the drain plug with a new crush washer and torque to the manufacturer's specification. This prevents leaks later.
• Disconnect the Battery (Recommended): Disconnecting the negative terminal of the battery prevents accidental electrical shorts, especially if the oil pan has an oil level sensor.

2. Accessing the Oil Pan

• Identify Obstructions: Inspect the area around the oil pan. Common obstructions include:
  • Exhaust components (exhaust pipe, catalytic converter)
  • Crossmembers
  • Steering components
  • Starter motor
• Remove or Loosen Obstructions: If necessary, remove or loosen any obstructions. For example:
  • Exhaust: Unbolt the exhaust system at the flange near the oil pan. Support the exhaust with a jack stand to prevent it from hanging unsupported.
  • Crossmember: Some crossmembers may need to be unbolted or loosened to allow the oil pan to clear. Support the engine from above with an engine support bar or a jack and wooden block positioned under the engine's lower bell housing prior to removing or loosening any engine mounting hardware. This prevents the engine from dropping.

3. Removing the Oil Pan

• Loosen the Oil Pan Bolts: Locate all the bolts securing the oil pan to the engine block. Use the appropriate socket or wrench to loosen them gradually in a crisscross pattern. This helps prevent warping of the oil pan flange.
• Remove the Oil Pan Bolts: Once all the bolts are loosened, remove them completely. Keep track of their locations, as they may be different lengths.

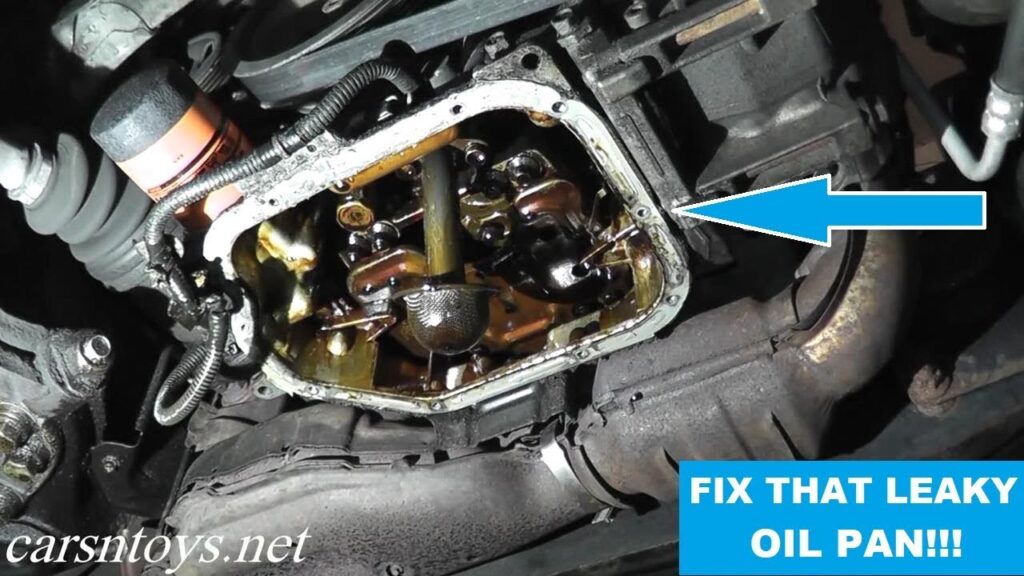

• Separate the Oil Pan: The oil pan may be stuck to the engine block due to the gasket or sealant. Use a plastic scraper or a thin metal scraper (carefully!) to gently separate the pan from the block. Avoid using excessive force, which could damage the sealing surfaces. You can also try tapping the pan lightly with a rubber mallet.

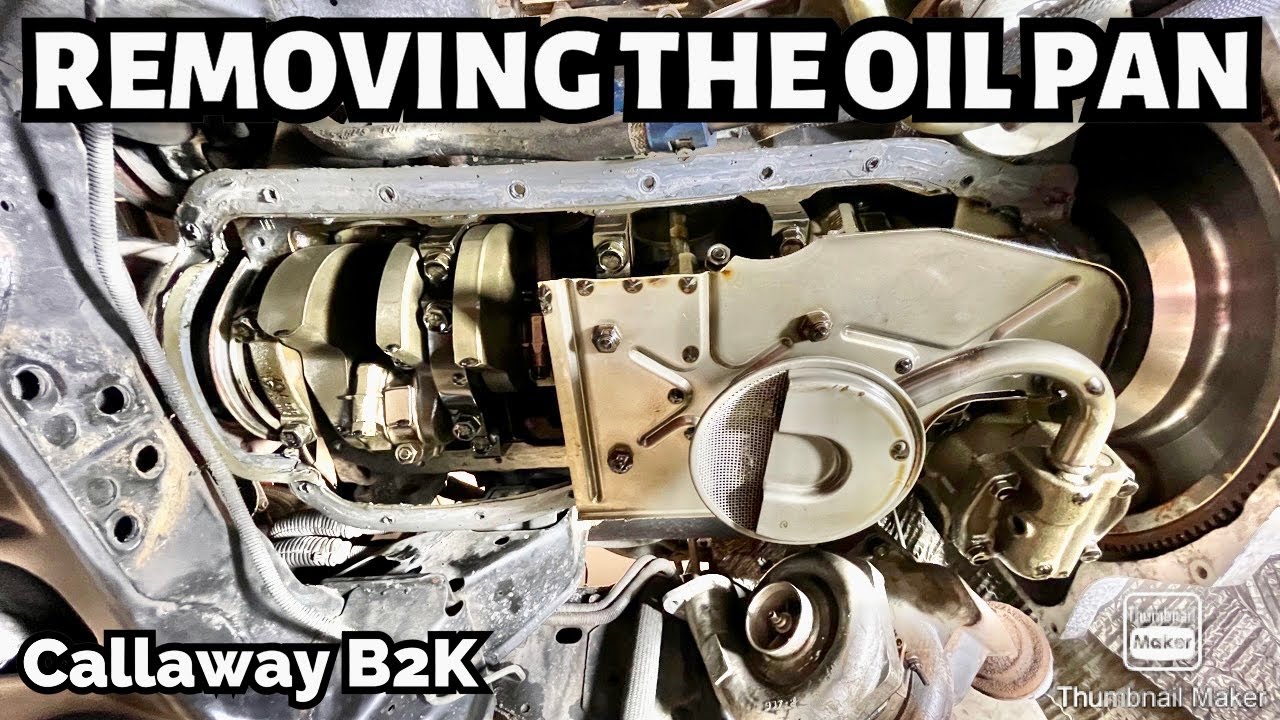

• Lower the Oil Pan: Once the pan is free, carefully lower it. Be mindful of the oil pickup tube, which may still be attached to the oil pump inside the engine. Maneuver the pan to clear any obstructions.

4. Inspection and Cleaning

• Inspect the Oil Pickup Tube: Check the oil pickup tube and screen for any clogs or damage. Clean the screen with solvent if necessary. If the tube is damaged, replace it.
• Clean the Oil Pan: Thoroughly clean the inside of the oil pan with solvent to remove any sludge, debris, or old oil.
• Clean the Sealing Surfaces: Use a scraper to remove any remaining gasket material or sealant from the engine block and the oil pan flange. Clean both surfaces with solvent to ensure they are clean and dry. A perfectly clean surface is essential for a good seal.
• Inspect the Oil Pan: Check the oil pan for any damage, such as dents or cracks. If the pan is damaged, replace it. Pay close attention to the area around the drain plug for signs of stripping.

5. Reinstalling the Oil Pan

• Install the New Gasket or Sealant: Apply a new gasket or sealant to the oil pan flange according to the manufacturer's instructions. If using a gasket, make sure it is properly aligned. If using sealant, apply a thin, even bead. Some gaskets may require a thin film of sealant on both sides for optimal sealing.
• Position the Oil Pan: Carefully position the oil pan against the engine block, making sure the oil pickup tube is properly positioned.
• Install the Oil Pan Bolts: Install the oil pan bolts and tighten them by hand.
• Torque the Oil Pan Bolts: Using a torque wrench, tighten the oil pan bolts to the manufacturer's specified torque in a crisscross pattern. Overtightening can damage the oil pan or engine block, while undertightening can cause leaks. Torque specifications are critical.
• Reinstall Obstructions: Reinstall any obstructions that were removed, such as the exhaust system or crossmember.
• Reconnect the Battery: Reconnect the negative terminal of the battery.
• Add Oil: Refill the engine with the correct type and amount of oil.

6. Final Checks

• Check for Leaks: Start the engine and let it run for a few minutes. Check for any oil leaks around the oil pan.
• Monitor Oil Pressure: Monitor the oil pressure gauge to ensure proper oil pressure.
• Lower the Vehicle: Carefully lower the vehicle back to the ground.
• Recheck for Leaks: Recheck for leaks after driving the vehicle for a short distance.

Common Issues and Maintenance Concerns

• Stripped Drain Plug Threads: This is a common problem, often caused by overtightening the drain plug. Repair options include using a thread repair kit (e.g., Heli-Coil) or replacing the oil pan.
• Oil Leaks: Oil leaks can be caused by a damaged gasket, improperly installed sealant, or a warped oil pan flange.
• Damaged Oil Pickup Tube: The oil pickup tube can be damaged by debris or impacts, leading to oil starvation.
• Sludge Buildup: Sludge can accumulate in the oil pan over time, restricting oil flow and reducing engine performance. Regular oil changes are essential to prevent sludge buildup.
• Incorrect Torque: Using the wrong torque specification when tightening the oil pan bolts can lead to leaks or damage to the oil pan or engine block.

Do's and Don'ts / Best Practices

• DO consult your vehicle's service manual for specific instructions and torque specifications.
• DO use new gaskets or sealant.
• DO clean all sealing surfaces thoroughly.
• DO use a torque wrench to tighten the oil pan bolts to the specified torque.
• DO check for leaks after reinstalling the oil pan.
• DON'T overtighten the oil pan bolts.
• DON'T use excessive force to separate the oil pan from the engine block.
• DON'T reuse old gaskets or sealant.
• DON'T ignore potential obstructions; address them properly.

Conclusion

Removing and reinstalling an oil pan is a manageable task for the experienced DIYer. Following these steps carefully, using the correct tools, and adhering to best practices will ensure a successful repair. The most crucial element is attention to detail: clean surfaces, proper torque, and new gaskets are non-negotiable. If you're unsure about any part of the process, consult a qualified mechanic. Addressing issues like oil leaks or sludge buildup promptly will extend the life of your engine and keep it running smoothly.
