How To Remove A Wiper Blade Arm

Ever wrestled with a stubborn windshield wiper arm, struggling to replace a simple blade? You're not alone. While changing wiper blades is a routine maintenance task, removing the entire wiper arm itself can sometimes be necessary. Whether you need to replace a damaged arm, address corrosion underneath, or access the wiper motor assembly, knowing how to safely remove the arm is crucial to avoid further damage. Removing a wiper arm incorrectly can lead to a bent arm, scratched paint, or even a damaged wiper motor linkage. This guide will walk you through the process, step-by-step, ensuring a successful and frustration-free experience. Knowing how to do this yourself can save you time and money compared to a trip to the mechanic.

Symptoms of a Wiper Arm Problem

Before diving into the removal process, let's identify the common symptoms that indicate you might need to remove your wiper arm(s):

Wiper arm is bent or damaged: This is the most obvious symptom. A bent arm will not apply even pressure to the windshield, resulting in streaking and poor visibility.
Wiper arm is loose or wobbly: If the arm feels loose on the pivot shaft, even after tightening the retaining nut, there might be damage to the arm itself or the pivot shaft splines.
Wiper motor runs, but the arm doesn't move: This could indicate a stripped wiper arm spline or a problem with the wiper motor linkage, often requiring arm removal for diagnosis and repair.
Corrosion around the wiper arm base: Rust and corrosion can build up around the base of the wiper arm, potentially seizing it to the pivot shaft. Removal is necessary to clean and prevent further damage.
Need to access the wiper motor or linkage: Certain repairs, such as replacing the wiper motor or fixing a broken linkage, require removing the wiper arms for access.
Streaking even with new blades: While new blades usually solve streaking issues, a weak or improperly positioned wiper arm spring can also be the culprit. Removing the arm allows for inspection and potential replacement of the spring.

Root Cause: Why Wiper Arms Fail or Need Removal

Wiper arms are subjected to harsh environmental conditions, including extreme temperatures, rain, snow, ice, and UV radiation. These factors contribute to several issues:

Corrosion: Water and road salt can penetrate the connection between the wiper arm and the pivot shaft, leading to rust and corrosion. This can seize the arm to the shaft, making removal difficult and potentially damaging the arm.
Wear and Tear: The constant motion of the wiper arm can wear down the splines on the arm and/or the pivot shaft. This leads to looseness and reduced wiper performance.
Accidental Damage: Car washes, ice scrapers, and even improper handling during blade replacement can bend or damage the wiper arms.
Spring Fatigue: The spring that provides tension to the wiper blade can weaken over time, reducing its effectiveness. Replacing the spring often requires arm removal.
Poor Design/Manufacturing: In some cases, the wiper arm itself may be poorly designed or manufactured with weak materials, making it more susceptible to damage or failure.

Consequences of Ignoring Wiper Arm Issues

Ignoring a faulty wiper arm can have serious consequences, affecting both your safety and your vehicle's condition:

Reduced Visibility: Streaking and uneven wiping significantly reduce visibility during rain, snow, or other adverse weather conditions, increasing the risk of accidents.
Windshield Damage: A bent or damaged wiper arm can scratch the windshield, requiring costly repairs or replacement.
Wiper Motor Failure: A seized wiper arm can put excessive strain on the wiper motor, leading to premature failure. Replacing a wiper motor can be an expensive repair.
Safety Hazard: In extreme cases, a malfunctioning wiper system can completely fail during a critical moment, leaving you with no visibility and putting you at significant risk.
Further Damage: Continued use of a faulty wiper arm can damage the wiper linkage or other components of the wiper system, leading to more extensive and costly repairs.

Recommended Fixes: Removing and Addressing Wiper Arm Issues

Here's a step-by-step guide on how to safely remove a wiper arm:

Gather your tools: You'll need a few essential tools:
- Wrench or socket (usually 13mm or 14mm): To loosen and remove the retaining nut.
- Wiper arm puller (optional, but highly recommended): This tool is specifically designed to safely remove stubborn wiper arms without causing damage. You can find these at most auto parts stores.
- Penetrating oil (e.g., WD-40 or PB Blaster): To help loosen a corroded wiper arm.
- Soft cloth or towel: To protect the windshield from scratches.
Prepare the area: Park your vehicle on a level surface and turn off the ignition. Protect the windshield with a soft cloth or towel around the base of the wiper arm.

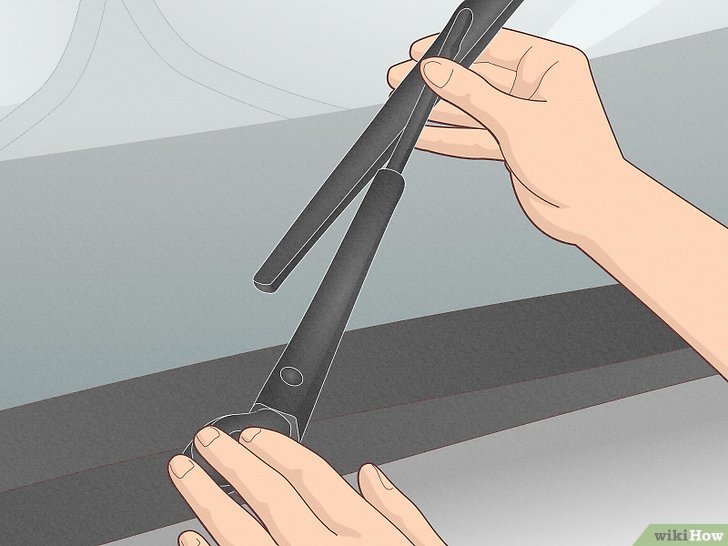

Loosen the retaining nut: Locate the retaining nut at the base of the wiper arm, where it connects to the pivot shaft. Use a wrench or socket to slightly loosen the nut. Do not remove it completely yet! Leaving the nut partially threaded will prevent the arm from flying off and potentially damaging the windshield or yourself.
Apply penetrating oil (if needed): If the wiper arm is corroded or seems stuck, apply penetrating oil around the base of the arm, where it meets the pivot shaft. Let it soak for 10-15 minutes to help loosen the corrosion.
Use a wiper arm puller (recommended): This is the safest and most effective way to remove a stubborn wiper arm. Attach the puller to the arm, ensuring it's properly seated. Tighten the puller's bolt to gradually separate the arm from the pivot shaft.
Manual removal (if no puller): If you don't have a puller, you can try gently rocking the wiper arm back and forth while lightly tapping on the base of the arm with a rubber mallet. Be careful not to apply too much force, as this can damage the pivot shaft or windshield. Once the arm is loose, carefully wiggle it off the shaft.
Remove the retaining nut: Once the arm is free from the pivot shaft, fully remove the retaining nut.
Inspect the pivot shaft and arm: Once the arm is removed, inspect the pivot shaft for damage or corrosion. Clean the shaft with a wire brush and apply a thin layer of grease before reinstalling a new or repaired arm. Also inspect the wiper arm itself for any signs of damage, such as cracks or bends.

After Removal: Addressing the Underlying Issue

Once the arm is removed, you can address the reason for its removal. This might involve:

Replacing a damaged wiper arm: Purchase a new wiper arm that matches your vehicle's make and model.
Cleaning and lubricating the pivot shaft: Remove corrosion and apply grease to prevent future issues.
Replacing the wiper arm spring: If the spring is weak, replace it to improve wiper performance.
Accessing and repairing the wiper motor or linkage: Follow the appropriate repair procedures for these components.

Cost Estimates and Shop Advice

If you're not comfortable removing the wiper arm yourself, a professional mechanic can handle the task. Here's a general idea of the costs involved:

Wiper arm removal and replacement: Labor costs typically range from $30 to $60, depending on the complexity of the job and the shop's hourly rate. The cost of a new wiper arm can vary from $20 to $50, depending on the make, model, and quality of the arm.
Wiper motor or linkage repair: This can be a more expensive repair, with labor costs ranging from $100 to $300 or more, depending on the complexity of the repair and the shop's hourly rate. The cost of parts, such as a new wiper motor or linkage, can also vary significantly.

Shop Advice:

Get multiple quotes: Contact several different repair shops to compare prices and services.
Ask about warranties: Inquire about the warranty on parts and labor.
Check online reviews: Read reviews of local repair shops to get an idea of their reputation and quality of service.
Consider doing it yourself: If you're comfortable with basic mechanical tasks, you can save money by removing and replacing the wiper arm yourself.

Technical Service Bulletins (TSBs) and Community Data

While not always publicly available, vehicle manufacturers often issue Technical Service Bulletins (TSBs) to address common issues. Check online resources or with your dealer to see if there are any TSBs related to wiper arm problems for your specific vehicle make and model.

Online forums and communities dedicated to specific vehicle models often contain valuable information and shared experiences. Search for discussions about wiper arm issues and solutions. This can provide insights into common problems and potential fixes. For example, many forums discuss the common issue of wiper arms seizing on older vehicles, particularly those driven in areas with heavy salt use during winter.

Based on community data, wiper arm issues are more prevalent in vehicles older than 5 years or those with over 75,000 miles, especially in regions with harsh weather conditions.

By following these steps and understanding the potential causes and consequences of wiper arm problems, you can ensure a safe and clear view of the road ahead.
