How To Remove A Wiper Motor

A faulty wiper motor can significantly impair your driving visibility during rain, snow, or even just a dusty day. Knowing how to remove a wiper motor yourself can save you money on labor costs and provide a valuable learning experience in auto repair. This guide provides a comprehensive, step-by-step process to safely and effectively remove a wiper motor, empowering you to tackle this task with confidence.

Why Removing a Wiper Motor Matters

The wiper motor is a critical component of your vehicle's safety system. It powers the windshield wipers, ensuring a clear view of the road ahead. When the wiper motor fails, your wipers might operate erratically (too slow, too fast, or not at all), or they might stop working completely. This is not only inconvenient but also extremely dangerous, especially in inclement weather. Driving with malfunctioning wipers is illegal in many jurisdictions.

Understanding how to remove the wiper motor yourself offers several benefits:

• Cost Savings: Labor costs for auto repairs can be substantial. Removing the wiper motor yourself eliminates this expense, allowing you to put that money towards a new motor or other repairs.
• Increased Confidence: Successfully completing this task can boost your confidence in tackling other DIY auto repairs. It's a great entry point into learning about your vehicle's mechanics.
• Faster Turnaround: You won't have to wait for an appointment at a mechanic's shop. You can address the issue as soon as you have the replacement part.
• Better Understanding: By disassembling and reassembling the wiper motor system, you'll gain a deeper understanding of how it works and how its components interact.

How to Choose the Right Replacement Wiper Motor

Before you even think about removing the old wiper motor, it's crucial to have the correct replacement on hand. Selecting the right wiper motor is essential for proper fit and functionality. Here's a breakdown of factors to consider:

Vehicle Year, Make, and Model

This is the most important factor. Wiper motors are often specific to the year, make, and model of your vehicle. Using the wrong motor could result in incompatibility with the wiring harness, the wiper linkage, or the mounting points. Always consult your vehicle's owner's manual or an online parts catalog to confirm the correct part number. Most auto parts stores offer online lookup tools that allow you to input your vehicle's details and find compatible parts.

Motor Type (Single or Dual)

Some vehicles use a single wiper motor to power both wipers through a linkage system, while others use two separate motors, one for each wiper. Identify which type your vehicle uses before purchasing a replacement.

Motor Features

Consider any special features of your current wiper motor. Does it have intermittent settings? Does it have a washer pump integrated into the motor? Ensure that the replacement motor offers the same functionalities. Some newer motors may offer improved performance or features compared to the original, but make sure they are compatible with your vehicle's electrical system.

Brand Reputation and Reviews

Opt for a reputable brand known for producing quality auto parts. Read online reviews from other vehicle owners to gauge the reliability and performance of different wiper motor brands. While cheaper options might be tempting, investing in a quality motor can save you from premature failure and future headaches.

Verify Compatibility

Once you've identified a potential replacement motor, double-check its compatibility. Most online parts retailers allow you to enter your vehicle information and then confirm whether the part fits. Some retailers also allow you to compare the specifications of the replacement motor with the original.

Step-by-Step Guide: Removing Your Wiper Motor

Safety First! Before starting any automotive repair, disconnect the negative terminal of your car battery to prevent electrical shocks. Wear safety glasses to protect your eyes from debris. Work in a well-lit area and use proper tools.

1. Gather Your Tools: You'll likely need the following:
   • Socket set (metric or SAE, depending on your vehicle)
   • Screwdrivers (Phillips and flathead)
   • Wrench set
   • Pliers
   • Penetrating oil (if bolts are rusty)
   • Gloves
   • Safety glasses
   • Shop towels
   • Newspaper or drop cloth to protect the work area
2. Locate the Wiper Motor: The wiper motor is typically located under the hood, near the base of the windshield. It may be housed in a compartment or directly attached to the firewall. Consult your vehicle's repair manual if you're unsure of its exact location.
3. Remove the Wiper Arms:
   • Carefully lift the wiper arm away from the windshield.
   • Locate the retaining clip or nut that secures the wiper arm to the wiper motor linkage.
   • Remove the clip or nut and carefully pull the wiper arm off the linkage. A wiper arm removal tool may be helpful if the arm is stuck.
   • Repeat for the other wiper arm. Mark the original position of the wiper arms on the windshield with masking tape before removal. This will help you reinstall them correctly later.
4. Remove the Cowl Panel: The cowl panel is the plastic or metal piece that sits below the windshield and covers the wiper motor mechanism.
   • Locate and remove any screws or clips that secure the cowl panel. These are usually located along the edge of the panel.
   • Carefully lift the cowl panel off. You may need to gently pry it with a flathead screwdriver.
5. Disconnect the Wiring Harness:
   • Locate the electrical connector attached to the wiper motor.
   • Press the release tab on the connector and carefully pull it off. Do not pull on the wires themselves.

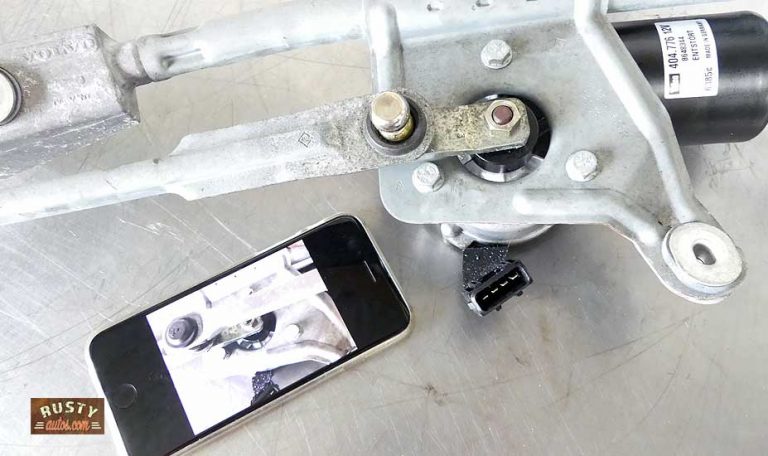

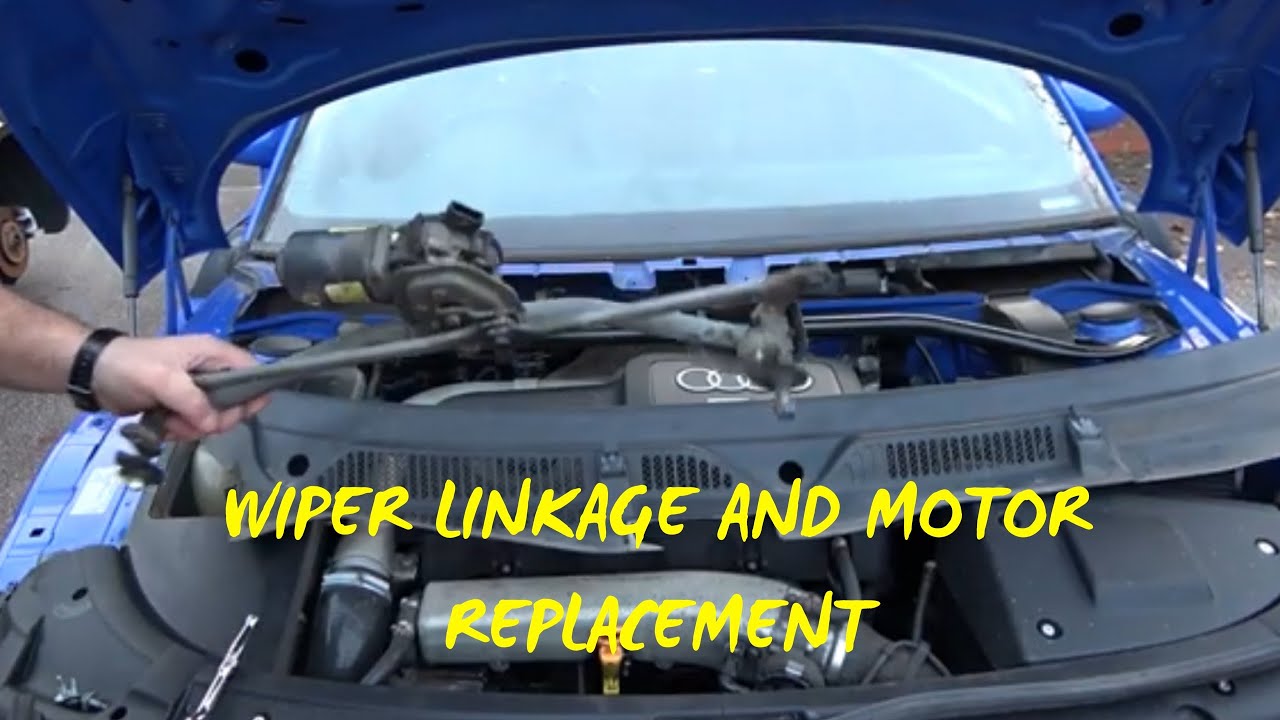

6. Detach the Wiper Linkage: The wiper linkage connects the wiper motor to the wiper arms.
   • Identify the points where the linkage connects to the wiper motor. These connections usually have retaining clips or nuts.
   • Remove the retaining clips or nuts. A small screwdriver or pliers may be helpful.

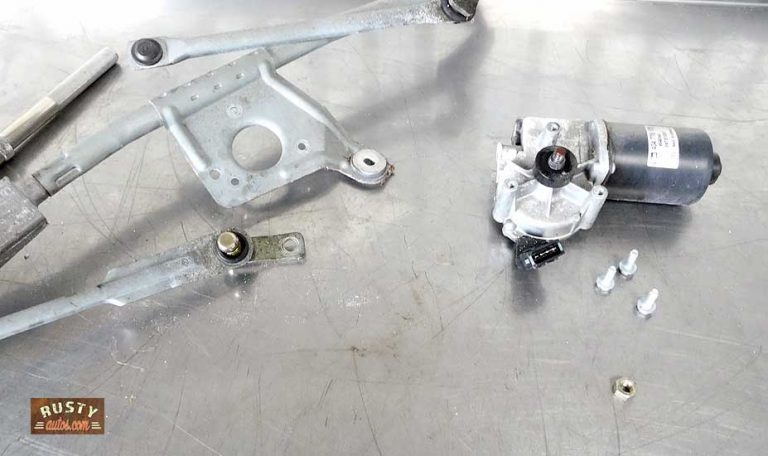

   • Carefully detach the linkage from the wiper motor. Some linkages may be stiff or corroded, so use penetrating oil if needed.

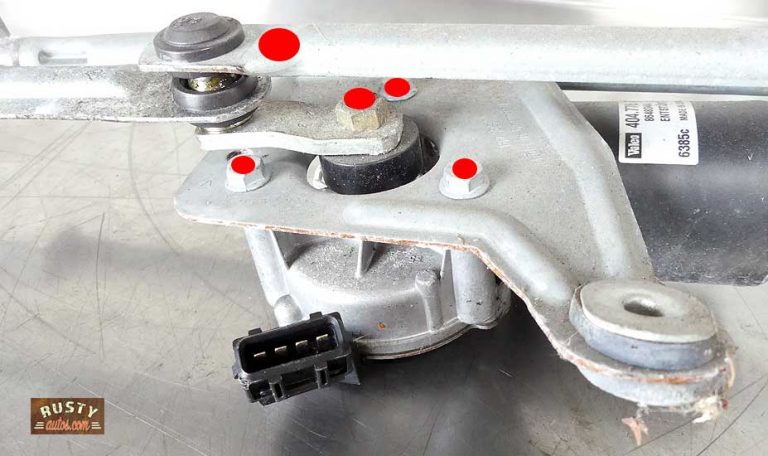

7. Remove the Wiper Motor Mounting Bolts:
   • Locate the bolts that secure the wiper motor to the firewall or its mounting bracket.
   • Use a socket or wrench to remove the bolts.
   • Carefully remove the wiper motor.

Note: If you encounter any difficulties or feel uncomfortable with any of these steps, it's best to consult a qualified mechanic.

Real-World Owner Experiences

Many vehicle owners have successfully replaced their wiper motors themselves. Here are a few snippets of common experiences:

• "I was quoted $300 to replace my wiper motor at a shop. I bought a new motor online for $80 and did it myself in about an hour. The instructions in this article were very helpful!" - John D., 2010 Honda Civic owner
• "The hardest part was removing the cowl panel. It was really stuck! But with a little patience and some gentle prying, I got it off." - Sarah M., 2005 Ford Explorer owner
• "Make sure you disconnect the battery! I almost got a nasty shock. Learned my lesson!" - David L., 2012 Toyota Camry owner
• "Penetrating oil is your friend! My linkage was completely seized, but a little penetrating oil loosened it right up." - Emily S., 2008 Chevy Silverado owner

Frequently Asked Questions (FAQs)

Q: How much does it cost to replace a wiper motor?

A: The cost can vary depending on the vehicle and the type of motor. Expect to pay between $50 and $200 for the replacement motor itself. Labor costs at a mechanic's shop can add another $100 to $300 or more.

Q: How long does it take to replace a wiper motor?

A: For a DIY repair, expect to spend 1 to 2 hours, depending on your experience level and the complexity of the vehicle. A mechanic can usually complete the job in less than an hour.

Q: Can I drive with a broken wiper motor?

A: It is highly discouraged and often illegal to drive with a broken wiper motor. Reduced visibility can significantly increase the risk of accidents, especially in rain, snow, or fog.

Q: How do I know if my wiper motor is bad?

A: Common symptoms of a failing wiper motor include: wipers that move erratically (too slow, too fast, or intermittently), wipers that don't move at all, wipers that stop in the middle of the windshield, or a burning smell coming from the motor area.

Q: What causes a wiper motor to fail?

A: Wiper motors can fail due to several reasons, including: normal wear and tear, corrosion from moisture, electrical shorts, or mechanical damage to the internal components.

Q: Are all wiper motors the same?

A: No, wiper motors are not all the same. They vary in size, voltage, torque, and mounting style. It's crucial to choose a replacement motor that is specifically designed for your vehicle.

Q: What if I'm not comfortable doing this myself?

A: If you're not comfortable performing this repair yourself, it's always best to consult a qualified mechanic. They have the expertise and tools to diagnose and repair the problem safely and efficiently.
