How To Remove Air From Cooling System

Have you noticed your car overheating, even though the coolant level seems fine? Or perhaps your heater is blowing cold air despite the engine being warm? These could be signs of air trapped in your cooling system. This isn't just a minor annoyance; it can lead to serious engine damage if left unaddressed. In this guide, we’ll walk you through the symptoms, causes, and solutions to effectively remove air from your cooling system, ensuring your engine stays cool and reliable.

Symptoms of Air in Your Cooling System

Identifying air in your cooling system early is crucial to prevent costly repairs. Here are some common symptoms to watch out for:

• Overheating: This is the most obvious symptom. The engine temperature gauge will consistently read higher than normal, and you might even see steam coming from under the hood.
• Erratic Temperature Gauge Readings: The temperature gauge might fluctuate wildly, going from normal to hot and back again within a short period.
• Poor Heater Performance: You might experience inconsistent or completely absent heat inside the cabin, especially at idle. The heater core is often located high in the cooling system, making it a prime location for air to become trapped.
• Gurgling Noises: You may hear gurgling or bubbling sounds coming from the dashboard or engine compartment, especially when starting the engine or after shutting it off. These noises are caused by air pockets moving through the coolant passages.
• Coolant Leaks: In some cases, trapped air can increase pressure in the cooling system, leading to leaks from hoses, the radiator, or even the water pump.
• Coolant Overflow: You might notice coolant overflowing from the overflow tank even when the engine isn't excessively hot. This is due to the air expanding when heated, pushing coolant out.
• White Smoke from Exhaust: In severe cases where the engine is consistently overheating, it can lead to a blown head gasket, which can result in white smoke emanating from the exhaust pipe. (This is a *very* serious consequence and requires immediate attention).

Understanding the Root Cause

Air can enter your cooling system in several ways:

• Coolant System Service: Anytime you drain and refill your cooling system (for example, during a radiator replacement or hose repair), air can get trapped in the system. This is almost unavoidable unless proper bleeding procedures are followed.
• Leaks: Even a small leak in a hose, radiator, or water pump can allow air to be sucked into the system as the engine cools and creates a vacuum.
• Head Gasket Leak: A blown or leaking head gasket can allow combustion gases (which contain air) to enter the cooling system. This is a more serious issue and often accompanied by other symptoms like white smoke from the exhaust and coolant contamination.
• Water Pump Failure: A failing water pump can not only reduce coolant circulation but also introduce air into the system, especially if the pump's impeller is damaged or corroded.
• Improper Coolant Mixture: Using the wrong coolant or mixing coolant with tap water instead of distilled water can lead to corrosion and scale buildup, which can create air pockets.

The cooling system works by circulating coolant through the engine to absorb heat, then passing the coolant through the radiator to dissipate that heat. Air pockets disrupt this process by insulating areas of the engine, preventing proper cooling. This can lead to localized hot spots and eventually, engine damage.

What Happens If You Ignore Air in the Cooling System?

Ignoring air in your cooling system is a recipe for disaster. Here's what can happen:

• Engine Overheating: As mentioned earlier, this is the most immediate consequence. Sustained overheating can warp the cylinder head, crack the engine block, or cause piston damage.
• Head Gasket Failure: Chronic overheating puts immense stress on the head gasket, eventually leading to its failure. A blown head gasket is a major repair, often requiring engine disassembly.
• Water Pump Damage: Overheating and cavitation (the formation of vapor bubbles caused by low pressure) can damage the water pump impeller, reducing its efficiency and potentially leading to complete failure.
• Radiator Damage: The increased pressure caused by air in the system can stress the radiator, leading to leaks and reduced cooling capacity.
• Hose Failure: Hoses can become brittle and crack due to the high temperatures and pressures, resulting in coolant leaks and further air intrusion.
• Catalytic Converter Damage: Severe overheating can damage the catalytic converter, a costly component that controls exhaust emissions.

Recommended Fixes for Removing Air

Fortunately, removing air from your cooling system is often a straightforward process. Here are several methods you can try:

1. Self-Bleeding: Many modern vehicles have a self-bleeding cooling system. This means that the system is designed to naturally purge air pockets over time. To assist this process:
   • Park the vehicle on a slight incline with the front end higher than the rear.
   • Remove the radiator cap (when the engine is cool!).
   • Start the engine and let it idle for 15-20 minutes.
   • Monitor the coolant level in the radiator and add coolant as needed.
   • Turn on the heater to its highest setting to circulate coolant through the heater core.
   • After 20 minutes, carefully replace the radiator cap.
2. Bleeding Screws: Many vehicles have bleeder screws located on the thermostat housing, radiator, or other high points in the cooling system. To use these:
   • Locate the bleeder screw(s). Consult your vehicle's repair manual for their exact location.
   • With the engine cool, carefully loosen the bleeder screw(s) until coolant starts to seep out.
   • Allow the coolant to flow until a steady stream of coolant is coming out, free of air bubbles.
   • Tighten the bleeder screw(s) and top off the coolant level in the radiator or overflow tank.

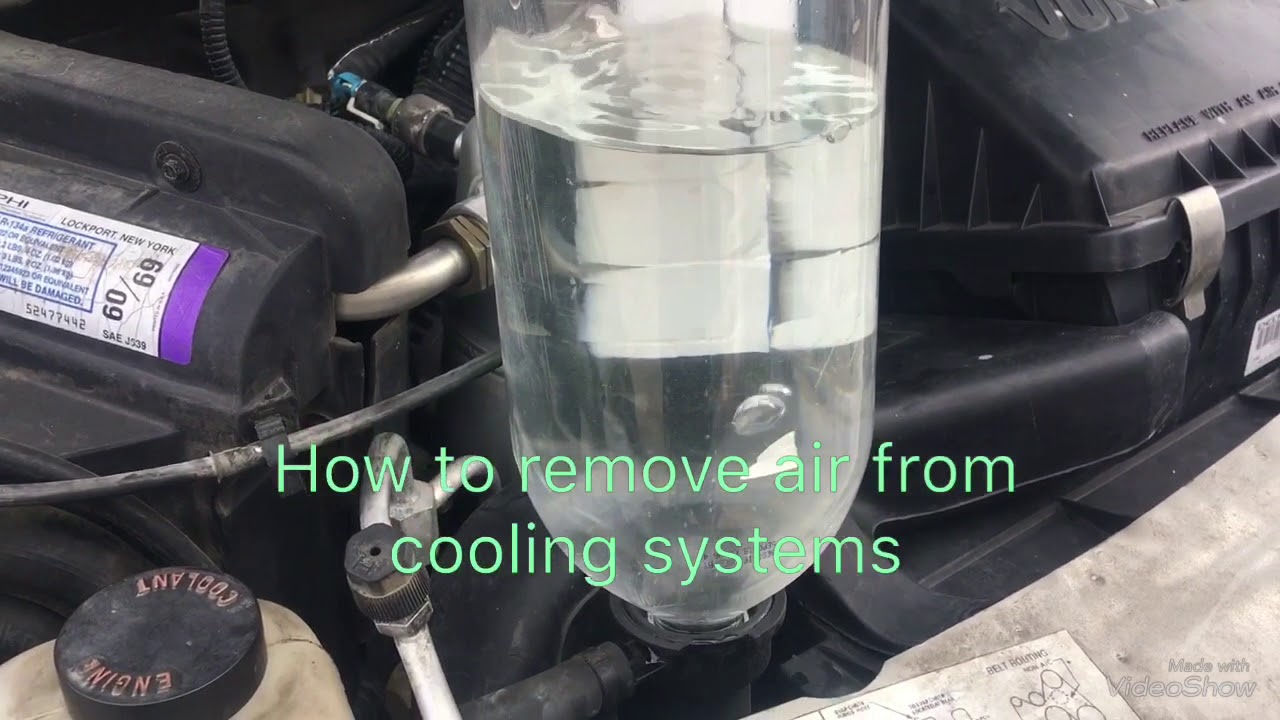

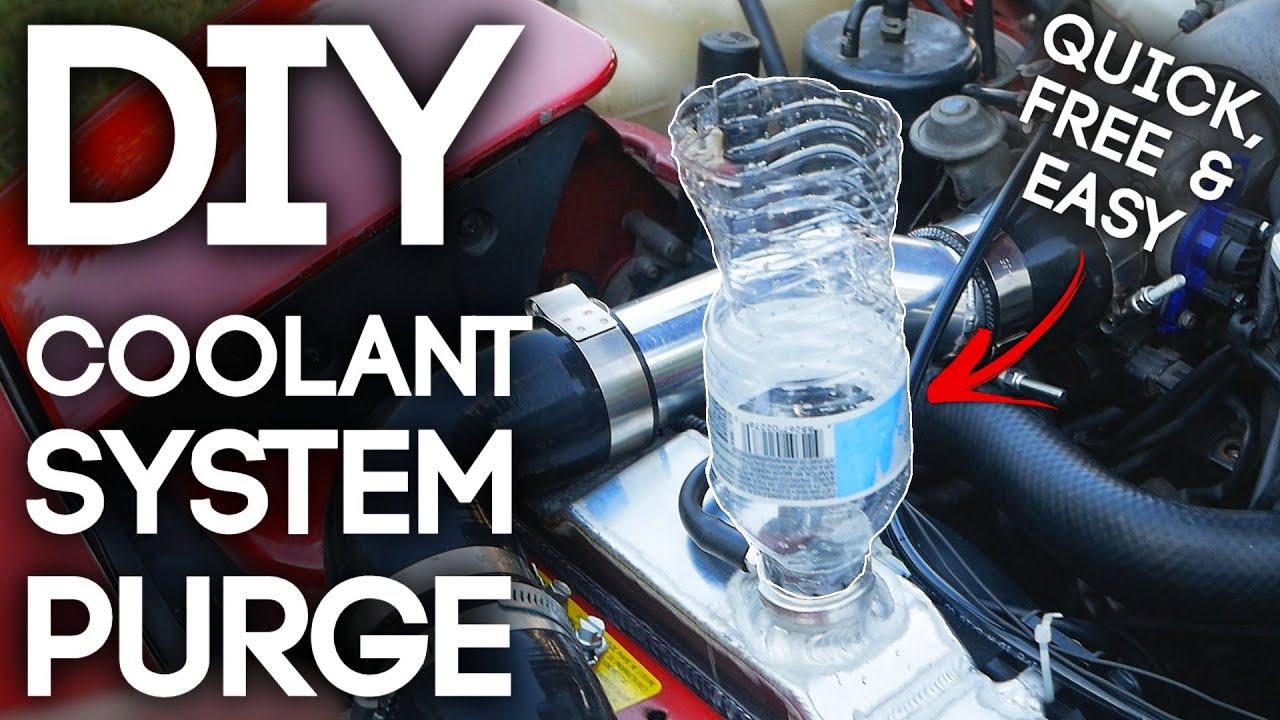

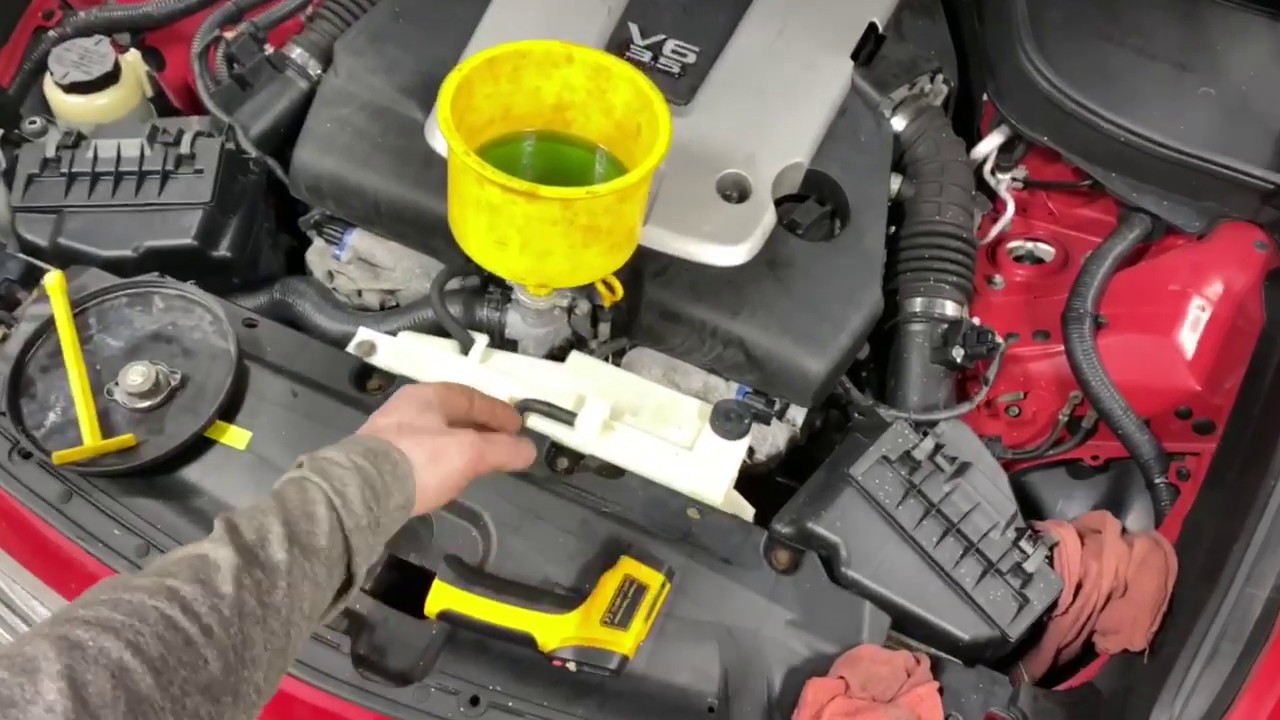

3. Coolant Funnel: A coolant funnel is a specialized funnel that attaches to the radiator filler neck and allows you to easily add coolant while preventing air from entering the system.
   • Attach the coolant funnel to the radiator filler neck.
   • Fill the funnel with coolant to the "full" mark.
   • Start the engine and let it idle.
   • Squeeze the upper and lower radiator hoses to help dislodge air pockets.
   • Monitor the coolant level in the funnel and add coolant as needed.
   • Continue this process until no more air bubbles appear in the funnel.
   • Remove the funnel and carefully replace the radiator cap.
4. Professional Bleeding: If you've tried these methods and are still experiencing problems, it's best to take your vehicle to a qualified mechanic. They have specialized tools, such as vacuum bleeders, that can effectively remove air from even the most stubborn cooling systems.

Cost Estimates and Shop Advice

The cost of removing air from your cooling system can vary depending on the method used and whether you do it yourself or take it to a shop.

• DIY: If you're comfortable working on your car, you can purchase a coolant funnel for around $20-$40. Bleeding screws are "free" if they exist in your car. The cost of coolant will depend on your vehicle's specifications, but it's generally around $15-$30 per gallon.
• Professional Bleeding: A shop will typically charge between $75 and $150 for a cooling system bleed. This includes the cost of labor and a coolant top-off.

Important Considerations:

• Always use the correct type of coolant specified for your vehicle. Using the wrong coolant can lead to corrosion and damage.
• Never open the radiator cap when the engine is hot. The system is under pressure, and hot coolant can spray out, causing severe burns.
• If you suspect a head gasket leak, don't delay. Get your vehicle inspected by a qualified mechanic as soon as possible.

Technical Service Bulletins (TSBs): While specific TSBs related solely to "air in cooling system" are rare, many TSBs address overheating issues or coolant leaks that can indirectly relate to air intrusion. Search online databases using keywords like "overheating," "coolant leak," and your vehicle's make and model to see if any relevant TSBs apply to your situation. These TSBs may contain specific bleeding procedures recommended by the manufacturer.

Keep in mind that certain vehicle makes and models are known to be more prone to airlocks in the cooling system. For example, some Subaru models and certain European vehicles are known for this issue. Forums specific to your vehicle's make and model can be a valuable resource for identifying common problems and troubleshooting tips.

By understanding the symptoms, causes, and solutions, you can effectively remove air from your cooling system and keep your engine running smoothly. Don't underestimate the importance of a properly functioning cooling system – it's the key to a long and healthy engine life.
