How To Remove Fuel Injectors From Fuel Rail

Removing fuel injectors from a fuel rail is a common task for intermediate car owners and DIY mechanics. You might be doing this for several reasons: replacing faulty injectors, upgrading to higher-flowing units for performance modifications, cleaning clogged injectors, or simply disassembling the fuel rail for other engine work. While seemingly straightforward, it's a job that requires careful attention to detail to avoid damaging the injectors, fuel rail, or creating a fuel leak.

Understanding the Fuel Injection System

Before diving into the removal process, it's important to understand the basics of your car's fuel injection system. Most modern vehicles utilize electronic fuel injection (EFI), where a computer (the Engine Control Unit or ECU) precisely controls the amount of fuel delivered to each cylinder. This contrasts with older carburetor systems.

The Fuel Rail and Injectors: The Heart of Fuel Delivery

The fuel rail is a metallic tube or manifold that distributes fuel to the individual fuel injectors. Think of it as a pressurized highway for fuel. The fuel pump, typically located in the fuel tank, pumps fuel through a fuel filter and into the fuel rail. A fuel pressure regulator maintains constant pressure within the rail. Each fuel injector is essentially a solenoid-operated valve. When the ECU signals an injector, the solenoid opens, and fuel is sprayed into the intake manifold or directly into the cylinder (in the case of direct injection systems). The duration the injector remains open (pulse width) determines the amount of fuel injected.

Different Types of Fuel Injection

While the overall principle remains the same, there are variations in fuel injection systems. Port Fuel Injection (PFI), also known as multi-port fuel injection (MPFI), injects fuel into the intake port of each cylinder, just before the intake valve. Throttle Body Injection (TBI), an older system, uses one or two injectors in the throttle body, spraying fuel into the intake stream. Direct Injection (DI) systems, a more recent development, inject fuel directly into the combustion chamber. Although the removal process shares similarities, you need to recognize what type of fuel injection system your engine uses because the location and attachment methods of the fuel rail and injectors may vary slightly.

Technical Breakdown: Removing Fuel Injectors from the Fuel Rail

Here's a step-by-step guide on how to safely and effectively remove fuel injectors from a fuel rail:

Safety First: Disconnect the negative battery terminal. This is a crucial step to prevent electrical shorts and potential damage to the ECU or other components. Work in a well-ventilated area, as you'll be dealing with gasoline fumes. Have a fire extinguisher nearby, just in case.
Relieve Fuel Pressure: This is critical. High fuel pressure can spray fuel when you disconnect lines, posing a fire hazard. There are a few ways to relieve fuel pressure. The preferred method involves using a scan tool that can command the fuel pump off and open the injectors. This is the safest way. If a scan tool is not available, you can locate the fuel pump relay (consult your vehicle's service manual) and disconnect it. Start the engine and let it run until it stalls. This will use up the remaining fuel in the system. Note: This method might trigger a check engine light, which you'll need to clear later. Another method, less recommended due to the risk of fuel spillage, involves carefully depressing the Schrader valve on the fuel rail with a suitable tool (like a small screwdriver) and catching the fuel with a rag. Do this very carefully and slowly.

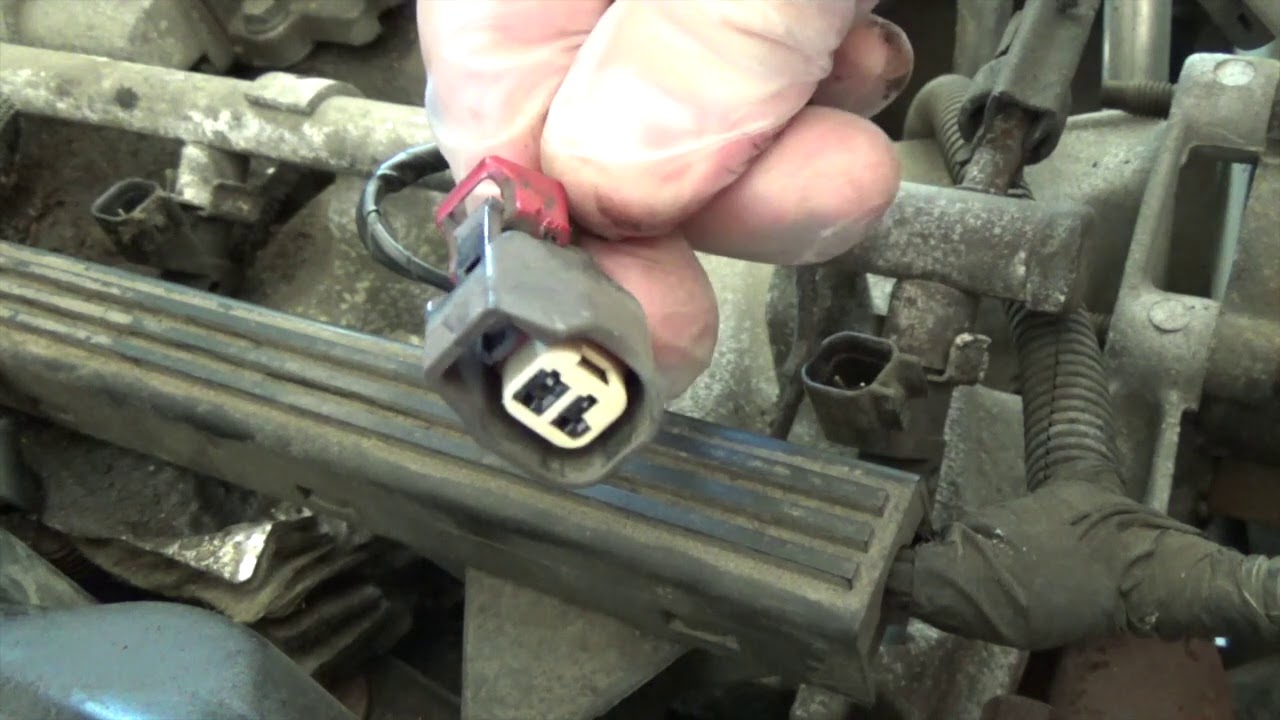

Disconnect Electrical Connectors: Each fuel injector has an electrical connector. These usually have a clip or latch that needs to be released. Gently push in the clip (if present) and pull the connector straight off. Avoid pulling on the wires, as this can damage them.
Remove the Fuel Rail: The fuel rail is typically held in place by bolts or screws. Locate these (usually two to four) and carefully remove them. Once the bolts are removed, the fuel rail should be free to move. Sometimes the injectors can be seated tightly in the intake manifold, this may require gentle wiggle to free up the fuel rail.
Detach Fuel Lines: Disconnect the fuel lines from the fuel rail. These lines are often connected with quick-connect fittings. To disconnect these fittings, you'll usually need a special fuel line disconnect tool. Insert the tool into the fitting, push inward, and then pull the fuel line off. Have a rag ready to catch any fuel spillage. If the fuel line is held by clamps, you may need to loosen the clamps with a screwdriver or pliers. Note: Some fuel lines are “one-time-use” and require replacement once removed. Check your vehicle's service manual to confirm.
Remove the Injectors: Now comes the delicate part. The fuel injectors are typically held in the fuel rail by O-rings and friction. Gently twist and pull each injector out of the fuel rail. Avoid using excessive force, as you could damage the injector or the fuel rail. If the injectors are stuck, you can try using a penetrating oil (like WD-40) to help loosen them. Let the penetrating oil sit for a few minutes before attempting to remove the injectors again. A fuel injector removal tool can be used which applies even pressure to pull the injector out and prevents damage.

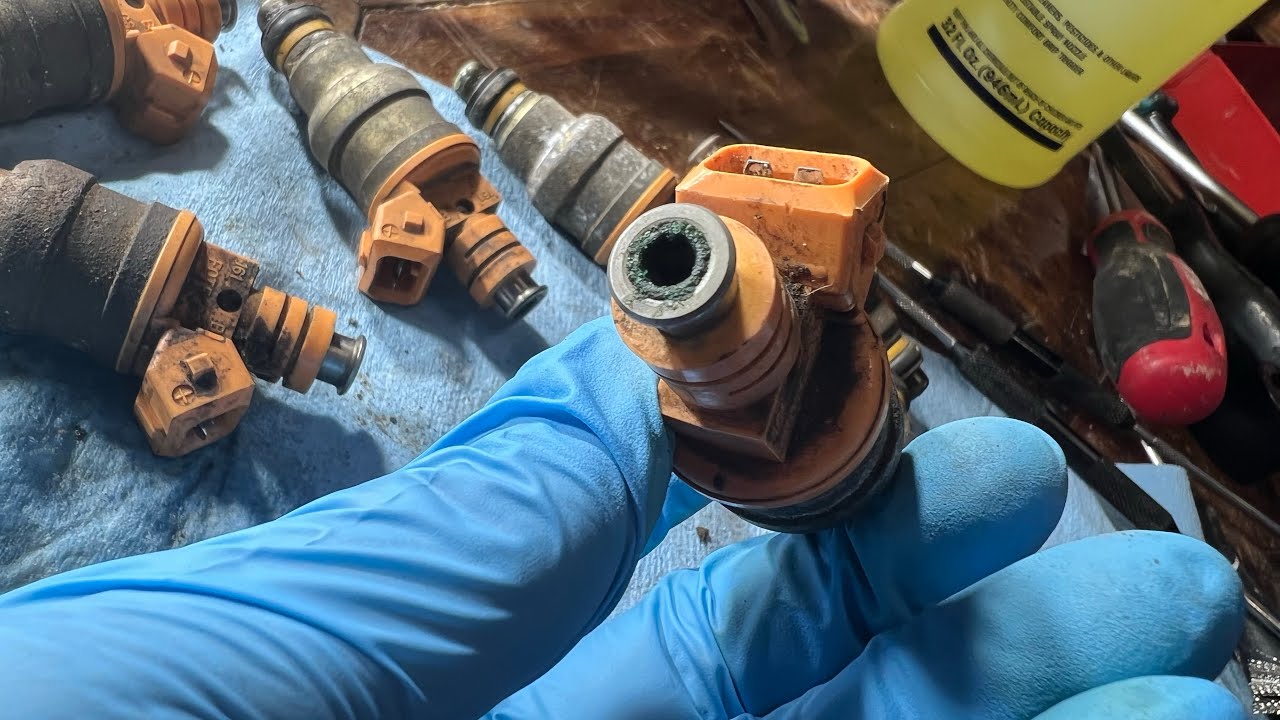

Inspect O-Rings: Once the injectors are removed, carefully inspect the O-rings on the injectors. These are small rubber seals that prevent fuel leaks. If the O-rings are cracked, hardened, or damaged, they must be replaced. New O-rings are inexpensive and readily available.

Common Issues and Maintenance Concerns

Stuck Injectors: As mentioned earlier, injectors can become stuck in the fuel rail due to corrosion or hardened O-rings. Using penetrating oil and a gentle twisting motion can usually free them. Avoid using pliers or other tools that could damage the injector body.
Damaged O-Rings: Damaged O-rings are a common cause of fuel leaks. Always replace them when removing injectors. Lubricate the new O-rings with a small amount of clean engine oil before installing them.
Injector Clogging: Fuel injectors can become clogged over time due to deposits in the fuel. This can affect engine performance and fuel economy. Cleaning the injectors, either by using a fuel injector cleaner additive or by having them professionally cleaned, can often resolve this issue.
Fuel Leaks: Fuel leaks are a serious safety hazard. Always double-check all connections after reassembling the fuel system to ensure there are no leaks. If you smell fuel, immediately shut off the engine and inspect the fuel system.
Injector Damage: Fuel injectors are delicate components. Avoid dropping them or subjecting them to excessive force. Handle them with care during removal and installation.

Do's and Don'ts / Best Practices

Do's:

Do relieve fuel pressure before disconnecting any fuel lines.
Do work in a well-ventilated area.
Do disconnect the negative battery terminal.
Do inspect and replace O-rings.
Do lubricate O-rings before installation.
Do use penetrating oil to loosen stuck injectors.
Do have a fire extinguisher nearby.
Do consult your vehicle's service manual for specific instructions and torque specifications.

Don'ts:

Don't smoke or use open flames near the fuel system.
Don't use excessive force when removing injectors.
Don't damage the electrical connectors.
Don't reuse old or damaged O-rings.
Don't ignore fuel leaks.
Don't overtighten fuel rail bolts.

Conclusion

Removing fuel injectors from a fuel rail is a manageable task for the experienced DIYer with the right tools and knowledge. The key is to prioritize safety by relieving fuel pressure and working in a well-ventilated area. Take your time, be gentle with the components, and always replace the O-rings. If you're unsure about any step of the process, consult your vehicle's service manual or seek the advice of a qualified mechanic. When dealing with pressurized fuel systems, it's always better to err on the side of caution.
