How To Remove Fuel Pump Lock Ring
Removing a fuel pump lock ring, also known as a fuel tank retaining ring, is a common task when replacing a fuel pump. This ring secures the fuel pump module to the fuel tank. While it can seem daunting, with the right tools and a little patience, most DIYers can accomplish this task safely and effectively.
Why This Matters: Understanding the Fuel Pump Lock Ring
The fuel pump lock ring is a critical component in your vehicle's fuel system. It's designed to hold the fuel pump module securely in place within the fuel tank, creating a tight seal to prevent fuel leaks and maintain proper fuel pressure. A compromised or improperly installed lock ring can lead to various problems, including:
- Fuel leaks: The most obvious and dangerous consequence of a loose or damaged lock ring. Fuel leaks pose a significant fire hazard.
- Fuel pressure issues: An insecure lock ring can disrupt the fuel system's ability to maintain proper pressure, leading to poor engine performance, stalling, and difficulty starting.
- Fuel contamination: A damaged seal can allow contaminants to enter the fuel tank, potentially damaging the fuel pump and other components.
- Check engine light: Fuel system issues often trigger the check engine light.
Therefore, understanding how to properly remove and install a fuel pump lock ring is essential for anyone working on their fuel system. Whether you're replacing a faulty fuel pump or performing other maintenance, getting this step right is crucial for safety and performance.
Step-by-Step Guide: Removing the Fuel Pump Lock Ring
Safety First! Before beginning any work on your fuel system, disconnect the negative battery cable. Fuel and electricity are a dangerous combination. Work in a well-ventilated area, and keep a fire extinguisher nearby.
Tools You'll Need:
- Fuel pump lock ring removal tool: This is arguably the most important tool. There are different types, so choose one that fits your specific vehicle (more on this below).
- Hammer (optional): May be needed for certain types of lock ring tools or to loosen a stubborn ring.
- Penetrating oil (optional): Can help loosen a corroded lock ring.
- Screwdrivers or pry bars (optional): Use with extreme caution to avoid damaging the fuel tank.
- Rags or shop towels: For cleaning up spills.
- Safety glasses: To protect your eyes from debris.
- Gloves: To protect your hands from fuel and sharp edges.
Step-by-Step Instructions:
- Access the Fuel Tank: This usually involves removing a rear seat or accessing the fuel tank from under the vehicle. Consult your vehicle's repair manual for specific instructions.
- Clean the Area: Thoroughly clean the area around the fuel pump module and lock ring. This will prevent dirt and debris from falling into the fuel tank.
- Disconnect Electrical Connectors and Fuel Lines: Carefully disconnect the electrical connectors and fuel lines from the fuel pump module. Use the appropriate tools to avoid damaging the connectors or lines. Make sure to relieve fuel pressure before disconnecting the fuel lines. This can usually be done by removing the fuel pump relay and starting the car (it will run for a few seconds and then stall).
- Apply Penetrating Oil (Optional): If the lock ring appears corroded or stuck, apply penetrating oil around the ring and let it sit for a few minutes.
- Position the Lock Ring Removal Tool: Place the fuel pump lock ring removal tool onto the lock ring, ensuring it is properly seated in the notches or grooves.
- Turn or Tap the Tool: Depending on the type of tool, you will either turn it counterclockwise or tap it with a hammer to loosen the lock ring. Be patient and apply even pressure. Avoid using excessive force, which could damage the fuel tank or the lock ring.

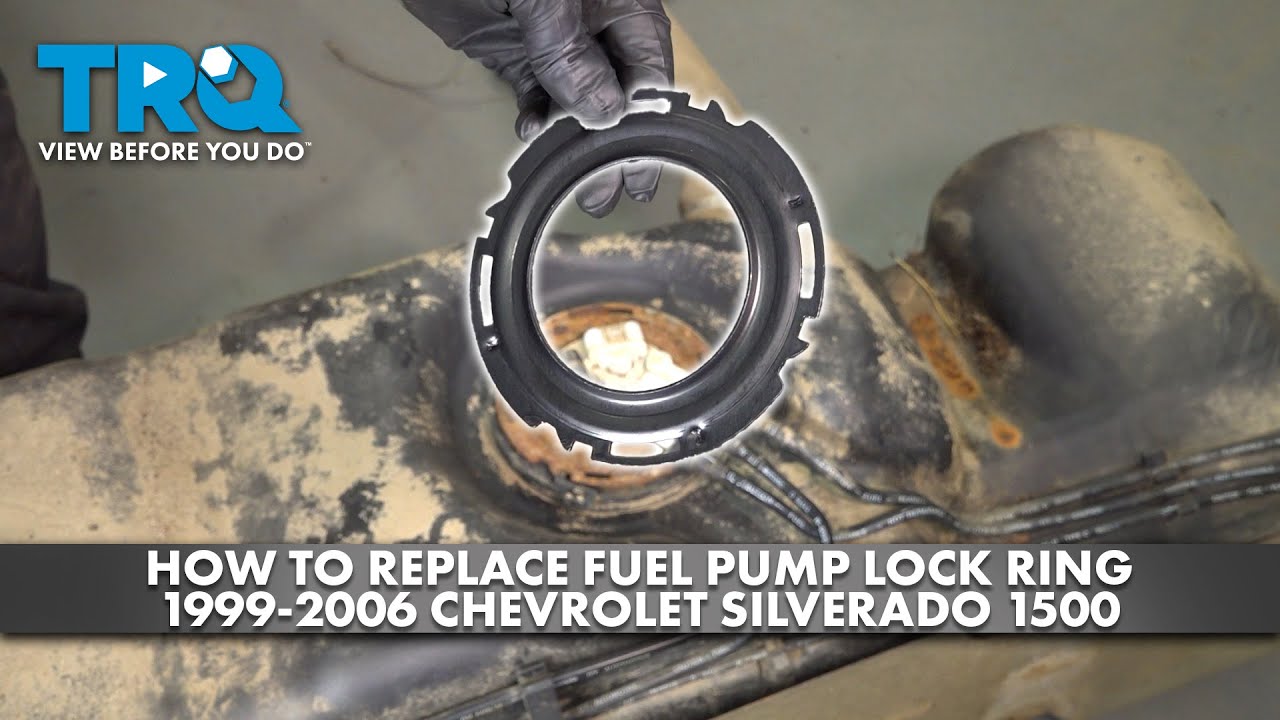

- Remove the Lock Ring: Once the lock ring is loose, carefully remove it from the fuel tank.

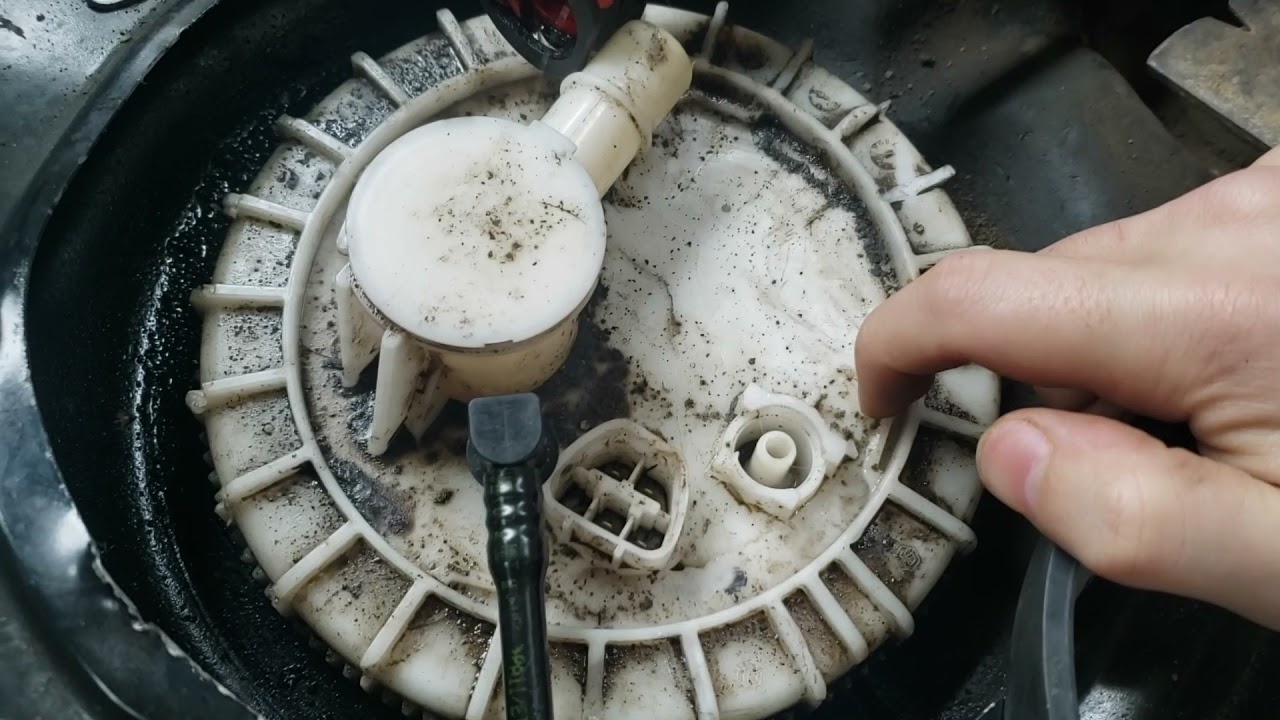

- Remove the Fuel Pump Module: With the lock ring removed, you can now carefully remove the fuel pump module from the fuel tank. Note its orientation for reinstallation.
How to Choose the Right Fuel Pump Lock Ring Removal Tool
Selecting the correct fuel pump lock ring removal tool is crucial for a successful and damage-free removal. There are several types of tools available, each designed for different types of lock rings and fuel tank configurations:

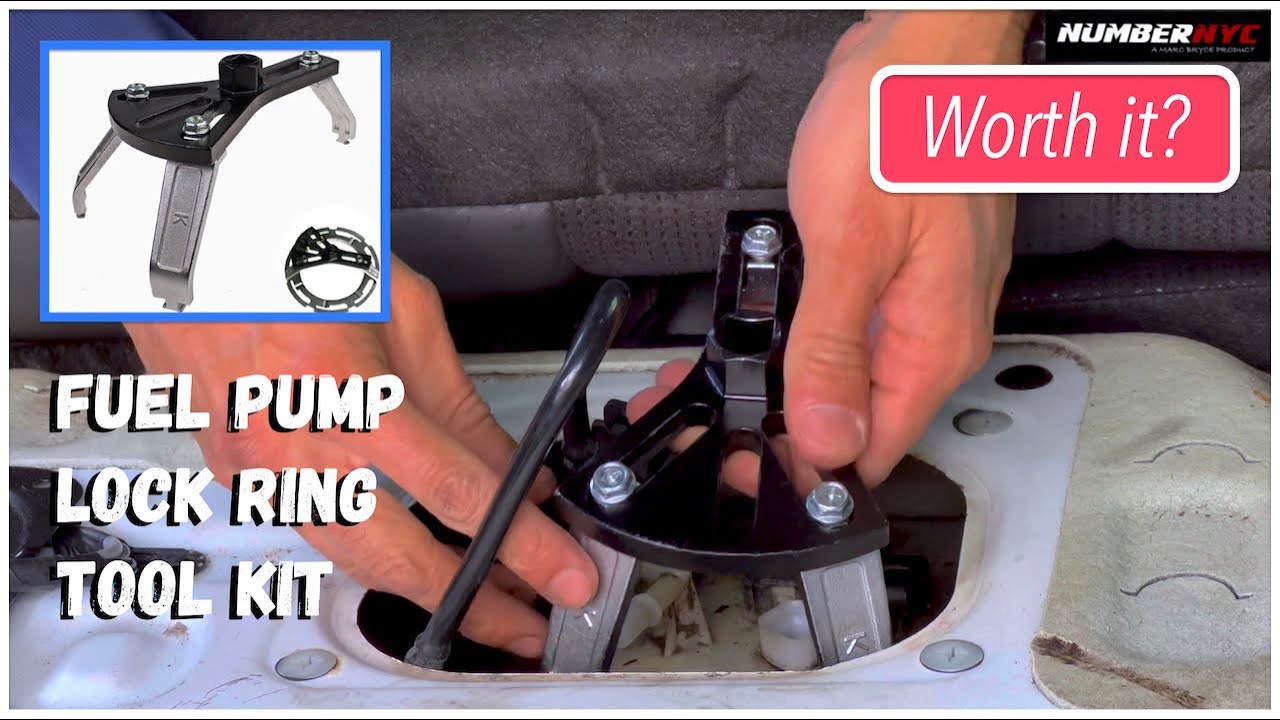

- Adjustable Universal Tools: These tools are designed to fit a wide range of lock ring sizes and are a good option if you work on multiple vehicles.

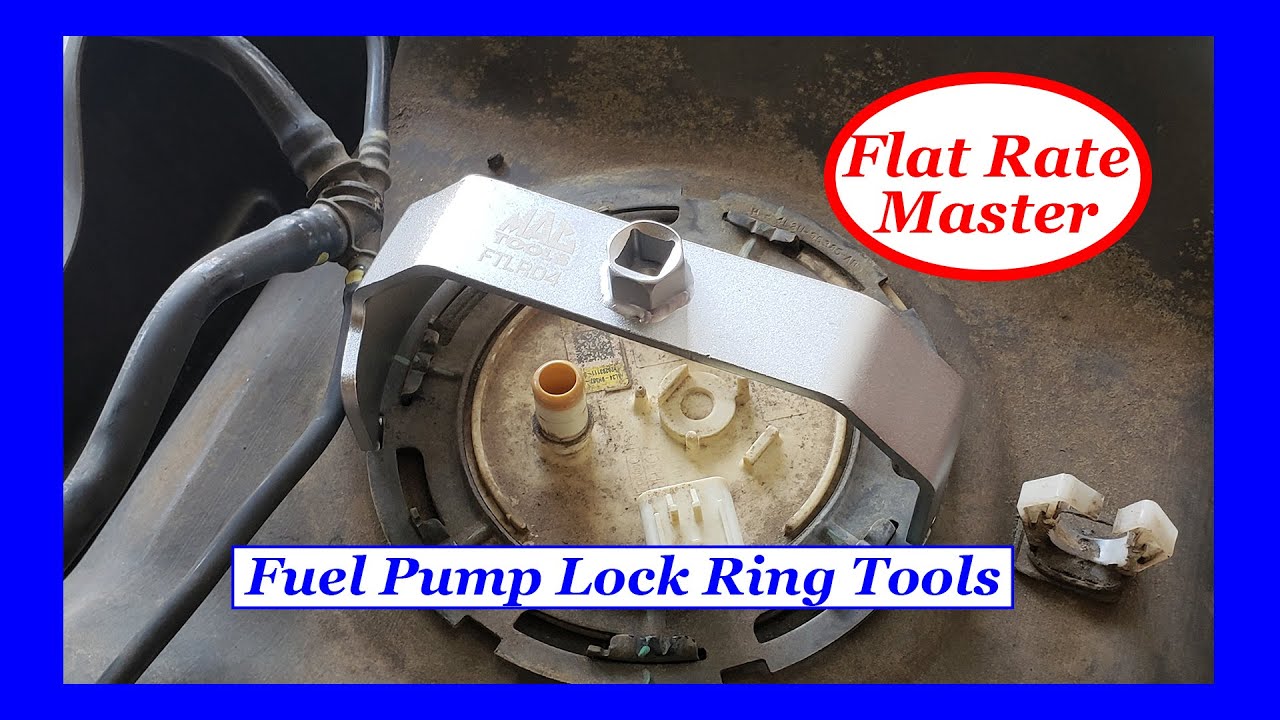

- Dedicated Vehicle-Specific Tools: These tools are designed specifically for a particular make and model of vehicle. They offer the best fit and leverage, reducing the risk of damage.
- Hammer-Type Tools: These tools require tapping with a hammer to loosen the lock ring. They are often used on older vehicles or vehicles with heavily corroded lock rings.
- Pliers-Type Tools: These tools resemble large pliers and grip the lock ring to turn it.
When choosing a tool, consider the following factors:
- Vehicle Compatibility: Ensure the tool is compatible with your vehicle's make, model, and year.
- Lock Ring Type: Identify the type of lock ring on your fuel tank and choose a tool designed for that type.
- Quality and Durability: Opt for a tool made from high-quality materials that can withstand repeated use.
- User Reviews: Read reviews from other users to get an idea of the tool's performance and ease of use.
Real-World Owner Experiences
Many DIYers have successfully tackled fuel pump lock ring removal and replacement. Here are some common experiences and tips:
- Corrosion is a common challenge: Many owners report dealing with corroded lock rings, especially in older vehicles. Penetrating oil and patience are key in these situations.
- The right tool makes all the difference: Investing in the correct tool for your vehicle can save you time, frustration, and potential damage.
- Be mindful of fuel vapors: Always work in a well-ventilated area and take precautions to avoid sparks or open flames.
- Take pictures before disassembly: This can be helpful for reassembly, especially when dealing with multiple connectors and hoses.
- Don't overtighten the new lock ring: Follow the manufacturer's torque specifications to avoid damaging the fuel tank or the lock ring.
One owner shared, "I struggled with a universal tool for hours, but once I bought the tool specifically designed for my car, the lock ring came off in minutes!" Another advised, "Always disconnect the battery! I learned that the hard way when I accidentally shorted something out." These experiences highlight the importance of preparation, the right tools, and safety precautions.
FAQs: Fuel Pump Lock Ring Removal
Q: Can I reuse the old fuel pump lock ring?
A: While technically possible, it's strongly recommended to replace the lock ring whenever you replace the fuel pump. The old ring may be worn or damaged, potentially compromising the seal and leading to leaks. A new lock ring ensures a secure and reliable connection.
Q: How tight should I tighten the fuel pump lock ring?
A: Refer to your vehicle's repair manual for the specific torque specification for the fuel pump lock ring. Overtightening can damage the fuel tank or the lock ring itself. If a torque specification isn't available, tighten the ring until it's snug and securely seated, but avoid excessive force.
Q: What if the lock ring is completely stuck?
A: Try soaking the lock ring with penetrating oil for an extended period (e.g., overnight). You can also try gently tapping around the ring with a hammer and punch to help break up any corrosion. As a last resort, you may need to carefully cut the lock ring with a Dremel tool, but be extremely cautious to avoid damaging the fuel tank.
Q: Is it okay to use WD-40 instead of penetrating oil?
A: While WD-40 can sometimes help, penetrating oil is specifically designed to loosen rusted and corroded parts. Penetrating oil will typically be more effective than WD-40 in this application.
Q: What if I damage the fuel tank while removing the lock ring?
A: If you accidentally damage the fuel tank, do not attempt to repair it yourself. A damaged fuel tank poses a serious fire hazard. Take your vehicle to a qualified mechanic for repair or replacement.
Q: Should I apply grease to the new lock ring before installing it?
A: Applying a thin coat of dielectric grease to the threads of the lock ring can help prevent corrosion and make future removal easier. However, avoid using excessive grease, as it can attract dirt and debris.
By following these guidelines and taking the necessary precautions, you can safely and effectively remove your fuel pump lock ring and complete your fuel pump replacement with confidence.
