How To Remove Green Corrosion From Electrical Connectors

Green corrosion on electrical connectors, often referred to as verdigris, is a common issue that can significantly impact the performance and lifespan of your electrical systems. This green or bluish-green substance is a copper carbonate, formed when copper reacts with moisture and air. Removing it properly is crucial to ensure reliable electrical connections and prevent further damage.

Why Removing Green Corrosion Matters

Ignoring green corrosion on electrical connectors can lead to a cascade of problems. Here's why addressing it promptly is essential:

• Reduced Conductivity: Corrosion acts as an insulator, hindering the flow of electricity. This can lead to dimming lights, malfunctioning appliances, and even complete circuit failure.
• Overheating: Resistance caused by corrosion forces electricity to work harder to pass through the connection, generating heat. Overheating can melt insulation, damage components, and create a fire hazard.
• Component Failure: The corrosion process weakens the metal of the connector itself. Over time, this can lead to the connector breaking or crumbling, requiring replacement.
• Unreliable Performance: Intermittent connection issues caused by corrosion can lead to unpredictable behavior in your electrical devices and systems. This can be frustrating and potentially dangerous, especially in critical applications.
• Increased Risk of Electrical Shock: Deteriorated connections can expose live wires, increasing the risk of electric shock.
• Voided Warranties: In some cases, manufacturers may void warranties if corrosion is found to be the cause of failure, as it's often seen as a maintenance issue.

In short, removing green corrosion is not just about aesthetics; it's about safety, reliability, and longevity of your electrical systems.

How to Choose the Right Cleaning Method and Tools

Selecting the appropriate method and tools for removing green corrosion depends on the severity of the corrosion and the type of connector. Here's a breakdown:

Assessing the Severity

• Light Corrosion: A thin layer of green or bluish-green dust. This is usually easily removed with gentle methods.
• Moderate Corrosion: A thicker, more stubborn layer of corrosion. May require more aggressive cleaning agents and tools.
• Severe Corrosion: A thick, crusty layer of corrosion that has significantly damaged the connector. May require replacement of the connector.

Cleaning Methods and Tools

Always disconnect the power supply to the circuit before attempting any cleaning. Safety is paramount!

• Baking Soda and Water Paste: A mild abrasive that can effectively remove light to moderate corrosion.
  • How to: Mix baking soda with water to form a paste. Apply the paste to the corroded area and gently scrub with a toothbrush or small brush. Rinse thoroughly with water and dry completely.
  • Best for: Battery terminals, automotive connectors, and other readily accessible connections.
  • Pros: Non-toxic, readily available, and inexpensive.
  • Cons: Not effective for severe corrosion.
• Vinegar: Acetic acid in vinegar helps dissolve the copper carbonate.
  • How to: Soak the corroded connector in vinegar for 15-30 minutes. Use a brush to scrub away any remaining corrosion. Rinse thoroughly with water and dry completely.
  • Best for: Small connectors that can be easily submerged.
  • Pros: Readily available, relatively inexpensive.
  • Cons: Can be corrosive to some metals if left for too long.

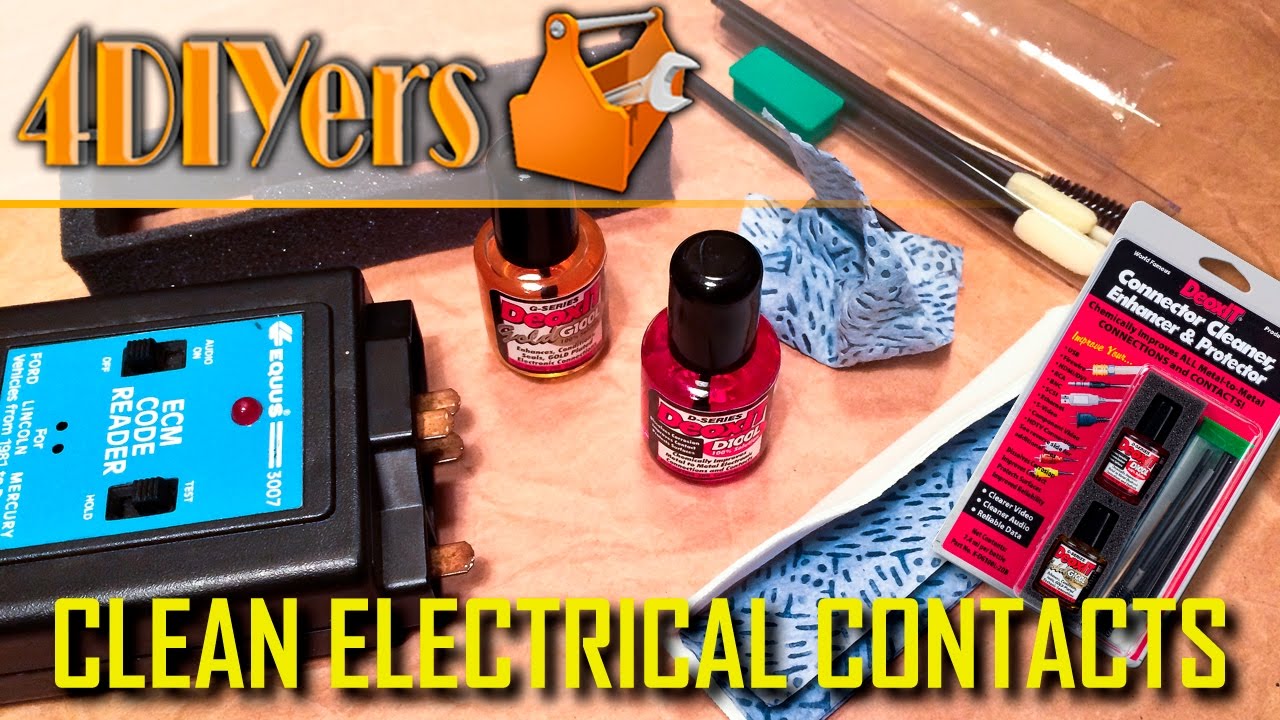

• Commercial Contact Cleaners: Specifically designed to clean electrical contacts and connectors.
  • How to: Spray the contact cleaner onto the corroded area. Use a brush or cotton swab to remove any loose corrosion. Allow the cleaner to dry completely.
  • Best for: Delicate electronics, printed circuit boards (PCBs), and hard-to-reach connectors.
  • Pros: Effective, convenient, and often leaves a protective coating.
  • Cons: Can be more expensive than other methods. Always follow the manufacturer's instructions and ensure proper ventilation.
• Electrical Contact Brush: A small brush with fine bristles designed to clean electrical contacts.
  • How to: Gently scrub the corroded area with the contact brush. Use a contact cleaner to loosen stubborn corrosion.
  • Best for: Small connectors, terminals, and hard-to-reach areas.
  • Pros: Effective for removing corrosion without damaging the connector.
  • Cons: May not be effective for severe corrosion.

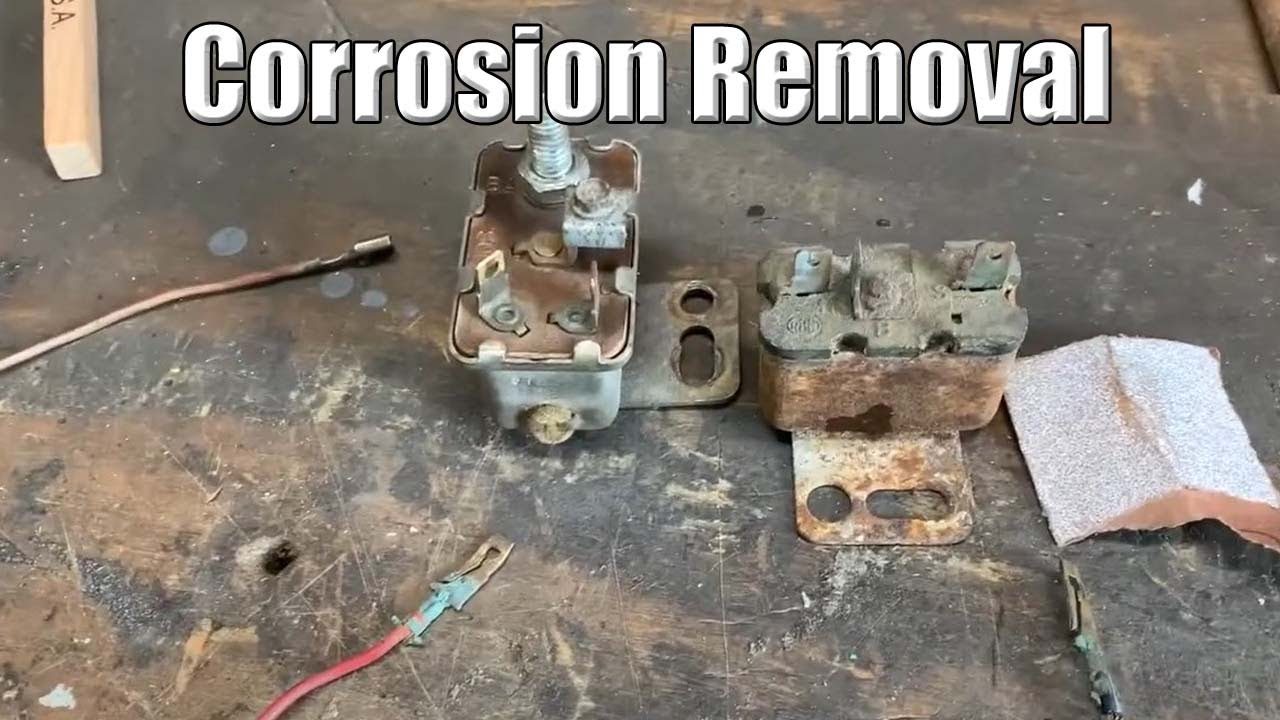

• Emery Cloth or Fine Sandpaper: Use with extreme caution, only for severe corrosion on robust connectors.
  • How to: Very gently sand the corroded area to remove the corrosion. Be careful not to remove too much material. Clean the area with a contact cleaner.
  • Best for: Severely corroded battery terminals or large connectors where other methods have failed.
  • Pros: Can remove stubborn corrosion.
  • Cons: Can damage the connector if used improperly. Only use as a last resort.

Important Considerations:

• Material Compatibility: Ensure the cleaning agent is compatible with the materials of the connector. Some cleaners can damage plastics or other sensitive components.
• Ventilation: Work in a well-ventilated area, especially when using chemical cleaners.
• Eye Protection: Wear eye protection to prevent splashes from cleaning agents.
• Gloves: Wear gloves to protect your hands from chemicals and prevent skin irritation.
• Drying: Ensure the connector is completely dry before reconnecting the power supply. Moisture can cause further corrosion and short circuits. Use compressed air or a clean cloth to dry the connector thoroughly.

Real-World Owner Experiences

Many people have successfully tackled green corrosion on electrical connectors. Here are some common experiences and tips:

• Preventive Maintenance is Key: "I learned the hard way that preventing corrosion is much easier than fixing it. Now, I regularly inspect my battery terminals and apply a corrosion inhibitor." - John S., Automotive Enthusiast
• Baking Soda for the Win: "My motorcycle battery terminals were covered in green gunk. A simple baking soda paste cleaned them right up!" - Maria L., Motorcycle Owner
• Contact Cleaner Saves the Day: "My computer started acting up, and I noticed corrosion on the RAM slots. A quick spray of contact cleaner fixed the problem instantly." - David P., Computer Technician
• Beware of Abrasives: "I tried using sandpaper on a corroded connector and ended up damaging it. Now, I'm much more careful and use gentler methods first." - Sarah K., Homeowner
• Replacement is Sometimes Necessary: "Sometimes the corrosion is so bad that cleaning is not enough. Don't be afraid to replace a severely corroded connector if necessary." - Robert M., Electrician

These experiences highlight the importance of regular inspection, choosing the right cleaning method, and knowing when to call in a professional.

Frequently Asked Questions (FAQs)

Q: What causes green corrosion on electrical connectors?

A: Green corrosion, or verdigris, is caused by the reaction of copper with moisture and air. Copper is commonly used in electrical connectors, and when exposed to these elements, it forms copper carbonate, which appears as a green or bluish-green substance.

Q: Is green corrosion dangerous?

A: Yes, green corrosion can be dangerous. It reduces conductivity, leading to overheating, component failure, and an increased risk of electrical shock. It's crucial to remove it promptly.

Q: Can I use WD-40 to clean corroded electrical connectors?

A: While WD-40 can help displace moisture, it's not specifically designed to remove corrosion. It may provide temporary relief, but it's best to use a dedicated contact cleaner for a more effective and lasting solution.

Q: How can I prevent green corrosion on electrical connectors?

A: Here are some tips for preventing corrosion:

• Apply a corrosion inhibitor to the connectors.
• Keep the connectors dry and protected from moisture.
• Regularly inspect the connectors for signs of corrosion.
• Use sealed or waterproof connectors in harsh environments.

Q: When should I call a professional electrician?

A: Call a professional electrician if:

• You are not comfortable working with electrical systems.
• The corrosion is severe and you are unable to remove it yourself.
• You suspect that the corrosion has damaged the wiring or other components.
• You are unsure about the correct cleaning method or tools to use.

Q: What kind of contact cleaner should I use?

A: Choose a contact cleaner that is specifically designed for electrical connectors and is compatible with the materials of the connector. Look for a cleaner that is non-conductive, non-corrosive, and leaves a protective coating.

Q: Can I use a wire brush to clean corroded connectors?

A: While a wire brush can remove corrosion, it can also damage the connector. It's best to use a softer brush, such as a toothbrush or a contact brush, or a mild abrasive like baking soda paste. Use a wire brush only as a last resort and with extreme caution.

By understanding the causes and consequences of green corrosion and following these tips, you can effectively remove it and maintain the integrity of your electrical systems.
