How To Remove Injectors From Fuel Rail

Removing fuel injectors from a fuel rail might seem daunting, but it's a task many experienced DIYers tackle for various reasons: replacing faulty injectors, upgrading to performance injectors, cleaning, or even engine overhauls. This article provides a detailed, step-by-step guide to safely and effectively remove injectors from a fuel rail, along with essential best practices and potential pitfalls to avoid. We'll focus on modern port fuel injection (PFI) systems, the most common type found in gasoline engines today.

Understanding Port Fuel Injection

Before diving into the removal process, let's quickly recap how PFI systems work. In a PFI system, fuel injectors are mounted on a fuel rail, which is essentially a pressurized pipe supplying fuel to all the injectors. The injectors are individually controlled by the engine control unit (ECU) to spray fuel directly into the intake port of each cylinder, just before the intake valve. This precise metering of fuel, timed with the engine's intake cycle, ensures optimal combustion and efficiency.

Key Components

* Fuel Rail: The main fuel supply line, typically made of metal (aluminum or steel) or sometimes reinforced plastic, designed to withstand fuel pressure. * Fuel Injectors: Electromechanical devices that spray fuel into the intake port. They consist of a solenoid, a needle valve, and a nozzle. When the ECU energizes the solenoid, it lifts the needle valve, allowing fuel to spray through the nozzle in a precisely controlled pattern. * Fuel Pressure Regulator: Maintains a constant fuel pressure within the fuel rail, ensuring consistent fuel delivery regardless of engine load or speed. * O-rings/Seals: Located at both ends of the injector, these rubber rings provide a leak-proof seal between the injector and the fuel rail (upper) and the injector and the intake manifold (lower). These are critical for proper fuel delivery and preventing fuel leaks. * Injector Clips (Retainers): These small clips secure the injectors to the fuel rail, preventing them from popping out under pressure. * Fuel Lines/Hoses: Connect the fuel rail to the fuel pump and fuel filter. These can be rigid metal lines or flexible hoses. * Wiring Harness Connector: Each injector has an electrical connector that plugs into the engine's wiring harness, allowing the ECU to control the injector.

The Removal Process: A Step-by-Step Guide

Safety First! Always disconnect the negative battery terminal before working on any part of the fuel system. This prevents accidental sparks and potential fuel ignition. Work in a well-ventilated area, and have a fire extinguisher nearby. Wear safety glasses and nitrile gloves to protect your eyes and skin from fuel.

Depressurize the Fuel System: This is absolutely critical. There are a few ways to do this:

Method 1 (Recommended): Locate the fuel pump relay (check your car's repair manual for its location). Start the engine, then pull the fuel pump relay. The engine will stall after a few seconds as it runs out of fuel. Try to start the engine a couple of times to ensure all the pressure is released. Reinstall the relay once the system is depressurized.
Method 2: Some fuel rails have a Schrader valve (like a tire valve). Carefully depress the valve with a suitable tool (protected with a rag to catch any spraying fuel) to release the pressure. Be extremely cautious, as fuel will spray out.

Disconnect the Electrical Connectors: Disconnect the wiring harness connectors from each fuel injector. Most connectors have a small clip that needs to be depressed or pushed to release the connector. Be gentle; these connectors can become brittle with age and can break easily.
Disconnect Fuel Lines: Disconnect the fuel lines from the fuel rail. You may need to use a fuel line disconnect tool, depending on the type of fittings used. Have rags ready to absorb any residual fuel.

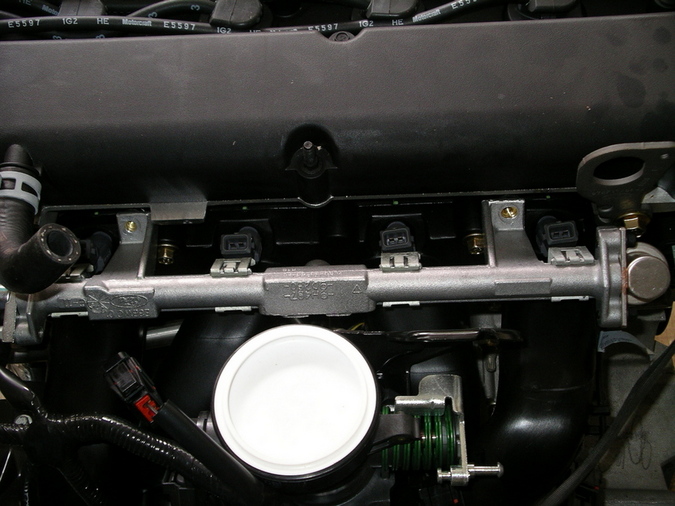

Remove the Fuel Rail Mounting Hardware: Locate the bolts or screws that secure the fuel rail to the intake manifold. Carefully remove them. Note their location, as they often vary in length.

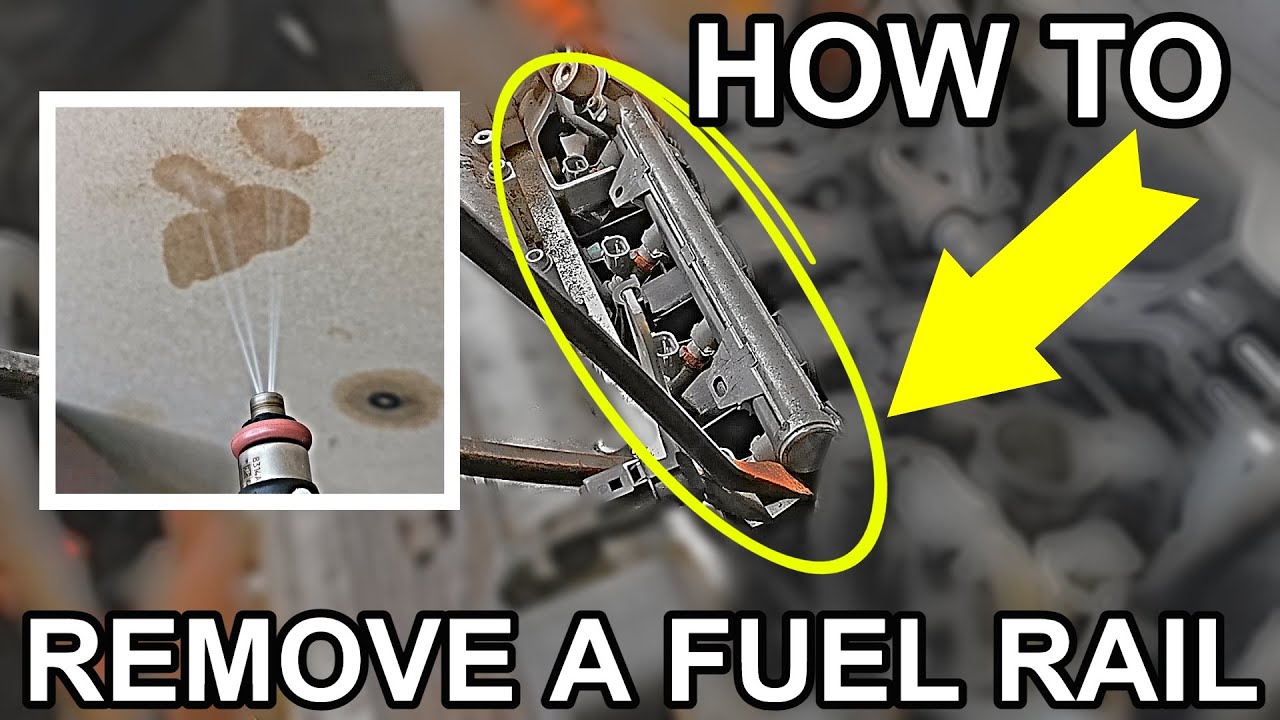

Carefully Lift the Fuel Rail: Gently lift the fuel rail away from the intake manifold. It might be necessary to wiggle it slightly to overcome the friction of the O-rings. Be careful not to damage the injectors or the intake manifold.

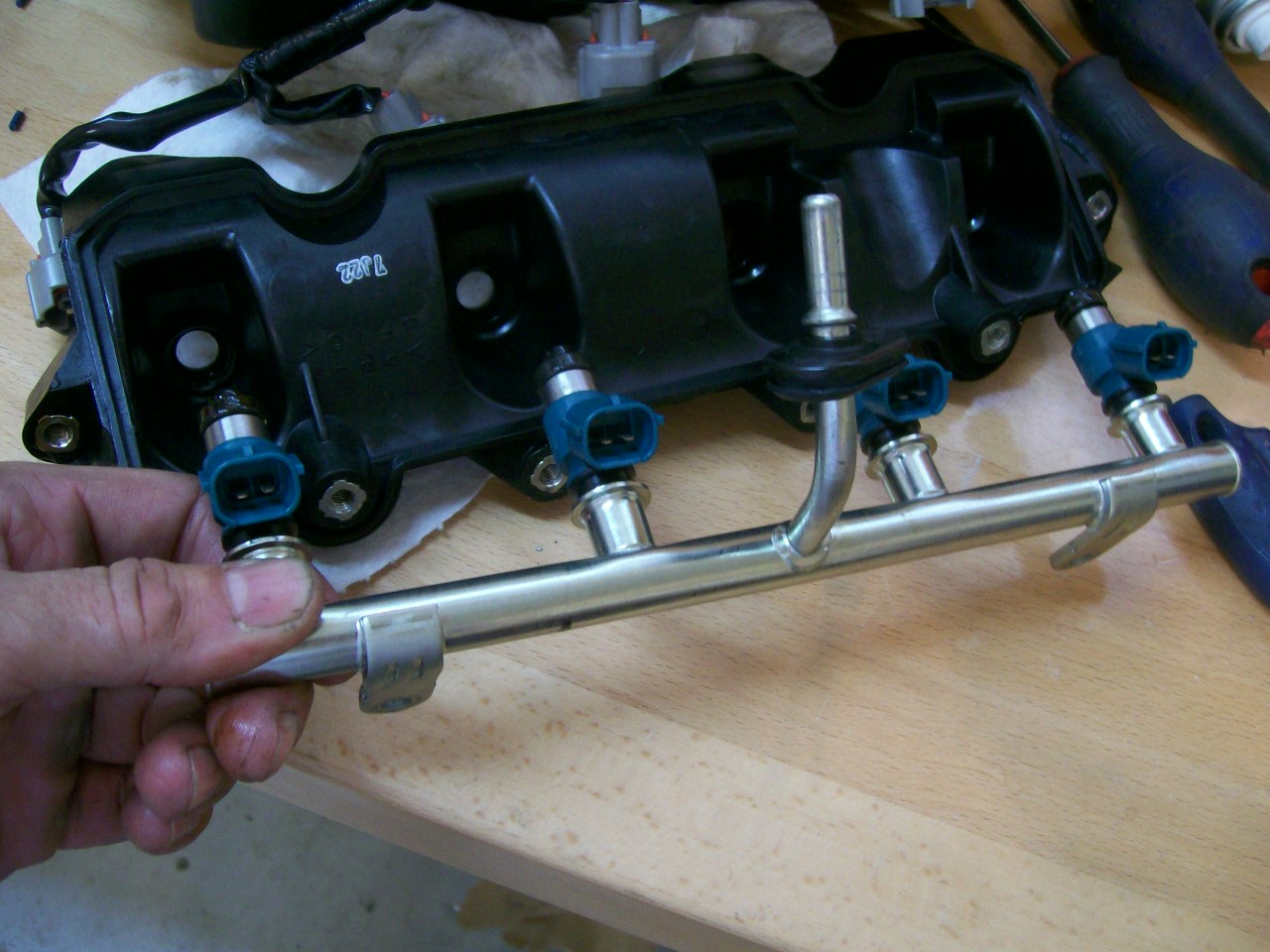

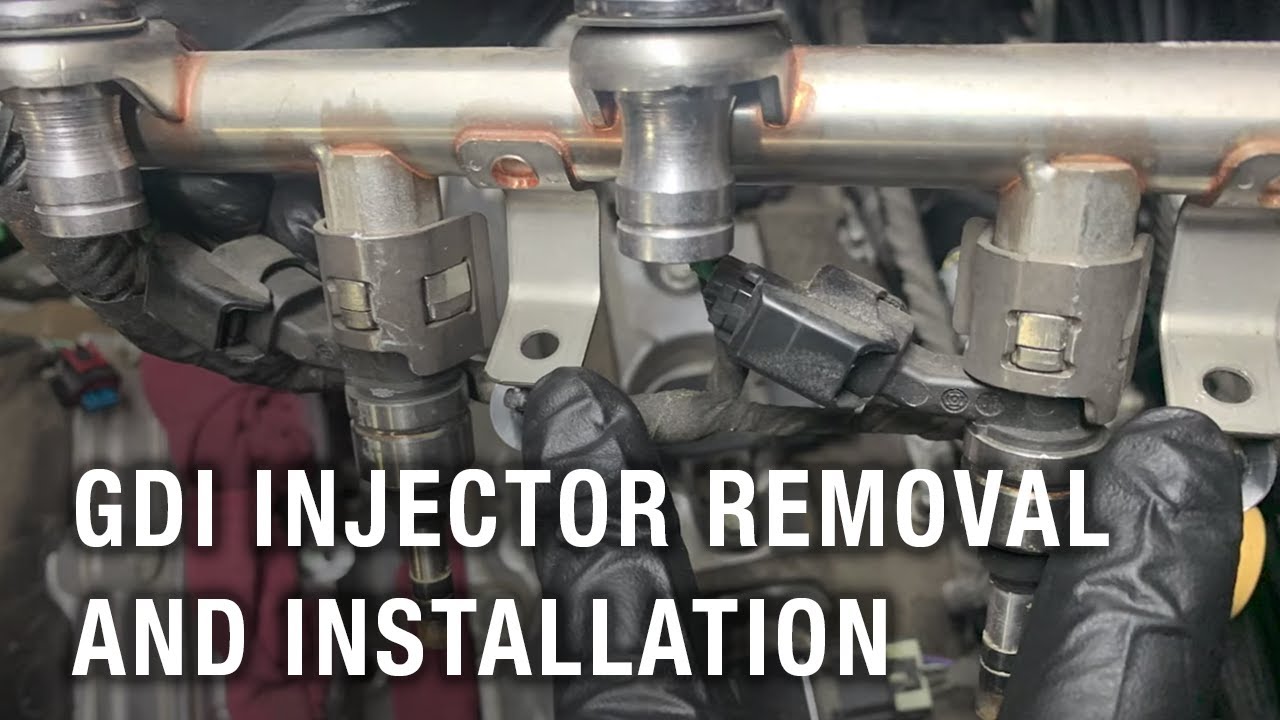

Remove the Injectors: Now, the injectors are still attached to the fuel rail. This is where the most care is needed. There are typically two methods to remove the injectors:

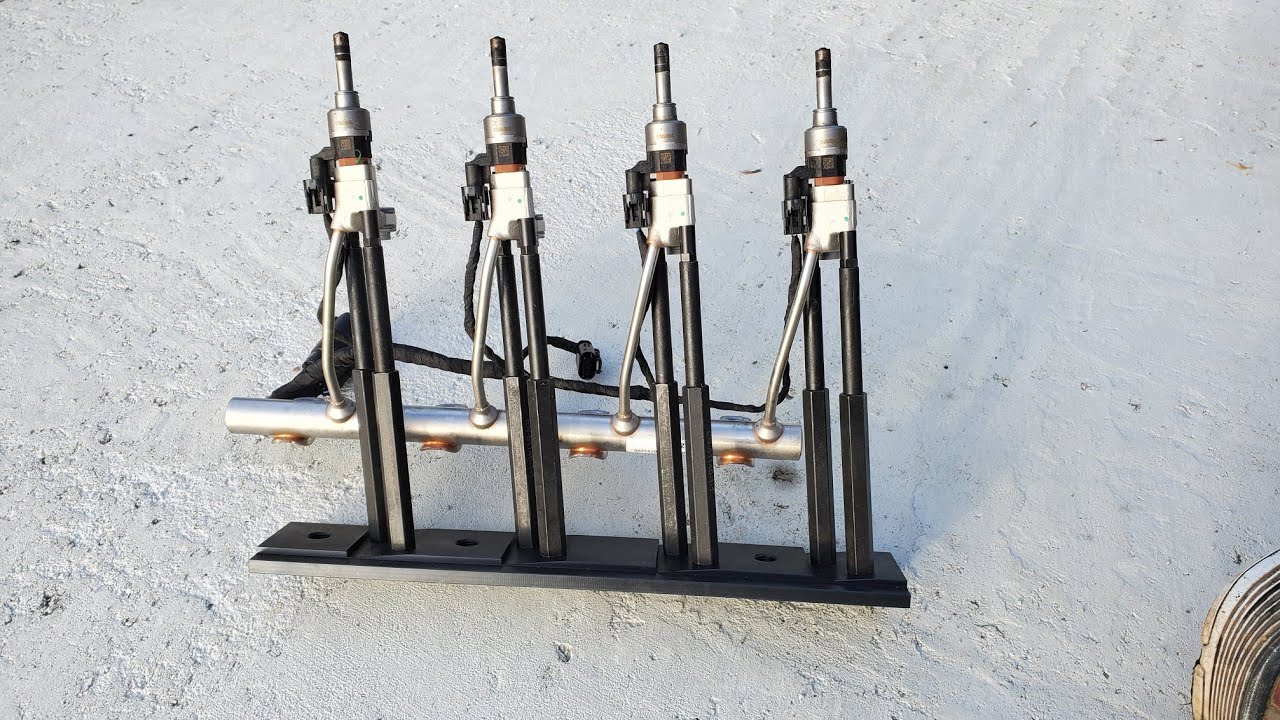

Method 1 (Using a Puller): Some injectors are very tightly seated. A specialized fuel injector puller tool can be used to safely and evenly extract them. This is the recommended method, especially for stubborn injectors. The puller typically has a clamp that fits around the injector body and a screw mechanism that applies even pressure to pull the injector out.
Method 2 (Manual Removal): If you don't have a puller, you can try removing the injectors manually. Grasp the injector firmly, preferably with gloved hands, and gently twist and pull. Work slowly and carefully, applying even pressure. Avoid using pliers or any tool that could damage the injector body. Twisting helps to break the seal of the O-rings. If the injector is stuck, try applying a small amount of penetrating oil around the O-rings and let it soak for a few minutes.

Inspect and Replace O-rings: Once the injectors are removed, carefully inspect the O-rings. Look for cracks, tears, or hardening. Always replace the O-rings with new ones. Use the correct size and material O-rings for your specific injectors. A small amount of clean engine oil or silicone grease can be applied to the O-rings before installation to ease insertion and ensure a good seal.
Clean the Injector Bores: Before reinstalling the injectors, clean the injector bores in both the fuel rail and the intake manifold. Use a lint-free cloth and a solvent to remove any dirt or debris.

Common Issues and Maintenance Concerns

* Stuck Injectors: Injectors can become stuck in the fuel rail due to corrosion or hardened O-rings. Using a fuel injector puller is highly recommended in these situations. * Damaged O-rings: O-rings are crucial for sealing the fuel system. Always replace them when removing injectors to prevent fuel leaks. Fuel leaks are extremely dangerous and can cause fires. * Brittle Plastic Connectors: The plastic electrical connectors on the injectors can become brittle with age and can break easily. Be very careful when disconnecting them. * Contaminated Fuel Rail: Debris and contaminants can accumulate in the fuel rail over time. Consider cleaning the fuel rail with a solvent during injector removal. * Fuel Leaks: After reinstalling the injectors, always check for fuel leaks. Start the engine and carefully inspect the fuel rail and injector connections for any signs of leakage. * Injector Failure: Injectors can fail due to various reasons, including clogging, electrical issues, or mechanical damage. Regular fuel injector cleaning can help prevent premature failure. * Incorrect Injector Installation: Ensure the injectors are properly seated in the fuel rail and the intake manifold. Improper installation can lead to fuel leaks and poor engine performance.

Do's and Don'ts / Best Practices

Do's:

* Do Depressurize the fuel system completely before starting any work. * Do Use new O-rings every time you remove and reinstall injectors. * Do Lubricate the O-rings with clean engine oil or silicone grease before installation. * Do Use a fuel injector puller if the injectors are stuck. * Do Clean the injector bores before reinstalling the injectors. * Do Check for fuel leaks after reinstalling the injectors. * Do Consult your vehicle's repair manual for specific instructions and torque specifications. * Do Work in a well-ventilated area. * Do Disconnect the negative battery terminal.

Don'ts:

* Don't Use excessive force to remove the injectors. * Don't Use pliers or any tool that could damage the injector body. * Don't Reuse old O-rings. * Don't Smoke or use open flames near the fuel system. * Don't Ignore fuel leaks. * Don't Over-tighten the fuel rail mounting bolts.

Conclusion

Removing fuel injectors from a fuel rail is a manageable task for the experienced DIYer when approached with caution and the proper tools. By following these steps, adhering to safety precautions, and understanding the potential issues, you can successfully remove and reinstall your fuel injectors. Remember, if you're unsure about any aspect of the process, it's always best to consult a qualified mechanic. Investing in a fuel injector puller is highly recommended, especially if you anticipate performing this task regularly. With careful planning and execution, you can confidently tackle this maintenance or upgrade project.
