How To Remove Manual Window Crank

Removing a manual window crank is a seemingly simple task, but it's easy to damage the surrounding door panel if you don't know what you're doing. This article provides a detailed, step-by-step guide to safely removing a manual window crank, along with tips and tricks from a seasoned mechanic.

Why You Need to Know This

While power windows are ubiquitous in modern vehicles, many older cars, trucks, and even some economy models still utilize manual window cranks. You might need to remove one for several reasons:

• Replacing a broken crank: The plastic or metal on the crank handle can break with age and use.
• Replacing or repairing the door panel: To properly remove and reinstall the door panel, the window crank must be taken off first.
• Upgrading to power windows: If you're retrofitting power windows, the manual crank will obviously need to go.
• Replacing the window regulator: The window regulator, the mechanical assembly that moves the window up and down, sometimes requires replacement. Access often requires crank removal.
• Routine maintenance or cleaning: Removing the crank provides better access to the door panel for cleaning or treating with protectants.

Understanding the Manual Window Mechanism

Before diving into the removal process, let's quickly review how a manual window crank system works. The core component is the window regulator, typically a scissor-like or cable-operated mechanism connected to the window glass. Turning the crank rotates a gear within the regulator, which in turn raises or lowers the window. The crank itself is usually secured to a spindle (a rotating shaft) protruding from the regulator through the door panel. A retaining clip, often a horseshoe-shaped spring clip, is what prevents the crank from simply sliding off the spindle.

The simplicity of this design is its strength, but also its weakness. While robust, the clip is often hidden and requires a specific technique to remove without damaging the door panel or the clip itself.

The Removal Process: A Step-by-Step Guide

Here's a comprehensive guide to safely remove your manual window crank. Gather your tools and let's get started:

Tools You'll Need:

• Window Crank Removal Tool: This specialized tool is designed to compress and dislodge the retaining clip. While other methods exist (see below), this is the safest and most efficient way.
• Small Flat-Head Screwdriver: Useful for gently prying or maneuvering the retaining clip if the tool is ineffective or if you're using an alternative method.
• Shop Rag or Soft Cloth: To protect the door panel from scratches.
• Needle-Nose Pliers (Optional): Can be helpful for retrieving the retaining clip if it's dropped.
• Work Gloves: Protect your hands.

Step 1: Preparation

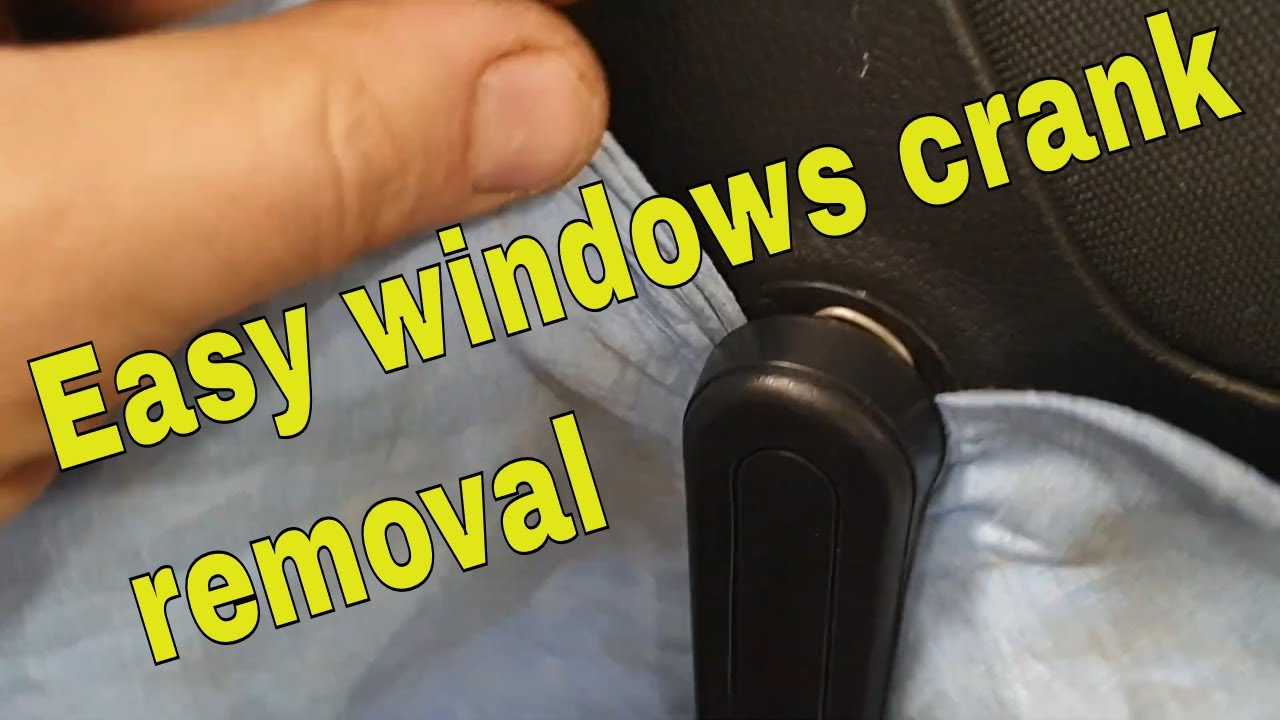

First, lower the window approximately halfway down. This usually provides the best access to the retaining clip. Position the shop rag between the door panel and the crank handle to prevent any potential scratches from tools.

Step 2: Locating the Retaining Clip

The retaining clip sits in a groove on the spindle, behind the crank handle where it meets the door panel. It can be difficult to see directly. Sometimes, slightly pulling the crank outwards will reveal a small gap where you can see the clip.

Step 3: Using the Window Crank Removal Tool

This is the preferred method. The tool typically consists of a tube-like body with a hooked end. Here's how to use it:

1. Insert the Tool: Slide the tube of the tool between the crank handle and the door panel. The hooked end should be facing the spindle.
2. Position the Hook: Maneuver the tool so the hook can engage the retaining clip. You might need to rotate the crank slightly to find the sweet spot.
3. Compress and Remove: Push the tool inwards towards the door panel. This will compress the retaining clip. While maintaining pressure, gently pull the crank handle outwards. The clip should release and the crank should slide off the spindle.

Step 4: Alternative Method (Without the Tool)

If you don't have a window crank removal tool, you can try this alternative method, but proceed with caution as it's easier to damage the clip or panel:

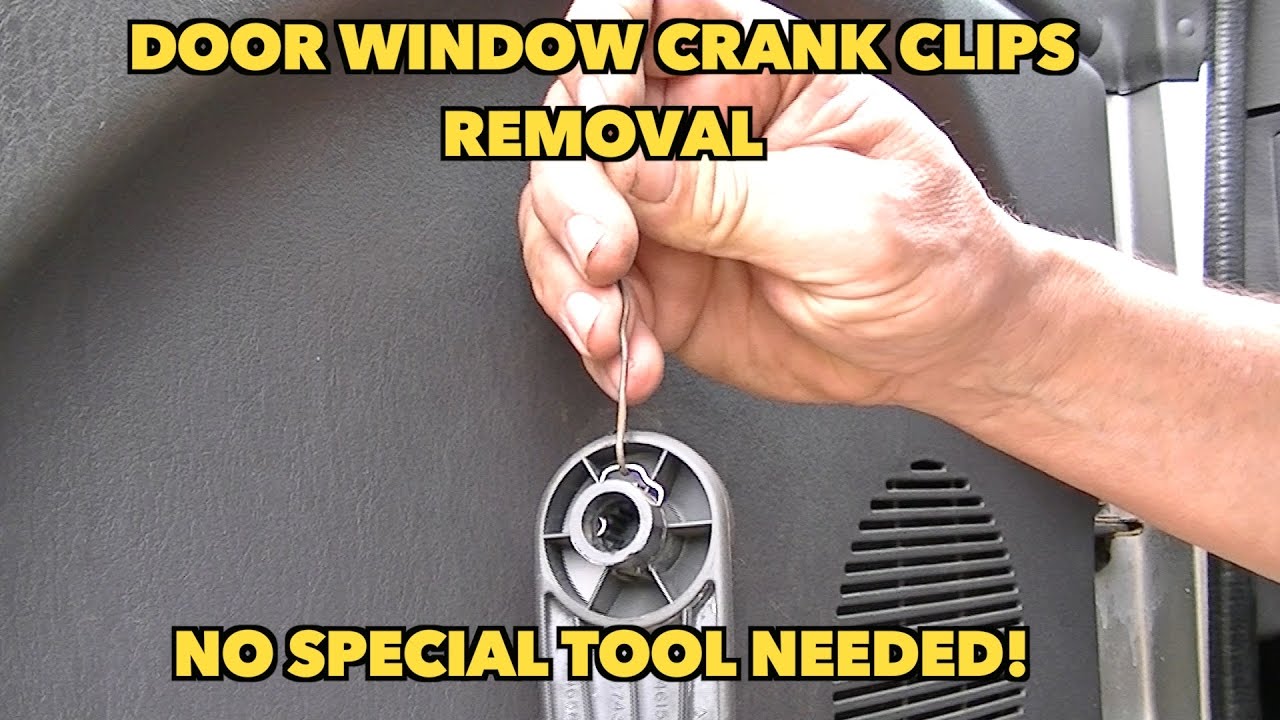

1. Fabricate a Hook: You can try bending a small, stiff piece of wire (like a paperclip or safety wire) into a small hook.
2. Locate the Clip Opening: As mentioned before, slightly pull the crank outwards and try to locate the opening in the retaining clip.
3. Insert and Pry: Carefully insert the hook into the opening and try to gently pry one end of the clip off the spindle. Be very careful not to scratch the door panel.
4. Work the Clip Loose: Once one end is loose, you can use the small flat-head screwdriver to gently pry the rest of the clip off.

Step 5: Removing the Crank

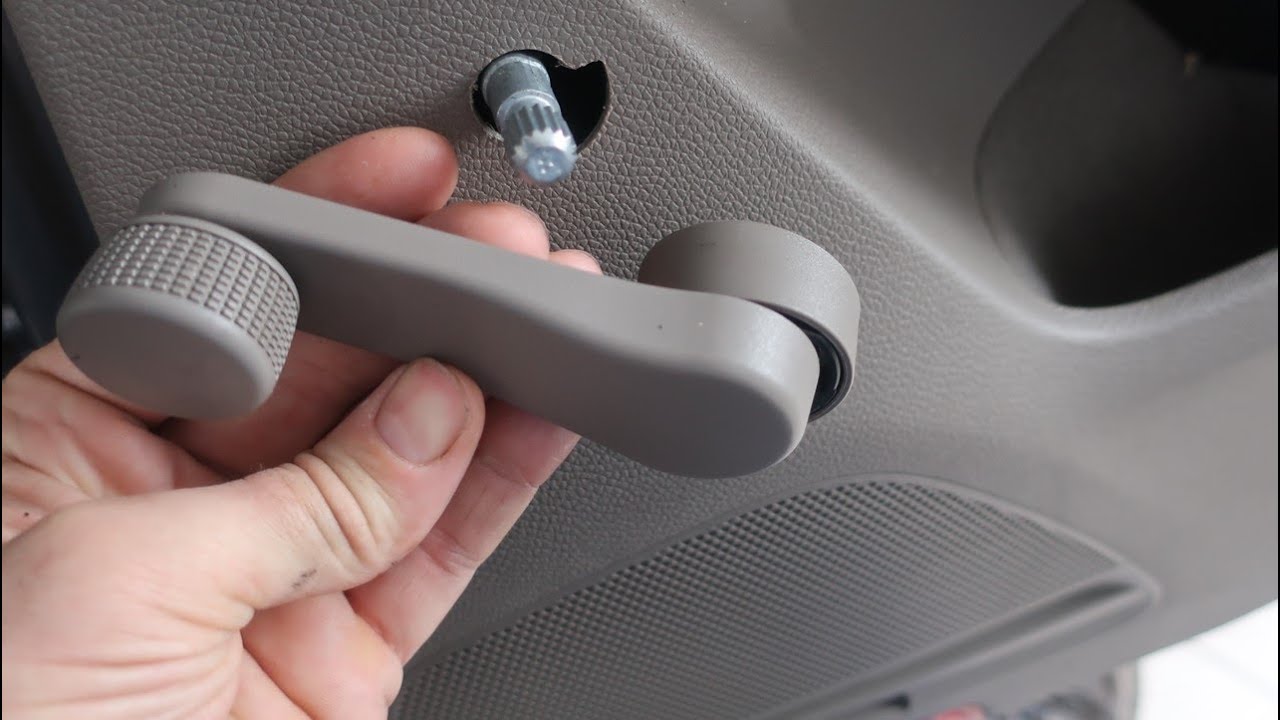

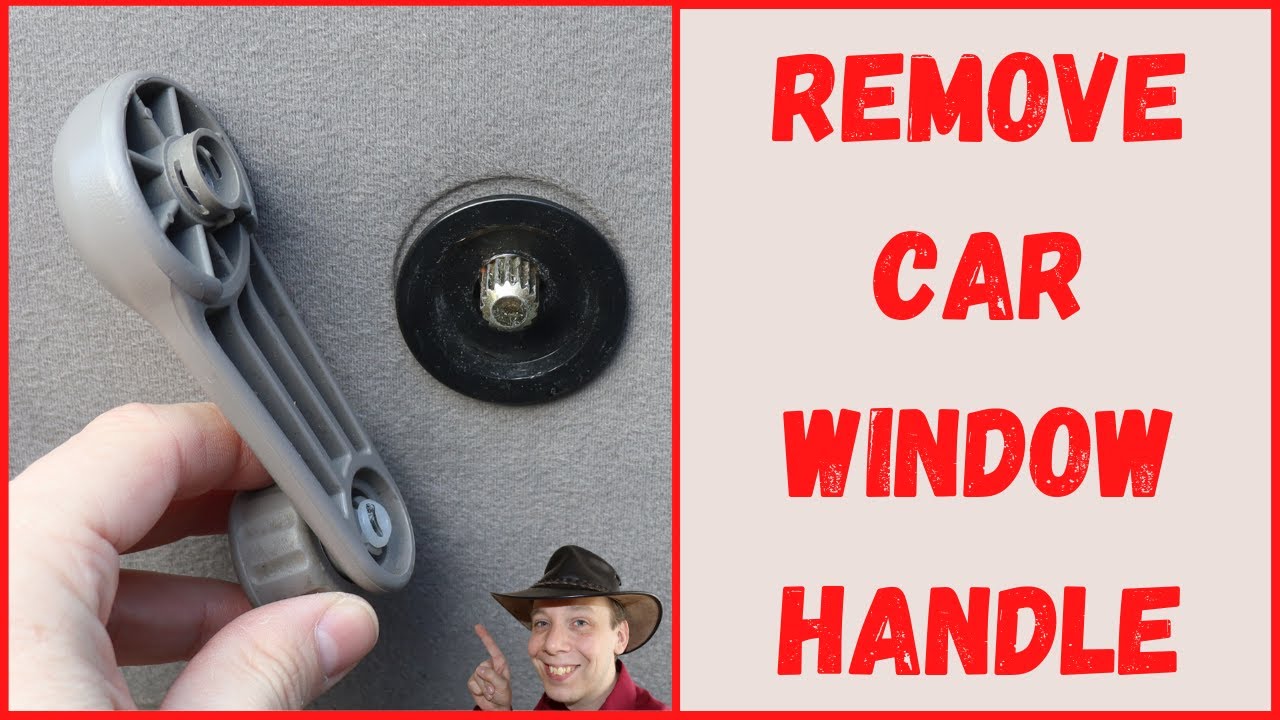

Once the retaining clip is removed, the crank handle should slide easily off the spindle. If it's stuck, gently wiggle it back and forth. Do not force it, as you could damage the spindle.

Step 6: Storing the Retaining Clip

The retaining clip is small and easily lost. Place it in a safe location (e.g., a small container or zip-lock bag) for reinstallation.

Common Issues and Maintenance Concerns

• Stuck Crank: Sometimes, the crank can become stuck due to corrosion or dried grease. Try applying a small amount of penetrating oil to the spindle and let it sit for a few minutes before attempting removal.
• Damaged Retaining Clip: If the retaining clip is bent or broken, it will need to be replaced. These are generally inexpensive and readily available at auto parts stores.
• Scratched Door Panel: This is the most common problem when removing a crank without the proper tool. Always use a shop rag or soft cloth to protect the panel.
• Difficulty Locating the Clip: Good lighting is essential. A flashlight or headlamp can be very helpful. Also, try rotating the crank slightly to different positions to see if the clip becomes more visible.
• Bent Spindle: If excessive force is used, the spindle can be bent. Avoid applying excessive force at all costs.

Do’s and Don’ts / Best Practices

Do’s:

• Use the Right Tool: Invest in a window crank removal tool. It’s the best way to avoid damage.
• Work in a Well-Lit Area: Good visibility is crucial.
• Protect the Door Panel: Use a shop rag or soft cloth to prevent scratches.
• Be Gentle: Avoid using excessive force.
• Take Your Time: Rushing the process increases the risk of damage.

Don’ts:

• Force the Crank: If the crank doesn’t come off easily, stop and reassess the situation.
• Use Sharp Objects: Avoid using knives or other sharp objects to pry the clip, as this can damage the door panel.
• Lose the Retaining Clip: Store the clip in a safe place immediately after removal.
• Ignore Resistance: If you meet any significant resistance, stop and investigate the cause.

Reinstallation

Reinstallation is generally the reverse of removal. Here's a quick guide:

1. Inspect the Spindle: Make sure the spindle is clean and free of debris.

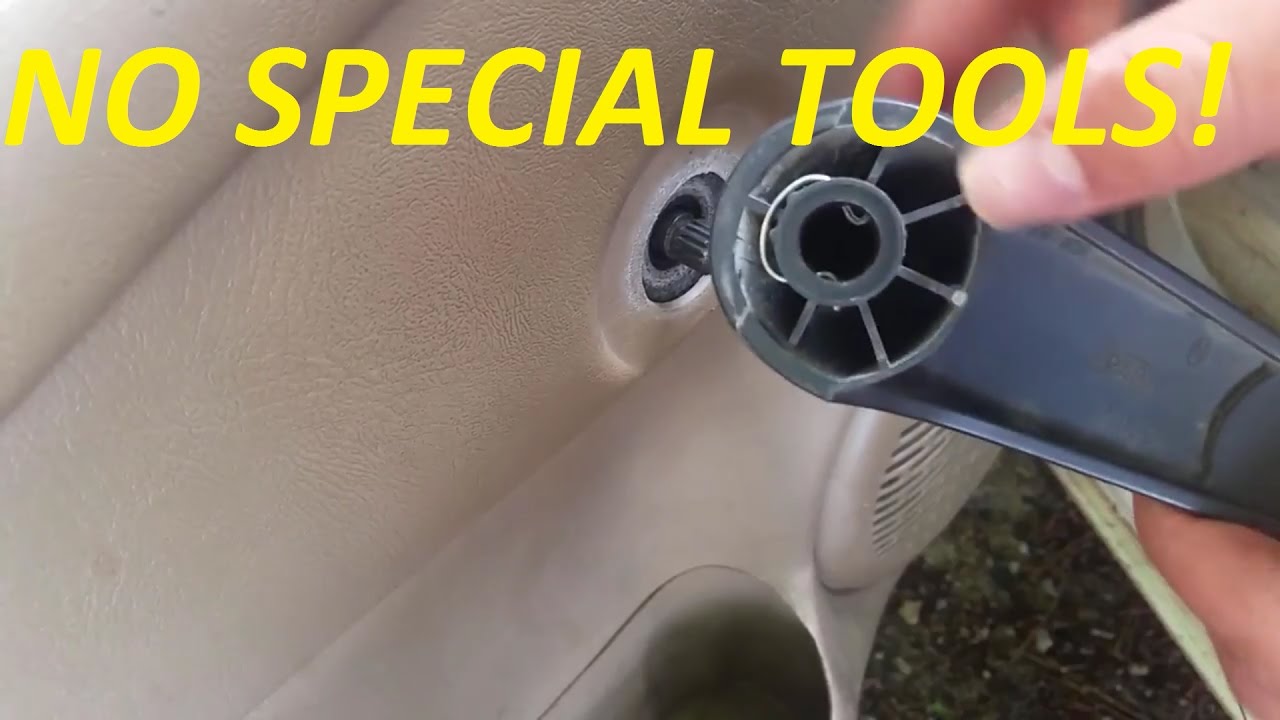

2. Install the Retaining Clip: The clip typically snaps into a groove on the back of the crank handle. Ensure it's securely in place.
3. Align the Crank: Line up the crank with the spindle.
4. Push the Crank On: Push the crank firmly onto the spindle until the retaining clip snaps into place in the groove. You should hear a click.
5. Test the Window: Operate the window to ensure the crank is properly installed and the window moves smoothly.

Conclusion

Removing a manual window crank doesn't require specialized skills, but it does demand patience and attention to detail. Using the right tools and following these steps will help you complete the job safely and efficiently, preventing damage to your door panel or the crank mechanism itself. Always prioritize using the correct window crank removal tool. While alternatives exist, the risk of damaging your vehicle significantly increases without it. Remember to take your time, be gentle, and protect the surrounding surfaces. With a little care, you'll have the crank off in no time!
