How To Remove Rear Main Seal

The dreaded rear main seal. Just hearing those words can send shivers down the spine of even seasoned mechanics. This small, often overlooked component plays a crucial role in keeping your engine's lifeblood – oil – where it belongs: inside. When it fails, the consequences can range from a minor nuisance to catastrophic engine damage. But what exactly is this rear main seal, why does it fail, and, most importantly, how can you replace it? Let's dive in.

The Problem: An Oil Leak's Tale

Imagine this: you're driving along, enjoying the open road, when you notice a faint burning smell. You pull over, pop the hood, and everything looks normal. But then, you glance underneath the car and see it: a slow, steady drip of oil forming beneath the engine, right where it meets the transmission. This is a classic sign of a failing rear main seal. Left unchecked, this seemingly minor leak can escalate into a significant oil loss, potentially leading to engine starvation and, ultimately, a seized engine. The cost of repairing the seal pales in comparison to the expense of replacing an engine, making this a repair worth tackling sooner rather than later.

Understanding the Rear Main Seal: A Mechanical Deep Dive

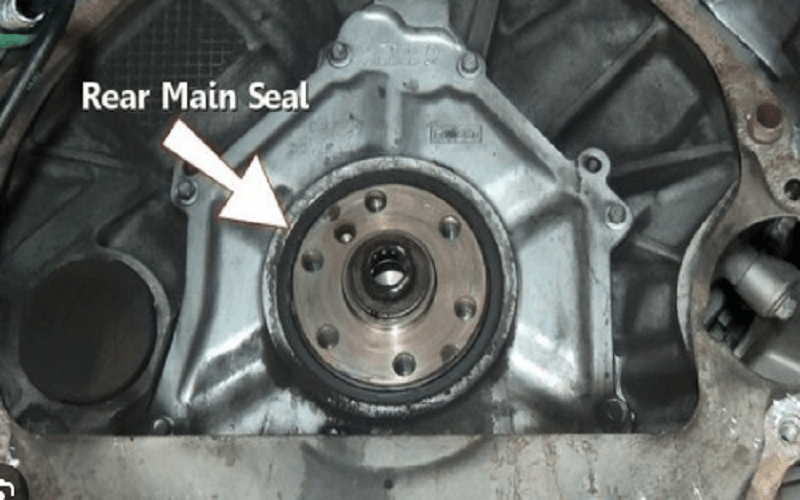

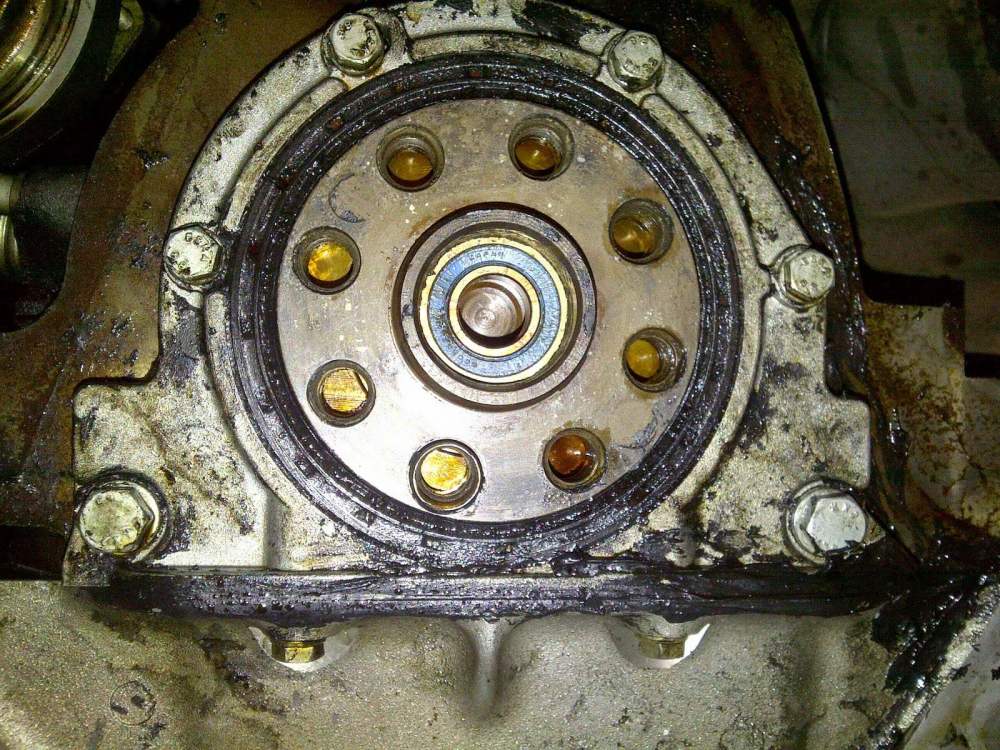

The rear main seal's primary function is simple: to seal the gap between the rotating crankshaft and the engine block at the rear of the engine. This seal prevents oil from escaping the engine's crankcase, which is under constant pressure due to the movement of the pistons and connecting rods. To better understand its role, think of the crankshaft as the engine's backbone. As it spins, it splashes oil throughout the crankcase to lubricate the various engine components. The rear main seal acts as a dam, preventing that oil from escaping past the crankshaft's rearward extension.

Anatomy of a Seal

Rear main seals typically consist of a few key components:

The Seal Body: Usually made of rubber (often nitrile or silicone) or PTFE (Teflon), this forms the main sealing surface. The material must be resistant to oil, heat, and wear.
The Sealing Lip: This is the critical part that makes direct contact with the crankshaft. It's often designed with a spring to maintain consistent pressure against the crankshaft surface.
The Case (Optional): Some seals are encased in a metal or plastic housing for added rigidity and ease of installation.

How It Works: A Sealing Symphony

The sealing lip is meticulously designed to create a tight, dynamic seal against the crankshaft. As the crankshaft rotates, the lip slightly conforms to its surface, creating a thin film of oil that helps to lubricate the contact point and minimize friction. This film also helps to keep the seal pliable and prevent it from drying out and cracking. The spring behind the lip ensures constant pressure, compensating for wear over time.

Types of Rear Main Seals

Rear main seals aren't one-size-fits-all. They come in various designs, each with its own advantages and disadvantages. Understanding the different types is crucial for choosing the right replacement seal for your vehicle.

Single-Lip Seals: These are the simplest and most common type. They feature a single sealing lip that contacts the crankshaft. They are generally less expensive but may be more prone to leaking in high-performance or high-mileage applications.
Double-Lip Seals: As the name suggests, these seals have two sealing lips. The second lip provides an extra layer of protection against oil leakage and helps to keep contaminants out of the seal. They are more durable and reliable than single-lip seals but also more expensive.
PTFE (Teflon) Seals: PTFE seals are known for their exceptional resistance to heat and wear. They often require a break-in period to properly conform to the crankshaft surface. They are typically used in high-performance engines or vehicles that operate in extreme conditions.
Rope Seals: Found in older engines, rope seals are made of a woven material (often asbestos, though newer materials are used now) that is compressed between the crankshaft and the engine block. They are notoriously difficult to install and prone to leaking.

The Replacement Process: A Step-by-Step Guide (Simplified)

Replacing a rear main seal is a relatively involved process that typically requires removing the transmission. This is not a beginner-level task. If you're not comfortable working on complex mechanical systems, it's best to leave this job to a professional.

Preparation: Disconnect the battery. Jack up the vehicle and secure it with jack stands. Drain the engine oil.
Transmission Removal: This is the most labor-intensive part. Disconnect all wires, cables, and linkages connected to the transmission. Support the transmission with a transmission jack. Unbolt the transmission from the engine and carefully lower it to the ground.
Flywheel/Flexplate Removal: Once the transmission is removed, you'll have access to the flywheel (manual transmission) or flexplate (automatic transmission). Mark the position of the flywheel/flexplate relative to the crankshaft before removing it to ensure proper reinstallation.

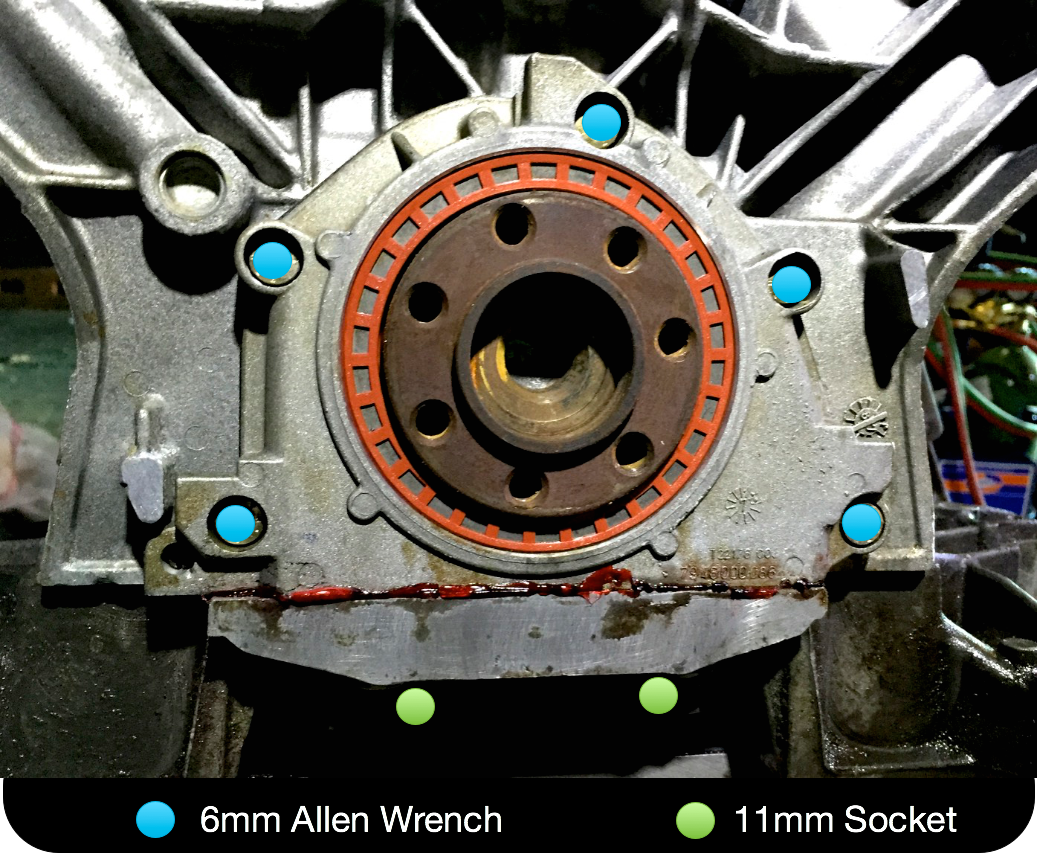

Seal Removal: Carefully pry out the old rear main seal using a seal removal tool or a small screwdriver. Be extremely careful not to scratch or damage the crankshaft sealing surface.
Seal Installation: Clean the sealing surface on the engine block and crankshaft. Apply a thin coat of engine oil to the new seal. Using a seal installation tool, gently press the new seal into place until it is flush with the engine block. Ensure the seal is properly oriented.
Reassembly: Reinstall the flywheel/flexplate, transmission, and all other components in the reverse order of removal. Torque all bolts to the manufacturer's specifications.
Final Steps: Refill the engine oil. Reconnect the battery. Start the engine and check for leaks.

Pros and Cons of DIY Replacement

Pros:

Cost Savings: Replacing the rear main seal yourself can save you a significant amount of money on labor costs.
Learning Experience: This is a great opportunity to learn more about your engine and how it works.
Satisfaction: There's a certain sense of accomplishment that comes with successfully completing a challenging repair.

Cons:

Time Commitment: This is a time-consuming job that can take several hours, or even a full day, to complete.
Complexity: The process involves removing and reinstalling several major components, including the transmission.
Risk of Damage: If you're not careful, you could damage the crankshaft, engine block, or other components.
Special Tools: You may need to purchase or rent specialized tools, such as a seal removal tool and a seal installation tool.

Manufacturer Examples and Variations

Different manufacturers employ slightly different rear main seal designs and installation procedures. For instance:

GM LS Engines: Often use a two-piece rear main seal that's easier to install than some other designs.
Ford Modular Engines: Known for their robust rear main seals, but replacement still requires transmission removal.
BMW: Some BMW engines use a more complex seal carrier that requires careful alignment during installation.

Always consult your vehicle's repair manual for specific instructions and torque specifications.

Real-World Insights and Recommendations

Based on real-world experience, here are a few key recommendations:

Use Quality Parts: Don't skimp on the seal. Choose a reputable brand that offers a high-quality seal made from durable materials. A cheap seal will likely fail prematurely.
Proper Installation is Key: Ensure the sealing surface is clean and free of scratches. Use a seal installation tool to properly seat the seal. Incorrect installation is a major cause of seal failure.
Consider a Seal Kit: Some manufacturers offer rear main seal kits that include the seal, installation tool, and other necessary hardware. These kits can save you time and ensure you have everything you need.
Inspect Other Components: While you have the transmission removed, inspect the pilot bearing (manual transmission) or flexplate for wear and damage. Replace them if necessary.
Address Root Causes: Sometimes, a leaking rear main seal is a symptom of a larger problem, such as excessive crankcase pressure. Address any underlying issues before replacing the seal.
Don't Forget the Lube: Always lubricate the seal lip with fresh engine oil before installation. This helps to prevent damage and ensures proper sealing.

Replacing a rear main seal is a challenging but rewarding repair. By understanding the function of the seal, the different types available, and the proper installation procedures, you can successfully tackle this job and save yourself a significant amount of money. However, always prioritize safety and consult a professional if you're unsure about any aspect of the repair. A properly installed rear main seal will keep your engine running smoothly and prevent costly oil leaks for years to come.
