How To Remove The Airbag Light

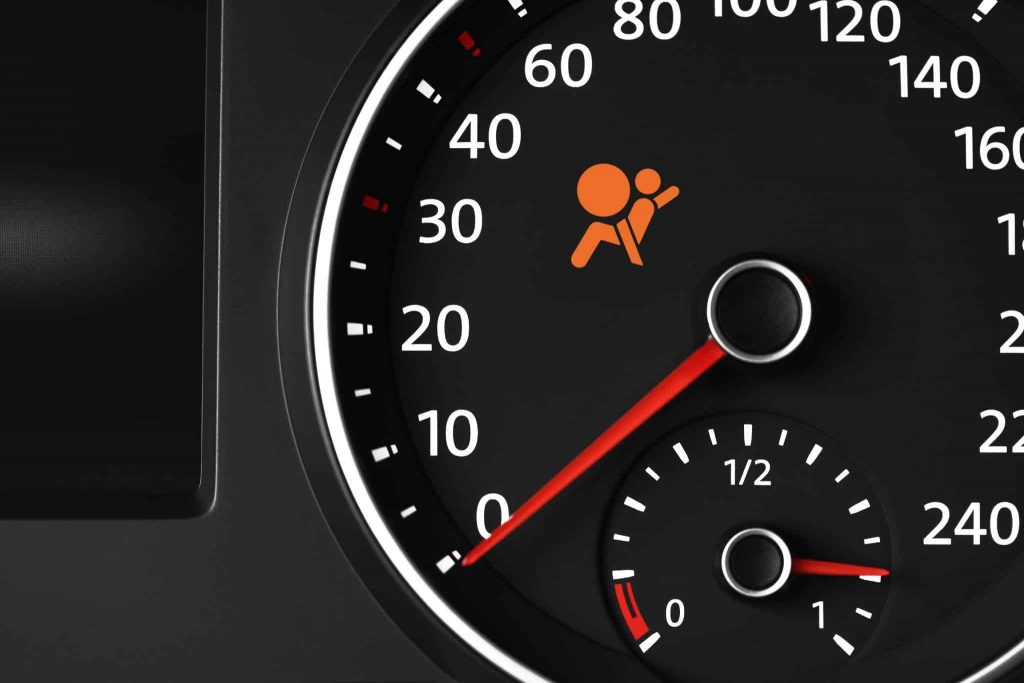

The dreaded airbag light. A constant, glaring reminder that something is amiss in your vehicle's safety system. While ignoring it might be tempting, that tiny illuminated icon signifies a potentially disabled airbag system – a critical safety feature in the event of a collision. This guide delves into the complexities of the airbag system, exploring why the light illuminates, how to diagnose the problem, and the potential steps involved in clearing it. Important Disclaimer: Airbag systems are complex and potentially dangerous. Incorrect handling can lead to serious injury or even death. This guide is for informational purposes only and should not be considered a substitute for professional automotive repair. Always consult with a qualified mechanic before attempting any repairs on your airbag system.

Understanding the Airbag Light's Significance

Think of the airbag light as your car's check engine light, but specifically for the supplemental restraint system (SRS). Just like the check engine light can indicate anything from a loose gas cap to a failing catalytic converter, the airbag light signals a problem somewhere within the network of sensors, modules, and actuators responsible for deploying the airbags. It doesn't necessarily mean your airbags won't deploy at all, but it does mean the system is compromised and may not function as intended.

Imagine a football team with a star quarterback (the crash sensor) calling plays based on the defensive lineup (various other sensors). If the quarterback's vision is impaired (a faulty sensor signal), or he loses communication with the wide receivers (disconnected wiring), the play might fall apart (airbags fail to deploy or deploy inappropriately). The airbag light is like the coach noticing the confusion and signaling a problem.

How the Airbag System Works

The airbag system is a sophisticated network designed to protect occupants during a collision. Here's a breakdown of its key components:

Components:

• Crash Sensors: These are the primary triggers for airbag deployment. Located strategically around the vehicle (usually in the front bumper, side panels, and sometimes the passenger compartment), they detect rapid deceleration, indicating a collision. Some systems use multiple sensors to verify the impact.
• Occupancy Sensors: Found primarily in the passenger seat, these sensors determine if the seat is occupied and, in some cases, the weight of the occupant. This information is crucial for determining whether the passenger airbag should deploy and at what force.
• Seatbelt Pretensioners: While not directly part of the airbag deployment process, seatbelt pretensioners work in conjunction with the airbags. They quickly tighten the seatbelts during a collision, holding the occupant firmly in place to maximize the effectiveness of the airbags.
• Airbag Control Module (ACM): This is the "brain" of the airbag system. It receives signals from all the sensors, processes the data, and decides whether to deploy the airbags. The ACM also monitors the entire system for faults and illuminates the airbag light if a problem is detected.
• Airbags: These are the inflatable cushions that deploy rapidly to cushion occupants during a crash. They are typically located in the steering wheel, dashboard, and seats.

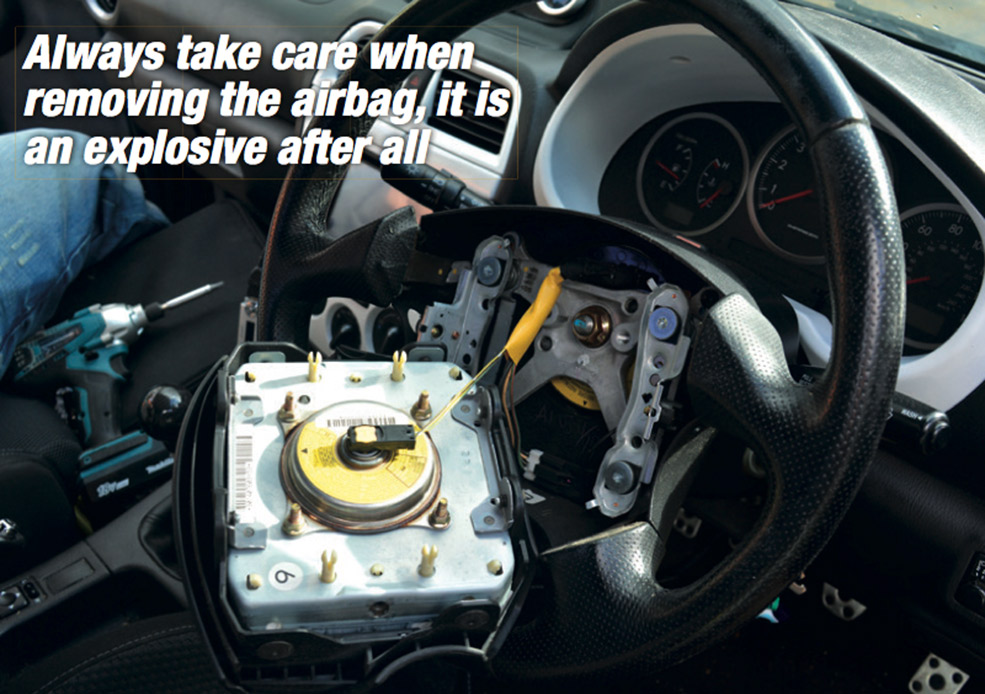

• Clock Spring: Located behind the steering wheel, the clock spring is a coiled ribbon cable that allows electrical connections to be maintained between the steering wheel and the vehicle's electrical system while the wheel rotates. It connects the steering wheel airbag, horn, and other controls. A broken clock spring is a common cause of the airbag light.
• Wiring Harness: The entire system is interconnected by a complex wiring harness. Damaged or corroded wiring can disrupt communication and trigger the airbag light.

The Deployment Sequence:

1. A crash sensor detects a significant deceleration.
2. The sensor sends a signal to the ACM.
3. The ACM analyzes the data from the crash sensor and other sensors (occupancy, seatbelt status).
4. If the ACM determines that airbag deployment is necessary, it sends an electrical signal to the airbag inflators.
5. The inflators contain a solid propellant that, when ignited, produces a large volume of gas.
6. The gas rapidly inflates the airbags, cushioning the occupants.

Common Causes of the Airbag Light

The airbag light can illuminate for a variety of reasons. Here are some of the most common culprits:

• Faulty Crash Sensor: A damaged or malfunctioning crash sensor can send incorrect signals to the ACM.
• Occupancy Sensor Issues: Problems with the passenger seat occupancy sensor can prevent the passenger airbag from deploying correctly.
• Clock Spring Failure: A broken or damaged clock spring is a frequent cause, especially in vehicles with high mileage.
• Low Battery Voltage: Surprisingly, a low battery voltage can sometimes trigger the airbag light. The ACM requires a stable voltage to function correctly.
• Seatbelt Pretensioner Problems: After a collision where the seatbelt pretensioners were activated, they need to be replaced. The airbag light will remain on until this is done and the system is reset.
• Wiring Issues: Damaged, corroded, or disconnected wiring can disrupt communication between the components.
• Airbag Control Module (ACM) Malfunction: In rare cases, the ACM itself may be faulty.
• Aftermarket Modifications: Installing aftermarket seats, steering wheels, or other components can sometimes interfere with the airbag system.
• Previous Accident: Even if the airbags didn't deploy in a previous accident, the system may have stored crash data, triggering the light.

Diagnosing the Problem

The first step in resolving an airbag light issue is to diagnose the problem. This typically requires a scan tool capable of reading airbag system codes.

Using a Scan Tool:

1. Connect the scan tool to the vehicle's diagnostic port (usually located under the dashboard).
2. Turn the ignition key to the "on" position (but do not start the engine).
3. Select the "Airbag" or "SRS" system from the scan tool's menu.
4. Read the diagnostic trouble codes (DTCs). These codes provide valuable information about the nature of the problem.
5. Research the DTCs to understand their meaning and potential causes.

Important: Some scan tools allow you to clear the airbag light after the problem has been resolved. However, simply clearing the code without fixing the underlying issue is not a solution. The light will likely return. Also, some codes require specific procedures for clearing, such as performing a "zero-point calibration" for the steering angle sensor after replacing a clock spring.

Visual Inspection:

A visual inspection can sometimes reveal obvious problems, such as damaged wiring or disconnected connectors. Pay close attention to the wiring harnesses near the airbags, crash sensors, and clock spring.

Potential Solutions and Considerations

Once you've identified the cause of the airbag light, you can begin to explore potential solutions. Remember safety first. Disconnect the negative battery terminal before working on the airbag system to prevent accidental deployment. Wait at least 10 minutes after disconnecting the battery before working on any SRS component.

Replacing Faulty Components:

If a specific component is identified as the cause of the problem (e.g., a faulty crash sensor or clock spring), it will need to be replaced. Use only OEM (Original Equipment Manufacturer) or reputable aftermarket parts. Cheap, unreliable parts can compromise the safety of the system.

Wiring Repairs:

Damaged or corroded wiring should be repaired or replaced. Use proper wiring techniques and ensure that all connections are secure.

Resetting the Airbag Control Module:

In some cases, the ACM may need to be reset after a repair. This can usually be done with a scan tool. Some vehicles require specialized programming after replacing the ACM.

Professional Assistance:

If you are not comfortable working on the airbag system, or if you are unable to diagnose the problem, it is best to seek professional assistance from a qualified mechanic.

Pros and Cons of DIY Airbag Repair

Pros:

• Cost Savings: Repairing the airbag system yourself can save money on labor costs.
• Learning Experience: It can be a valuable learning experience for those interested in automotive repair.

Cons:

• Safety Risks: Incorrect handling of the airbag system can be dangerous.
• Complexity: The airbag system is complex and requires specialized knowledge and tools.
• Liability: If you make a mistake and the airbag system fails to function correctly in an accident, you could be held liable.

Manufacturer Examples and System Variations

Airbag systems vary slightly from manufacturer to manufacturer, but the fundamental principles remain the same. For instance, Toyota's SRS system might have slightly different diagnostic codes compared to Ford's. Some manufacturers utilize more advanced occupancy sensor systems that can detect the size and position of the occupant, adjusting airbag deployment accordingly. European manufacturers like BMW and Mercedes-Benz often integrate the airbag system with other safety features, such as electronic stability control (ESC) and adaptive cruise control, for enhanced collision avoidance and mitigation. Regardless of the specific brand, understanding the core components and their function is crucial for effective troubleshooting.

Real-World Insights and Recommendations

Based on real-world experience, several key recommendations can help prevent and address airbag light issues:

• Regular Maintenance: Keep your vehicle properly maintained, including checking the battery voltage and ensuring all electrical connections are clean and secure.
• Careful Modifications: If you are making any modifications to your vehicle, be sure to do so carefully and avoid interfering with the airbag system.
• Prompt Attention: If the airbag light illuminates, address the problem promptly. Don't ignore it.
• Professional Diagnosis: If you are unsure about the cause of the airbag light, seek professional diagnosis from a qualified mechanic.
• Documentation: Keep records of any airbag system repairs or modifications.

In conclusion, while tackling the airbag light yourself might seem appealing, remember the inherent risks involved. Prioritize safety above all else. If you possess the necessary skills, tools, and knowledge, you can potentially diagnose and resolve minor issues. However, for complex problems or if you lack confidence, entrusting the repair to a qualified professional is always the safest and most responsible course of action. A properly functioning airbag system is a critical safety feature, and ensuring its reliability should be your top priority.
