How To Remove The Power Steering Pulley

Removing a power steering pulley might seem like a simple task, but it can quickly turn into a frustrating and potentially damaging ordeal if not approached correctly. The pulley is often stubbornly attached to the power steering pump shaft, requiring specific tools and techniques. Think of it like trying to remove a stubborn jar lid – brute force rarely works and often leads to damaged edges. Instead, understanding the mechanics involved and employing the right leverage is key to success. This guide will walk you through the process, explaining the why's and how's, so you can tackle this task with confidence and avoid costly mistakes.

The Problem: A Press-Fit Connection

The core issue is the press-fit nature of the connection between the power steering pulley and the pump shaft. Unlike a pulley held in place by a bolt or nut, a press-fit utilizes an interference fit. This means the inner diameter of the pulley is slightly smaller than the outer diameter of the shaft. The pulley is then forced onto the shaft, creating a very tight and secure connection due to friction. This method is chosen by manufacturers for its simplicity, reliability, and ability to transmit torque effectively, but it presents a challenge when disassembly is required.

Imagine trying to fit a slightly oversized peg into a hole. You'd need significant force to push it in, and removing it would be equally difficult. The power steering pulley is essentially the peg, and the pump shaft is the hole, only with much tighter tolerances and significantly more force involved. Trying to pry the pulley off with screwdrivers or hammers is a recipe for disaster, as it can damage the pulley itself, the pump shaft, or even the pump housing.

How the Power Steering System Works

Before diving into the removal process, understanding the power steering system’s function is crucial. The power steering pump, driven by the engine via a belt (often a serpentine belt that also drives other accessories like the alternator and air conditioning compressor), circulates hydraulic fluid under pressure. This pressurized fluid assists the driver in turning the steering wheel, reducing the effort required, especially at low speeds. The pulley is the crucial link that transfers the engine's rotational energy to the pump. When the engine spins, it rotates the pulley, which in turn spins the pump's internal components, generating the hydraulic pressure.

The system consists of several key components:

• Power Steering Pump: The heart of the system, responsible for generating hydraulic pressure.
• Power Steering Pulley: Transfers rotational force from the engine to the pump.
• Reservoir: Stores the power steering fluid.
• Hoses: Carry the pressurized fluid from the pump to the steering gear (or rack and pinion) and back.
• Steering Gear (or Rack and Pinion): Translates the rotational input from the steering wheel into linear motion to turn the wheels.

When the steering wheel is turned, valves within the steering gear direct the pressurized fluid to one side of a piston or cylinder, assisting the driver in turning the wheels. Without power steering, significantly more effort would be required, particularly when maneuvering at slow speeds or with heavy loads.

The Right Tool for the Job: The Power Steering Pulley Puller/Installer

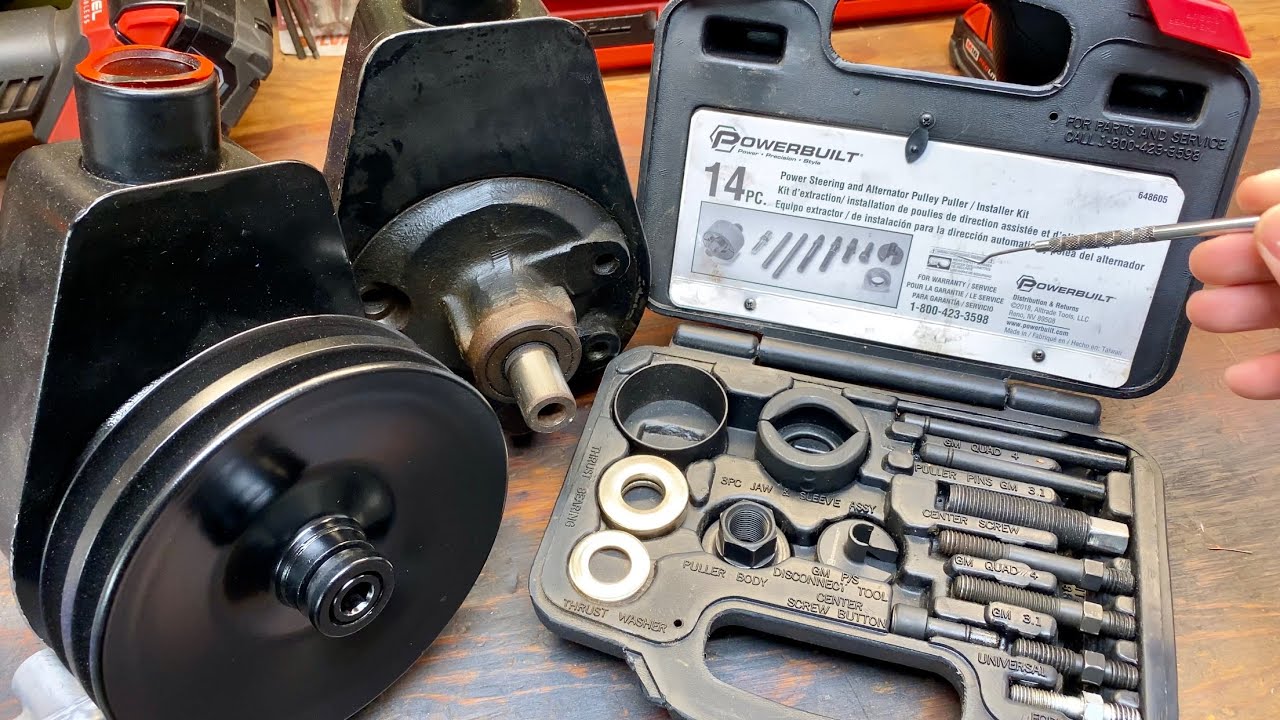

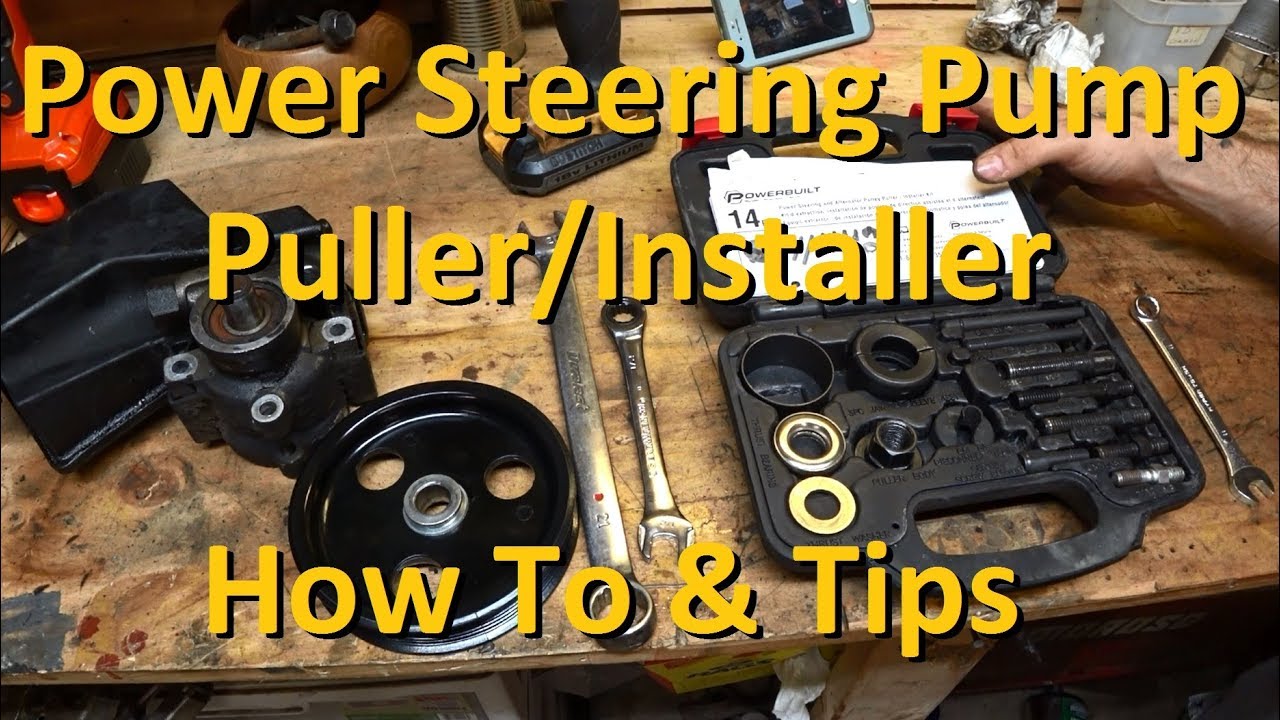

The key to safely removing a power steering pulley is using a dedicated power steering pulley puller/installer tool. This tool is designed specifically to apply even and controlled force to the pulley without damaging it or the pump. These kits typically consist of a threaded rod, a bearing assembly, and various adapters that fit different pulley designs.

How the Puller Works:

1. Attaching the Puller: The puller arms or jaws are carefully positioned behind the pulley, gripping its inner rim. Different adapters are available to accommodate various pulley shapes and sizes.
2. Applying Pressure: The threaded rod is then turned, pushing against the pump shaft while the puller arms simultaneously pull the pulley outwards. This creates a controlled and gradual separation.
3. Controlled Removal: The continuous, even pressure allows the pulley to slowly slide off the shaft without the risk of bending, cracking, or otherwise damaging either component.

Trying to use alternative methods, such as hammering or prying, often results in damage to the pulley, the pump shaft, or even the pump housing. The power steering pump housing is typically made of aluminum, which is relatively soft and easily damaged. Replacing a power steering pump is significantly more expensive and time-consuming than simply renting or purchasing the correct puller tool.

Step-by-Step Removal Process

1. Preparation: Disconnect the negative battery cable. Locate the power steering pump and visually inspect the area. Identify the type of pulley and ensure you have the correct puller adapters.

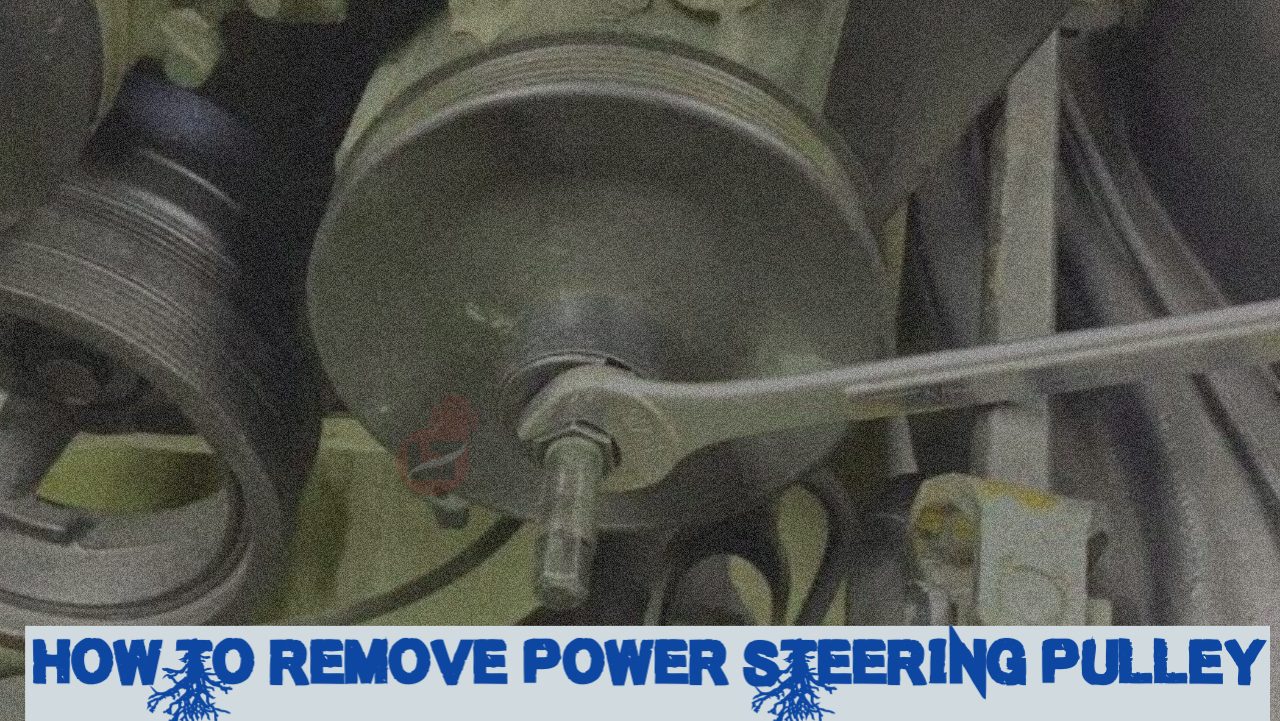

2. Attaching the Puller: Carefully attach the pulley puller to the pulley. Ensure the arms or jaws are securely gripping the pulley's inner rim and that the threaded rod is centered on the pump shaft.

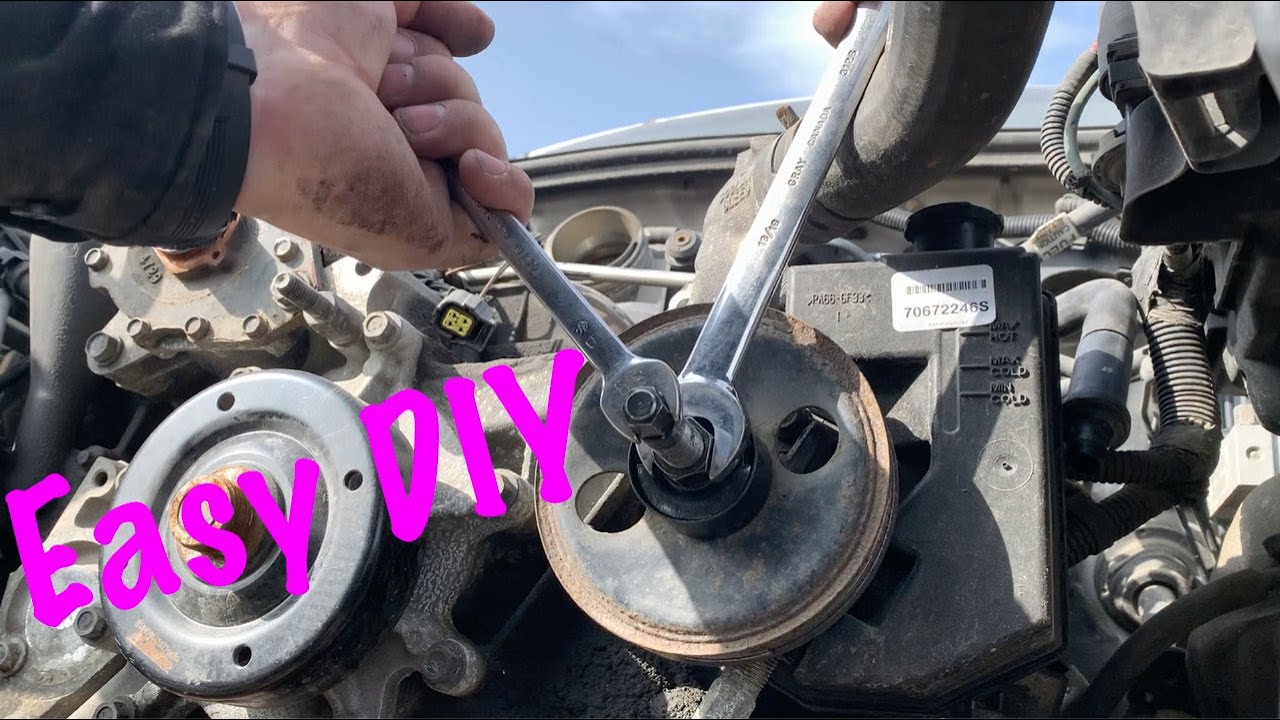

3. Applying Pressure: Slowly and steadily turn the threaded rod using a wrench. Monitor the pulley as it begins to separate from the shaft. If you encounter significant resistance, double-check the puller's alignment and ensure the correct adapters are being used.
4. Complete Removal: Continue turning the threaded rod until the pulley is completely removed from the shaft.
5. Inspection: Inspect the pulley and pump shaft for any signs of damage, such as cracks, bends, or excessive wear. If any damage is found, replace the affected component.

Installation Considerations

Installing the pulley is essentially the reverse of the removal process, but with a few key considerations. The same puller tool can be used to press the pulley back onto the shaft. It's crucial to ensure the pulley is properly aligned and seated to the correct depth on the shaft. Consult the vehicle's service manual for specific installation instructions and torque specifications.

Before installing the pulley, lightly lubricate the pump shaft with a small amount of power steering fluid or a compatible lubricant. This will help ease the installation process and prevent seizing.

Pros and Cons of Using a Puller/Installer Tool

Pros:

• Safe and Effective: Minimizes the risk of damage to the pulley and pump.
• Precise Control: Allows for gradual and controlled removal and installation.
• Versatile: Works on a variety of pulley designs and sizes with different adapters.
• Saves Time and Money: Prevents costly repairs and replacements due to damage.

Cons:

• Initial Investment: Requires purchasing or renting the tool.
• Learning Curve: May require some practice to use effectively.
• Storage Space: The tool kit can take up some storage space.

Manufacturer Examples

Many reputable manufacturers produce high-quality power steering pulley puller/installer tools, including:

• OTC Tools: Known for their durable and reliable automotive specialty tools.
• Lisle Corporation: Offers a wide range of affordable and effective tools.
• OEMTOOLS: Provides professional-grade tools for automotive technicians.

When selecting a puller/installer tool, consider the quality of the materials, the range of adapters included, and the overall ease of use.

Use Cases

Removing the power steering pulley is necessary in several scenarios:

• Power Steering Pump Replacement: When the pump fails, the pulley needs to be transferred to the new pump.
• Pulley Replacement: If the pulley is damaged or worn, it needs to be replaced.
• Engine Overhaul: During a complete engine rebuild, the pulley may need to be removed for access or cleaning.
• Belt Replacement (in some cases): Occasionally, removing the pulley provides better access for installing a new serpentine belt, especially in tight engine compartments.

Real-World Insights and Recommendations

Based on real-world experience, it's always best to use the correct tool for the job. While it might be tempting to try alternative methods, the risk of damage and potential for increased costs far outweighs the initial investment in a power steering pulley puller/installer tool. Before starting the removal process, thoroughly research the specific procedure for your vehicle model. Consult the vehicle's service manual or online forums for any specific tips or tricks.

Another critical piece of advice is to take your time. Rushing the process can lead to mistakes and damage. Apply steady and controlled pressure, and carefully monitor the pulley as it separates from the shaft. If you encounter significant resistance, stop and reassess the situation. Don't force it, as this can lead to further complications.

Finally, remember to inspect all components thoroughly before reassembly. Check the pulley and pump shaft for any signs of damage or wear. Replace any worn or damaged parts to ensure the proper functioning of the power steering system. A little preventative maintenance can go a long way in preventing future problems and extending the life of your vehicle.
