How To Remove Transmission Control Module

The Transmission Control Module (TCM), sometimes also referred to as the Transmission Control Unit (TCU), is a vital component in modern vehicles. It's essentially the brain of your automatic transmission, responsible for controlling gear shifts, monitoring sensor data, and ensuring smooth operation. Knowing how to remove a TCM can be useful for diagnostics, replacement, or even sending it in for repair. However, it's crucial to understand that this process can be complex and, if done incorrectly, can damage your vehicle. This article provides a general overview of TCM removal, but it’s always recommended to consult your vehicle's repair manual or a qualified mechanic.

Why Removing Your TCM Matters

Understanding why you might need to remove your TCM is important before you even consider the process. Here are a few common reasons:

• Diagnostics: If your vehicle is experiencing transmission problems, a faulty TCM could be the culprit. Removing it allows for testing to determine if it needs repair or replacement.
• Replacement: A damaged or malfunctioning TCM can cause a range of issues, from rough shifting to complete transmission failure. Replacing the TCM is often the only solution in these cases.
• Repair: Some TCMs can be repaired by specialized electronic repair services. Removing the module allows you to send it in for professional evaluation and potential repair, often a more cost-effective option than complete replacement.
• Programming/Reflashing: Sometimes, a TCM needs to be reprogrammed or reflashed to address software glitches or to adapt to new components. This often requires removing the unit to access the necessary ports.

Ignoring TCM issues can lead to further damage to your transmission and other related systems. Early diagnosis and, if necessary, removal for repair or replacement, can save you significant money and headaches in the long run.

How to Remove Your Transmission Control Module: A Step-by-Step Guide

Disclaimer: This guide provides general information. Always consult your vehicle's specific repair manual for detailed instructions and safety precautions. Working on your vehicle can be dangerous, and you should only attempt this if you are comfortable and confident in your abilities. If in doubt, seek professional assistance.

Step 1: Gather Your Tools and Prepare

Before you start, make sure you have the necessary tools:

• Socket set with various sizes
• Screwdrivers (Phillips head and flathead)
• Torque wrench
• Pliers
• Multimeter (for testing voltage)
• Gloves
• Safety glasses
• Vehicle repair manual (essential for specific instructions)
• Jack and jack stands (if required to access the TCM)

Once you have your tools, prepare your workspace:

• Park your vehicle on a level surface and engage the parking brake.
• Disconnect the negative terminal of your battery. This is crucial to prevent electrical shocks and damage to the vehicle's electrical system.

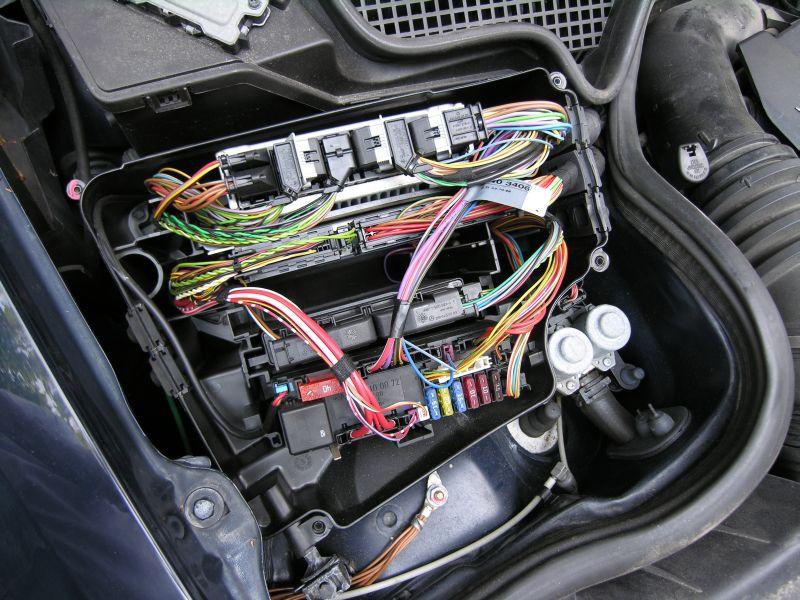

• Consult your repair manual to locate the TCM. It's usually located under the dashboard, under a seat, or in the engine compartment.

Step 2: Locate the TCM

Finding the TCM is often the most challenging part of the process. Refer to your vehicle's repair manual for its precise location. Common locations include:

• Under the dashboard: This is a common location, often behind the glove compartment or near the steering column.
• Under a seat: Some vehicles have the TCM located under one of the front seats.
• In the engine compartment: Less common, but sometimes located near the transmission itself or in a separate enclosure.

Once you've located the TCM, you'll likely need to remove trim panels or other components to access it. Be careful not to damage any surrounding parts.

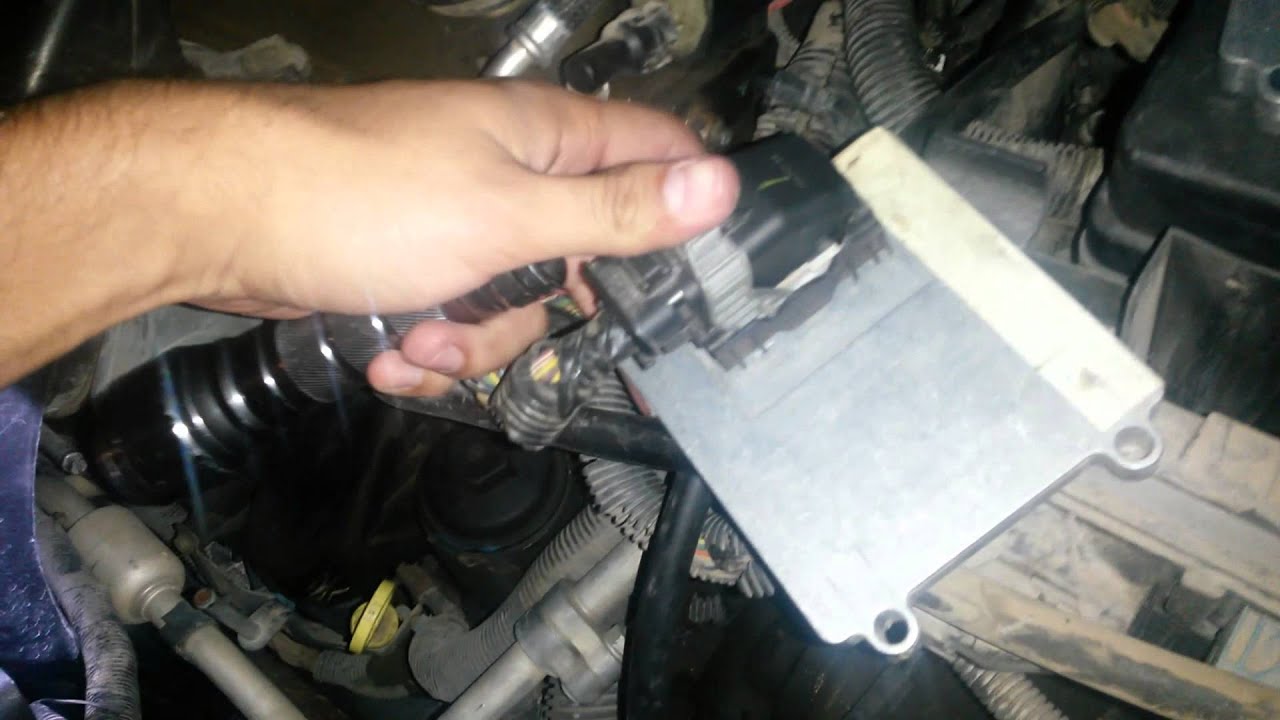

Step 3: Disconnect Electrical Connectors

Carefully disconnect all electrical connectors attached to the TCM. These connectors often have locking tabs that need to be pressed or released. Do not force the connectors, as this can damage them. Make sure to note the location and orientation of each connector for easy reinstallation. Taking pictures can be extremely helpful.

Step 4: Remove the TCM

The TCM is usually held in place by screws, bolts, or clips. Remove these fasteners carefully. Once all fasteners are removed, gently pull the TCM free from its mounting location. Be careful not to damage any surrounding wires or components.

Step 5: Inspect and Prepare for Replacement/Repair

Once the TCM is removed, inspect it for any visible damage, such as corrosion or cracked components. If you're replacing the TCM, compare the part number of the old unit to the new one to ensure compatibility. If you're sending the TCM in for repair, package it carefully to prevent damage during shipping.

How to Choose the Right Replacement TCM

If you're replacing your TCM, selecting the correct replacement is crucial. Here are some factors to consider:

• Compatibility: The most important factor is ensuring the replacement TCM is compatible with your vehicle's make, model, and year. Use your VIN (Vehicle Identification Number) to verify compatibility.
• Part Number: Match the part number on your old TCM to the part number of the replacement. This is the most reliable way to ensure compatibility.
• New vs. Remanufactured: You have the option of purchasing a new or remanufactured TCM. New TCMs are generally more expensive but offer the greatest reliability. Remanufactured TCMs are often a more affordable option, but ensure they come with a warranty.
• Supplier Reputation: Purchase your TCM from a reputable supplier to ensure quality and warranty support. Check online reviews and ratings before making a purchase.
• Programming Requirements: Some TCMs require programming or flashing after installation. Check with the supplier or a mechanic to determine if programming is necessary.

Real-World Owner Experiences

Many vehicle owners have successfully removed and replaced their TCMs, but it's important to learn from their experiences. Here are some common takeaways:

• Importance of the Repair Manual: The vehicle's repair manual is an invaluable resource. Don't attempt this project without it.
• Connector Caution: Be extremely careful when disconnecting electrical connectors. Broken connectors can be difficult and expensive to repair.
• Photo Documentation: Taking photos before and during the removal process can be a lifesaver when it comes to reassembly.
• Professional Assistance: If you're unsure about any step of the process, don't hesitate to seek professional assistance from a qualified mechanic.

One owner shared, "I tried to save money by replacing the TCM myself, but I ended up breaking a connector. I had to take it to a mechanic anyway, and it ended up costing me more in the long run. I wish I had just gone to the mechanic in the first place."

Frequently Asked Questions (FAQs)

Q: How much does it cost to replace a TCM?

A: The cost of replacing a TCM can vary widely depending on the vehicle's make, model, and whether you choose a new or remanufactured unit. Generally, expect to pay between $300 and $1500, including parts and labor.

Q: Can I drive my car with a bad TCM?

A: It's generally not recommended to drive your car with a bad TCM. A faulty TCM can cause erratic shifting, transmission slippage, or even complete transmission failure. This can be dangerous and can lead to further damage.

Q: How do I know if my TCM is bad?

A: Common symptoms of a bad TCM include: harsh or erratic shifting, transmission slippage, failure to shift, check engine light illumination, and transmission-related diagnostic trouble codes (DTCs).

Q: Can a TCM be reprogrammed?

A: Yes, many TCMs can be reprogrammed or reflashed. This can be necessary to address software glitches, adapt to new components, or update the TCM's software. This usually requires specialized equipment and software.

Q: Is it safe to remove the TCM myself?

A: Removing the TCM can be safe if you have the necessary tools, knowledge, and experience. However, it's important to follow safety precautions and consult your vehicle's repair manual. If you're unsure about any step of the process, seek professional assistance.

In conclusion, while removing a TCM is possible for a DIY enthusiast, it's a task that requires careful planning, attention to detail, and a thorough understanding of your vehicle's systems. Always prioritize safety and consult professional resources when needed. Remember to disconnect the battery, use the correct tools, and document your progress to ensure a successful outcome.
