How To Remove Valve Stem Seals

Valve stem seals, often overlooked, play a crucial role in maintaining your engine's health and performance. When these seals fail, it can lead to a cascade of issues, from decreased fuel efficiency to significant engine damage. This article will guide you through identifying the symptoms of failing valve stem seals, understanding the underlying causes, outlining the consequences of ignoring the problem, and providing practical solutions for removal and replacement. Addressing this issue promptly can save you considerable time and money in the long run, ensuring the longevity and optimal performance of your vehicle's engine.

Recognizing the Symptoms: Is it Your Valve Stem Seals?

The symptoms of failing valve stem seals can sometimes be subtle at first, but they tend to worsen over time. Being able to recognize these signs early can prevent more serious engine damage. Here are some common indicators to watch out for:

Blue or White Smoke from the Exhaust: This is the most tell-tale sign. It's particularly noticeable during start-up (especially after the car has been sitting for a while) and when decelerating. This occurs because oil is leaking past the worn seals and burning in the combustion chamber.
Excessive Oil Consumption: If you find yourself adding oil more frequently than usual without any visible leaks, it could be a sign that oil is being burned internally due to faulty valve stem seals. Track your oil consumption carefully to see if it's increasing.
Fouled Spark Plugs: Oil leaking past the valve stem seals can contaminate the spark plugs, leading to misfires and rough idling. If your spark plugs are consistently oily or black, it's a strong indication of this problem.
Rough Idling: Misfires caused by oil fouling the spark plugs can lead to a noticeable rough idle, especially when the engine is cold.
Decreased Fuel Economy: Burning oil reduces the efficiency of the combustion process, leading to lower gas mileage.
Smell of Burning Oil: In some cases, you might detect the distinct odor of burning oil, especially after the engine has been running for a while.

Understanding the Root Cause: Why Valve Stem Seals Fail

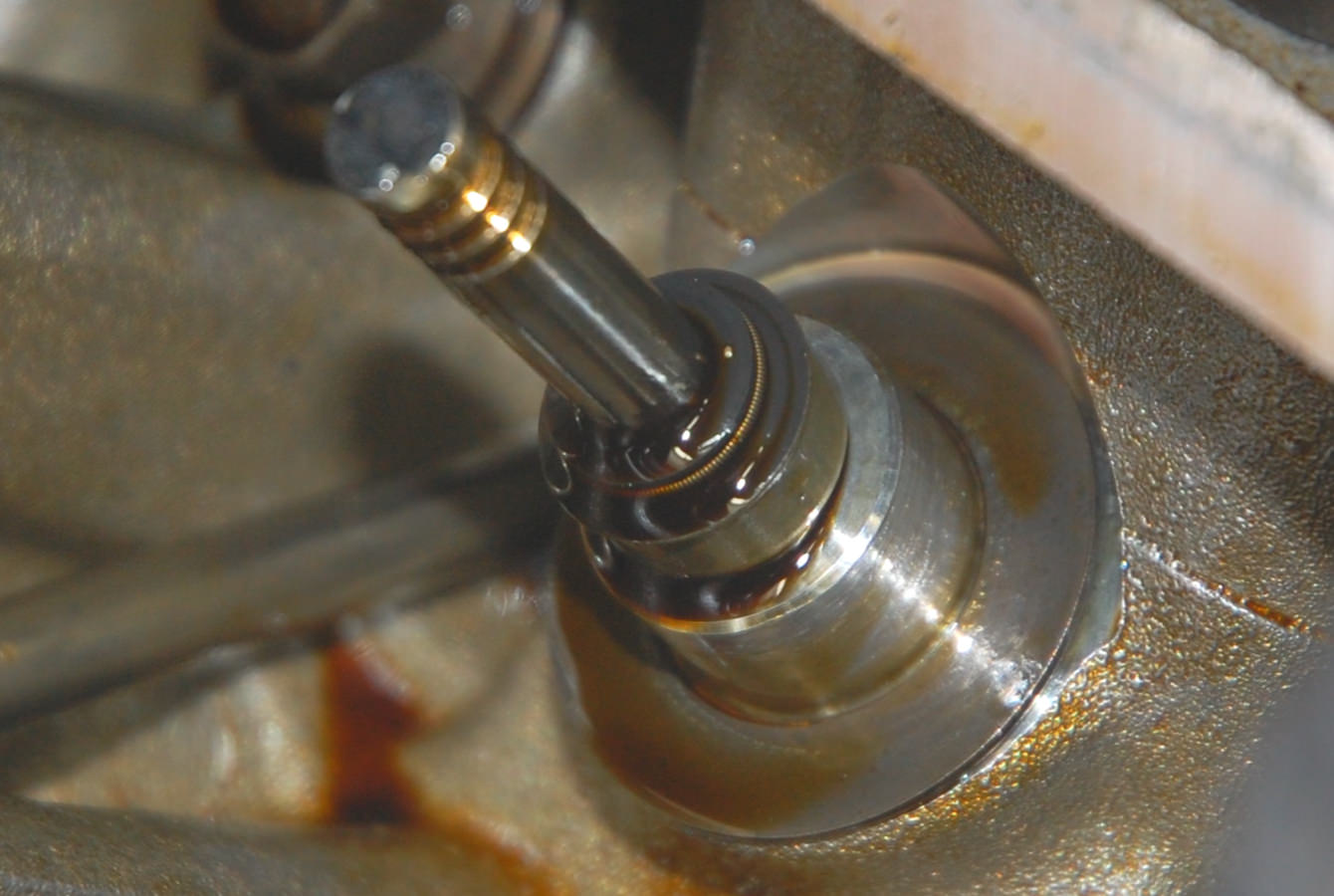

Valve stem seals are small, circular components made of rubber or synthetic materials designed to prevent oil from leaking past the valve stems and into the combustion chamber. They sit at the top of the valve guides, tightly sealing the valve stems. Several factors contribute to their eventual failure:

Wear and Tear: Over time, the constant movement of the valve stems against the seals causes them to wear down and lose their elasticity. This is a natural process, especially in older vehicles with higher mileage.
Heat Exposure: The extreme temperatures within the engine compartment can cause the rubber or synthetic materials of the seals to harden and crack, reducing their ability to effectively seal.
Oil Quality: Using low-quality or the wrong type of engine oil can accelerate the degradation of the seals. Certain oils may not provide adequate lubrication, leading to increased friction and wear.
Lack of Maintenance: Infrequent oil changes can lead to the buildup of sludge and deposits, which can damage the seals and reduce their lifespan.
Material Degradation: The composition of the seals themselves can play a role. Inferior quality seals are more prone to premature failure.

Consequences of Ignoring the Problem: A Slippery Slope

Ignoring failing valve stem seals can lead to a range of more serious and costly engine problems. Here's what can happen if you delay addressing the issue:

Catalytic Converter Damage: Burning oil can overwhelm and damage the catalytic converter, a critical component of your vehicle's emissions system. Replacing a catalytic converter can be quite expensive.
Increased Engine Wear: The lack of proper lubrication due to oil consumption can accelerate wear on other engine components, such as piston rings and cylinder walls.
Spark Plug Fouling and Misfires: Continued oil fouling of the spark plugs can lead to persistent misfires, which can damage the ignition system and further reduce fuel economy.
Engine Knocking: In severe cases, excessive oil consumption can lead to engine knocking, a sign of serious internal damage.
Significant Engine Damage: Prolonged neglect can ultimately lead to major engine damage, requiring extensive repairs or even a complete engine replacement.

Recommended Fixes: Removing and Replacing Valve Stem Seals

The solution to failing valve stem seals is to remove the old, worn seals and replace them with new ones. This is generally considered an intermediate to advanced level repair, requiring specialized tools and a good understanding of engine mechanics. There are two main approaches:

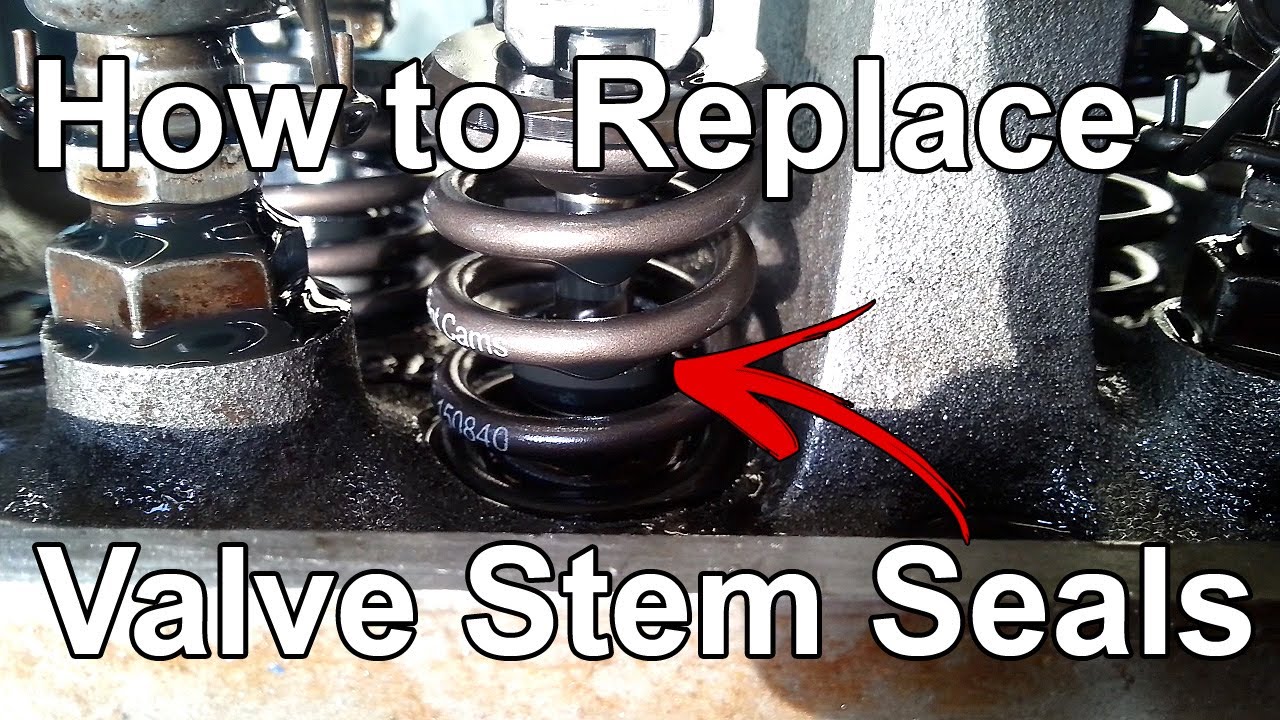

Method 1: Removing Valve Stem Seals with the Cylinder Head On (On-Car Method)

This method is generally preferred as it avoids the complexities and time involved in removing the cylinder head. However, it requires careful attention to detail to prevent dropping a valve into the cylinder.

Preparation: Gather the necessary tools, including a valve spring compressor (specifically designed for on-car use), valve stem seal removal tool, valve stem seal installation tool, compressed air adapter for the spark plug hole, new valve stem seals, and a torque wrench. Disconnect the battery and remove the spark plugs.
Pressurize the Cylinder: Using the compressed air adapter, pressurize the cylinder with compressed air through the spark plug hole. This will hold the valves in place while you remove the valve springs.
Compress the Valve Spring: Attach the valve spring compressor and carefully compress the valve spring, exposing the valve keepers (also called valve locks).
Remove the Valve Keepers: Use a magnetic pickup tool or small pliers to remove the valve keepers. Store them carefully to avoid losing them.
Remove the Valve Spring Retainer and Spring: Once the keepers are removed, carefully release the valve spring compressor and remove the valve spring retainer and spring.
Remove the Old Valve Stem Seal: Use the valve stem seal removal tool to carefully remove the old valve stem seal. Be careful not to damage the valve guide.
Install the New Valve Stem Seal: Lubricate the new valve stem seal with clean engine oil and use the valve stem seal installation tool to carefully install the new seal onto the valve guide.
Reinstall the Valve Spring and Retainer: Place the valve spring and retainer back into position.
Compress the Valve Spring Again: Use the valve spring compressor to compress the spring again, exposing the valve stem.
Reinstall the Valve Keepers: Carefully reinstall the valve keepers, ensuring they are properly seated in the valve stem grooves. This can be tricky and may require some patience.
Release the Valve Spring Compressor: Slowly release the valve spring compressor, allowing the valve spring retainer to hold the valve keepers in place.
Repeat for Remaining Valves: Repeat steps 2-11 for each valve in the cylinder. Then, repeat the entire process for each cylinder in the engine.
Reinstall Spark Plugs and Battery: Once all valve stem seals have been replaced, reinstall the spark plugs, reconnect the battery, and start the engine.

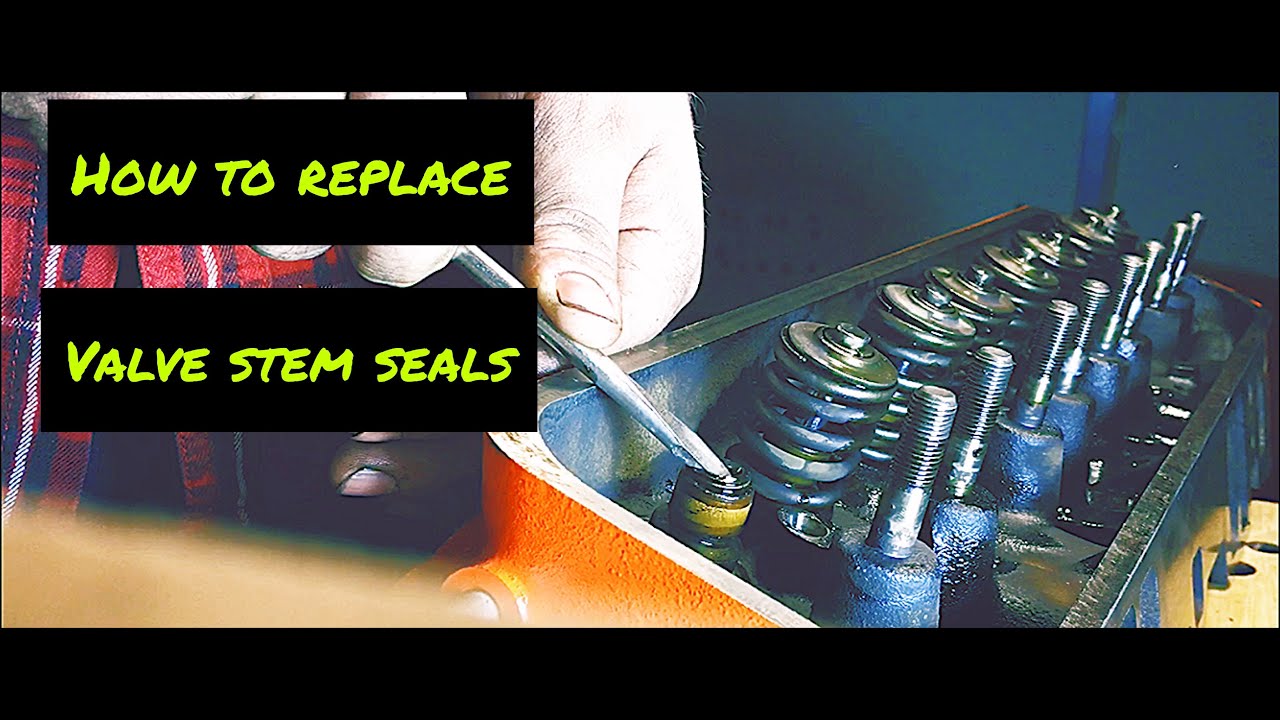

Method 2: Removing Valve Stem Seals with the Cylinder Head Off (Off-Car Method)

This method requires removing the cylinder head from the engine, which allows for easier access to the valve stem seals and provides an opportunity to inspect and service other cylinder head components. This is typically done during a more extensive engine overhaul.

Remove the Cylinder Head: Follow your vehicle's repair manual to properly remove the cylinder head from the engine. This involves disconnecting various hoses, wires, and components, and carefully removing the head bolts.
Compress the Valve Spring: Use a valve spring compressor to compress the valve spring, exposing the valve keepers.
Remove the Valve Keepers, Retainer, and Spring: Remove the valve keepers, retainer, and spring as described in Method 1.
Remove the Old Valve Stem Seal: Use the valve stem seal removal tool to remove the old valve stem seal.
Inspect Valve Guides: With the cylinder head removed, inspect the valve guides for wear or damage. If the valve guides are worn, they should be replaced or reamed to ensure proper valve alignment.
Install the New Valve Stem Seal: Lubricate the new valve stem seal and use the installation tool to install it onto the valve guide.
Reinstall the Valve Spring, Retainer, and Keepers: Reinstall the valve spring, retainer, and keepers as described in Method 1.
Repeat for Remaining Valves: Repeat steps 2-7 for each valve in the cylinder head.
Reinstall the Cylinder Head: Follow your vehicle's repair manual to properly reinstall the cylinder head onto the engine. This involves using a new head gasket, torquing the head bolts to the correct specifications, and reconnecting all hoses and wires.

Cost Estimates and Shop Advice

The cost of replacing valve stem seals can vary depending on the vehicle model, the complexity of the engine, and the chosen method (on-car vs. off-car). Generally, the on-car method is less expensive due to the reduced labor involved. However, the off-car method may be necessary if the cylinder head requires additional work, such as valve guide replacement or valve grinding.

DIY Cost: If you choose to tackle this repair yourself, you can expect to spend between $50 and $200 on parts, including new valve stem seals, valve cover gaskets, and potentially spark plugs. The cost of specialized tools, such as a valve spring compressor and valve stem seal removal/installation tools, may add to the expense.
Professional Repair Cost: Having a professional mechanic perform this repair can cost between $500 and $1500 or more, depending on the factors mentioned above. The labor cost will be the most significant portion of the expense.

Shop Advice: When seeking professional repair, it's always a good idea to get multiple quotes from reputable mechanics. Ask about their experience with valve stem seal replacement and whether they recommend the on-car or off-car method. Also, inquire about any potential hidden costs or additional repairs that might be necessary.

Credibility and Common Failure Points

Valve stem seal failure is a relatively common issue, particularly in older vehicles with higher mileage. Many online forums and automotive communities document experiences with this problem, offering valuable insights and tips. While there isn't a specific TSB (Technical Service Bulletin) that universally covers valve stem seal failure, some manufacturers may issue TSBs addressing oil consumption issues that could be related to worn seals. As a general rule, valve stem seals often start to show signs of wear around 100,000 to 150,000 miles, although this can vary depending on driving conditions and maintenance practices.
