How To Replace A Camshaft Sensor

Is your car suddenly experiencing rough idling, stalling, or difficulty starting? Does the check engine light seem permanently glued to your dashboard? You might be dealing with a faulty camshaft position sensor (CMP sensor). Replacing this sensor is often a relatively straightforward repair that can restore your engine's performance and prevent further damage. But why is this little sensor so crucial, and how do you know when it's time to replace it? Let's dive in.

Symptoms of a Failing Camshaft Position Sensor

Recognizing the symptoms of a failing CMP sensor is the first step in diagnosing the problem. Here's a comprehensive list of telltale signs:

Check Engine Light: This is the most common indicator. The code(s) related to the CMP sensor (typically P0340, P0341, P0342, P0343, P0344, P0345, P0346, P0347, P0348, or P0349) will be stored in the car's computer. You'll need an OBD-II scanner to read these codes.
Rough Idling: The engine may idle erratically, feeling shaky or unstable. This is because the engine's computer isn't receiving accurate information about the camshaft's position, leading to incorrect fuel injection and timing.
Stalling: The engine may stall intermittently, especially at low speeds or when coming to a stop. This can be quite dangerous, particularly in traffic.
Difficulty Starting: You might experience prolonged cranking before the engine finally starts, or it may not start at all. In severe cases, a failing CMP sensor can completely prevent the engine from starting.
Poor Fuel Economy: Inaccurate camshaft position data can lead to inefficient fuel combustion, resulting in a noticeable decrease in your car's gas mileage.
Reduced Engine Power: The engine may feel sluggish and unresponsive, particularly during acceleration.
Misfires: You may experience engine misfires, which can feel like a jerking or sputtering sensation. This is another symptom of improper fuel combustion due to faulty timing.
Engine Hesitation: The engine may hesitate or stumble when you press the accelerator pedal.

Understanding the Root Cause

The camshaft position sensor is a critical component of your engine's control system. Its primary function is to monitor the position and speed of the camshaft. This information is then relayed to the engine control unit (ECU), which uses it to precisely control fuel injection and ignition timing. This precise control optimizes engine performance, fuel efficiency, and emissions.

CMP sensors typically operate using one of two technologies: Hall effect or variable reluctance. Hall effect sensors use a magnetic field and a semiconductor to detect the camshaft's position, while variable reluctance sensors generate a voltage signal based on the changes in a magnetic field as the camshaft rotates.

Several factors can cause a CMP sensor to fail:

Heat and Vibration: Constant exposure to high engine temperatures and vibrations can degrade the sensor's internal components over time.
Contamination: Oil leaks or other contaminants can infiltrate the sensor, disrupting its ability to function correctly.
Electrical Issues: Damaged wiring, corroded connectors, or shorts in the sensor's circuit can lead to signal disruptions.
Physical Damage: The sensor can be physically damaged during other engine repairs or due to impacts.
Age and Wear: Like any mechanical component, CMP sensors have a limited lifespan and can simply wear out over time.

What Happens If You Ignore a Failing CMP Sensor?

Ignoring a failing CMP sensor can have serious consequences. While your car might continue to run for a short period, it's likely running in a "limp mode" or relying on other sensors to compensate for the missing data. This isn't a long-term solution and can lead to:

Catalytic Converter Damage: Misfires caused by a faulty CMP sensor can dump unburnt fuel into the exhaust system, potentially damaging the catalytic converter. Replacing a catalytic converter is a significantly more expensive repair than replacing a CMP sensor.
Increased Fuel Consumption: The engine may be running inefficiently, wasting fuel and costing you more money at the pump.
Engine Damage: In severe cases, improper timing can lead to engine knocking or other internal damage.
Complete Engine Failure: If the engine is constantly misfiring and being stressed, it is very likely it can cause damage. The extent of the damage can vary from simple failure to complete engine damage.
Safety Hazards: Stalling while driving can be extremely dangerous, especially in heavy traffic.

Recommended Fixes: Replacing the Camshaft Position Sensor

Replacing a CMP sensor is usually a DIY-friendly task for those with some mechanical experience. Here's a step-by-step guide:

Gather Your Tools and Parts: You'll need a new CMP sensor (be sure to get the correct one for your vehicle's make, model, and year), a socket set, a wrench, a screwdriver, an OBD-II scanner (to clear the codes after replacement), and possibly a multimeter (to test the sensor's wiring).
Locate the CMP Sensor: The location of the CMP sensor varies depending on the vehicle. Consult your car's repair manual or online resources to find its exact location. It's often found near the top of the engine, on the cylinder head, or near the timing cover.
Disconnect the Negative Battery Terminal: This is a crucial safety precaution to prevent electrical shock.
Disconnect the Sensor Connector: Carefully disconnect the electrical connector from the old CMP sensor. Some connectors may have a locking mechanism that needs to be released.

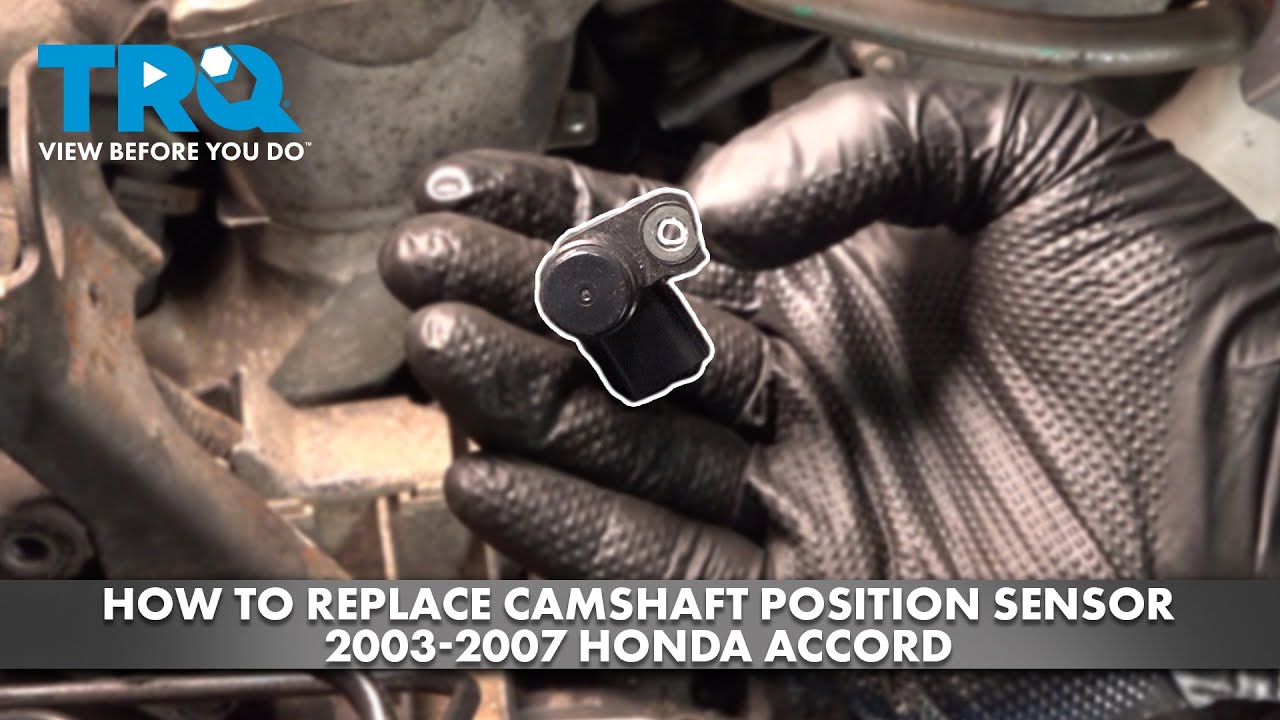

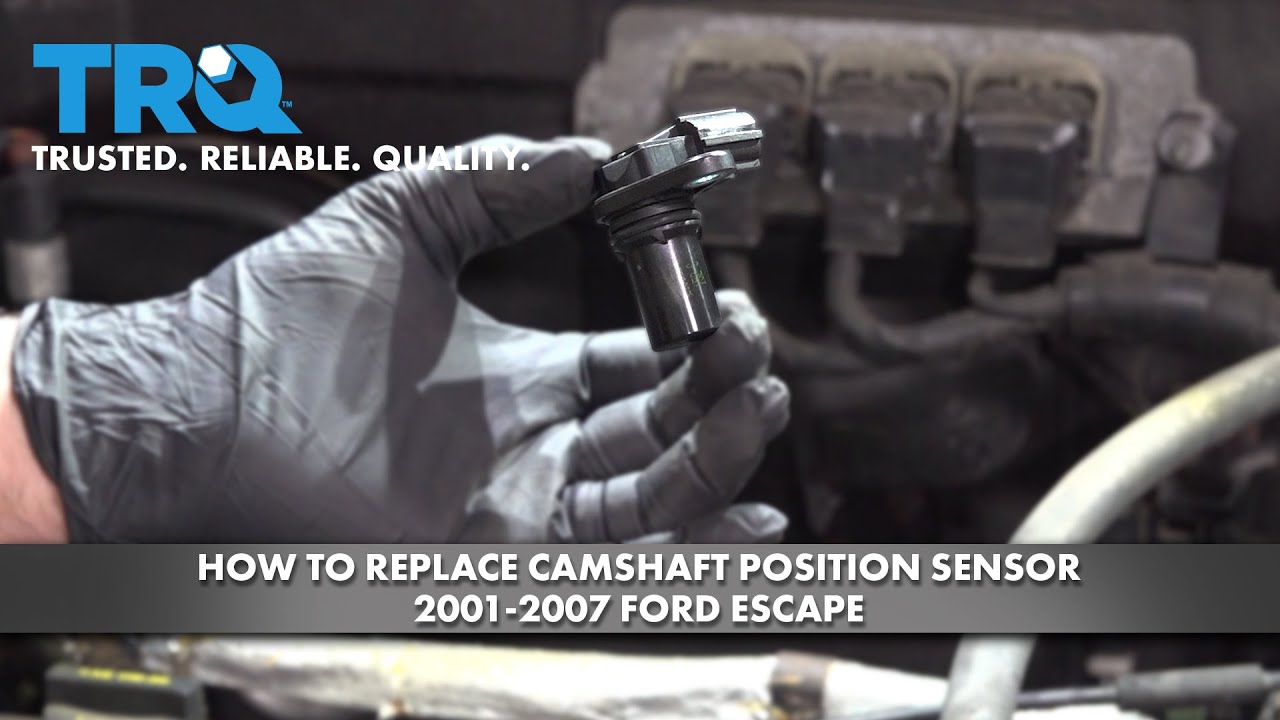

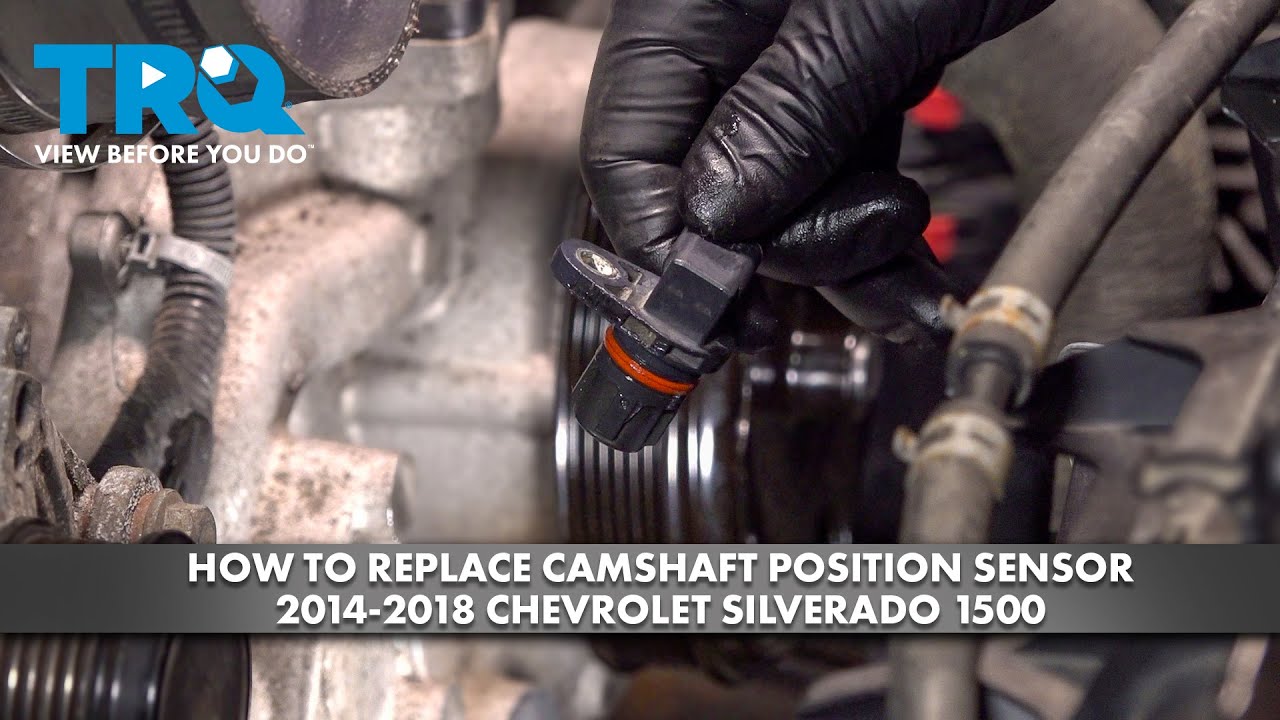

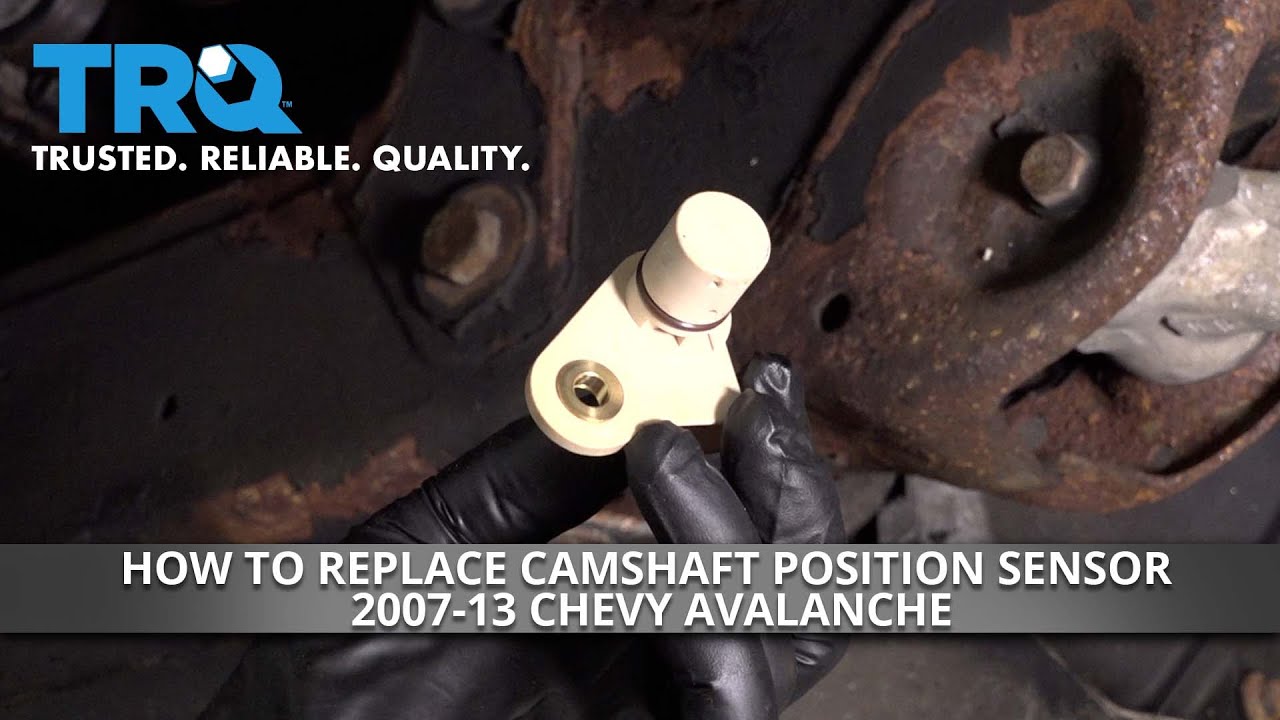

Remove the Old Sensor: Use the appropriate socket or wrench to remove the bolt or screws holding the old sensor in place. Gently pull the sensor out of its mounting hole.

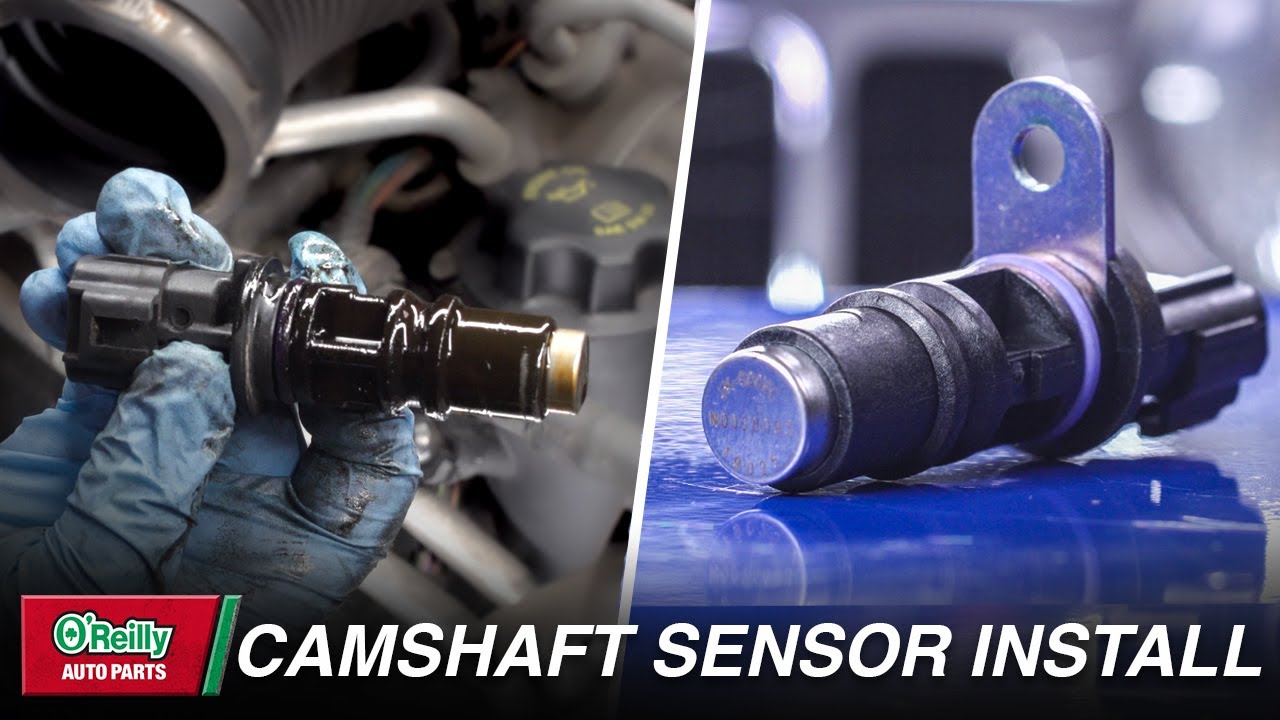

Install the New Sensor: Install the new CMP sensor in the reverse order of removal. Make sure the sensor is seated properly and that the mounting bolts or screws are tightened to the manufacturer's specifications.
Reconnect the Sensor Connector: Reconnect the electrical connector to the new CMP sensor, ensuring it's securely attached.
Reconnect the Negative Battery Terminal: Reconnect the negative battery terminal.
Clear the Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to clear the stored trouble codes related to the CMP sensor.
Test Drive: Start the engine and take the car for a test drive to ensure the problem is resolved. Monitor the engine performance and check for any new symptoms.

Important Considerations:

Sensor Quality: Purchase a high-quality CMP sensor from a reputable brand. Cheaper aftermarket sensors may not be as reliable or accurate.
Wiring Inspection: Before installing the new sensor, inspect the wiring and connector for any signs of damage or corrosion. Repair or replace any damaged wiring as needed.
Proper Installation: Ensure the sensor is properly seated and that the mounting bolts or screws are tightened to the correct torque specifications. Overtightening can damage the sensor.
Professional Assistance: If you're not comfortable performing this repair yourself, seek assistance from a qualified mechanic.

Cost Estimates and Shop Advice

The cost of replacing a CMP sensor can vary depending on the make and model of your vehicle, the cost of the replacement sensor, and whether you choose to do the repair yourself or have it done by a professional.

DIY Cost: The cost of a CMP sensor typically ranges from $20 to $100, depending on the brand and quality.
Professional Repair Cost: If you have a mechanic do the work, expect to pay between $80 and $250. This includes the cost of the sensor plus labor charges, which can range from $60 to $150 per hour.

Shop Advice:

Get a Quote: Before authorizing any repairs, get a written estimate from the mechanic that includes the cost of the sensor, labor charges, and any other related expenses.
Ask About Warranty: Inquire about the warranty on the replacement sensor and the labor performed.
Check Online Reviews: Research the mechanic or repair shop online to see what other customers have to say about their services.

Credibility and Common Failure Points

CMP sensor failures are a relatively common issue across various vehicle makes and models. Some vehicle manufacturers have even issued Technical Service Bulletins (TSBs) addressing specific CMP sensor-related problems. These TSBs often provide detailed diagnostic and repair procedures for technicians.

Online forums and communities dedicated to specific vehicle models often contain valuable information about common CMP sensor failure points. You may find discussions about specific brands of sensors that are known to be more reliable or tips for diagnosing intermittent sensor problems.

Many CMP sensors tend to fail after approximately 75,000 to 150,000 miles, though this can vary depending on driving conditions and maintenance practices. Keep an eye out for the symptoms mentioned earlier, and don't hesitate to address the issue promptly to prevent more serious engine damage.

Replacing a faulty camshaft position sensor is a crucial step in maintaining your vehicle's performance and preventing potential engine damage. By understanding the symptoms, causes, and repair procedures, you can effectively address this issue and keep your car running smoothly. If you're not comfortable performing the repair yourself, don't hesitate to seek assistance from a qualified mechanic.
