How To Replace A Fuel Sending Unit

Replacing a fuel sending unit is a common automotive repair task, often undertaken by both experienced mechanics and confident DIYers. The fuel sending unit, located inside your vehicle's fuel tank, is responsible for measuring the fuel level and transmitting that information to the fuel gauge on your dashboard. When this unit fails, you might experience inaccurate fuel readings, leaving you stranded or overspending on gas. This article will guide you through the process of replacing a fuel sending unit, helping you understand the importance of this component and providing valuable insights to ensure a successful repair.

Why Replacing a Fuel Sending Unit Matters

The fuel sending unit plays a crucial role in the proper functioning of your vehicle. Here's why replacing a malfunctioning unit is important:

• Accurate Fuel Readings: The most obvious benefit is having an accurate fuel gauge. This allows you to confidently plan your trips and avoid running out of gas unexpectedly. An inaccurate gauge can lead to anxiety and potentially dangerous situations, especially on long drives.
• Preventing Overfilling: While less common, a faulty fuel sending unit can sometimes cause issues with the fuel pump's shut-off mechanism. This can lead to overfilling your gas tank, which is not only wasteful but can also damage your vehicle's evaporative emissions control system (EVAP).
• Avoiding Fuel Pump Damage: In some vehicles, the fuel pump relies on the fuel to stay cool. If the fuel gauge consistently reads "empty" due to a faulty sending unit, you might be tempted to run the tank very low. This can overheat the fuel pump and shorten its lifespan, leading to a more expensive repair down the road.
• Troubleshooting Other Issues: A faulty fuel sending unit can sometimes mask other underlying problems with your vehicle's electrical system or fuel system. Replacing it allows you to rule out this component as a potential cause of other performance issues.
• Maintaining Resale Value: A properly functioning fuel gauge is a basic expectation for any vehicle. Replacing a faulty fuel sending unit ensures that your car is in good working order, which can positively impact its resale value.

How to Choose the Right Fuel Sending Unit

Selecting the correct replacement fuel sending unit is paramount to a successful repair. Here's what you need to consider:

1. Vehicle Year, Make, and Model:

This is the most critical piece of information. Fuel sending units are highly specific to the year, make, and model of your vehicle. Using the wrong unit can result in improper fitment, inaccurate readings, or even damage to your fuel system.

2. Fuel Tank Capacity:

Some vehicles offer different fuel tank capacities depending on the trim level or optional equipment. Ensure that the replacement fuel sending unit is designed for the correct tank size. This information can usually be found in your owner's manual or on a sticker inside the fuel filler door.

3. Fuel Pump Assembly:

Many modern vehicles integrate the fuel sending unit directly into the fuel pump assembly. In this case, you may need to replace the entire assembly rather than just the sending unit. Check your vehicle's repair manual or consult with a mechanic to determine the correct replacement procedure.

4. OEM vs. Aftermarket:

You have the option of purchasing an Original Equipment Manufacturer (OEM) fuel sending unit or an aftermarket unit. OEM parts are manufactured by the same company that made the original part for your vehicle, ensuring a perfect fit and reliable performance. Aftermarket parts are often less expensive but may vary in quality and fitment. Choose a reputable aftermarket brand with good reviews.

5. Resistance Range:

The fuel sending unit works by varying its electrical resistance as the fuel level changes. Make sure the replacement unit has the same resistance range as the original unit. This information can be found in your vehicle's repair manual or by testing the old unit with a multimeter before removal.

6. Connector Type:

The electrical connector on the fuel sending unit must match the connector in your vehicle's wiring harness. Check the connector type before purchasing a replacement unit to avoid compatibility issues.

7. Quality and Reviews:

Read online reviews and compare different brands before making a purchase. Look for reviews that specifically mention the accuracy of the fuel readings and the durability of the unit.

Steps to Replace a Fuel Sending Unit

Disclaimer: Working with fuel systems can be dangerous. Always disconnect the negative battery cable before starting any work on the fuel system. Work in a well-ventilated area and avoid sparks or open flames. If you are not comfortable performing this repair, consult a qualified mechanic.

1. Gather Your Tools and Supplies: You will need the following:
   • New fuel sending unit
   • Fuel line disconnect tool (if necessary)
   • Wrench set
   • Screwdrivers (Phillips and flathead)
   • Socket set
   • Multimeter (optional, for testing)
   • Safety glasses
   • Gloves
   • Drain pan
   • Shop towels
   • Jack and jack stands (if needed)
2. Depressurize the Fuel System: Consult your vehicle's repair manual for the proper procedure to depressurize the fuel system. This usually involves removing the fuel pump relay and starting the engine until it stalls.
3. Disconnect the Negative Battery Cable: This is a critical safety step to prevent electrical shocks and damage to your vehicle's electrical system.
4. Access the Fuel Tank: The location of the fuel tank varies depending on the vehicle. In some vehicles, you can access the fuel tank from inside the trunk or under the rear seat. In others, you may need to lower the fuel tank from underneath the vehicle.
5. Disconnect Fuel Lines and Electrical Connectors: Carefully disconnect the fuel lines from the fuel pump assembly using the appropriate fuel line disconnect tool. Disconnect any electrical connectors attached to the fuel sending unit or fuel pump.

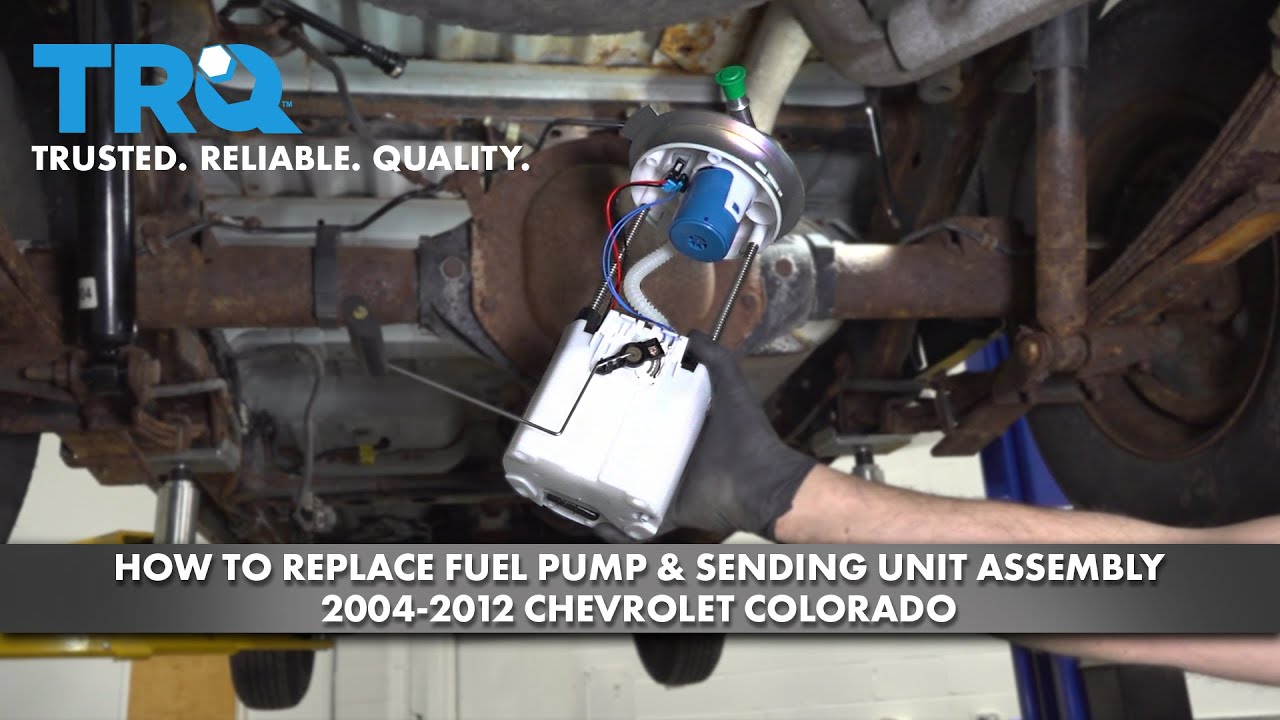

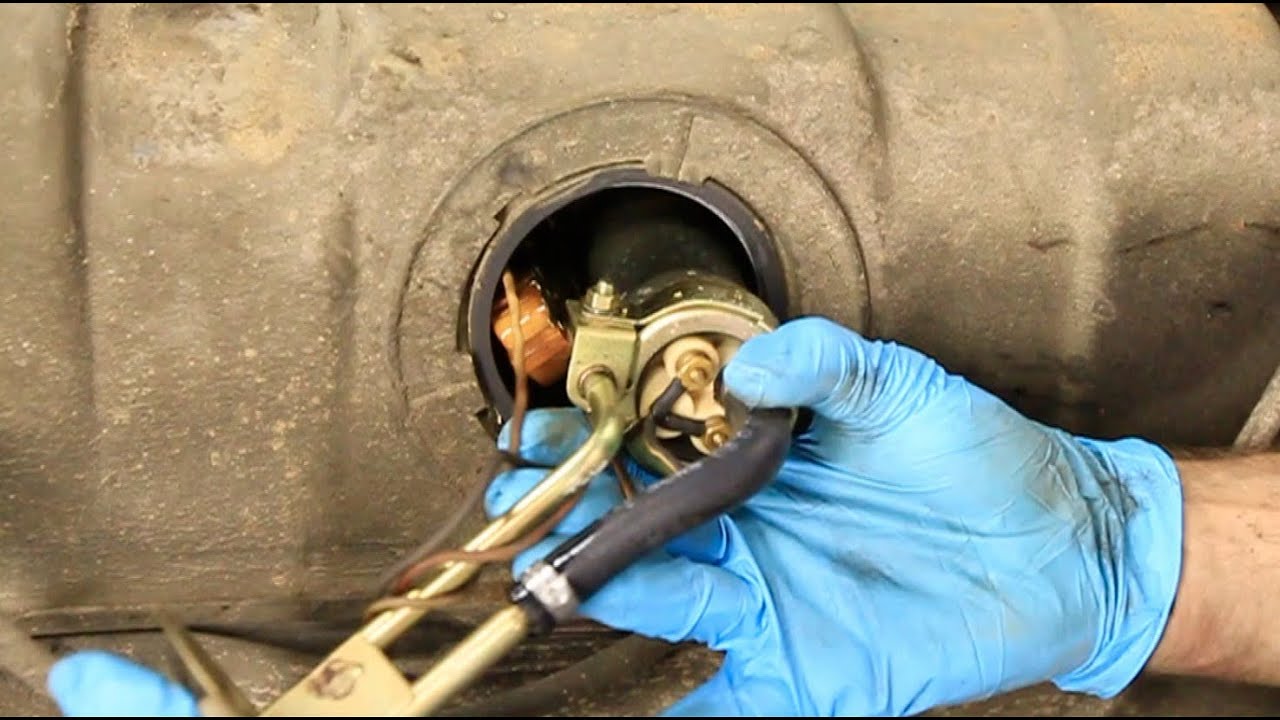

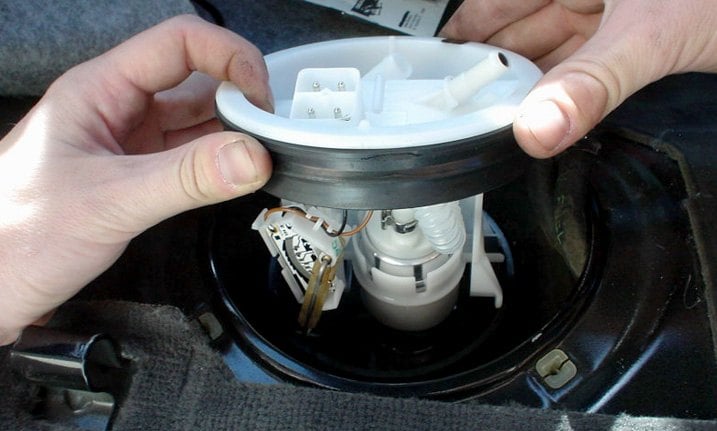

6. Remove the Fuel Pump Assembly: Loosen the retaining ring or screws that hold the fuel pump assembly in place. Carefully lift the assembly out of the fuel tank, taking care not to spill any fuel.
7. Remove the Old Fuel Sending Unit: Depending on the design, the fuel sending unit may be attached to the fuel pump assembly with screws, clips, or a retaining ring. Disconnect it carefully.
8. Install the New Fuel Sending Unit: Attach the new fuel sending unit to the fuel pump assembly, ensuring that it is properly aligned and secured.
9. Reinstall the Fuel Pump Assembly: Carefully lower the fuel pump assembly back into the fuel tank. Secure it with the retaining ring or screws.
10. Reconnect Fuel Lines and Electrical Connectors: Reconnect the fuel lines and electrical connectors to the fuel pump assembly. Make sure they are securely attached.
11. Reinstall the Fuel Tank (if applicable): If you lowered the fuel tank, carefully raise it back into position and secure it with the mounting straps.
12. Reconnect the Negative Battery Cable: Reconnect the negative battery cable to the battery.
13. Test the Fuel Gauge: Turn the ignition key to the "on" position (but don't start the engine). Check the fuel gauge to see if it is reading correctly. Add a small amount of fuel to the tank and recheck the gauge.
14. Check for Leaks: Start the engine and check for any fuel leaks around the fuel tank and fuel lines.

Real-World Owner Experiences

Many vehicle owners have successfully replaced their fuel sending units, often saving money compared to taking it to a mechanic. Here are some common experiences:

• Difficulty Disconnecting Fuel Lines: Some owners have reported difficulty disconnecting the fuel lines from the fuel pump assembly, especially on older vehicles. Using the correct fuel line disconnect tool and applying penetrating oil can help.
• Incorrect Fuel Readings After Replacement: In some cases, owners have experienced inaccurate fuel readings even after replacing the fuel sending unit. This can be due to a faulty replacement unit, incorrect installation, or a problem with the vehicle's wiring harness.
• Importance of Using OEM Parts: Several owners have noted that using OEM fuel sending units resulted in more accurate and reliable fuel readings compared to aftermarket units. While OEM parts are more expensive, they often provide a better long-term solution.
• Safety Precautions are Crucial: Owners emphasize the importance of following safety precautions when working with fuel systems. Working in a well-ventilated area, avoiding sparks or open flames, and disconnecting the battery are essential steps.

Frequently Asked Questions (FAQs)

Here are some frequently asked questions about fuel sending units and their replacement:

Q: How do I know if my fuel sending unit is bad?

A: Common symptoms of a bad fuel sending unit include an inaccurate fuel gauge, a fuel gauge that fluctuates erratically, or a fuel gauge that consistently reads "empty" even when the tank is full.

Q: Can I drive with a bad fuel sending unit?

A: Yes, you can technically drive with a bad fuel sending unit. However, it's not recommended because you won't have an accurate indication of your fuel level. This can lead to running out of gas unexpectedly.

Q: How much does it cost to replace a fuel sending unit?

A: The cost to replace a fuel sending unit varies depending on the vehicle, the type of replacement part (OEM vs. aftermarket), and the labor costs involved. Generally, you can expect to pay anywhere from $200 to $600 for the repair.

Q: Can I replace just the fuel sending unit or do I need to replace the entire fuel pump assembly?

A: This depends on the design of your vehicle's fuel system. In some vehicles, the fuel sending unit is a separate component that can be replaced independently. In others, it's integrated into the fuel pump assembly, requiring you to replace the entire assembly.

Q: What is the difference between a fuel sending unit and a fuel pump?

A: The fuel sending unit measures the fuel level in the tank and sends that information to the fuel gauge. The fuel pump, on the other hand, is responsible for pumping fuel from the tank to the engine.

Q: How long does it take to replace a fuel sending unit?

A: The time required to replace a fuel sending unit can vary depending on the vehicle and the complexity of the repair. Generally, it takes between 2 and 4 hours to complete the job.
