How To Replace A Rod Bearing

Rod bearing replacement is a crucial, albeit potentially daunting, task for any car enthusiast diving into engine repair. A failed rod bearing can quickly lead to catastrophic engine damage, making preventative maintenance and timely repair essential. This article will guide you through the process of replacing rod bearings, providing a technical breakdown and best practices to ensure a successful outcome. We’ll cover the process assuming you have a basic understanding of engine mechanics and own the appropriate tools.

Background: The Engine's Rotating Assembly

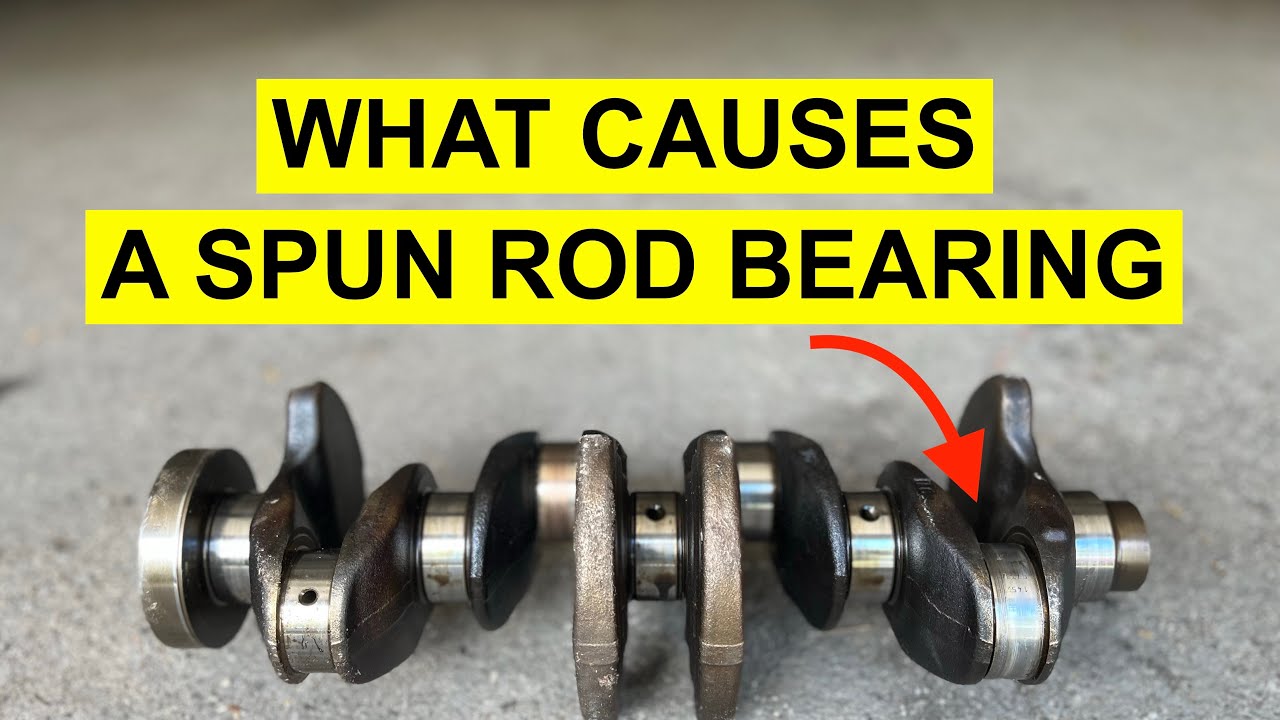

To understand the importance of rod bearings, we need to understand the engine's rotating assembly. At its heart lies the crankshaft, a complex piece of metal that converts the reciprocating (up and down) motion of the pistons into rotary motion to drive the wheels. Connected to the crankshaft are the connecting rods, often shortened to "rods." These rods link the pistons to the crankshaft journals. Journals are the precisely machined surfaces on the crankshaft where the connecting rods attach. It is here, at these critical junctions, that the rod bearings reside.

These bearings are not just simple bushings. They're precision-engineered components designed to create a smooth, low-friction interface between the connecting rod and the crankshaft journal. Without them, metal-on-metal contact would occur, generating immense heat and rapidly leading to seizure and engine failure. The principle behind their operation is the creation of a hydrodynamic oil film. The rotation of the crankshaft journal draws oil into the bearing, creating a thin layer that supports the load and prevents direct contact.

Technical Breakdown: How Rod Bearings Work

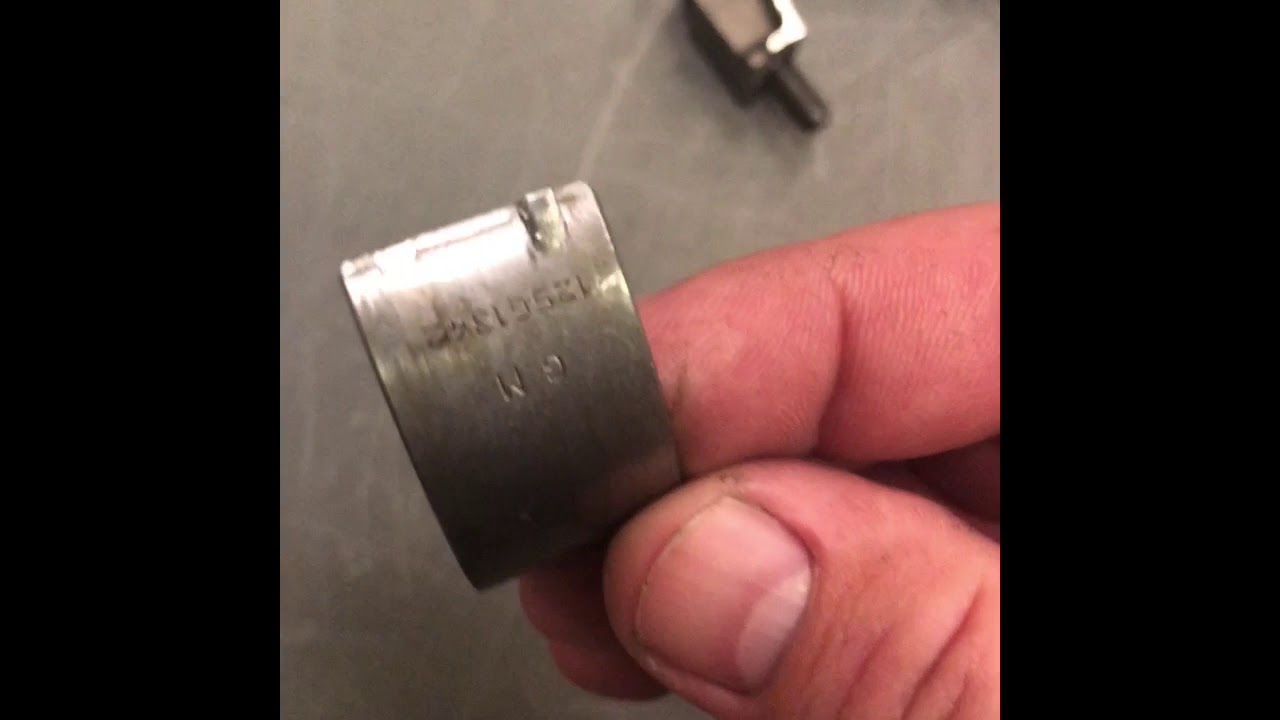

Rod bearings are typically constructed from multiple layers of different metals, often an alloy of aluminum, copper, and tin, bonded to a steel backing. This multi-layer design provides a combination of strength, conformability, and embeddability. Strength refers to the bearing's ability to withstand the tremendous forces exerted by combustion. Conformability allows the bearing to adapt to minor imperfections in the crankshaft journal. And embeddability describes its ability to absorb small particles of debris without scoring the journal surface.

The bearing shells are usually split into two halves, forming a circular bearing surface. One half resides in the connecting rod, and the other half resides in the connecting rod cap. These halves are precisely machined to create the correct bearing clearance – the small gap between the bearing surface and the crankshaft journal when the engine is assembled. This clearance is critical. Too little clearance, and the oil film will be insufficient, leading to increased friction and potential bearing failure. Too much clearance, and the oil pressure will drop, reducing the effectiveness of lubrication throughout the engine.

The Replacement Procedure

Now, let's get into the nitty-gritty of replacing the rod bearings. Safety First! Disconnect the negative battery terminal before starting any work on your engine. Always use jack stands to support the vehicle and wear appropriate safety glasses and gloves.

Step 1: Preparation and Access

Begin by draining the engine oil. Removing the oil pan is the next step. This can be a straightforward process or a major undertaking, depending on the vehicle. You may need to remove or loosen exhaust components, the front sway bar, or other obstructions. Consult your vehicle's repair manual for specific instructions.

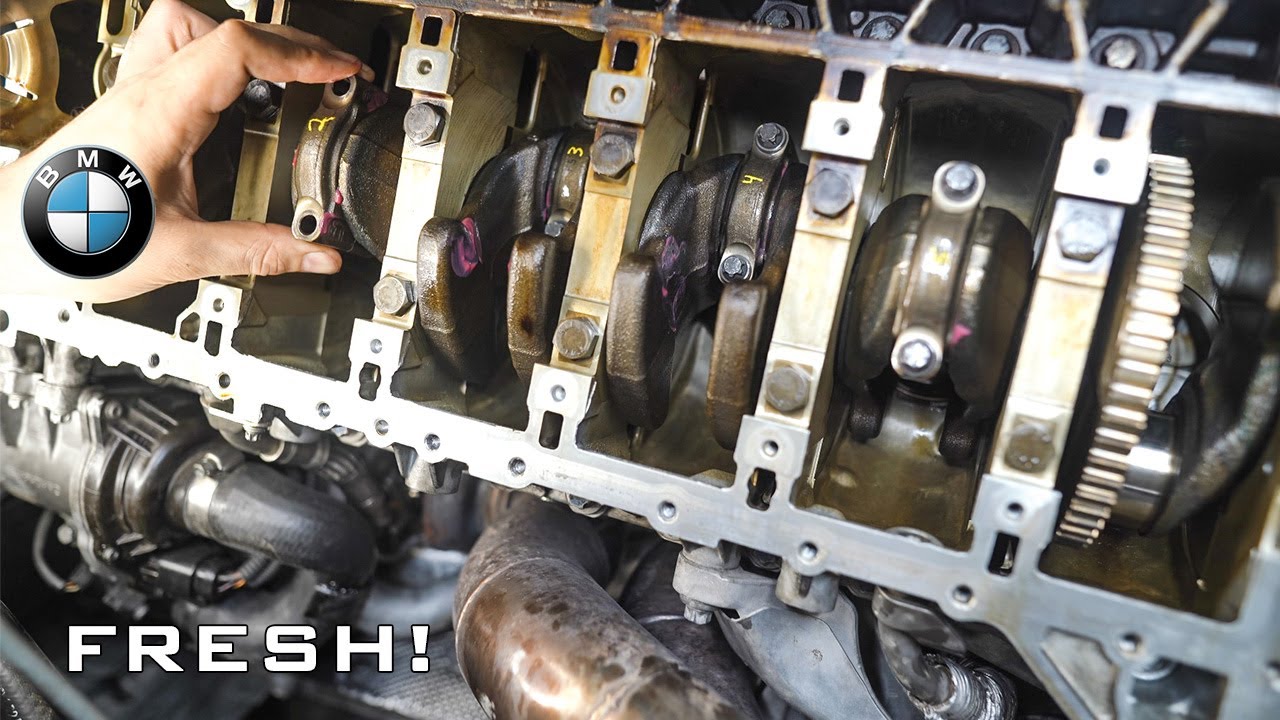

Once the oil pan is off, you'll have access to the bottom of the engine and the connecting rod caps.

Step 2: Inspection

Before you start disassembling anything, take a close look at the connecting rod caps. Each cap should be marked with a number or a specific orientation marking that corresponds to its cylinder. It is absolutely critical that you reinstall the caps in their original positions on the correct connecting rods. Misplacing them can lead to serious engine damage.

Visually inspect the existing rod bearings through the small opening. Look for signs of wear, scoring, discoloration, or metal fragments. Any of these signs indicate bearing failure.

Step 3: Removal

Using a socket or wrench, loosen and remove the connecting rod cap bolts one at a time. It is often recommended to only work on one cylinder at a time to avoid mixing up components. After removing the bolts, gently tap the connecting rod cap with a soft-faced hammer to loosen it from the connecting rod. Once the cap is removed, the lower bearing shell will come out with it. Note the orientation of the bearing shell. Remove the upper bearing shell from the connecting rod itself, you may need a small, dull tool to push it out from the back.

Important Note: Before removing the connecting rod from the crankshaft, cover the connecting rod bolts with sections of rubber hose or plastic tubing. This will protect the crankshaft journal from being scratched during removal. Push the connecting rod and piston assembly up through the cylinder bore. This will give you access to inspect the crankshaft journal.

Step 4: Crankshaft Journal Inspection

This step is critical. Clean the crankshaft journal thoroughly with a lint-free cloth and solvent. Carefully inspect it for any signs of damage, such as scoring, grooving, or discoloration. If the journal is damaged, it may need to be professionally re-machined. Minor imperfections can sometimes be polished out with very fine emery cloth, but if you are unsure, consult a qualified machinist. Using plastigauge will determine the clearances on the new bearings.

Step 5: Installation

Before installing the new bearings, clean the connecting rod and cap thoroughly. Lightly oil the back of the new bearing shells and carefully install them into the connecting rod and cap, ensuring they are properly seated. Make sure the locating tabs on the bearing shells are properly aligned with the notches in the connecting rod and cap.

Now it is time to install the connecting rod back into the cylinder. Make sure the rod cap is protected and properly oiled. Lubricate the bearing surface with engine assembly lube. Carefully slide the connecting rod and piston assembly back into the cylinder bore. Once the rod end is correctly oriented back on the crankshaft journal, reinstall the connecting rod cap, ensuring it's the correct cap for that rod and in the correct orientation. Install the connecting rod cap bolts and torque them to the manufacturer's specifications. This is absolutely critical! Use a torque wrench and follow the recommended torque sequence (if applicable) in your repair manual. Over-tightening can damage the bearings and connecting rod, while under-tightening can lead to bearing failure.

Step 6: Checking Clearance

Even with new bearings, it's essential to verify the bearing clearance. The most common method is to use Plastigauge, a calibrated plastic thread that compresses between the bearing and the crankshaft journal when the connecting rod cap is torqued down. After torquing to spec, remove the cap. The flattened Plastigauge can then be compared to a scale printed on the Plastigauge packaging to determine the clearance. If the clearance is outside the manufacturer's specifications, you may need to use different size bearings (if available) or have the crankshaft re-machined.

Step 7: Final Assembly

Repeat steps 3-6 for each connecting rod. Once all the rod bearings have been replaced and the clearances have been verified, reinstall the oil pan with a new gasket. Fill the engine with fresh oil to the recommended level. Reconnect the negative battery terminal.

Common Issues and Maintenance Concerns

• Oil Starvation: This is the most common cause of rod bearing failure. Insufficient oil levels, a clogged oil pump, or a blocked oil passage can all lead to oil starvation, resulting in rapid bearing wear.
• Detonation/Pre-ignition: These abnormal combustion events create excessive pressure within the cylinders, which can overload the rod bearings and cause them to fail.
• Contaminated Oil: Dirt, metal particles, and other contaminants in the oil can act as abrasives, accelerating bearing wear. Regular oil changes with a high-quality filter are essential.
• Improper Installation: Incorrect torque specifications, misaligned bearing shells, or damaged crankshaft journals can all contribute to premature bearing failure.

Do's and Don'ts / Best Practices

• DO consult your vehicle's repair manual for specific instructions and torque specifications.
• DO use a high-quality engine assembly lube on the bearing surfaces during installation.
• DO replace the connecting rod bolts with new ones, especially if they are torque-to-yield bolts.
• DO use a torque wrench to tighten the connecting rod cap bolts to the correct specification.
• DO check the bearing clearance with Plastigauge.
• DO keep everything meticulously clean during the entire process.
• DON'T reuse old connecting rod bolts if they are designed to stretch (torque-to-yield).
• DON'T over-tighten or under-tighten the connecting rod cap bolts.
• DON'T use abrasive cleaners on the crankshaft journals.
• DON'T ignore signs of engine knocking or unusual noises, which may indicate a bearing issue.
• DON'T start the engine without priming the oil system first. This can be done by disconnecting the ignition system and cranking the engine for several seconds until the oil pressure light goes out.

Conclusion

Replacing rod bearings is a technically challenging task, but with careful preparation, attention to detail, and the proper tools, it is achievable for the experienced DIYer. Thoroughly inspect the crankshaft journals, use the correct torque specifications, and always verify the bearing clearance. If you are unsure about any aspect of the process, it is best to consult a qualified mechanic. Neglecting proper procedures can lead to serious engine damage and costly repairs. If you are experiencing engine knocking, low oil pressure, or other signs of bearing failure, address the issue promptly to prevent further damage. Regular oil changes with high-quality oil are also essential for extending the life of your rod bearings. While a complete rebuild is sometimes necessary, often a simple rod bearing replacement can restore an engine to proper working order and can prevent future issues.
