How To Replace A Throttle Body Sensor

The throttle body sensor, also known as the Throttle Position Sensor (TPS), is a crucial component in your car's engine management system. It monitors the position of the throttle plate, relaying this information to the engine control unit (ECU). The ECU then uses this data to determine the appropriate amount of fuel to inject, optimizing engine performance and fuel efficiency. Replacing a faulty throttle body sensor is a repair that many car owners can tackle themselves, potentially saving on labor costs.

Why Replacing a Faulty Throttle Body Sensor Matters

A malfunctioning throttle body sensor can lead to a variety of performance issues. Understanding these problems highlights the importance of addressing a failing TPS promptly.

• Poor Engine Performance: A faulty sensor can cause the engine to hesitate during acceleration, resulting in a noticeable lack of power. This hesitation occurs because the ECU isn't receiving accurate throttle position information, leading to incorrect fuel delivery.
• Rough Idling: The engine might idle erratically, sometimes stalling or surging. An unstable idle is a common symptom of a bad TPS, as the ECU struggles to maintain a consistent engine speed.
• Decreased Fuel Efficiency: Inaccurate readings from the TPS can cause the engine to burn more fuel than necessary. This leads to a noticeable drop in miles per gallon (MPG) and increased fuel costs.
• Check Engine Light: A failing TPS will often trigger the check engine light. Scanning the car's computer with an OBD-II scanner will likely reveal a trouble code related to the throttle position sensor, such as P0121, P0122, or P0123.
• Transmission Problems (Automatic): In vehicles with automatic transmissions, the TPS signal is also used to control shift points. A faulty sensor can cause erratic or harsh shifting.
• Stalling: The engine might stall unexpectedly, especially at low speeds or when coming to a stop. This is a serious safety concern and should be addressed immediately.

Ignoring these symptoms can lead to further engine damage and more costly repairs down the line. A proactive approach to replacing the TPS can prevent these issues and keep your car running smoothly.

How to Choose the Right Throttle Body Sensor

Selecting the correct replacement throttle body sensor is essential for proper engine operation. Here’s a guide to ensure you choose the right one:

• Identify Your Vehicle's Make, Model, and Year: This is the most crucial step. Throttle body sensors are vehicle-specific, and using the wrong one can lead to incompatibility and performance problems. Check your vehicle's owner's manual or the sticker on the driver's side door jamb for this information.
• Check the Original Part Number: Locate the part number on the existing throttle body sensor. This ensures you get an exact replacement. The part number is usually printed on the sensor itself. If you can't find it, contact your local dealership with your VIN (Vehicle Identification Number), and they can provide the correct part number.
• Consider OEM vs. Aftermarket:
  • OEM (Original Equipment Manufacturer): OEM sensors are made by the same manufacturer that supplied the original sensor for your vehicle. They are typically more expensive but offer the best compatibility and reliability.
  • Aftermarket: Aftermarket sensors are made by third-party manufacturers. They are usually more affordable but may not always match the quality and precision of OEM sensors. Research the brand and read reviews before purchasing an aftermarket sensor. Look for reputable brands known for producing quality automotive parts.
• Read Online Reviews: Before making a purchase, read reviews from other car owners who have used the sensor. This can provide valuable insights into the sensor's performance, reliability, and ease of installation.
• Check the Sensor's Connector Type: Ensure the replacement sensor has the same connector type as the original. This is crucial for a proper electrical connection. Different vehicles use different connector types, so double-check compatibility before buying.
• Verify the Sensor's Voltage Range: The throttle body sensor operates within a specific voltage range. Ensure the replacement sensor's voltage range matches the original. This information is usually available in the vehicle's service manual or online.
• Buy from a Reputable Source: Purchase your replacement sensor from a reputable auto parts store or online retailer. This ensures you are getting a genuine product and not a counterfeit or low-quality sensor.

Taking the time to choose the right throttle body sensor will save you headaches and ensure your car runs smoothly after the replacement.

How To Replace The Throttle Body Sensor: A Step-by-Step Guide

Safety First: Before starting any automotive repair, ensure your vehicle is parked on a level surface, the engine is turned off and cooled down, and the parking brake is engaged. Disconnect the negative terminal of the battery to prevent electrical shorts.

1. Gather Your Tools and Supplies:
   • New throttle body sensor
   • Socket set (usually metric)
   • Screwdrivers (Phillips and flathead)
   • OBD-II scanner (optional, for clearing codes)
   • Multimeter (optional, for testing the sensor)
   • Penetrating oil (if bolts are rusted)
   • Gloves
   • Safety glasses

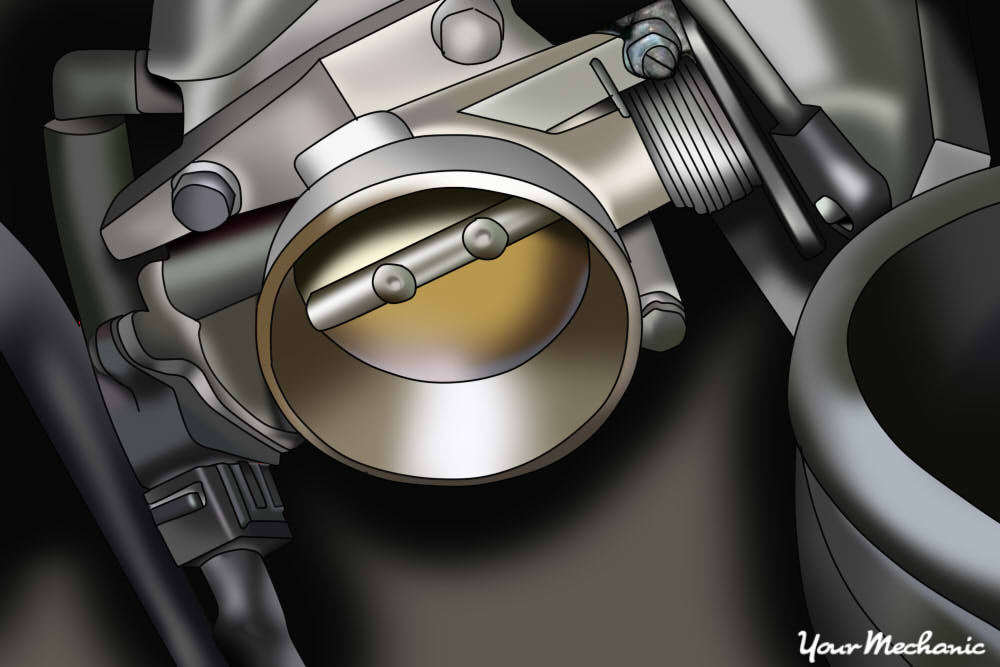

2. Locate the Throttle Body Sensor: The TPS is typically mounted directly on the throttle body, which is located on the engine intake manifold. It's usually a small, rectangular sensor with an electrical connector attached. Refer to your vehicle's service manual for the exact location.

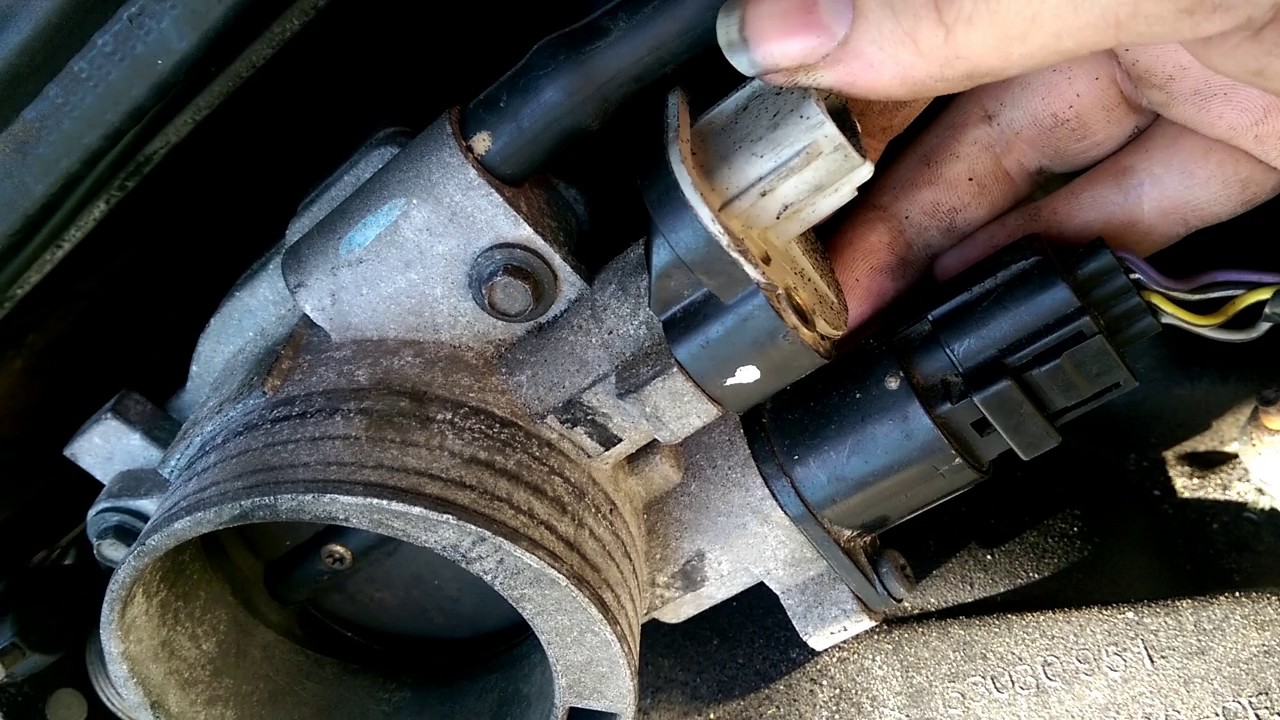

3. Disconnect the Electrical Connector: Carefully disconnect the electrical connector from the TPS. There's usually a small clip or tab that you need to press or release to detach the connector. Avoid pulling on the wires.
4. Remove the Old Sensor: The TPS is usually held in place by two or three screws or bolts. Use the appropriate socket or screwdriver to remove these fasteners. If the bolts are rusted, apply penetrating oil and let it soak for a few minutes before attempting to remove them.

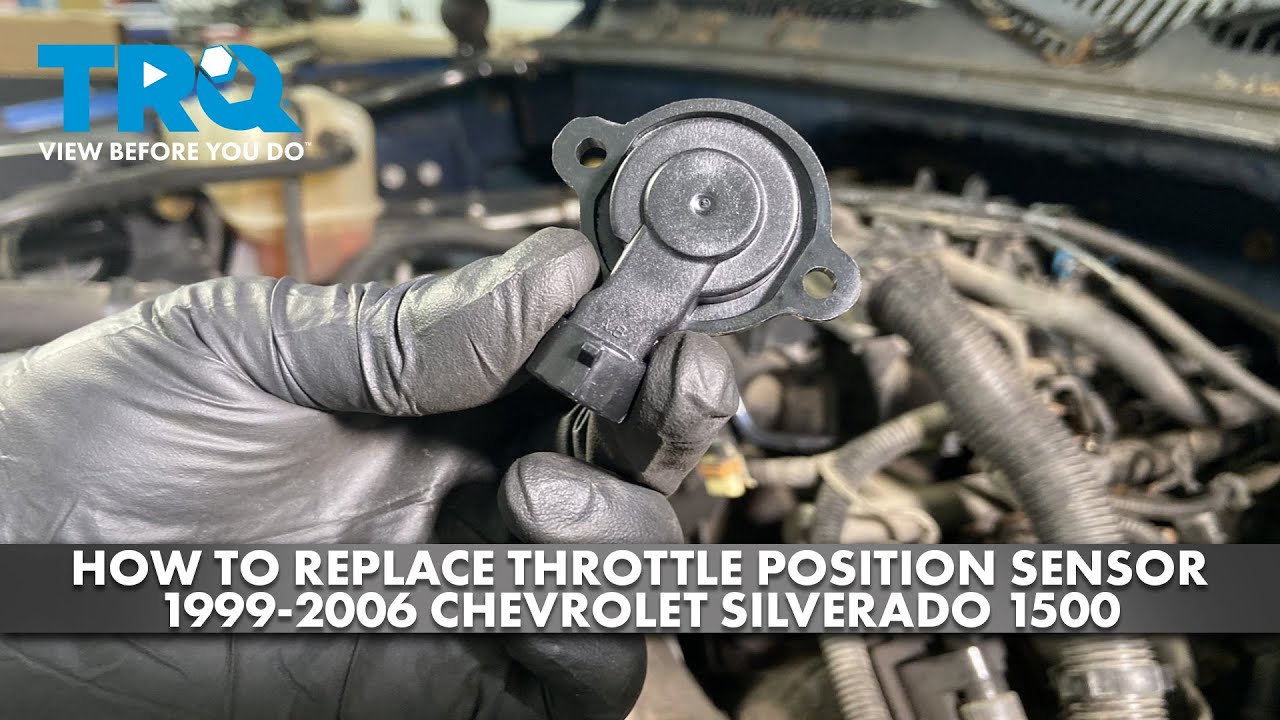

5. Install the New Sensor: Align the new TPS with the mounting holes on the throttle body. Secure it in place with the screws or bolts you removed earlier. Tighten the fasteners to the manufacturer's specified torque (if known). Avoid overtightening, as this can damage the sensor.
6. Reconnect the Electrical Connector: Reconnect the electrical connector to the new TPS. Ensure the connector clicks into place, indicating a secure connection.
7. Reconnect the Battery: Reconnect the negative terminal of the battery.
8. Test the New Sensor: Start the engine and let it idle. Listen for any unusual noises or rough idling. If you have an OBD-II scanner, use it to check for any new trouble codes. Clear any codes that may have been stored during the repair process. If you have a multimeter, you can test the sensor's voltage output to ensure it's within the specified range. Consult your vehicle's service manual for testing procedures.
9. Road Test: Take the vehicle for a test drive to ensure the new TPS is functioning correctly. Pay attention to acceleration, idling, and shifting (if applicable). If you experience any problems, recheck your work and consult a qualified mechanic if necessary.

Real-World Owner Experiences

Many car owners have successfully replaced their throttle body sensors and shared their experiences online. Here are a few common themes:

• Improved Performance: Owners often report a noticeable improvement in engine performance after replacing a faulty TPS. Acceleration becomes smoother, idling stabilizes, and fuel efficiency increases.
• DIY Satisfaction: Many owners express satisfaction with being able to perform the repair themselves, saving on labor costs. They appreciate the sense of accomplishment and the knowledge gained from the experience.
• Importance of Quality Parts: Owners emphasize the importance of using a high-quality replacement sensor. Cheaper sensors may fail prematurely or not function correctly.
• Calibration Issues: Some vehicles require the new TPS to be calibrated to the ECU. This may involve using a scan tool or following a specific procedure. Refer to your vehicle's service manual for calibration instructions.
• Troubleshooting Tips: Owners suggest checking for vacuum leaks and cleaning the throttle body before replacing the TPS. These issues can sometimes mimic the symptoms of a faulty sensor.

These real-world experiences highlight the benefits of replacing a faulty throttle body sensor and offer valuable insights for those considering a DIY repair.

Frequently Asked Questions (FAQs)

How much does it cost to replace a throttle body sensor?

The cost of replacing a throttle body sensor varies depending on the vehicle's make and model, the type of sensor (OEM vs. aftermarket), and whether you do it yourself or hire a mechanic. The sensor itself can range from $20 to $150. If you hire a mechanic, labor costs can add an additional $50 to $200.

Can I drive with a bad throttle body sensor?

While you *can* technically drive with a bad throttle body sensor, it's not recommended. A faulty sensor can cause poor engine performance, rough idling, decreased fuel efficiency, and even stalling. These issues can compromise safety and potentially lead to further engine damage. It's best to address the problem as soon as possible.

How do I know if my throttle body sensor is bad?

Common symptoms of a bad throttle body sensor include:

• Check engine light
• Poor acceleration
• Rough idling
• Decreased fuel efficiency
• Stalling
• Erratic shifting (automatic transmissions)

Do I need to calibrate the new throttle body sensor?

Some vehicles require the new throttle body sensor to be calibrated to the ECU. This ensures the sensor's readings are accurate and the engine runs smoothly. Refer to your vehicle's service manual or consult a qualified mechanic to determine if calibration is necessary.

What happens if I don't replace a bad throttle body sensor?

If you don't replace a bad throttle body sensor, you may experience ongoing engine performance issues, decreased fuel efficiency, and potential damage to other engine components. The engine may also stall unexpectedly, creating a safety hazard.

Can cleaning the throttle body fix a bad throttle position sensor?

Sometimes, cleaning the throttle body can improve engine performance and alleviate symptoms that mimic a bad throttle position sensor. Carbon buildup on the throttle body can interfere with the throttle plate's movement and affect the TPS readings. However, if the TPS itself is faulty, cleaning the throttle body will not fix the problem. If cleaning the throttle body doesn't resolve the issue, replacing the TPS is likely necessary.
