How To Replace A Washer Fluid Reservoir

Few automotive malfunctions are as immediately frustrating as an empty, or worse, cracked washer fluid reservoir. Imagine a late-night drive, a sudden onslaught of bugs splattering your windshield, and the dreaded realization that your wipers are just smearing the grime instead of clearing it. Replacing a faulty washer fluid reservoir is a task many home mechanics can tackle, saving money and gaining valuable experience. This guide will walk you through the process, providing the knowledge to understand why and how this system works.

The Case of the Disappearing Washer Fluid

Let's set the scene: You meticulously fill your washer fluid reservoir. A week later, you're inexplicably low again. No visible leaks, no excessive use. Where did all the fluid go? Several possibilities exist. The most common culprit is a crack in the reservoir itself, often located near the bottom where it's most vulnerable to road debris and temperature fluctuations. Another possibility is a leak in the hoses connecting the reservoir to the washer fluid pump and spray nozzles. Sometimes, the pump itself can develop a leak. Finally, a malfunctioning cap could lead to evaporation, especially in hot climates. In this guide, we'll focus on the reservoir replacement itself, as that is often the core issue when experiencing significant fluid loss.

Understanding the Washer Fluid System

Think of your washer fluid system as a miniature, self-contained irrigation system for your windshield. The reservoir is the water source, storing the cleaning solution. A small electric pump, typically submerged within the reservoir, acts as the irrigation pump, drawing fluid and pushing it through a network of hoses. These hoses act as the pipes, channeling the fluid to the spray nozzles, which are the sprinklers. The nozzles, strategically positioned on the hood or near the windshield wipers, deliver the fluid onto the glass. The wipers then act as the cleaning crew, removing dirt, grime, and debris, ensuring clear visibility.

Mechanically, the system is quite simple. The reservoir is typically a molded plastic container, often made of polyethylene or polypropylene, chosen for their durability, chemical resistance, and cost-effectiveness. The pump is a small, electrically driven impeller pump, designed to deliver a relatively low volume of fluid at a moderate pressure. The hoses are typically made of flexible rubber or plastic, resistant to cracking and degradation from exposure to washer fluid chemicals and temperature changes. The nozzles are often adjustable, allowing you to fine-tune the spray pattern for optimal coverage. The electrical circuit for the pump usually includes a fuse to protect against overloads and a switch activated by the wiper control stalk.

Pros and Cons of DIY Replacement

Before diving in, let's weigh the advantages and disadvantages of tackling this project yourself:

Pros:

Cost Savings: Labor costs at a repair shop can significantly increase the overall expense. Doing it yourself eliminates this cost.
Learning Experience: This is a relatively straightforward repair that can boost your confidence and expand your automotive knowledge.
Control Over Parts: You have the freedom to choose the quality and brand of the replacement reservoir.
Satisfaction: There's a definite sense of accomplishment in successfully completing a repair on your own vehicle.

Cons:

Time Commitment: Depending on your skill level and the vehicle's design, the replacement can take several hours.
Potential for Mistakes: Improper installation can lead to leaks, pump failure, or damage to other components.
Tools Required: You'll need basic hand tools, and potentially some specialized tools depending on the vehicle.
Messy: Washer fluid can be slippery and irritating, so wear appropriate protective gear.

Use Cases and Manufacturer Examples

Washer fluid reservoir failures are common across various makes and models. For example, in some older Honda Civics, the reservoir is positioned in a vulnerable spot behind the front bumper, making it susceptible to damage from minor collisions. Similarly, certain BMW models have reservoirs located near the wheel well, increasing their exposure to road debris. In these cases, aftermarket manufacturers like Dorman offer direct replacement reservoirs that are often more durable and less expensive than the original equipment manufacturer (OEM) parts. On the other hand, some European manufacturers, like Mercedes-Benz, integrate the washer fluid reservoir with other systems, such as the headlight washing system. In these instances, using an OEM replacement reservoir might be necessary to ensure proper functionality and compatibility. When considering aftermarket options, always check reviews and ensure the part is specifically designed for your vehicle's year, make, and model.

Step-by-Step Replacement Guide

Disclaimer: Always consult your vehicle's repair manual for specific instructions and safety precautions before attempting any repair. Disconnect the negative battery terminal before working on any electrical components.

Tools and Materials:

New Washer Fluid Reservoir
Basic Socket Set
Screwdrivers (Phillips and Flathead)
Pliers
Drain Pan
New Washer Fluid
Work Gloves
Safety Glasses
Shop Rags
Optional: Trim Removal Tools

Procedure:

Preparation: Park your vehicle on a level surface and engage the parking brake. Disconnect the negative battery terminal.
Drain the Existing Fluid: If your reservoir isn't completely empty, use a siphon or carefully disconnect the hose leading to the washer fluid pump and drain the remaining fluid into a drain pan. Be prepared for a potentially messy spill.

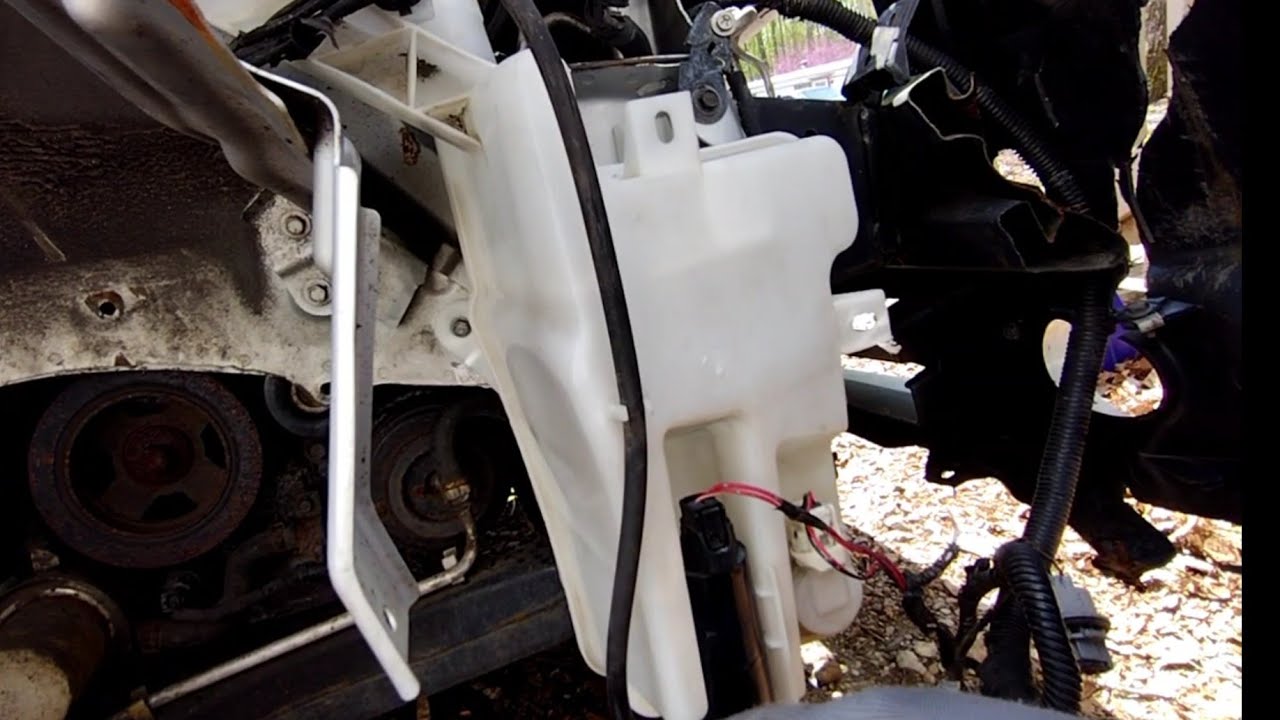

Access the Reservoir: This is where vehicle designs vary significantly. The reservoir is often located in the engine bay, behind the front bumper, or inside a wheel well. You may need to remove plastic trim panels, the air intake, or even the front bumper to gain access. Consult your repair manual for specific instructions on removing these components.
Disconnect Electrical Connections: Carefully disconnect the electrical connector(s) to the washer fluid pump(s). Some connectors may have a locking tab that needs to be depressed.
Disconnect Hoses: Disconnect the hoses connecting the reservoir to the washer fluid pump and spray nozzles. Use pliers if necessary, but be careful not to damage the hoses. Take pictures or label the hoses to ensure you reconnect them correctly.
Remove the Reservoir: Most reservoirs are held in place by bolts, screws, or retaining clips. Remove these fasteners and carefully lift the reservoir out of the vehicle.
Install the New Reservoir: Position the new reservoir in the mounting location and secure it with the bolts, screws, or retaining clips.
Reconnect Hoses: Reconnect the hoses to the washer fluid pump and spray nozzles, ensuring they are securely attached. Refer to your photos or labels to ensure correct placement.
Reconnect Electrical Connections: Reconnect the electrical connector(s) to the washer fluid pump(s).
Reinstall Removed Components: Reinstall any trim panels, the air intake, or the front bumper that you removed to access the reservoir.
Fill the Reservoir: Fill the new reservoir with fresh washer fluid.
Reconnect Battery: Reconnect the negative battery terminal.
Test the System: Turn on the ignition and activate the windshield washer. Verify that the pump is working and that the fluid is spraying properly from the nozzles. Check for any leaks around the reservoir, hoses, and pump.

Real-World Insights and Recommendations

While the steps outlined above provide a general guide, some vehicles present unique challenges. For instance, accessing the reservoir in some newer vehicles requires removing the entire front bumper assembly, a task that can be daunting for inexperienced mechanics. In these cases, consider watching online video tutorials specific to your vehicle model. Also, pay close attention to the quality of the replacement reservoir. Cheaper aftermarket options may be made of thinner plastic, making them more prone to cracking. Spending a bit more on a higher-quality reservoir can save you headaches in the long run. Finally, when reconnecting the hoses, consider using small hose clamps to ensure a tight and secure seal, preventing leaks. After completing the repair, monitor the fluid level regularly for the first few days to ensure there are no hidden leaks.

Replacing a washer fluid reservoir is a manageable task that can save you money and increase your understanding of your vehicle. By carefully following the steps outlined in this guide and consulting your vehicle's repair manual, you can successfully complete this repair and enjoy clear visibility on the road.
