How To Replace A Window Switch

Is your car window stuck? Maybe it only works intermittently, or perhaps the switch feels loose and unresponsive. A faulty window switch is a common problem that can be incredibly frustrating. Not only does it prevent you from easily controlling your windows for ventilation or visibility, but it can also compromise your vehicle's security. Fortunately, replacing a window switch is often a straightforward repair that many DIYers can tackle. This guide will walk you through the symptoms, causes, and steps to get your window working smoothly again.

Symptoms of a Failing Window Switch

Identifying the symptoms early can save you time and prevent further complications. Here's what to look for:

Intermittent Operation: The window only works sometimes. It might respond occasionally or only work after multiple attempts to activate the switch.
Complete Failure: The window refuses to move up or down at all, regardless of how many times you press the switch.
Slow or Jerky Movement: The window moves very slowly or in a jerky, uneven manner when operated.
Only Works in One Direction: The window might go down but not up, or vice versa.
Other Windows Affected: In some cases, a faulty master window switch can affect the operation of other windows in the vehicle. For instance, you may not be able to control the passenger windows from the driver's seat.
Loose or Wobbly Switch: The switch physically feels loose, wobbly, or like it's not properly connected.
Burning Smell: A burning smell emanating from the switch area could indicate a short circuit, which should be addressed immediately.

Understanding the Root Cause

The window switch is a relatively simple electrical component, but several factors can lead to its failure. Here's a breakdown of the most common culprits:

Wear and Tear: Over time, the constant pressing and releasing of the switch can wear down the internal contacts. This is especially common in older vehicles or those with high mileage.
Contamination: Dust, dirt, liquids (like spilled drinks), and other debris can infiltrate the switch mechanism. This contamination can corrode the contacts or create electrical shorts, hindering the switch's ability to function properly.
Electrical Issues: Problems with the wiring harness connected to the switch, such as loose connections, frayed wires, or corrosion, can disrupt the electrical signal and prevent the window from operating.
Faulty Motor: While the switch is often the culprit, it's important to consider that a failing window motor can sometimes mimic the symptoms of a bad switch. The motor provides the power to physically move the window glass. If the motor is weak or failing, the window might move slowly, erratically, or not at all.
Moisture: Exposure to excessive moisture, particularly in humid environments or due to leaks, can corrode the switch's internal components and wiring.

What Happens if You Ignore a Faulty Window Switch?

While a malfunctioning window switch might seem like a minor inconvenience, ignoring the problem can lead to several negative consequences:

Security Risk: An inoperable window can compromise your vehicle's security, especially if it's stuck in the open position. It provides an easy entry point for thieves.
Weather Exposure: If the window is stuck open, your vehicle's interior will be exposed to the elements, including rain, snow, and extreme temperatures. This can damage upholstery, electronics, and other components.
Decreased Comfort: Inability to control your windows affects your comfort level, especially during extreme weather. You might not be able to let in fresh air or adjust the airflow to your liking.
Safety Concerns: A window that won't close properly can obstruct your view and create a safety hazard while driving.
Electrical Problems: A short circuit within the switch can potentially drain the battery or cause damage to other electrical components.

Recommended Fixes: Replacing the Window Switch

The most common and effective solution for a faulty window switch is to replace it. Here's a general overview of the steps involved, but always refer to your vehicle's repair manual for specific instructions and safety precautions:

Tools and Materials Needed:

New window switch (ensure it's compatible with your vehicle's make, model, and year)
Screwdriver set (Phillips and flathead)
Panel removal tool or plastic pry tool
Multimeter (optional, for testing electrical continuity)
Gloves (optional, to protect your hands)
Safety glasses

Step-by-Step Instructions:

Disconnect the Battery: Before starting any electrical work, disconnect the negative terminal of your vehicle's battery to prevent short circuits.
Remove the Door Panel: Use a panel removal tool or a flathead screwdriver (covered with tape to prevent scratching) to carefully pry off the door panel. Start by locating the retaining clips and gently work your way around the panel.
Locate the Window Switch: Once the door panel is removed, locate the window switch. It's typically mounted on the door panel itself.

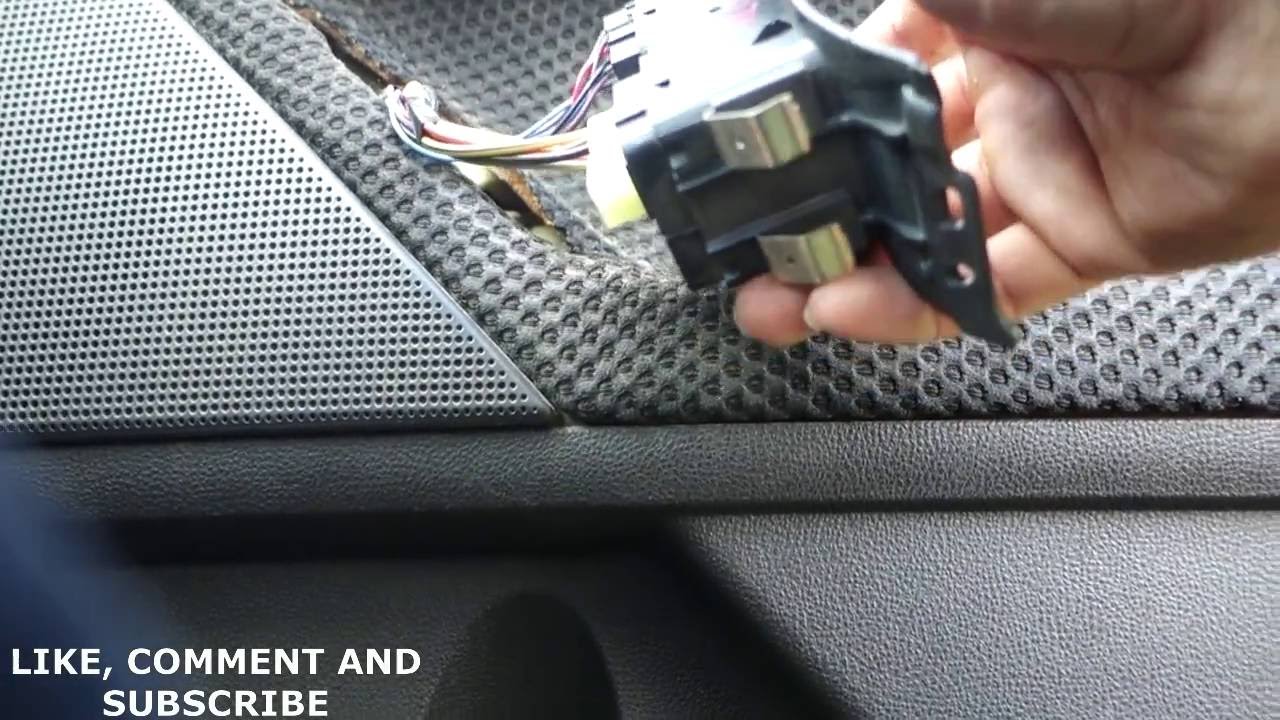

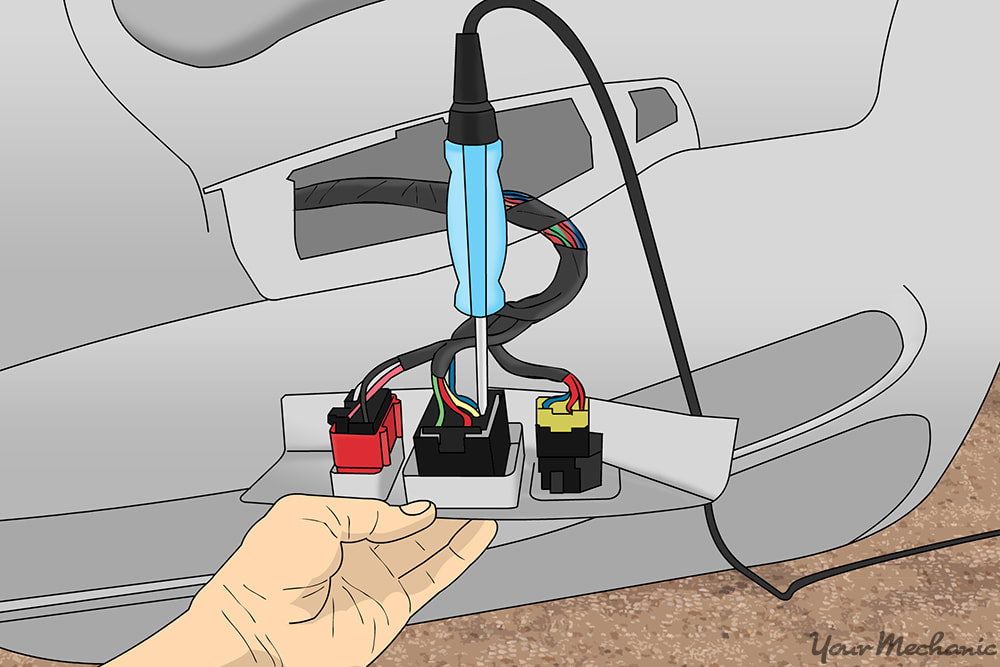

Disconnect the Electrical Connector: Carefully disconnect the electrical connector from the back of the window switch. There might be a retaining clip that needs to be pressed or released.
Remove the Old Switch: Depending on the design, the window switch may be held in place by screws, clips, or tabs. Carefully remove the old switch from the door panel.
Install the New Switch: Align the new window switch with the opening in the door panel and secure it in place using the screws, clips, or tabs.
Reconnect the Electrical Connector: Reconnect the electrical connector to the back of the new window switch, ensuring it's firmly seated.
Test the Switch: Before reassembling the door panel, reconnect the battery and test the new window switch to ensure it's working properly. Operate all the windows controlled by the switch.
Reinstall the Door Panel: Carefully align the door panel with the door and press it back into place, ensuring all the retaining clips are securely fastened.
Reconnect the Battery: Reconnect the negative terminal of your vehicle's battery.

Important Considerations:

Always consult your vehicle's repair manual for specific instructions and diagrams related to your make and model.
If you're unsure about any step of the process, it's best to consult a qualified mechanic.
Be careful when removing the door panel to avoid damaging the retaining clips or the panel itself.
When disconnecting electrical connectors, make sure to release any retaining clips or tabs to avoid damaging the connector.

Cost Estimates and Shop Advice

The cost of replacing a window switch can vary depending on the vehicle make and model, as well as whether you choose to do it yourself or have it done by a professional mechanic.

DIY Replacement: If you choose to replace the window switch yourself, the cost will primarily be for the new switch itself. Aftermarket window switches can range from $15 to $50, while OEM (Original Equipment Manufacturer) switches can cost $50 to $150 or more, depending on the vehicle.
Professional Replacement: If you have a mechanic replace the window switch, you'll also need to factor in labor costs. Labor rates can vary depending on the shop and location, but you can typically expect to pay between $50 and $150 for labor. Therefore, the total cost for a professional replacement can range from $65 to $300 or more.

When to Consider a Mechanic:

If you're not comfortable working with electrical components or removing the door panel, it's best to leave the job to a professional.
If you suspect that the problem might be more complex than just a faulty switch (e.g., a faulty motor or wiring issue), a mechanic can diagnose the issue and recommend the appropriate repair.
If you're short on time or don't have the necessary tools, a mechanic can complete the repair quickly and efficiently.

Credibility: TSBs and Common Failure Points

Window switch failures are common enough that many vehicle manufacturers have issued Technical Service Bulletins (TSBs) addressing related issues. These TSBs often provide specific diagnostic procedures and repair recommendations for certain makes and models. Searching for TSBs related to power windows for your vehicle can provide valuable insights. You can often find these on NHTSA's (National Highway Traffic Safety Administration) website.

Data from online automotive forums and repair communities often reveals that certain vehicles are more prone to window switch failures than others. For example, some older Honda and Toyota models are known to experience switch failures due to wear and tear. Additionally, vehicles used in dusty or humid environments may be more susceptible to switch contamination and corrosion.

While mileage varies, window switch failures often begin to surface around 75,000 to 150,000 miles, depending on usage and environmental factors. Regular cleaning and maintenance can help extend the lifespan of your window switches, but replacement is often necessary at some point.

By understanding the symptoms, causes, and solutions outlined in this guide, you can confidently diagnose and address a faulty window switch, restoring functionality and ensuring the security and comfort of your vehicle.
