How To Replace Bonnet Release Cable

Replacing a bonnet release cable might seem daunting, but with patience and the right tools, it's a task most intermediate DIY mechanics can tackle. This guide will walk you through the process, explaining the ins and outs of the system, common pitfalls, and best practices to ensure a successful repair. A broken bonnet release cable renders your engine inaccessible, hindering maintenance, checks, and fluid top-ups. This guide empowers you to rectify this issue effectively and safely, saving on expensive garage bills and gaining a deeper understanding of your vehicle.

Understanding the Bonnet Release System

Before diving into the replacement procedure, it's crucial to understand the fundamental components and how they interact. The bonnet release system is a mechanical linkage designed to allow you to safely and easily open your car's bonnet (hood) from inside the vehicle. It typically consists of the following:

• Interior Release Lever/Handle: Located inside the cabin, usually near the driver's side footwell or under the dashboard. Pulling this lever initiates the release process.
• Release Cable: A steel cable, often encased in a protective sheath, that transmits the mechanical force from the release lever to the bonnet latch.
• Bonnet Latch Mechanism: Located under the bonnet, this mechanism physically secures the bonnet in the closed position. It typically consists of a spring-loaded latch and a secondary safety catch.
• Secondary Safety Catch: A manually operated lever or hook that prevents the bonnet from flying open completely, even if the main latch fails. This is a crucial safety feature.

Technical Breakdown: How It Works

The system operates on a simple principle of mechanical advantage. When you pull the interior release lever, it exerts tension on the release cable. This tension is then transmitted along the cable to the bonnet latch mechanism. The force applied by the cable acts upon the latch, overcoming the spring tension and releasing the bonnet. In more detail:

1. Initial Action: Pulling the interior release lever pivots it around its mounting point. This movement directly pulls on the release cable, which is securely attached to the lever.
2. Cable Tension: The cable, being relatively inflexible, transmits the pulling force along its entire length. The sheath surrounding the cable helps to minimize friction and ensure efficient force transfer.
3. Latch Activation: At the bonnet latch, the cable is connected to a pivoting arm or lever within the mechanism. When the cable pulls on this arm, it rotates, disengaging the primary latch from the striker on the bonnet.
4. Secondary Catch Engagement: As the primary latch releases, the bonnet pops up slightly, but it's still held in place by the secondary safety catch. This requires manual release, typically by pressing or sliding a lever located near the front edge of the bonnet. This prevents accidental full opening during driving if the main latch fails.

Common Issues and Maintenance Concerns

Bonnet release cables are subject to wear and tear over time, which can lead to various problems. Understanding these common issues can help you diagnose the problem correctly and prevent future failures.

• Cable Stretch: Over time, the steel cable can stretch slightly due to repeated use and tension. This stretching reduces the amount of force transmitted to the latch, making it difficult to release the bonnet.
• Cable Corrosion: Moisture and road salt can corrode the cable, especially in areas where the protective sheath is damaged or missing. Corrosion increases friction within the cable, hindering its movement and potentially causing it to seize completely.
• Sheath Damage: The protective sheath can become cracked, brittle, or damaged, exposing the cable to the elements and increasing the risk of corrosion and friction.
• Latch Mechanism Seizure: The bonnet latch mechanism itself can become corroded or clogged with dirt and debris, preventing it from operating smoothly. This can place excessive strain on the release cable.
• Lever Mechanism Failure: Although less common, the interior release lever mechanism can break or become damaged, preventing it from effectively pulling the cable.

Troubleshooting: Diagnosing a Faulty Cable

Before replacing the cable, confirm that it's actually the source of the problem. Here are some troubleshooting steps:

1. Check the Interior Release Lever: Ensure the lever moves freely and is properly connected to the cable. If the lever feels loose or disconnected, the problem might be at the lever end.
2. Inspect the Cable Sheath: Look for any signs of damage, such as cracks, breaks, or kinks in the sheath. Damaged sheath often leads to corrosion of the internal cable.
3. Test the Latch Mechanism: With the bonnet released (if possible), manually operate the latch mechanism to ensure it moves freely. Lubricate the latch with penetrating oil if it's stiff or sticking.
4. Try a "Helper": Have someone gently push down on the bonnet while you pull the release lever. This can help to relieve pressure on the latch and allow it to release.
5. Visual Inspection: If possible, visually inspect the cable and its connections at both the lever and latch ends. Look for signs of corrosion, fraying, or damage.

Replacing the Bonnet Release Cable: Step-by-Step

Safety First: Always disconnect the negative terminal of your car battery before starting any electrical or mechanical work. Wear appropriate safety glasses and gloves.

Tools and Materials Needed

• New bonnet release cable (correct part number for your vehicle)
• Socket set and wrenches
• Screwdrivers (Phillips and flathead)
• Pliers (needle-nose and regular)
• Penetrating oil (e.g., WD-40)
• Cable ties
• Flashlight or work light
• Gloves
• Safety Glasses
• Optional: Trim removal tools

Procedure

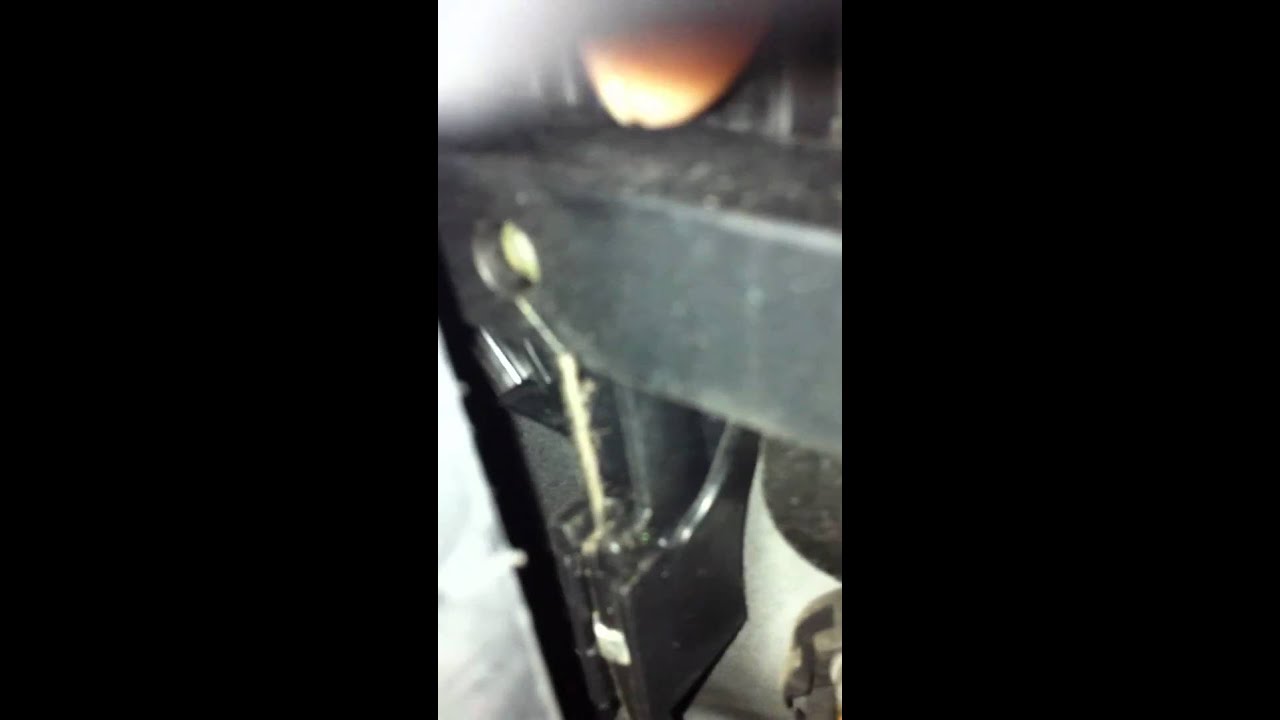

1. Access the Interior Release Lever:
   • Locate the interior release lever.
   • You may need to remove trim panels to access the cable connection. Use trim removal tools or a flathead screwdriver (covered with tape to prevent damage) to carefully pry off the panels.
   • Disconnect the old cable from the lever. This usually involves loosening a retaining clip or screw. Take note of how the cable is routed and secured. A quick picture is very helpful for re-assembly.
2. Route the New Cable:
   • Attach the new cable to the interior release lever using the same method as the old cable. Ensure it's securely fastened.
   • Carefully route the new cable along the same path as the old cable. Use cable ties to secure it to existing wiring harnesses or brackets. Avoid sharp bends or kinks in the cable.
   • Critical step: Pay extremely close attention to the routing. Incorrect routing can cause binding and premature cable failure or prevent proper function.
3. Access the Bonnet Latch:

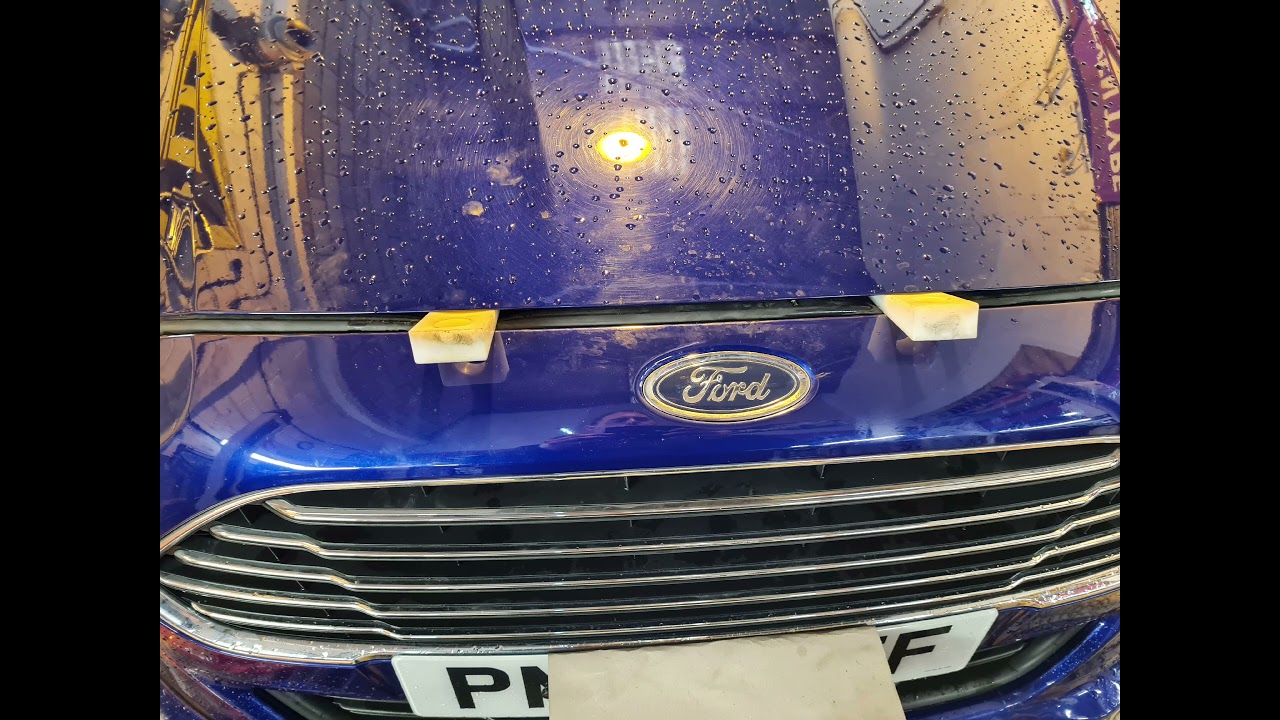

   • Open the bonnet (if possible; if not, you may need to use a long screwdriver or similar tool to manually release the latch mechanism through the grille).

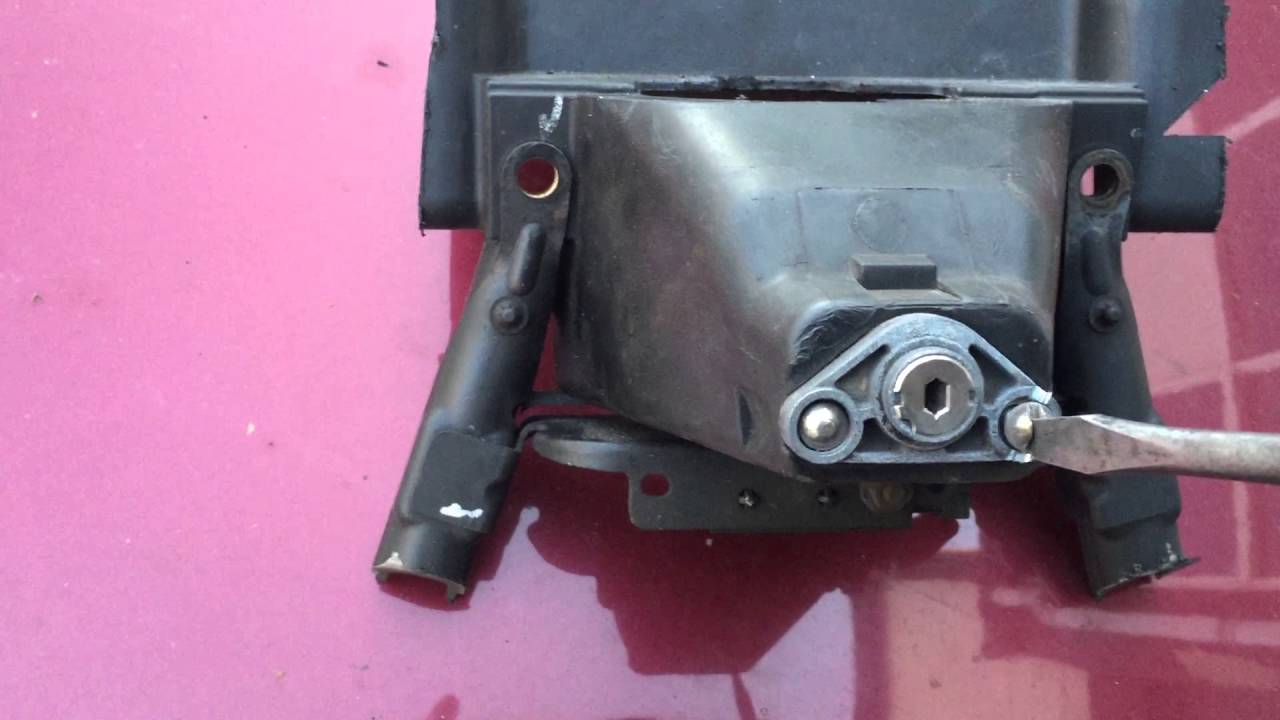

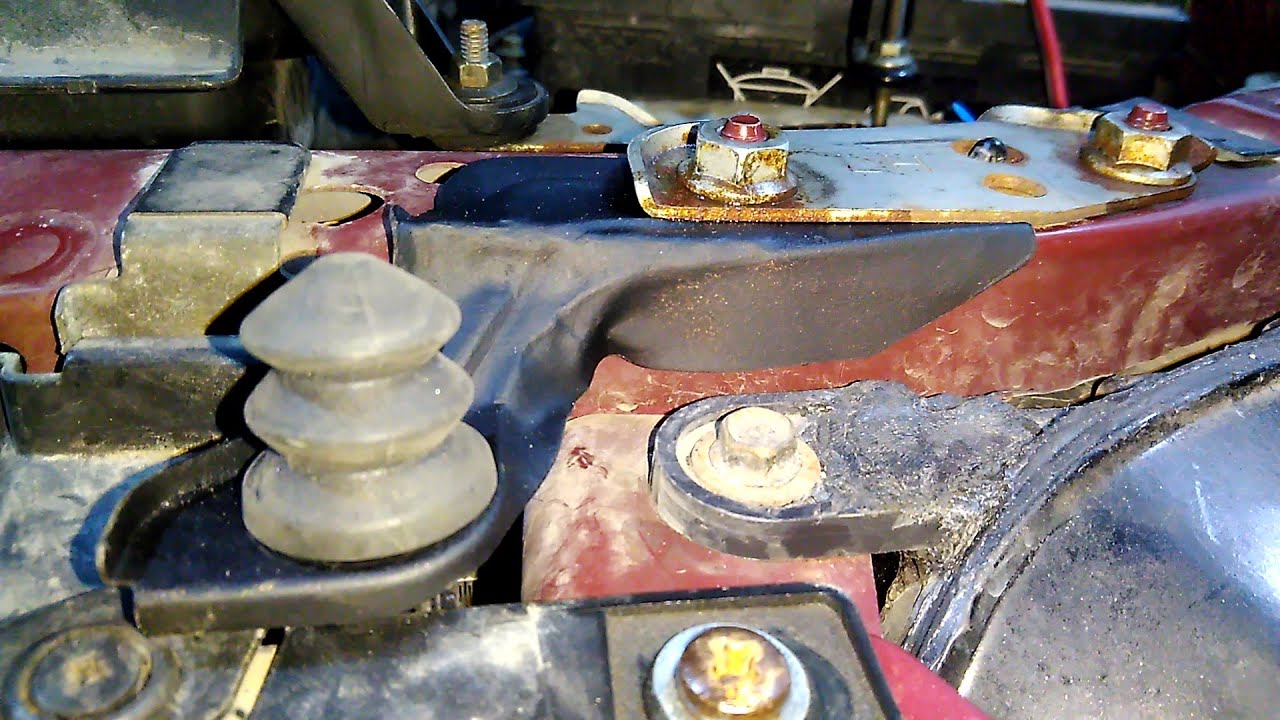

   • Locate the bonnet latch mechanism.
   • Disconnect the old cable from the latch. Again, note how it's connected.
4. Connect the New Cable to the Latch:
   • Route the other end of the new cable to the bonnet latch mechanism.
   • Connect the cable to the latch, ensuring it's securely fastened.
   • Apply penetrating oil to the latch mechanism to ensure smooth operation.
5. Test the System:
   • Close the bonnet and test the release lever. The bonnet should open smoothly and easily.
   • If the bonnet doesn't open properly, adjust the cable tension by adjusting the threaded adjuster (if present) near the bonnet latch. You may need to loosen a locknut before adjusting.
   • Double-check the secondary safety catch to ensure it's functioning correctly.
6. Reassemble and Final Checks:
   • Reinstall any trim panels that were removed.
   • Ensure all cable ties are properly secured.
   • Double-check the operation of the bonnet release system one last time.
   • Reconnect the negative battery terminal.

Do's and Don'ts / Best Practices

• Do use the correct part number for your vehicle. Incorrect cables may have the wrong length or end fittings.
• Do lubricate the cable and latch mechanism with penetrating oil or silicone grease.
• Do ensure the cable is routed correctly to avoid binding or kinking.
• Do use cable ties to secure the cable to existing wiring harnesses or brackets.
• Don't over-tighten the cable. Too much tension can damage the latch mechanism or cause the cable to break prematurely.
• Don't force any connections. If something doesn't fit easily, double-check the part number and ensure you're using the correct orientation.
• Don't neglect the secondary safety catch. It's a critical safety feature that should always be in good working order.
• Best Practice: Take pictures of the old cable routing and connections before disconnecting anything. This will make reassembly much easier.
• Best Practice: If your old cable failed due to corrosion, consider applying a rust inhibitor to the new cable and sheath to prolong its life.

Conclusion

Replacing a bonnet release cable is a manageable task for intermediate DIY mechanics. By understanding the system's components, following the steps outlined in this guide, and adhering to best practices, you can successfully restore the functionality of your bonnet release and save money on garage bills. If, at any point, you feel uncomfortable or unsure about any aspect of the repair, don't hesitate to consult a qualified mechanic. A malfunctioning bonnet release is inconvenient, but safety should always be your top priority. With careful attention to detail and a methodical approach, you can confidently tackle this repair and keep your vehicle in good working order.
