How To Replace Brake Caliper Piston Seal

Got brake problems? Is your car pulling to one side when you brake, or are your brakes feeling spongy? One potential culprit might be a failing brake caliper piston seal. Replacing this seal is often overlooked, but it's crucial for maintaining safe and effective braking. This guide will walk you through the symptoms, causes, consequences, and solutions for a faulty brake caliper piston seal, empowering you to make informed decisions about your vehicle's repair.

Symptoms of a Failing Brake Caliper Piston Seal

Recognizing the symptoms early can save you from more extensive and costly repairs down the line. Here are the common signs of a failing brake caliper piston seal:

Brake Fluid Leakage: This is the most obvious sign. You might see brake fluid dripping from around the caliper or notice a puddle near the wheel. Brake fluid has a distinctive oily feel and can damage paint, so pay close attention.
Spongy Brake Pedal: A soft or spongy feel when you press the brake pedal often indicates air in the brake lines. A leaking piston seal can allow air to enter the system, leading to this symptom.
Pulling to One Side During Braking: If the piston seal is damaged on one side, the caliper may not apply even pressure to the brake rotor. This can cause the vehicle to pull to the side with the functioning brake when braking.
Uneven Brake Pad Wear: A sticking caliper, caused by a failing piston seal, can lead to one brake pad wearing down much faster than the other on the same wheel.
Reduced Braking Performance: Overall braking performance may be noticeably diminished. You may need to apply more pressure to the brake pedal to achieve the same level of stopping power.
ABS Light Illumination: In some cases, a significant brake imbalance caused by a faulty caliper can trigger the ABS (Anti-lock Braking System) warning light on your dashboard.
Sticking Caliper: The piston may not retract properly after releasing the brake pedal, causing the brake pads to remain in contact with the rotor. This can generate heat, noise, and a burning smell.

Root Cause: Why Caliper Piston Seals Fail

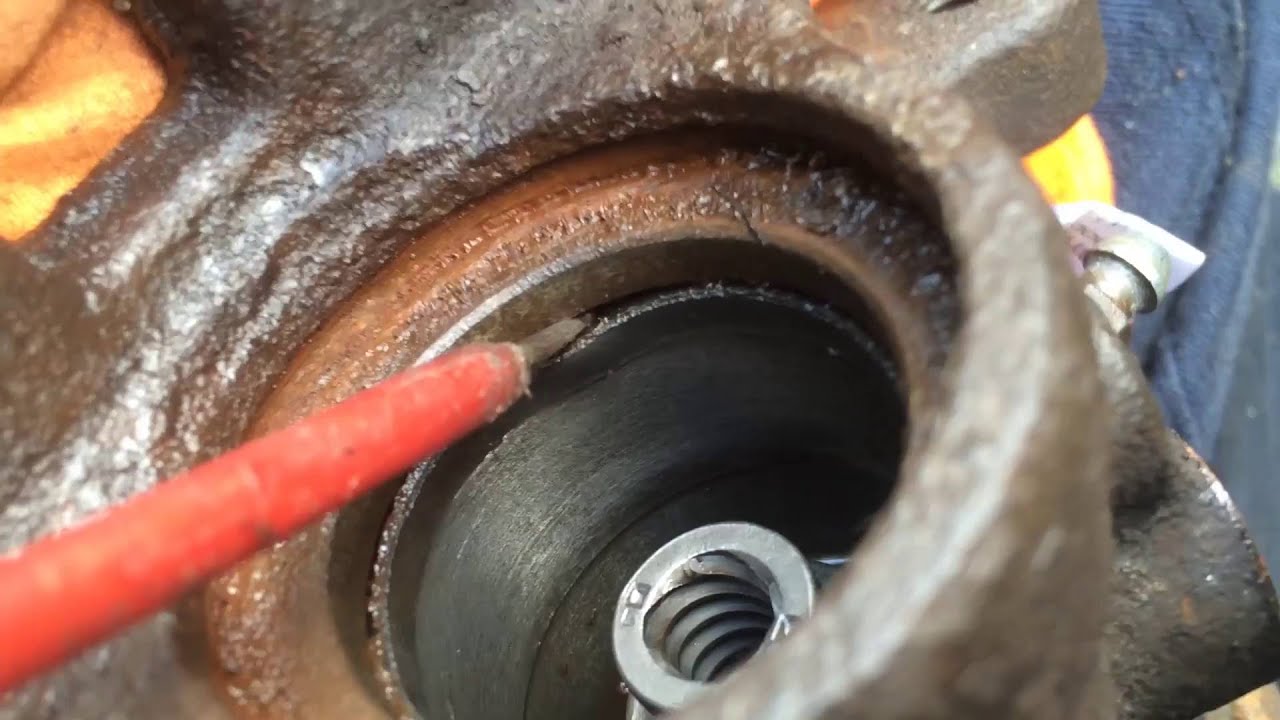

The brake caliper piston seal is a crucial component responsible for maintaining pressure within the brake caliper. It's a circular rubber or synthetic rubber ring that sits in a groove around the piston within the caliper. Its primary function is to create a tight seal between the piston and the caliper bore, preventing brake fluid from leaking out when the brakes are applied.

Here's a breakdown of the factors contributing to seal failure:

Age and Degradation: Over time, the rubber compound of the seal can degrade due to exposure to heat, brake fluid chemicals, and environmental factors. This degradation makes the seal brittle and less able to maintain a proper seal.
Contamination: Dirt, debris, and moisture can enter the brake system and contaminate the brake fluid. These contaminants can damage the seal and cause it to leak.
Overheating: Excessive braking, particularly during aggressive driving or towing, can generate extreme heat in the brake system. This heat can accelerate the degradation of the seal and cause it to fail prematurely.
Corrosion: Corrosion within the caliper bore can damage the seal's surface and prevent it from sealing properly. This is especially common in older vehicles or in areas with harsh winter conditions where road salt is used.
Brake Fluid Quality: Using the incorrect type of brake fluid or neglecting to flush and replace the fluid according to the manufacturer's recommendations can lead to seal deterioration. Brake fluid absorbs moisture over time, which can contribute to corrosion and seal failure.

Consequences of Ignoring a Faulty Caliper Piston Seal

Ignoring a leaking or failing brake caliper piston seal can have serious consequences, potentially compromising your safety and leading to more expensive repairs:

Reduced Braking Power: Brake fluid loss directly translates to reduced braking power. The more fluid leaks, the less effective your brakes become, increasing stopping distances and the risk of accidents.
Brake Failure: In severe cases, a significant brake fluid leak can lead to complete brake failure. This is an extremely dangerous situation that can result in serious injury or death.
Damage to Other Brake Components: Leaking brake fluid can damage other brake components, such as brake pads and rotors, requiring their replacement.
ABS Malfunction: A brake imbalance caused by a faulty caliper can interfere with the ABS system's ability to function correctly, potentially leading to wheel lockup during emergency braking.
Increased Repair Costs: Ignoring the problem will inevitably lead to more extensive and costly repairs. What starts as a simple seal replacement might turn into a complete caliper replacement, or even damage to the brake booster.

Recommended Fixes: Replacing the Caliper Piston Seal

The primary fix for a failing brake caliper piston seal is to replace the seal. While you can sometimes purchase individual seals, many mechanics recommend replacing the entire caliper, especially if the caliper bore is corroded or damaged. Here's a breakdown of the options:

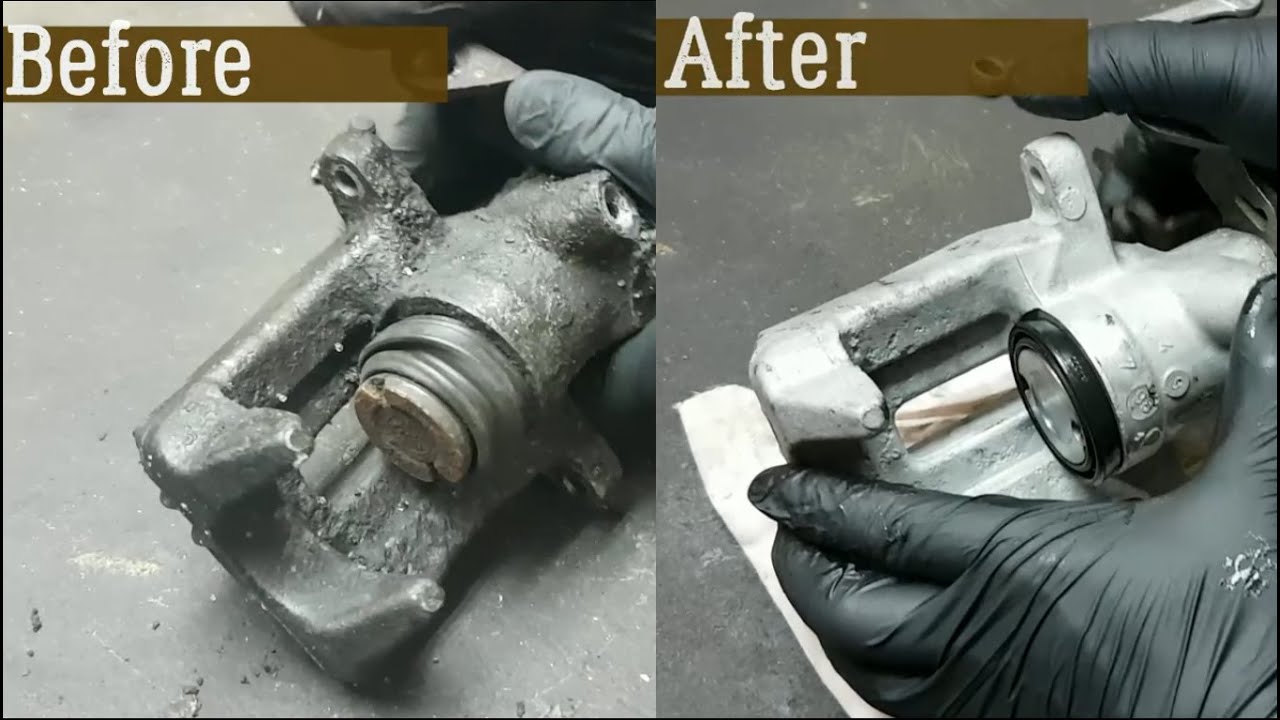

Caliper Rebuild (Seal Replacement): This involves disassembling the caliper, cleaning all the components, replacing the piston seal (and dust boot, if applicable), and reassembling the caliper. This is a more cost-effective option if the caliper bore is in good condition and you are comfortable performing the work yourself. However, it requires specialized tools and a good understanding of brake systems.
Caliper Replacement: This involves replacing the entire caliper with a new or remanufactured unit. This is a more straightforward option, especially if the caliper bore is damaged or if you prefer not to disassemble the caliper. New or remanufactured calipers typically come with new seals and pistons.

Steps for replacing the caliper piston seal (rebuild): (Disclaimer: This is a simplified overview. Consult a repair manual specific to your vehicle for detailed instructions and safety precautions.)

Safety First: Wear safety glasses and gloves. Disconnect the negative battery cable.
Loosen Lug Nuts: Loosen the lug nuts on the wheel with the faulty caliper.
Raise and Support Vehicle: Use a jack to raise the vehicle and securely support it with jack stands.
Remove Wheel: Remove the wheel.
Disconnect Brake Line: Carefully disconnect the brake line from the caliper. Use a flare nut wrench to avoid damaging the brake line fitting. Have a container ready to catch any leaking brake fluid.
Remove Caliper: Remove the bolts that secure the caliper to the caliper bracket.
Disassemble Caliper: Carefully remove the piston from the caliper bore. You may need to use compressed air to gently push the piston out. Be extremely careful not to damage the piston or caliper bore. Remove the old piston seal and dust boot.
Clean Caliper Components: Thoroughly clean all caliper components, including the piston, caliper bore, and grooves. Use brake cleaner and a soft brush. Inspect the caliper bore for any signs of corrosion or damage. If the bore is damaged, consider replacing the entire caliper.

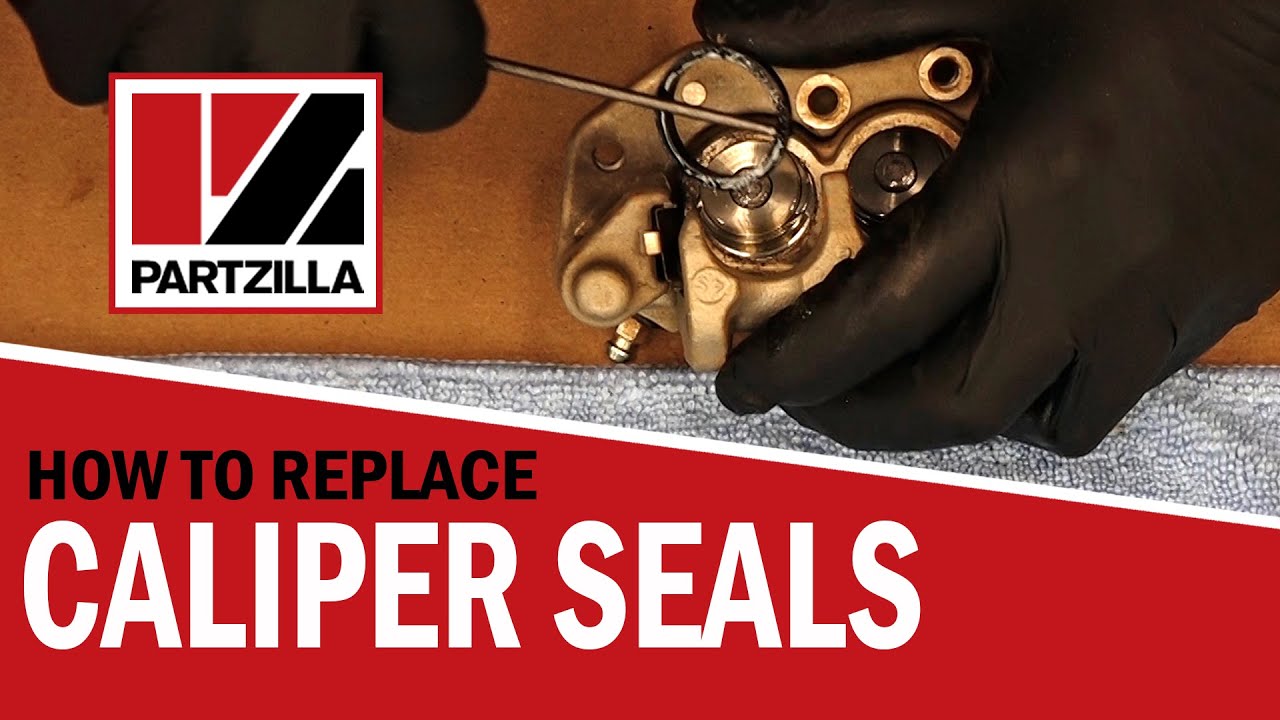

Install New Seal and Boot: Lubricate the new piston seal with fresh brake fluid and carefully install it in the groove in the caliper bore. Install the new dust boot.
Reassemble Caliper: Carefully insert the piston back into the caliper bore. It may require some pressure to seat the piston properly.
Reinstall Caliper: Reinstall the caliper onto the caliper bracket and tighten the bolts to the specified torque.
Reconnect Brake Line: Reconnect the brake line to the caliper and tighten the fitting securely.
Bleed Brakes: Bleed the brakes to remove any air from the brake lines. This is a crucial step to ensure proper brake function.
Reinstall Wheel: Reinstall the wheel and tighten the lug nuts to the specified torque.
Lower Vehicle: Lower the vehicle.
Test Brakes: Test the brakes thoroughly before driving the vehicle.

Important Considerations:

Always use the correct type of brake fluid recommended for your vehicle.
Replace brake pads if they are worn or contaminated with brake fluid.
Inspect the brake rotors for wear and damage and replace them if necessary.
It's generally recommended to replace the brake caliper piston seals on both sides of the axle to ensure even braking performance.

Cost Estimates and Shop Advice

The cost of replacing a brake caliper piston seal varies depending on the vehicle make and model, the type of repair performed (seal replacement vs. caliper replacement), and labor rates. Here's a general idea:

Caliper Rebuild (Seal Replacement): If you do it yourself, the cost of the seal kit is usually between $10 and $30 per caliper. However, you'll need to factor in the cost of brake cleaner, brake fluid, and any specialized tools you might need. Labor costs at a shop can range from $100 to $200 per caliper.
Caliper Replacement: A new or remanufactured caliper can cost between $50 and $200, depending on the vehicle and brand. Labor costs at a shop can range from $100 to $250 per caliper.

Shop Advice:

Get quotes from multiple shops before committing to a repair.
Ask about the quality of the replacement parts being used. Opt for reputable brands.
Inquire about warranty coverage on the repair.
Don't hesitate to ask questions and understand the proposed repair plan.

TSBs and Common Failure Mileage:

While specific Technical Service Bulletins (TSBs) related solely to brake caliper piston seal failure are rare, manufacturers often issue TSBs addressing related issues like sticking calipers, brake noise, or uneven brake pad wear, which can be indirectly linked to seal degradation. Consulting online databases for TSBs specific to your vehicle make and model can be beneficial.

As for mileage, brake caliper piston seals typically last for a significant portion of the vehicle's lifespan, often exceeding 100,000 miles. However, factors like driving conditions, climate, and maintenance habits can significantly affect their longevity. Vehicles frequently used for towing or subjected to aggressive braking may experience earlier seal failure.

By understanding the symptoms, causes, and consequences of a failing brake caliper piston seal, you can take proactive steps to maintain your vehicle's braking system and ensure your safety on the road. If you suspect a problem, don't hesitate to consult a qualified mechanic for a thorough inspection and repair.
