How To Replace Driver Side Window

Few automotive malfunctions are as instantly frustrating as a shattered or inoperable driver-side window. Beyond the immediate inconvenience of exposure to the elements, a malfunctioning window presents a security risk and can even lead to legal issues, depending on local regulations. While professional repair is always an option, understanding the process of driver-side window replacement empowers you with knowledge, potential cost savings, and a deeper appreciation for the mechanics of your vehicle. Let's delve into the intricacies of this repair, providing a technical overview for the curious and capable.

The Problem: A Window That Won't Window

Imagine this scenario: you're approaching a toll booth on a rainy day. You press the window switch, expecting the glass to glide down smoothly, allowing you to pay the toll. Instead, you hear a disturbing grinding noise or, worse, absolute silence. Your window is stuck, leaving you scrambling for an alternative payment method while rain pours into your car. This situation, or any variation involving a damaged or unresponsive driver-side window, is the problem we aim to address. But why do windows fail in the first place?

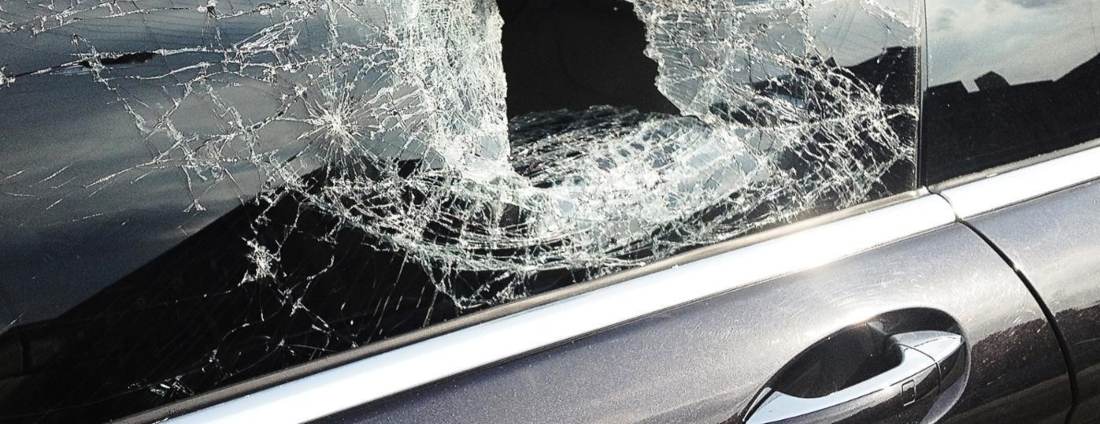

Several factors can contribute to window failure: impact damage (from accidents, vandalism, or road debris), mechanical failure (of the regulator or motor), electrical issues (blown fuses, faulty switches, or wiring problems), and even environmental factors (extreme temperature changes or corrosion). Understanding the root cause of the problem is the first step toward a successful repair. A window that's simply off its track is far easier to fix than one with a broken regulator.

The Window Regulation System: A Mechanical Symphony

The magic behind your power window lies in a carefully orchestrated system, a mechanical symphony if you will. At its heart is the window regulator, a mechanism designed to translate rotary motion from a motor into the linear motion required to raise and lower the window. Think of it like a miniature elevator system inside your door. There are two primary types of regulators:

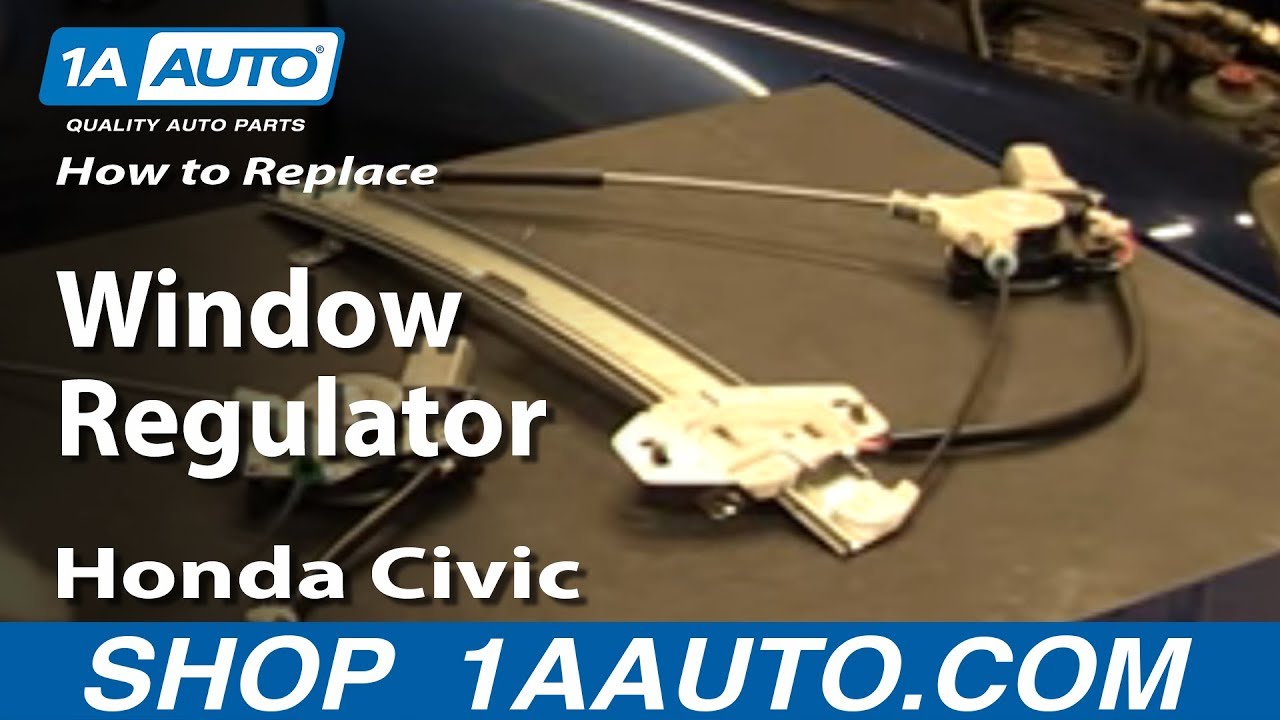

• Cable Regulators: These regulators utilize a system of cables and pulleys connected to a spool driven by the motor. As the motor turns, the cable winds or unwinds, pulling or pushing the window up or down. Cable regulators are common due to their lower cost and relatively simple design, however they are prone to wear and tear and cable breakage.
• Scissor Regulators: These regulators employ a scissor-like arm that pivots to raise and lower the window. A motor drives a gear that moves the pivot point, extending or contracting the arm and thus moving the window. Scissor regulators are generally considered more robust and offer smoother operation, often found in higher-end vehicles.

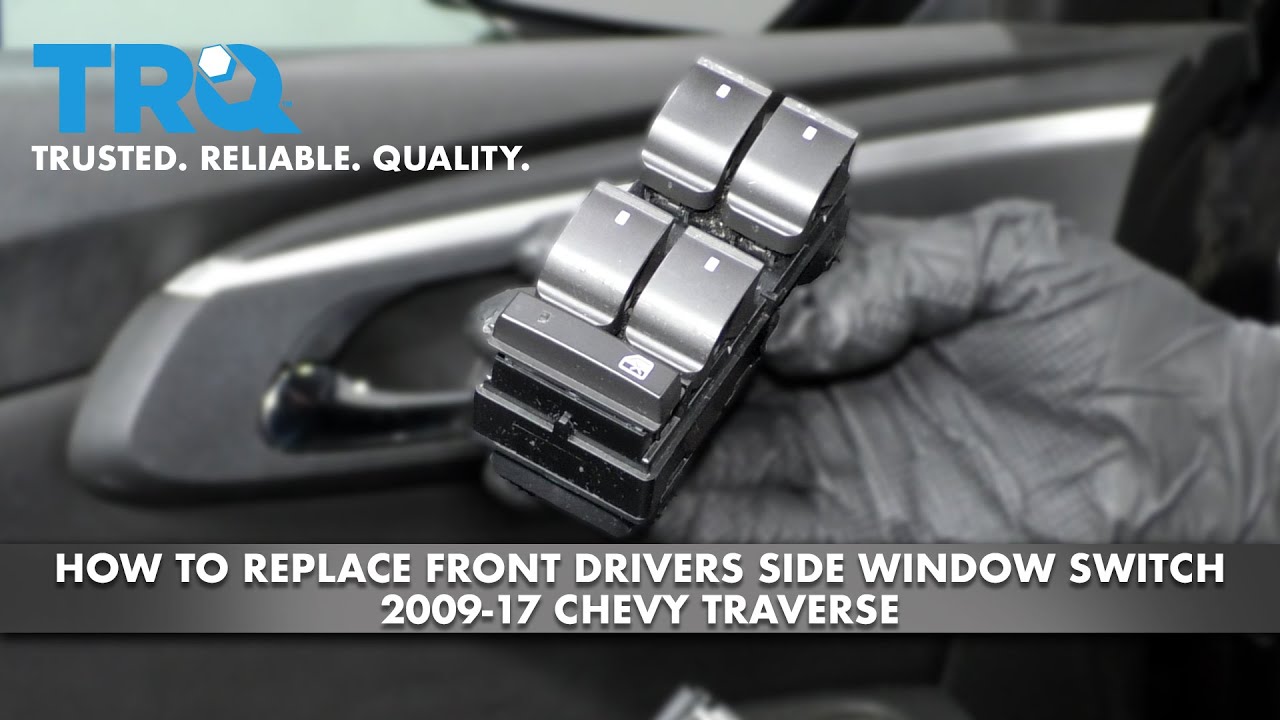

Regardless of the type, the regulator is connected to the window via a window carrier, a bracket that attaches to the bottom edge of the glass. This carrier slides within channels or tracks inside the door, ensuring the window moves smoothly and stays aligned. The entire system is powered by a window motor, a small DC electric motor that receives power from the vehicle's electrical system when you press the window switch. The switch itself acts as a simple on/off control, directing power to the motor to move the window in the desired direction. The car's body computer controls the direction of the current based on the buttons pressed.

Electrical Integration

It’s not just about mechanics. Your car's window system is also deeply integrated into the vehicle's electrical architecture. Fuses protect the system from overloads. Relays handle the high current required by the motor. And, increasingly, vehicles use body control modules (BCMs) to manage window functions, including auto-up/down features and anti-pinch protection. Modern cars might even have the window controls integrated with the vehicle’s central computer.

Step-by-Step Guide to Replacement

Replacing a driver-side window requires careful attention to detail and a methodical approach. While specific steps may vary slightly depending on the vehicle make and model, the general process is as follows:

1. Safety First: Disconnect the negative terminal of the battery. This prevents accidental activation of the window motor or other electrical components during the repair. Wear safety glasses and gloves to protect yourself from broken glass and sharp edges.

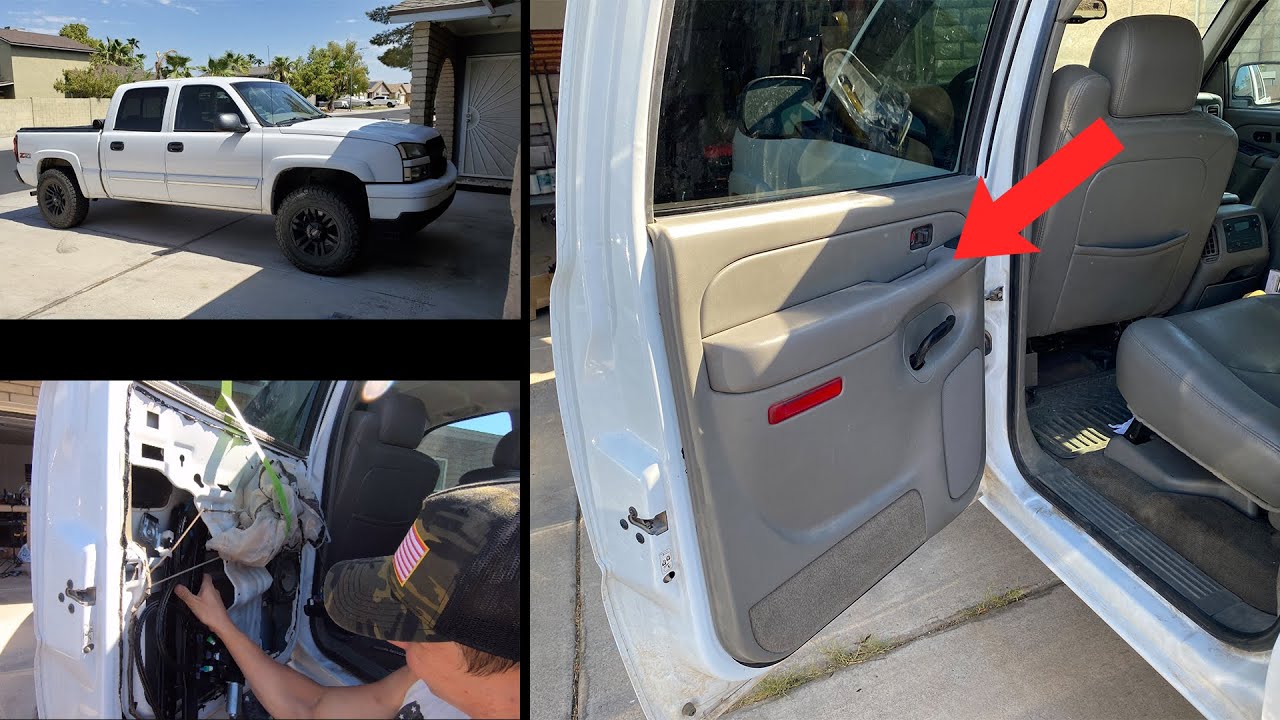

2. Remove the Door Panel: This is often the most challenging step, as door panels are typically secured with a combination of screws, clips, and friction. Consult your vehicle's repair manual for specific instructions and the location of hidden fasteners. Carefully pry the panel away from the door, being mindful not to break any plastic clips.
3. Disconnect Electrical Connectors: Once the door panel is removed, you'll need to disconnect the electrical connectors for the window switch, door lock, and any other components attached to the panel.
4. Remove the Vapor Barrier: A plastic sheet, called the vapor barrier, is usually glued to the inside of the door to prevent moisture from entering the cabin. Carefully peel it away from the door, taking care not to tear it.
5. Access the Window Regulator: With the door interior exposed, you should be able to see the window regulator and motor. Depending on the design, you may need to remove additional brackets or covers to gain access.

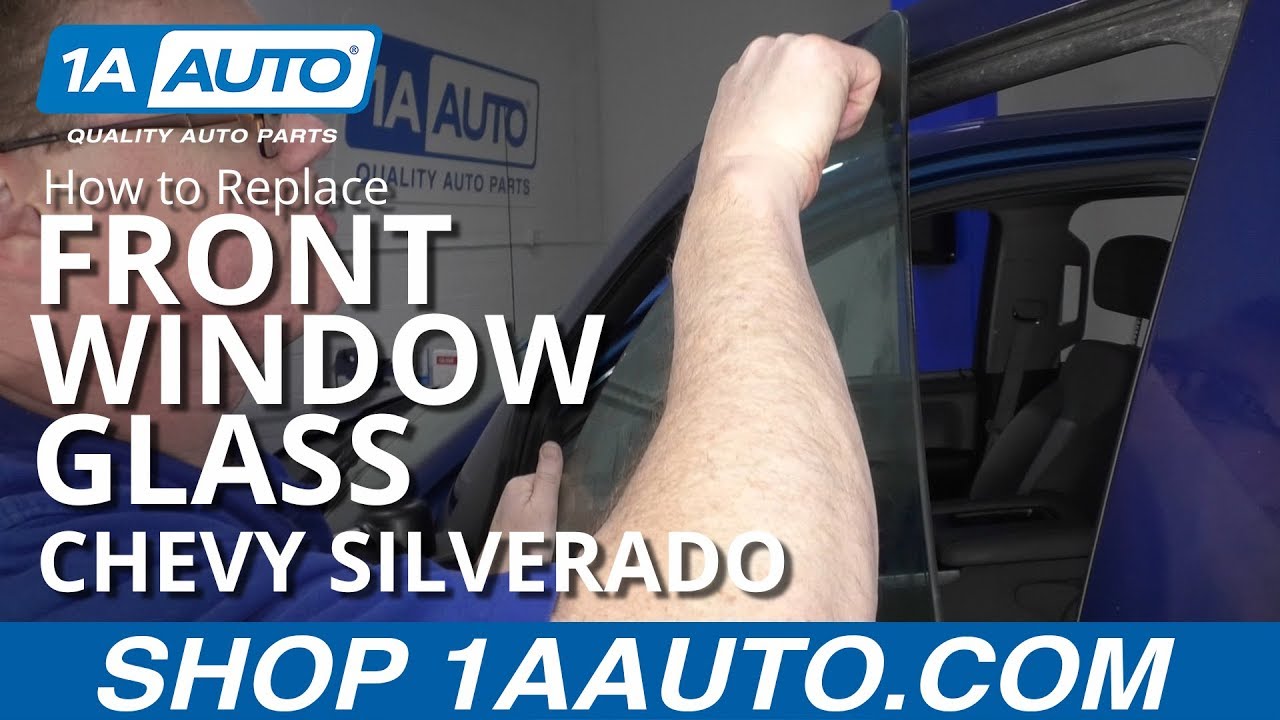

6. Secure the Window (if applicable): If the window is still intact, carefully raise it as high as possible and secure it in place with tape or clamps. This will prevent it from falling during the removal process. If the window is shattered, carefully remove any remaining pieces of glass from the carrier and tracks.
7. Disconnect the Window from the Regulator: Locate the points where the window carrier attaches to the regulator mechanism. These are typically held in place with bolts or clips. Remove the fasteners and carefully detach the window from the regulator.
8. Remove the Old Regulator: Unbolt the regulator from the door frame. Disconnect the electrical connector to the window motor. Maneuver the regulator out of the door, taking care not to damage any wiring or other components.
9. Install the New Regulator: Install the new regulator in the reverse order of removal. Ensure it is properly aligned and securely bolted to the door frame. Connect the electrical connector to the window motor.
10. Attach the Window to the Regulator: Carefully align the window carrier with the regulator mechanism and secure it in place with the fasteners.
11. Test the Window: Reconnect the battery and test the window operation. Ensure it moves smoothly up and down without binding or making unusual noises. If the window doesn't operate properly, double-check your connections and the regulator alignment.
12. Reinstall the Vapor Barrier: Carefully reattach the vapor barrier to the inside of the door. Use adhesive tape to ensure a proper seal.
13. Reinstall the Door Panel: Reconnect the electrical connectors to the door panel components. Align the door panel with the door and push it into place, ensuring all clips are securely engaged. Reinstall the screws.

Tools of the Trade

Successful window replacement hinges on having the right tools. Essential items include: socket set, screwdrivers (Phillips and flathead), pliers, wire strippers, electrical tape, panel removal tools (plastic pry bars), a multimeter (for electrical diagnostics), and a repair manual specific to your vehicle.

Pros, Cons, and Use Cases

Pros of DIY Replacement

• Cost Savings: Replacing the window yourself can save you a significant amount of money compared to professional repair. Labor costs can be substantial.
• Learning Experience: This project provides a valuable opportunity to learn about your vehicle's mechanics and electrical systems.
• Satisfaction: There's a sense of accomplishment that comes with successfully completing a repair yourself.

Cons of DIY Replacement

• Time Commitment: Replacing a window can take several hours, especially if you're not experienced.
• Risk of Damage: Improper installation can lead to damage to the regulator, motor, or window.
• Safety Concerns: Working with broken glass and electrical components can be hazardous if you're not careful.

Use Cases

DIY window replacement is best suited for mechanically inclined individuals who are comfortable working with tools and following instructions. It's also a good option if you have access to a repair manual and are willing to invest the time and effort to learn the process.

Manufacturer Examples

Vehicle manufacturers like Toyota, Honda, and Ford provide detailed repair manuals for their vehicles, which include step-by-step instructions for window replacement. These manuals often include diagrams and illustrations to help you understand the process.

Insights and Recommendations

Based on real-world experience, here are some key insights and recommendations for tackling a driver-side window replacement:

• Invest in a Quality Regulator: Don't skimp on the replacement regulator. A cheap regulator may fail prematurely, requiring you to repeat the repair. Choose a reputable brand known for its durability and reliability.
• Consult the Repair Manual: A repair manual specific to your vehicle is essential. It will provide detailed instructions, diagrams, and torque specifications for all fasteners.
• Take Pictures: Before disassembling anything, take pictures of the door panel, wiring connections, and regulator assembly. This will help you remember how everything goes back together.
• Be Patient: Don't rush the process. Work carefully and methodically, paying attention to detail. If you get stuck, consult the repair manual or seek help from a qualified technician.
• Test Thoroughly: After completing the repair, test the window operation multiple times to ensure it's working properly. Check for smooth movement, proper alignment, and any unusual noises.

Replacing a driver-side window can seem daunting, but with the right knowledge, tools, and approach, it's a manageable task for the determined amateur engineer. Remember to prioritize safety, consult your vehicle's repair manual, and take your time. By understanding the mechanics of the window regulation system and following the steps outlined above, you can restore your window to full functionality and enjoy the satisfaction of a job well done. And, if all else fails, don't hesitate to seek professional assistance!
