How To Replace Power Window Switch

The electric window – a modern convenience we often take for granted. Until, of course, it stops working. Stuck halfway down on a rainy day, or refusing to budge at all, a faulty power window switch can quickly turn into a major inconvenience. Replacing it isn't always a trip to the mechanic; with a bit of know-how, the right tools, and a dash of patience, it's a repair many amateur engineers can tackle themselves. This guide delves into the process, the underlying technology, and the considerations involved in diagnosing and replacing a power window switch.

The Stuck Window Scenario: A Deeper Look

Imagine this: you're cruising down the highway, enjoying the fresh air. Suddenly, a light rain begins. You reach for the window switch... and nothing. The window remains stubbornly open, leaving you exposed to the elements. This is the exact scenario countless drivers face, highlighting the vulnerability of the power window system. Often, the culprit is a failing window switch. It might be a single window, or all of them, and the problem could be intermittent, making diagnosis tricky. The urgency to fix it is clear, but rushing into a repair without understanding the system can lead to further complications. Think of it like a computer: you wouldn't randomly replace components without first trying to isolate the problem, right?

Power Window System: A Mechanical Breakdown

To understand how to replace a switch, we first need to appreciate the power window system as a whole. The system comprises several key components working in harmony:

The Switch(es): These are the user interface, sending signals to the window motor. Each window typically has its own switch, plus a master switch panel, usually on the driver's side, that controls all windows.
The Motor(s): Located inside the door panel, the motor converts electrical energy into mechanical motion, driving the window regulator.
The Regulator: This is a mechanical linkage (typically a cable-driven or scissor-type mechanism) that raises and lowers the window glass.
Wiring Harness: A network of wires connecting the switch, motor, and the vehicle's electrical system.
Fuses/Circuit Breakers: Protective devices preventing overloads and potential damage.

When you press the window switch, you're essentially completing a circuit, sending power to the window motor. The motor then spins, rotating the regulator, which in turn moves the window glass up or down. The polarity of the voltage supplied to the motor determines the direction of movement. Reversing the polarity reverses the motor's rotation and thus the direction of the window. Most modern systems incorporate safety features, such as auto-up/down and pinch protection, which add further complexity to the circuit but enhance user safety.

Inside the Switch: A Closer Examination

The power window switch itself is a relatively simple electromechanical device. It typically consists of:

A Rocker or Push Button: The user interface.
Contacts: Metallic surfaces that make or break the electrical circuit.
Springs: Providing tactile feedback and returning the switch to its neutral position.
Housing: Enclosing and protecting the internal components.

When you press the switch, the internal contacts bridge the appropriate terminals, completing the circuit and sending power to the window motor. Over time, these contacts can become corroded, dirty, or worn, leading to intermittent operation or complete failure. This is the primary reason why power window switches need replacing.

Diagnosis: Is it Really the Switch?

Before tearing into your door panel, it's crucial to confirm the switch is indeed the problem. Here's a troubleshooting checklist:

Check the Fuse: A blown fuse is the easiest (and cheapest) fix. Consult your owner's manual for the power window fuse location.
Listen for Motor Noise: When you press the switch, can you hear the motor attempting to operate? If so, the switch is likely functioning, and the problem might be a seized regulator or a jammed window track.

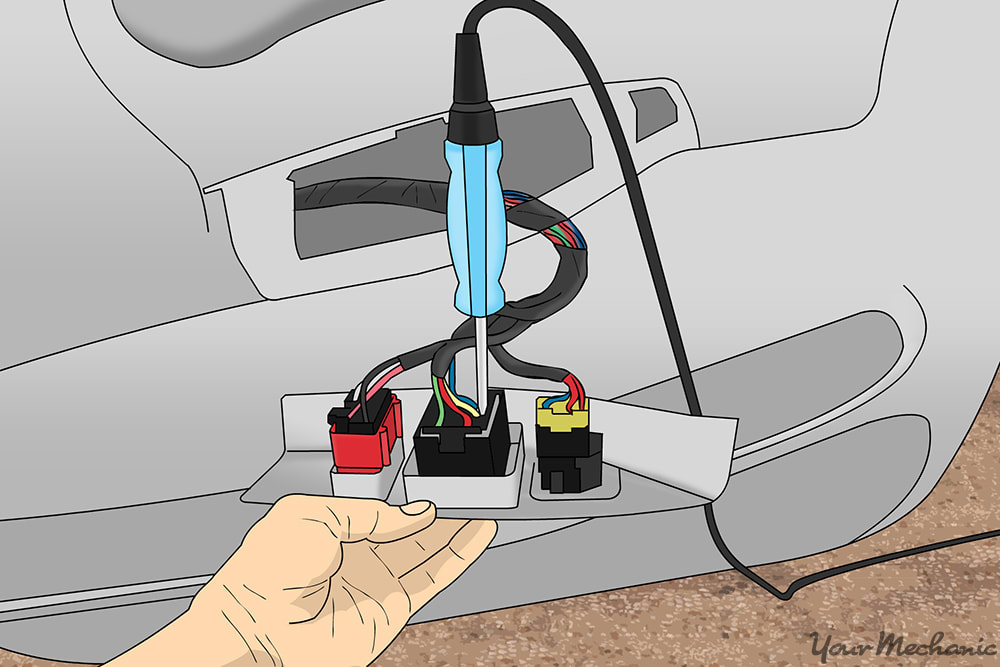

Test with a Multimeter: This is where things get technical. Using a multimeter, you can test the switch for continuity. Disconnect the switch, set the multimeter to the continuity setting, and probe the terminals. When you press the switch, the multimeter should indicate continuity (a closed circuit) in the appropriate direction. If there's no continuity, the switch is likely faulty.
Swap Switches (If Possible): If you have a master switch panel, you can try swapping the suspect switch with a known good switch (e.g., one for a window that's working). If the problem moves with the switch, you've confirmed the diagnosis.

Analogy: Think of it like a string of Christmas lights. If the whole string is out, you check the plug (fuse). If some lights are out, you check individual bulbs (switches). If the string is plugged in, and the bulbs are good, but still nothing, then the wiring (harness) is the problem.

Replacing the Switch: A Step-by-Step Guide

Once you've confirmed the switch is the culprit, here's how to replace it:

Gather Your Tools: You'll need a flathead screwdriver (or plastic trim removal tool), a Phillips head screwdriver, a new power window switch (ensure it's the correct part for your vehicle), and possibly a multimeter.
Disconnect the Battery: Safety First! Disconnecting the negative terminal of the battery prevents accidental shorts and potential damage.
Remove the Door Panel (If Necessary): Some switches are accessible without removing the entire door panel, while others require it. Consult your vehicle's repair manual (or online resources) for specific instructions. Typically, this involves removing screws, popping off plastic clips, and disconnecting wiring harnesses.
Access the Switch: Once the door panel is removed (if necessary), locate the power window switch. It's usually held in place by clips or screws.
Disconnect the Wiring Harness: Carefully disconnect the wiring harness from the switch. Take note of the wire colors and their positions, or take a picture, for reference during reassembly.
Remove the Old Switch: Depress the retaining clips or unscrew the fasteners holding the switch in place, and remove it from the door panel.
Install the New Switch: Connect the wiring harness to the new switch, ensuring the wires are in the correct positions.
Reassemble: Reinstall the switch into the door panel, secure it with the retaining clips or screws, and reassemble the door panel (if it was removed).
Reconnect the Battery: Reconnect the negative terminal of the battery.
Test: Test the new switch to ensure it's functioning correctly.

Pros and Cons of DIY Replacement

Pros:

Cost Savings: Replacing the switch yourself saves on labor costs, which can be significant.
Convenience: You can do it at your own pace, on your own schedule.
Learning Experience: You gain valuable knowledge and skills about your vehicle.

Cons:

Risk of Damage: Incorrect installation can damage the door panel, wiring, or other components.
Time Commitment: It can take several hours, especially if you're unfamiliar with the process.
Potential for Complications: Underlying electrical problems may require professional diagnosis.

Use Cases and Manufacturer Examples

Power window switch failures are common across various car manufacturers. Some examples:

Toyota: Known for reliable vehicles, but switch failures can occur due to wear and tear, especially in older models.
Honda: Similar to Toyota, switch failures are not uncommon, often affecting the master switch panel on the driver's side.
Ford: Certain Ford models have been known to have issues with moisture ingress affecting the switch contacts.
BMW: The complexity of BMW's electrical systems can sometimes lead to more intricate switch failures.

Many manufacturers offer replacement switches as individual components, making DIY repair a viable option. Aftermarket switches are also available, often at a lower cost, but quality can vary. It's generally recommended to use OEM (Original Equipment Manufacturer) parts or reputable aftermarket brands for best results.

Real-World Insights and Recommendations

Having replaced numerous power window switches over the years, a few key insights stand out:

Preventative Maintenance: Regularly cleaning the switch contacts with electrical contact cleaner can help prevent corrosion and extend the switch's lifespan.
Quality Matters: Investing in a high-quality replacement switch is crucial. Cheaper alternatives may fail prematurely, leading to repeat repairs.
Documentation is Key: Before disconnecting any wiring, take pictures or make notes of the wire positions. This will save you a headache during reassembly.
Don't Force It: If you encounter resistance when removing the door panel or switch, stop and investigate. Forcing things can lead to damage.
When to Seek Professional Help: If you're uncomfortable working with electrical systems, or if you suspect a more complex problem (e.g., a faulty window motor or wiring harness), it's best to consult a qualified mechanic.

Replacing a power window switch is a rewarding DIY project that can save you money and provide a sense of accomplishment. By understanding the system, following a systematic approach, and taking your time, you can successfully tackle this repair and keep your windows rolling smoothly.
