How To Replace Washer Fluid Pump

Is your windshield covered in grime and your washer fluid stubbornly refusing to spray? You're likely dealing with a faulty washer fluid pump. A functioning washer system is crucial for maintaining clear visibility, especially during inclement weather. Without it, you're driving with reduced visibility, increasing your risk of accidents. This article will guide you through diagnosing the problem, understanding its cause, and ultimately, replacing that faulty pump.

Symptoms of a Failing Washer Fluid Pump

Identifying a failing washer fluid pump early can save you from a potentially dangerous situation on the road. Here are the most common symptoms to watch out for:

• No washer fluid spraying: This is the most obvious symptom. You activate the windshield washer system, and absolutely nothing comes out.
• Weak or inconsistent spray: The fluid might dribble out weakly, or the spray pattern might be uneven. This could be intermittent, working sometimes and failing at others.
• Unusual noises from the pump: You might hear a buzzing, whining, or grinding sound when you activate the washer fluid system. This indicates the pump motor is struggling or failing.
• Washer fluid leaking: If you notice washer fluid pooling under your car, especially near the front, the pump housing or connections could be cracked or damaged.
• Washer fluid spraying from unexpected locations: Instead of spraying on the windshield, fluid might leak from the pump itself or the hoses.
• Blown Fuse: A short in the pump motor can cause the fuse for the washer system to blow repeatedly. Replacing the fuse only temporarily fixes the problem; it will blow again.

Understanding the Root Cause

The washer fluid pump is a small electric motor that draws fluid from the washer reservoir and pumps it through hoses to the nozzles on your hood or windshield. Several factors can contribute to its failure:

• Age and wear: Like any mechanical device, washer fluid pumps have a lifespan. Over time, the motor can wear out, bearings can seize, and internal components can degrade. This is probably the most common reason for pump failure, especially on older vehicles.
• Contamination: Debris like dirt, sediment, or even small insects can get into the washer fluid reservoir and clog the pump's intake filter or damage the pump impeller. Using low-quality washer fluid or not cleaning the reservoir regularly can accelerate this process.
• Freezing: If you live in a cold climate and use water instead of proper winter-rated washer fluid, the water can freeze inside the pump and damage it. Ice expansion puts extreme stress on the pump housing and internal components, often causing cracks and rendering it useless.
• Electrical issues: A short circuit in the wiring harness connecting to the pump can cause it to malfunction or fail completely. Corroded connectors or damaged wires can also prevent the pump from receiving the necessary power.
• Running the pump dry: Repeatedly activating the washer system when the reservoir is empty can cause the pump to overheat and damage itself. The fluid acts as a lubricant and coolant for the motor; without it, the pump motor can seize.

What Happens If You Ignore a Failing Washer Fluid Pump?

Ignoring a failing washer fluid pump might seem like a minor inconvenience, but it can have serious consequences:

• Reduced visibility: A dirty windshield significantly impairs your ability to see the road clearly, especially in rain, snow, or dusty conditions. This increases your risk of accidents.
• Safety hazard: In some states, driving with a non-functioning windshield washer system is illegal and can result in a ticket.
• Damage to windshield: Trying to clean a dirty windshield with just the wipers can scratch the glass and damage the wiper blades. The washer fluid helps to lubricate the windshield and remove debris.
• Further component damage: If the pump failure is due to debris or a clogged filter, it could potentially damage the washer fluid reservoir or the nozzles themselves.

Recommended Fixes: Replacing the Washer Fluid Pump

The most effective solution for a faulty washer fluid pump is to replace it. Here's a general outline of the replacement process:

1. Gather your tools and materials: You'll need a new washer fluid pump (ensure it's the correct one for your vehicle model and year), a socket set, screwdrivers, pliers, a drain pan, and possibly a trim removal tool. Safety glasses and gloves are also recommended.
2. Disconnect the battery: This is a crucial safety step to prevent electrical shocks or accidental activation of other systems.

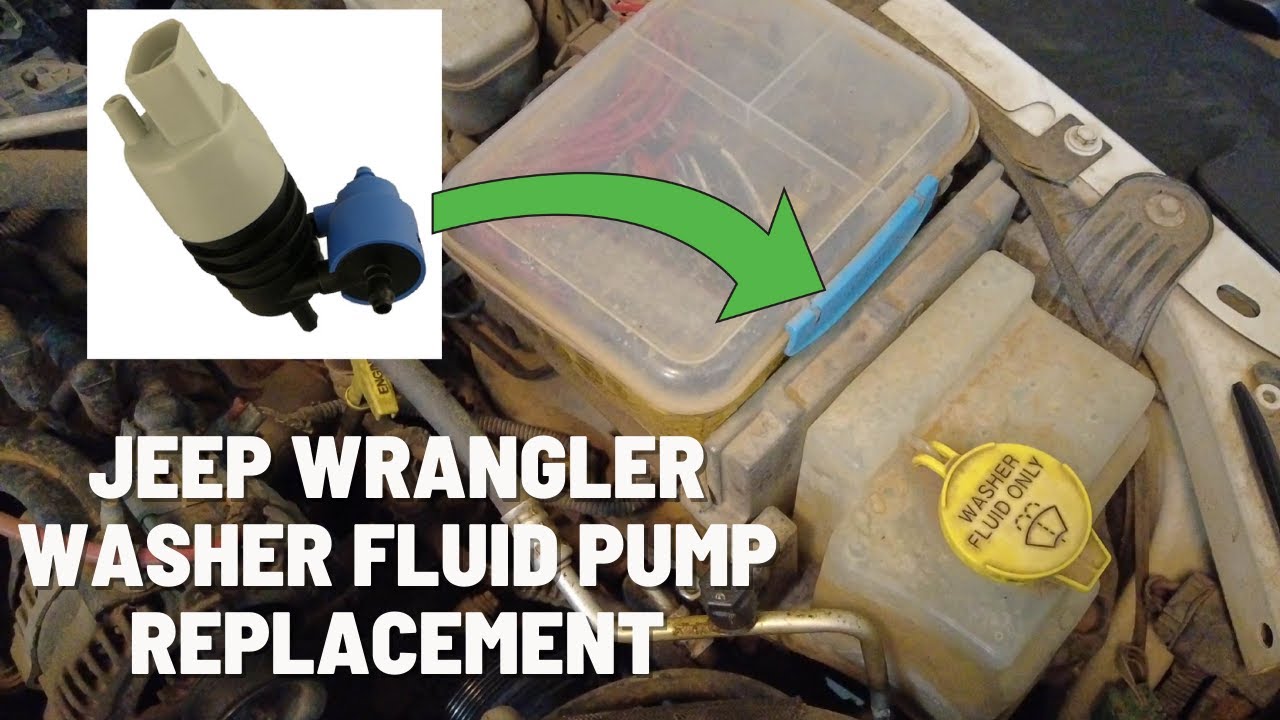

3. Locate the washer fluid reservoir and pump: The reservoir is usually located in the engine compartment, near the front of the car. The pump is typically attached to the bottom or side of the reservoir. Consult your vehicle's repair manual for the exact location.
4. Drain the washer fluid reservoir: Use a siphon or disconnect the hose at the pump and let the fluid drain into the drain pan.

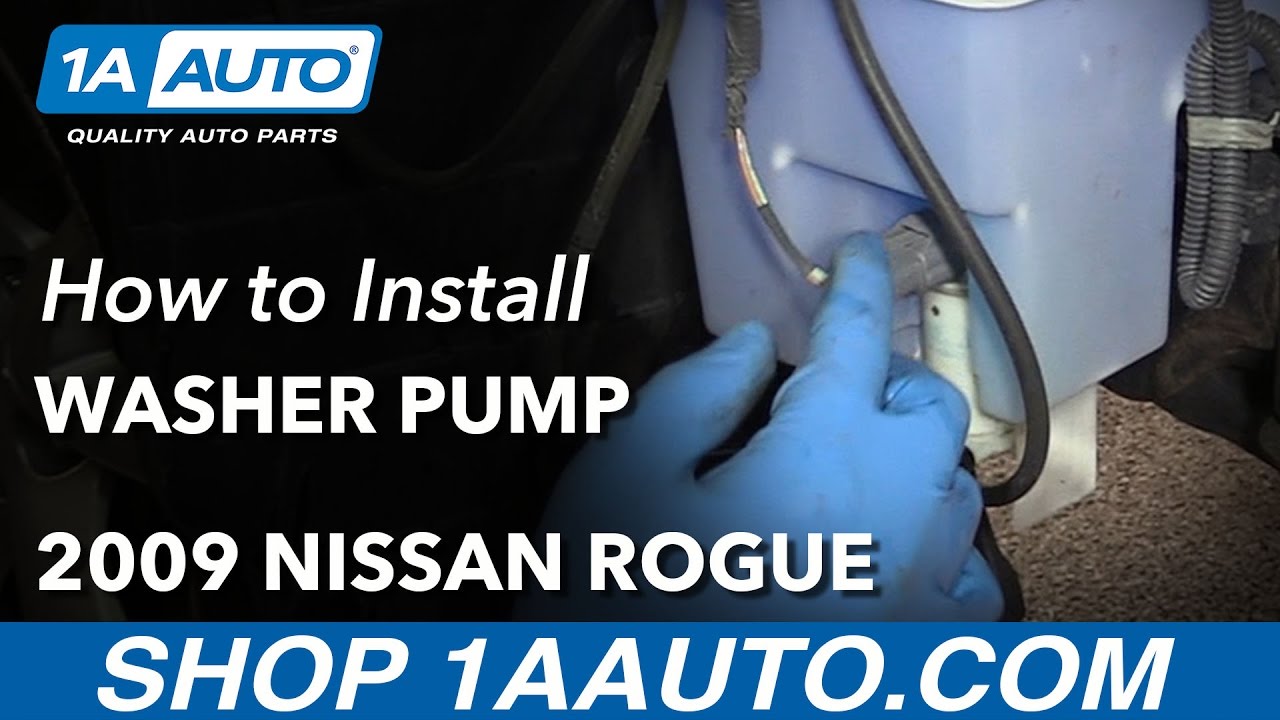

5. Disconnect the electrical connector and hoses: Carefully disconnect the electrical connector and the hoses attached to the pump. Be prepared for a small amount of residual fluid to leak out.

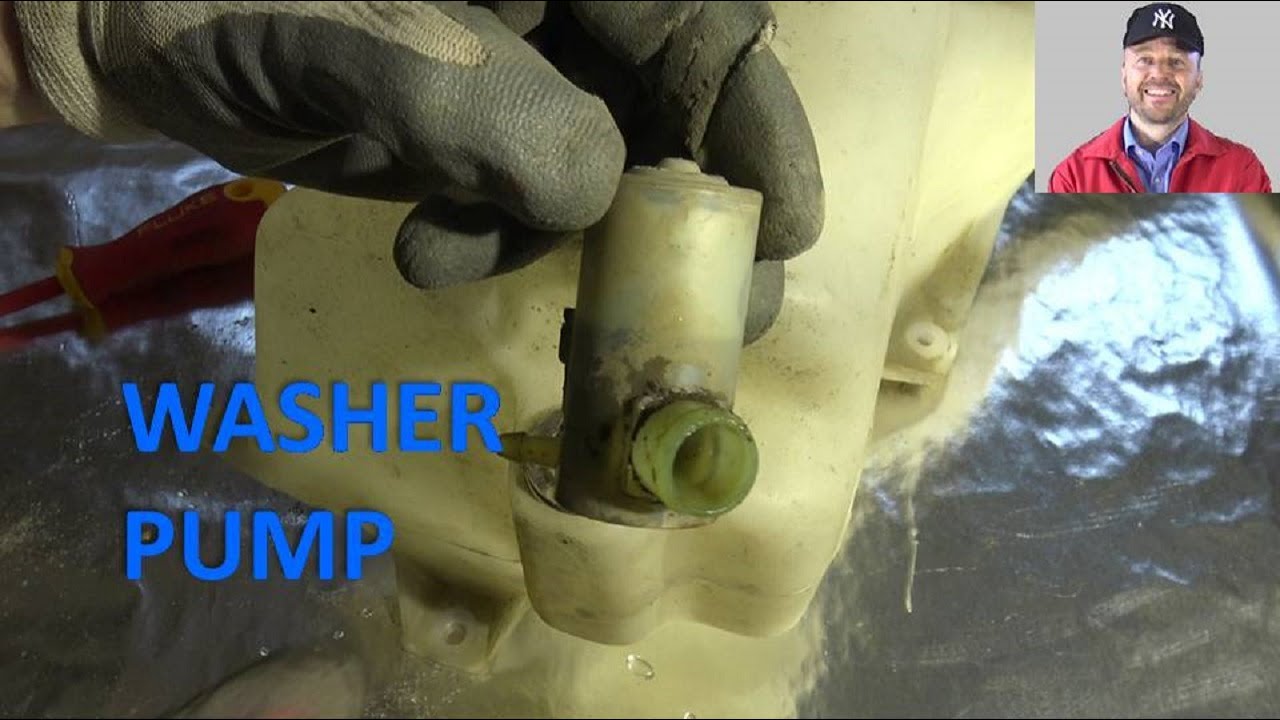

6. Remove the old pump: Depending on the vehicle, the pump might be held in place by a rubber grommet, a clip, or screws. Gently remove the pump from the reservoir.

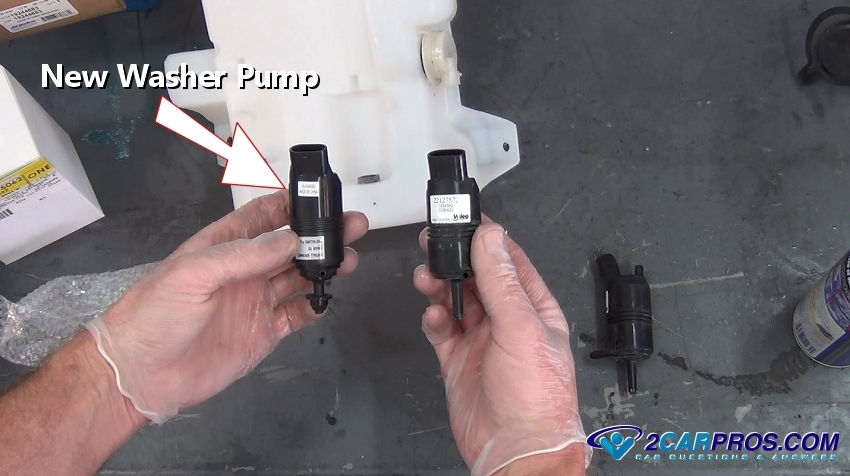

7. Install the new pump: Install the new pump in the reverse order of removal. Ensure the electrical connector and hoses are securely connected. Pay attention to hose routing to avoid kinks or restrictions.
8. Refill the washer fluid reservoir: Fill the reservoir with the appropriate washer fluid.
9. Reconnect the battery: Reconnect the battery and test the washer fluid system.
10. Test the system: Activate the windshield washer system and check for proper spray and function. Check for leaks around the pump and hose connections.

Tips for a Successful Replacement:

• Consult your vehicle's repair manual: This manual will provide specific instructions and diagrams for your vehicle model.
• Take pictures: Before disconnecting anything, take pictures of the hose and wire routing. This will help you remember how to reassemble everything correctly.
• Use penetrating oil: If any of the fasteners are rusted or corroded, use penetrating oil to loosen them before attempting to remove them.
• Be careful with plastic parts: Plastic parts can become brittle with age. Be careful not to break them when removing them.
• Replace the filter (if applicable): Some washer fluid reservoirs have a filter screen at the pump inlet. If yours does, consider replacing it when you replace the pump.

Cost Estimates and Shop Advice

The cost of replacing a washer fluid pump can vary depending on several factors:

• The make and model of your vehicle: Some vehicles have more expensive or harder-to-find parts.
• The quality of the replacement pump: Aftermarket pumps are generally less expensive than OEM (Original Equipment Manufacturer) pumps.
• Whether you DIY or hire a mechanic: Doing it yourself will save you on labor costs, but you'll need to have the necessary tools and skills.
• Labor rates in your area: Labor rates vary from shop to shop and from region to region.

DIY: If you're comfortable working on cars, replacing the washer fluid pump is a relatively straightforward task. A new washer fluid pump can cost anywhere from $20 to $100, depending on the factors mentioned above.

Professional Mechanic: If you prefer to have a mechanic do the work, expect to pay between $80 and $250 for the entire job, including parts and labor.

Shop Advice

• Get quotes from multiple shops: Compare prices and services before choosing a mechanic.
• Ask about the warranty: Make sure the shop offers a warranty on their work and the parts they use.
• Read reviews: Check online reviews to see what other customers have to say about the shop.

Credibility and Common Failure Points

While there aren't widespread recalls associated specifically with washer fluid pumps, certain vehicles are known to have more frequent issues. Online forums and repair communities are valuable resources for identifying common problems specific to your vehicle model. Searching for your car's make, model and year along with "washer fluid pump problems" can reveal if your vehicle is more prone to this type of failure.

Some manufacturers issue Technical Service Bulletins (TSBs) related to washer fluid pumps. These bulletins are released to address known issues and provide repair guidelines for technicians. Check online databases or consult with a trusted mechanic to see if any TSBs apply to your vehicle.

As for mileage, pump failures can occur at almost any point, but they are more common in vehicles with over 75,000 miles. The pump's lifespan is influenced by usage, environmental conditions, and the quality of washer fluid used.

By understanding the symptoms, causes, and solutions related to a failing washer fluid pump, you can ensure a safer and more comfortable driving experience. Don't neglect this seemingly minor component – clear visibility is paramount to safe driving!
