How To Replace Windshield Wiper Fluid Reservoir

A functional windshield wiper system is crucial for safe driving, especially in inclement weather. The windshield wiper fluid reservoir, often overlooked, is a key component of this system. Over time, these reservoirs can crack, leak, or become contaminated, necessitating replacement. This article will guide you through the process of replacing your windshield wiper fluid reservoir, offering technical insights and best practices for a successful DIY project.

Understanding the Windshield Wiper System

Before diving into the replacement procedure, let's understand the wiper system's basic operation. The system is designed to clear debris, rain, snow, and other obstructions from your windshield, ensuring optimal visibility. The core components include:

• Windshield Wiper Arms and Blades: These physically sweep across the windshield, removing obstructions.
• Wiper Motor: The electric motor that powers the wiper arms.
• Wiper Linkage: A series of mechanical arms and joints connecting the motor to the wiper arms, translating rotational motion into the sweeping action.
• Windshield Washer Pump: An electric pump that draws fluid from the reservoir and sends it to the washer nozzles.
• Washer Nozzles: Sprayers that direct the washer fluid onto the windshield.
• Windshield Wiper Fluid Reservoir: The bulk storage tank for the windshield washer fluid. This is what we'll be focusing on replacing.

The Role of the Reservoir

The windshield wiper fluid reservoir is more than just a container. It's typically made of durable plastic (polyethylene or polypropylene are common) and designed to withstand temperature fluctuations and vibrations. The reservoir usually includes a filler neck with a cap, a low-level sensor (on many modern vehicles), and an outlet for the washer pump. Some reservoirs may also have internal baffles to prevent sloshing and minimize noise.

Technical Breakdown: Reservoir Replacement

Replacing a windshield wiper fluid reservoir generally involves the following steps. Keep in mind that specific procedures may vary slightly depending on your vehicle's make and model. Always consult your vehicle's service manual for precise instructions.

1. Preparation and Safety:

   Disconnect the Battery: Before starting any electrical work on your vehicle, disconnect the negative (black) battery terminal. This prevents accidental shorts and potential electrical damage. Use a wrench to loosen the nut on the terminal clamp, then carefully remove the clamp from the terminal.

   Gather Your Tools and Supplies: You'll need:

   • New windshield wiper fluid reservoir (verify compatibility with your vehicle’s VIN)
   • Socket set and wrenches (metric or SAE, depending on your vehicle)
   • Screwdrivers (Phillips and flathead)
   • Pliers
   • Drain pan or container
   • Funnel
   • New windshield washer fluid
   • Gloves
   • Safety glasses
   • Shop towels or rags

   Locate the Reservoir: The reservoir is usually located in the engine bay, often near the fender well or under the windshield. Consult your owner's manual if you're unsure of its location.

2. Draining the Old Reservoir:

   Access the Reservoir: Depending on the vehicle, you may need to remove some components to access the reservoir. This might involve removing the inner fender liner, air intake components, or other nearby parts. Refer to your vehicle's service manual for specific instructions.

   Drain the Fluid: The easiest way to drain the reservoir is to disconnect the washer pump. Carefully detach the electrical connector from the pump. Then, disconnect the fluid hose from the pump outlet. Position the drain pan underneath the hose to catch the fluid. If the hose is difficult to remove, use pliers to gently loosen the clamp securing it.

   Alternative Drain Method: If you can't easily access the pump, you can siphon the fluid out using a length of hose. Insert one end of the hose into the reservoir and the other end into the drain pan. Create a siphon by sucking on the hose (be careful not to ingest the fluid!) until the fluid begins to flow.

3. Removing the Old Reservoir:

   Disconnect Electrical Connectors: If your reservoir has a low-level sensor, disconnect the electrical connector attached to it. Be careful not to damage the connector or wiring.

   Remove Mounting Hardware: Locate the bolts or screws securing the reservoir to the vehicle. These are usually located around the reservoir's perimeter. Use the appropriate socket or wrench to remove the hardware. Keep the hardware organized so you can easily reinstall it later.

   Detach Hoses: Disconnect any remaining hoses attached to the reservoir, such as overflow or vent hoses. Remember their original routing for reinstallation.

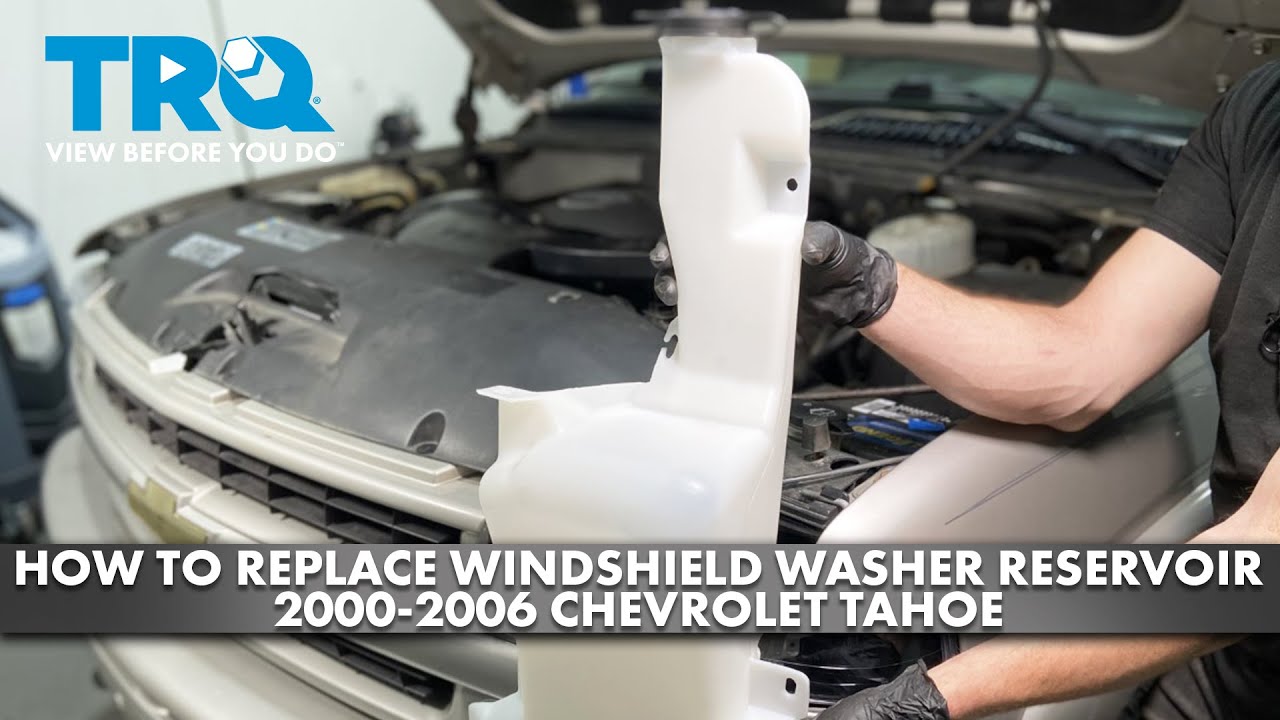

   Remove the Reservoir: Carefully lift the reservoir out of the vehicle. Maneuver it around any obstacles, taking care not to spill any remaining fluid. Inspect the old reservoir for cracks, leaks, or damage. This can help you understand why it needed replacement.

4. Installing the New Reservoir:

   Transfer Components (If Necessary): Some reservoirs may require you to transfer components from the old reservoir to the new one. This might include the low-level sensor or a rubber grommet for the washer pump. Carefully remove these components from the old reservoir and install them in the new one.

   Position the New Reservoir: Carefully place the new reservoir into its mounting location. Ensure it is properly aligned with the mounting points.

   Install Mounting Hardware: Reinstall the bolts or screws that secure the reservoir to the vehicle. Tighten them to the manufacturer's specified torque. Consult your vehicle's service manual for torque specifications. Over-tightening can damage the plastic reservoir.

   Reconnect Hoses: Reconnect all hoses to the reservoir, ensuring they are properly seated and secured with clamps if necessary. Double-check the hose routing to avoid kinks or obstructions.

   Reconnect Electrical Connectors: Reconnect the electrical connector for the low-level sensor (if equipped) and the washer pump.

5. Reinstall Components and Testing:

   Reinstall Removed Components: Reinstall any components that you removed to access the reservoir, such as the inner fender liner or air intake components. Ensure they are properly secured.

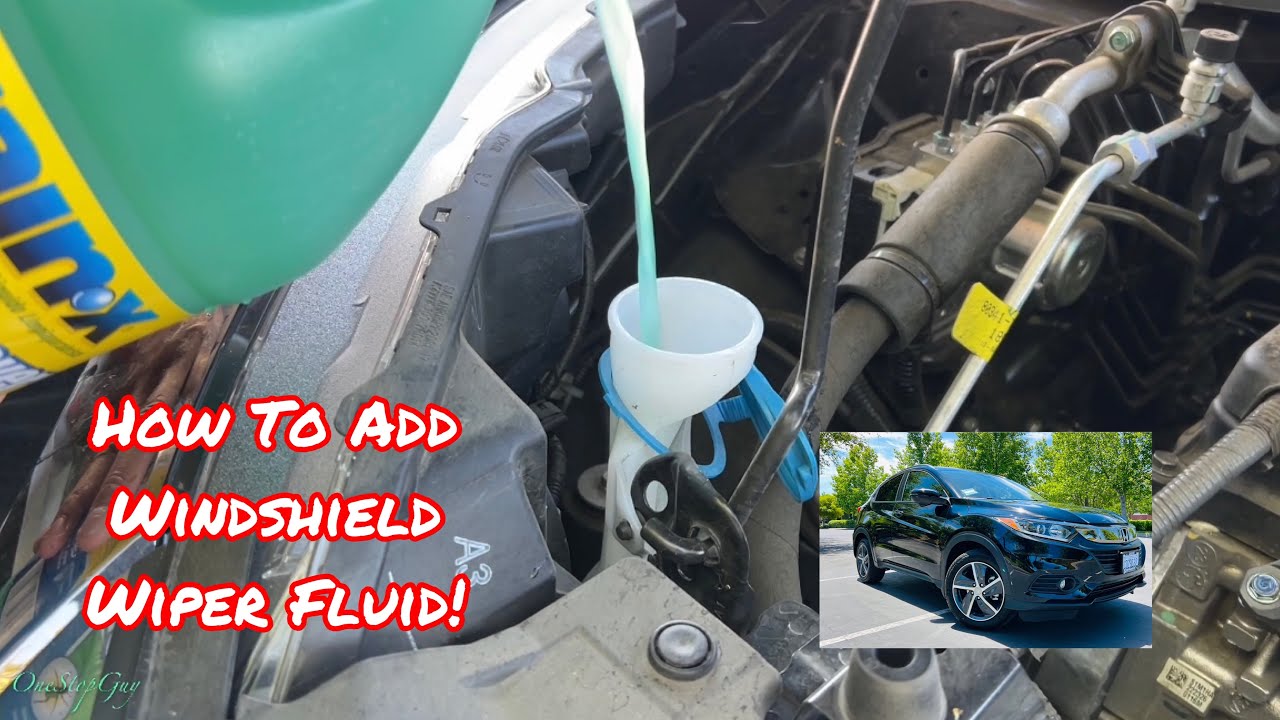

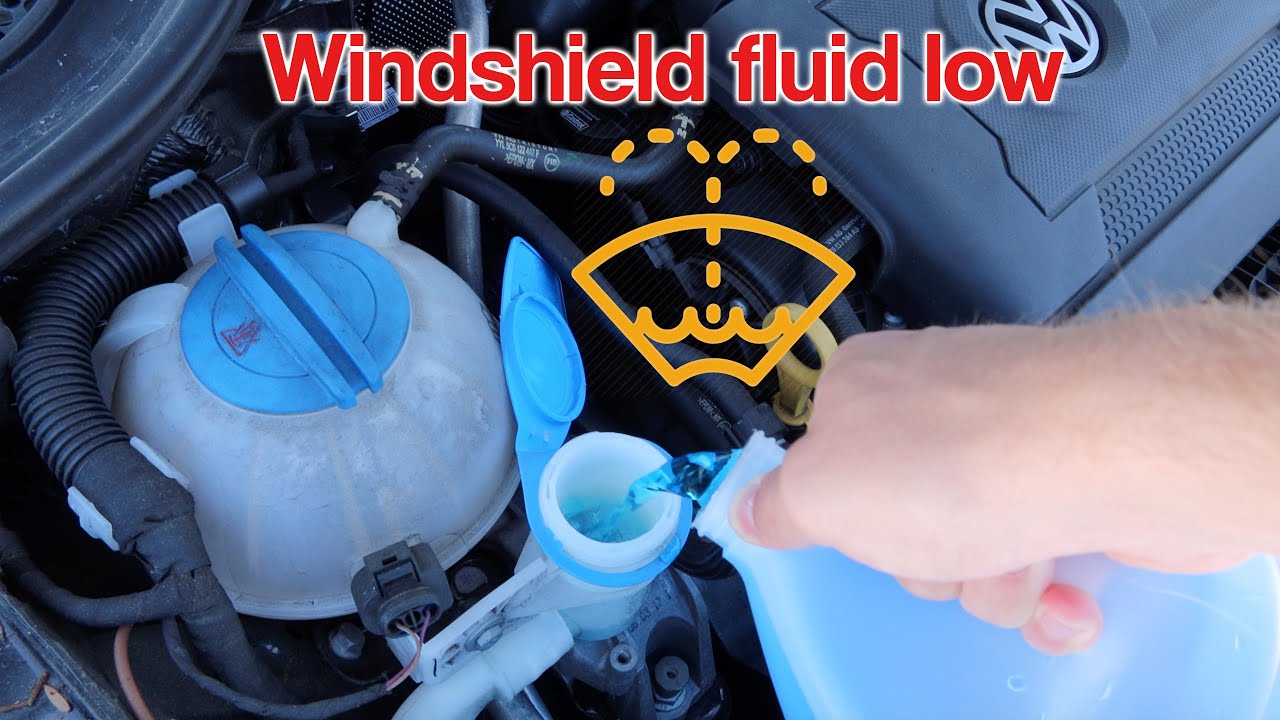

   Fill the Reservoir: Carefully pour windshield washer fluid into the reservoir using a funnel. Fill it to the "full" mark.

   Reconnect the Battery: Reconnect the negative (black) battery terminal. Tighten the nut on the terminal clamp securely.

   Test the System: Turn on the ignition and activate the windshield wipers and washer system. Observe the washer nozzles to ensure they are spraying fluid properly. Check for leaks around the reservoir and hoses.

   Adjust Nozzles (If Necessary): If the washer nozzles are not spraying the fluid in the correct location, you can adjust them using a small needle or pin. Gently insert the needle into the nozzle opening and adjust the direction of the spray.

Common Issues and Maintenance Concerns

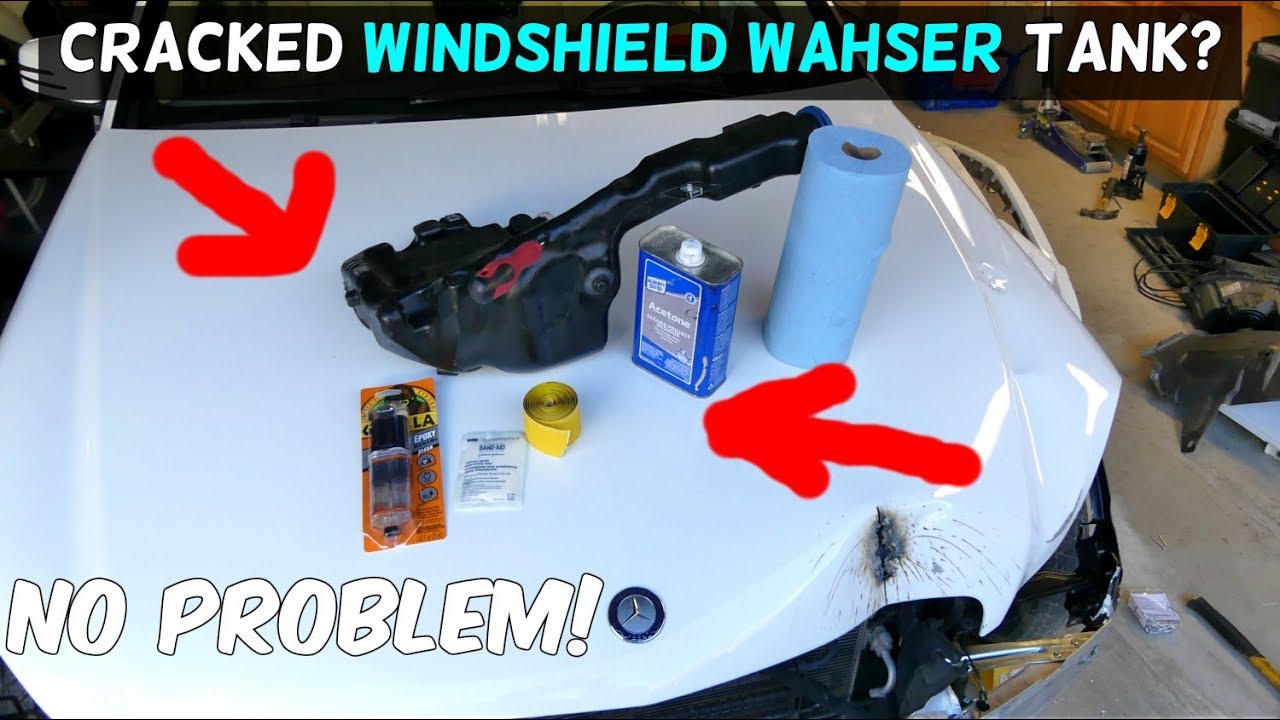

• Cracked Reservoir: Extreme temperature changes or physical impact can cause the reservoir to crack. Regularly inspect the reservoir for any signs of damage.
• Leaking Reservoir: Leaks can occur at the seams, around the pump outlet, or at hose connections. Replace damaged hoses or use sealant on leaky connections.
• Clogged Washer Nozzles: Mineral deposits or debris can clog the washer nozzles. Clean them periodically with a small needle or compressed air.
• Frozen Washer Fluid: Using the incorrect type of washer fluid in cold climates can cause it to freeze and damage the reservoir or pump. Always use a winter-rated washer fluid with a low freezing point.
• Pump Failure: A faulty washer pump will prevent fluid from being sprayed onto the windshield. Test the pump by listening for its motor when the washer system is activated. If you don't hear anything, the pump may need to be replaced.

Do's and Don'ts / Best Practices

• Do consult your vehicle's service manual for specific instructions and torque specifications.
• Do use the correct type of windshield washer fluid for your climate.
• Do wear safety glasses and gloves to protect yourself from fluid and debris.
• Do disconnect the battery before starting any electrical work.
• Don't over-tighten bolts or screws on the plastic reservoir.
• Don't use harsh chemicals or solvents to clean the reservoir.
• Don't discard old washer fluid down the drain. Dispose of it properly at a recycling center or hazardous waste facility.
• Best Practice: Take pictures throughout the process, especially before disconnecting hoses or electrical connectors. This can be helpful for reassembly.
• Best Practice: When replacing the reservoir, consider replacing the washer pump as well. They often fail around the same time.

Conclusion

Replacing a windshield wiper fluid reservoir is a relatively straightforward DIY project that can save you money compared to taking your vehicle to a mechanic. By following these steps and best practices, you can successfully replace your reservoir and ensure your windshield wiper system is functioning properly. Remember to prioritize safety, consult your vehicle's service manual, and use quality replacement parts for a reliable and long-lasting repair. If you're uncomfortable with any of these steps, it's always best to seek the assistance of a qualified mechanic. Consider checking all hoses, connections, and the pump itself before completing the job to save time and ensure the functionality of the system. Properly functioning windshield wipers are a critical safety feature, so don't delay addressing a faulty reservoir.
