How To Reset Accelerator Pedal Position Sensor

Ever noticed a sluggish throttle response or a sudden surge in power even when your foot isn't moving? These symptoms could indicate a problem with your Accelerator Pedal Position (APP) sensor. This article will guide you through the process of resetting the APP sensor, a crucial step in maintaining optimal engine performance.

Background: The Electronic Throttle Control System

To understand the APP sensor, you need to grasp the basics of modern Electronic Throttle Control (ETC) systems, often called Drive-by-Wire. Gone are the days of a direct mechanical linkage between your accelerator pedal and the throttle body. Instead, when you press the accelerator, you're not directly opening the throttle valve. You're signaling a computer – the Engine Control Unit (ECU) or Powertrain Control Module (PCM) – that you want more power. The ECU then interprets this signal and adjusts the throttle valve accordingly using an electric motor. This system allows for greater control over engine performance, fuel efficiency, and emissions.

The ETC system replaces the traditional mechanical linkage with a network of sensors and actuators. The APP sensor is a critical component in this network. It measures the position of the accelerator pedal and transmits this information to the ECU. Another key component is the Throttle Position Sensor (TPS), located on the throttle body itself. The TPS provides feedback to the ECU about the actual position of the throttle valve. The ECU constantly compares the desired throttle position (from the APP sensor) with the actual throttle position (from the TPS) and makes adjustments to the throttle motor to maintain the desired engine output.

Technical Breakdown: How the APP Sensor Works

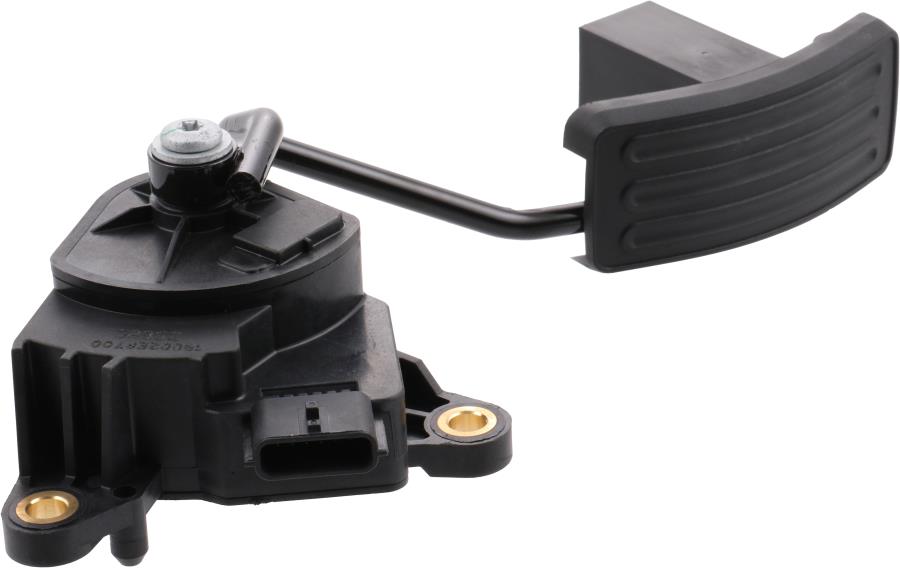

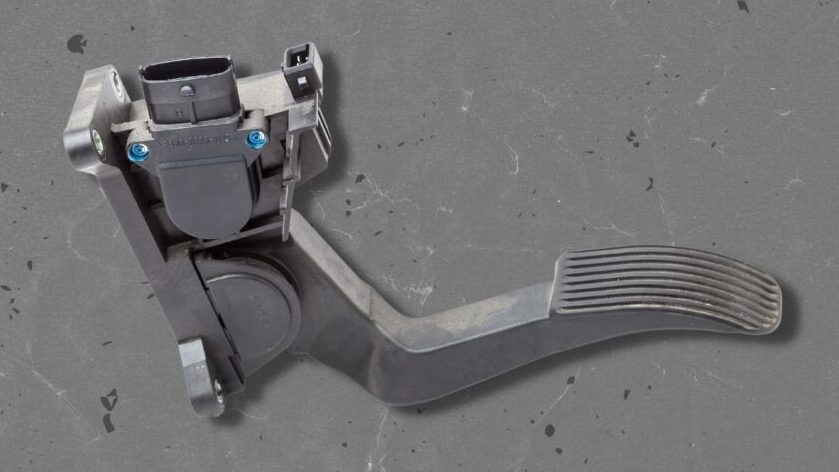

The APP sensor is essentially a sophisticated potentiometer or a pair of potentiometers. A potentiometer is a variable resistor; its resistance changes depending on the position of a wiper arm. In the context of the APP sensor, the accelerator pedal is connected to this wiper arm. As you press the pedal, the wiper arm moves, changing the resistance value. This change in resistance produces a corresponding change in voltage. The ECU reads this voltage signal and interprets it as the accelerator pedal position.

Most modern vehicles use two APP sensors for redundancy and accuracy. Having two signals allows the ECU to cross-reference them and detect any discrepancies. If the two signals deviate significantly from each other, the ECU can trigger a fault code (Diagnostic Trouble Code or DTC) and potentially enter a limp mode to prevent engine damage. The limp mode restricts engine power and speed to ensure safe operation until the problem can be addressed.

The APP sensor signal is sent to the ECU as an analog voltage. The ECU then uses an Analog-to-Digital Converter (ADC) to convert the analog voltage into a digital signal that the ECU can process. The ECU has a pre-programmed calibration map that relates the APP sensor voltage to the desired throttle position. Based on this map and other sensor inputs (like engine speed, air flow, and coolant temperature), the ECU determines how much to open or close the throttle valve.

Common Issues and Maintenance Concerns

Several factors can cause problems with the APP sensor:

Sensor Failure: Like any electronic component, the APP sensor can fail due to age, wear, or environmental factors. This can result in erratic throttle response, a lack of power, or a complete loss of throttle control.
Wiring Issues: Damaged or corroded wiring can disrupt the signal from the APP sensor to the ECU. This can cause intermittent problems or a complete sensor failure. Check for loose connections, frayed wires, and corrosion at the sensor connector and along the wiring harness.
Contamination: Dirt, debris, or moisture can interfere with the sensor's operation. Inspect the sensor for any signs of contamination and clean it if necessary. Use a specialized electrical contact cleaner.
ECU Issues: Although less common, problems with the ECU itself can also affect the APP sensor signal. If you suspect an ECU issue, consult a qualified technician.
Calibration Issues: Sometimes, the APP sensor signal can drift out of calibration. This can happen due to wear and tear, or after replacing other engine components. A reset or relearn procedure is often necessary to restore proper calibration.

Symptoms of a faulty APP sensor can include:

Hesitation or lag in throttle response
Surging or erratic acceleration
Check Engine Light (CEL) with related DTCs (e.g., P0120, P0121, P0122, P0123)
Limp mode activation
Idle speed issues

Resetting the APP Sensor: The Procedure

The process of resetting or recalibrating the APP sensor varies depending on the vehicle make and model. Some vehicles can relearn the APP sensor position automatically after a key cycle, while others require a more complex procedure using a diagnostic scan tool.

Method 1: The Key Cycle Relearn (Simple Method)

This method is suitable for some vehicles, but it's not universally applicable. It's worth trying as a first step:

Turn the ignition key to the "ON" position (do not start the engine).
Slowly depress the accelerator pedal all the way to the floor.
Hold the pedal in the fully depressed position for 5-10 seconds.
Slowly release the accelerator pedal.
Turn the ignition key to the "OFF" position.
Wait for 10-15 seconds.
Start the engine and observe the throttle response.

If the throttle response is still problematic, you'll need to use a diagnostic scan tool.

Method 2: Using a Diagnostic Scan Tool (Advanced Method)

This method requires a diagnostic scan tool capable of reading and writing data to the ECU. Many aftermarket scan tools offer this functionality.

Connect the scan tool to the vehicle's OBD-II port (usually located under the dashboard).
Turn the ignition key to the "ON" position (do not start the engine).
Navigate the scan tool's menu to the Engine Control Module (ECM) or Powertrain Control Module (PCM).
Look for a function labeled "Throttle Position Sensor Reset," "Accelerator Pedal Position Sensor Relearn," or similar. The exact wording will vary depending on the scan tool and vehicle.
Follow the on-screen instructions provided by the scan tool. These instructions will typically involve a series of steps, such as depressing and releasing the accelerator pedal in a specific sequence.
Once the relearn procedure is complete, clear any Diagnostic Trouble Codes (DTCs) related to the APP sensor.
Start the engine and observe the throttle response.

Important Note: Always refer to the vehicle's service manual or the scan tool's documentation for specific instructions on performing the APP sensor reset procedure. Incorrect procedures can damage the ECU or lead to further problems.

Do's and Don'ts / Best Practices

DO consult your vehicle's service manual for specific instructions and torque specifications.
DO disconnect the negative battery terminal before working on any electrical components. This helps prevent accidental shorts and damage to the electrical system.
DO use a high-quality diagnostic scan tool with the appropriate software for your vehicle.
DO inspect the wiring and connectors for any signs of damage or corrosion. Clean or repair as necessary.
DO use dielectric grease on electrical connections to prevent corrosion.
DON'T force any connectors or components. If something doesn't fit easily, double-check that you have the correct part and alignment.
DON'T use excessive force when tightening bolts or screws. Overtightening can damage the components.
DON'T ignore warning signs such as a Check Engine Light or erratic throttle response. Address these issues promptly to prevent further damage.
DON'T attempt to reset the APP sensor without understanding the procedure and having the necessary tools.
Best Practice: Before replacing the APP sensor, always check the wiring and connectors first. Often, a simple wiring issue can mimic the symptoms of a faulty sensor.

Conclusion

Resetting the Accelerator Pedal Position sensor can often resolve throttle response issues and restore your vehicle's performance. While a simple key cycle relearn might work in some cases, using a diagnostic scan tool is the more reliable and accurate method. If you're comfortable with basic automotive repair and have access to a suitable scan tool, you can likely perform this procedure yourself. However, if you're unsure or uncomfortable, it's always best to consult a qualified mechanic. Addressing APP sensor issues promptly can prevent more serious problems and ensure a safe and enjoyable driving experience. If the reset doesn't work or the problem returns quickly, it's likely the APP sensor is faulty and needs replacement. Always use a quality replacement part from a reputable supplier.
