How To Reset Accelerator Pedal Sensor

The dreaded check engine light illuminates on your dashboard, accompanied by a noticeable lag when you press the accelerator. It's a frustrating experience, often hinting at a problem within your vehicle's complex electronic control system. One potential culprit? A malfunctioning or miscalibrated accelerator pedal sensor (APS), also sometimes referred to as the throttle position sensor (TPS) although technically they are separate on modern drive-by-wire systems. But, what exactly is this sensor, why does it sometimes need resetting, and how can you tackle the process yourself?

Understanding the Need for APS Reset: The Scenario

Imagine you're adjusting the volume on a modern digital amplifier. You turn the knob, but the sound either jumps erratically or doesn't respond linearly. This is similar to what happens when an APS isn't calibrated correctly. The engine control unit (ECU), the brain of your car's powertrain, interprets the signal from the APS as the driver's intent. If the sensor's readings are skewed, the ECU might misinterpret a slight pedal press as a full-throttle request, or vice versa. This leads to poor acceleration, jerky throttle response, and potential safety concerns. A reset, in essence, recalibrates the sensor, ensuring the ECU receives accurate information about your foot's position on the accelerator.

Several situations can necessitate an APS reset:

• Sensor Replacement: After replacing the APS, the ECU needs to learn the new sensor's specific range of values.
• ECU Reset or Battery Disconnection: Disconnecting the battery or resetting the ECU can sometimes erase the APS calibration data.
• Throttle Body Cleaning: Cleaning the throttle body (where the accelerator pedal system ultimately controls airflow) can alter the air-fuel mixture slightly, necessitating a sensor recalibration.
• Software Updates: Some software updates to the ECU can require an APS reset for optimal performance.

How the Accelerator Pedal System Works: A Deep Dive

Modern vehicles primarily use a drive-by-wire system, meaning there's no direct mechanical linkage between the accelerator pedal and the throttle plate. Instead, the APS, typically a potentiometer or a hall-effect sensor, measures the pedal's position. This data is transmitted as an electrical signal to the ECU. Here's a breakdown:

Mechanical Components

• Accelerator Pedal: The physical pedal you press.

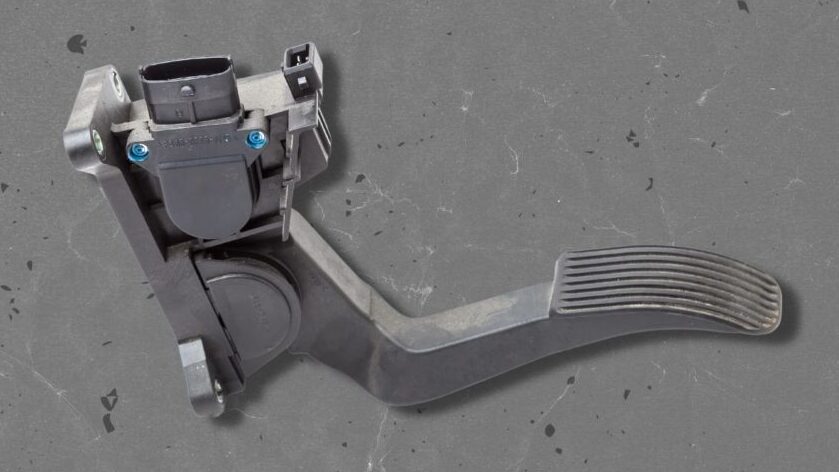

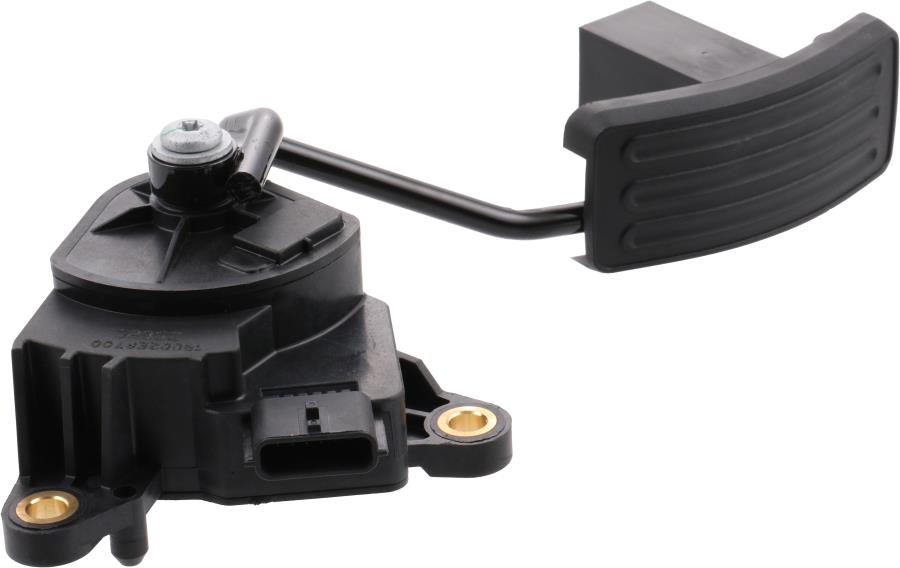

• APS (Accelerator Pedal Sensor): Located near the pedal assembly, this sensor translates pedal position into an electrical signal.
• Throttle Body: Houses the throttle plate, which controls airflow into the engine.
• Throttle Actuator: An electric motor that opens and closes the throttle plate based on the ECU's commands.

Electronic Components

• ECU (Engine Control Unit): The central computer that receives input from the APS and other sensors, and controls the throttle actuator, fuel injectors, and ignition timing.
• Wiring Harness: Connects the APS to the ECU, transmitting the electrical signal.

The Process

1. You press the accelerator pedal.
2. The APS detects the pedal's position and generates a corresponding voltage signal.
3. The signal is sent to the ECU.
4. The ECU analyzes the signal, along with data from other sensors (e.g., engine speed, air temperature), to determine the desired throttle opening.
5. The ECU sends a signal to the throttle actuator to open or close the throttle plate accordingly.
6. More air enters the engine, allowing for more fuel injection and increased power output.

The APS typically uses either a potentiometer or a hall-effect sensor. A potentiometer APS consists of a resistive element and a wiper arm that moves along the element as the pedal is pressed. The wiper's position determines the resistance, and the ECU measures the voltage drop to determine pedal position. A hall-effect sensor uses a magnetic field and a semiconductor to detect the pedal's position without physical contact, making it more durable and reliable. However, both types serve the same purpose: to translate mechanical input (pedal position) into an electrical signal the ECU can understand.

APS Reset Procedures: Methods and Considerations

There are several methods for resetting the APS, ranging from simple manual procedures to sophisticated diagnostic tools. The best method depends on your vehicle's make, model, and year.

1. Manual Reset (Throttle Relearn)

This method involves a specific sequence of steps, usually involving turning the ignition on and off in a precise manner, without starting the engine, and pressing the accelerator pedal in a certain sequence. This method is highly vehicle-specific, and the correct procedure can typically be found in the vehicle's owner's manual or online forums dedicated to your car model. Example:

1. Turn the ignition to the "ON" position (without starting the engine).
2. Wait for approximately 3 seconds.
3. Fully depress the accelerator pedal slowly and smoothly.
4. Release the accelerator pedal slowly and smoothly.
5. Turn the ignition to the "OFF" position.
6. Wait for a few seconds.
7. Start the engine and test the throttle response.

Pros: No special tools required, can be done at home.

Cons: Procedure is vehicle-specific, may not be effective on all vehicles, risk of performing the procedure incorrectly.

2. Scan Tool Reset

Many OBD-II scan tools, especially those designed for advanced diagnostics, offer an APS reset function. This method allows you to directly communicate with the ECU and initiate the reset procedure. Example scan tool brands include Snap-on, Autel, and Launch.

1. Connect the scan tool to the OBD-II port.
2. Turn the ignition to the "ON" position (without starting the engine).
3. Navigate to the "Throttle Relearn," "Accelerator Pedal Reset," or similar function in the scan tool's menu.
4. Follow the on-screen instructions provided by the scan tool.

Pros: More reliable than manual methods, simplifies the process, provides feedback and error codes.

Cons: Requires a scan tool, can be more expensive than manual methods.

3. Dealership Programming

For some vehicles, particularly newer models with complex electronic systems, the APS reset may require specialized software and diagnostic tools only available at a dealership. This is often the case when the ECU needs to be reprogrammed or reflashed.

Pros: Ensures the reset is performed correctly, access to manufacturer-specific diagnostic information.

Cons: Most expensive option, requires a visit to the dealership.

Pros and Cons of Resetting the APS

Pros:

• Improved throttle response and acceleration.
• Smoother gear shifts (in automatic transmissions).
• Reduced engine hesitation or stalling.
• Elimination of check engine lights related to APS issues.
• Potentially improved fuel economy.

Cons:

• Incorrect reset procedure can worsen the problem.
• May not fix the underlying issue if the sensor is faulty.
• Requires some technical knowledge and careful execution.
• Can be time-consuming to troubleshoot and perform the reset.

Use Cases and Manufacturer Examples

APS reset procedures are commonly encountered in various vehicle brands and models. Here are a few examples:

• Nissan/Infiniti: Known for requiring a specific throttle relearn procedure after battery disconnection or throttle body cleaning.
• GM (Chevrolet, GMC, Buick, Cadillac): Some GM vehicles require a scan tool for proper APS calibration.
• Ford: Many Ford models have a relatively straightforward manual reset procedure.
• BMW: Often requires a scan tool with advanced programming capabilities for APS reset.

Each manufacturer often has its own specific procedures and recommended tools for APS reset. Always consult your vehicle's service manual or a reputable online resource for accurate instructions.

Real-World Insights and Recommendations

Before attempting an APS reset, it's crucial to diagnose the root cause of the problem. A check engine light related to the APS could indicate a faulty sensor, a wiring issue, or a problem with the throttle body itself. Use an OBD-II scanner to retrieve the trouble codes and research the possible causes before proceeding with a reset. If the code reappears immediately after the reset, it's likely that the sensor is failing and needs replacement. If the problem persists even after replacing the sensor and performing a reset, it is a strong indication that the problem lies elsewhere.

When performing a manual reset, follow the instructions precisely and double-check your steps. Incorrectly executed procedures can sometimes lead to further complications, such as rendering the engine unable to start. If you are unsure about any step, it's best to consult a qualified mechanic or use a scan tool with a built-in reset function.

In conclusion, resetting the accelerator pedal sensor can be a helpful solution for resolving throttle response issues and eliminating check engine lights related to APS calibration. However, it's essential to understand the underlying principles of the system, choose the appropriate reset method, and proceed with caution. When in doubt, professional assistance is always recommended to ensure proper diagnosis and repair.
