How To Reset Body Control Module

The modern automobile is a marvel of engineering, a complex symphony of interconnected systems working in harmony. At the heart of this orchestra sits the Body Control Module (BCM), a vital component responsible for managing a vast array of functions that contribute to your driving experience and comfort. But what happens when things go awry? What if your power windows suddenly refuse to roll down, your interior lights flicker erratically, or your remote key fob becomes unresponsive? More often than not, the BCM might be the culprit, and a reset could be the solution. This article delves into the intricacies of resetting a BCM, providing you with a comprehensive understanding of the process, its benefits, and its limitations.

Understanding the Need for a BCM Reset

Imagine your computer starts acting up – applications freeze, the mouse cursor jumps around erratically, and the whole system grinds to a halt. What's your first instinct? A reboot, right? A BCM reset is, in essence, the automotive equivalent of rebooting your computer. The BCM, like any computer, is susceptible to glitches, errors, and corrupt data that can disrupt its normal operation. These anomalies can manifest in a variety of ways, from minor inconveniences to significant functional failures.

Here's a scenario: You're driving home on a rainy night, and suddenly your windshield wipers stop working. You check the fuses, but they're all fine. The problem could lie within the BCM, where a temporary software glitch is preventing it from sending the correct signal to the wiper motor. A reset might clear this glitch, restoring your wipers and averting a potentially dangerous situation.

The Mechanical Underpinnings of the BCM

The BCM is essentially a sophisticated microcontroller that acts as a central hub for various body-related electrical systems. It receives input from numerous sensors and switches throughout the vehicle, processes this information, and then sends output signals to control actuators, relays, and other devices. These systems include, but are not limited to:

Lighting: Headlights, taillights, turn signals, interior lights, and ambient lighting.
Power Accessories: Power windows, power locks, power mirrors, and sunroof.
Security System: Anti-theft alarm, remote keyless entry, and immobilizer.
Wipers and Washers: Windshield wipers, rear window wipers, and washer pumps.
Central Locking System: Controls the door locks based on the key fob or interior switch.
Instrument Panel: Displays information such as speed, fuel level, and warning lights.
HVAC System (in some vehicles): Integration with the heating, ventilation, and air conditioning system.

The BCM utilizes a network of sensors and actuators. Sensors measure various parameters, such as door switch status (open or closed), light switch position (on or off), and key fob signals. Actuators, such as relays and motors, respond to the BCM's commands. For instance, when you press the power window switch, the BCM receives this input, verifies the system is enabled, and then sends a signal to the window motor relay, activating the motor and lowering the window.

The BCM's internal memory stores various configuration settings, diagnostic trouble codes (DTCs), and software programs. When a fault occurs, the BCM may store a DTC, which can be retrieved using a diagnostic scan tool. A reset effectively clears this volatile memory (RAM) and can sometimes resolve software glitches that cause malfunctions.

Methods for Resetting the BCM

There are several methods to reset a BCM, each with its own level of complexity and effectiveness:

1. Battery Disconnect Method (The Simplest Approach)

This is the most basic and widely used method. Disconnecting the negative battery cable interrupts the power supply to the BCM, effectively forcing it to reboot when power is restored.

Procedure:

Locate the negative terminal of your car battery.
Using a wrench, carefully disconnect the negative battery cable.
Wait for 10-15 minutes to allow the BCM to fully discharge. This is crucial for a complete reset. Some manufacturers recommend waiting up to 30 minutes.
Reconnect the negative battery cable, ensuring it's securely tightened.

Pros: Simple, requires no special tools, and is often effective for minor glitches.

Cons: May erase radio presets and other stored settings. Not always effective for more complex issues. It's crucial to follow the correct disconnecting and reconnecting order to avoid electrical spikes.

2. Using a Diagnostic Scan Tool (The Professional Approach)

Diagnostic scan tools, also known as OBD-II scanners, offer a more sophisticated method for resetting the BCM. Many advanced scanners have the capability to communicate directly with the BCM and initiate a reset procedure.

Procedure:

Connect the scan tool to the OBD-II port of your vehicle.
Turn on the ignition switch to the "ON" position (without starting the engine).
Navigate to the BCM section of the scan tool's menu.
Look for options such as "Reset BCM," "Clear DTCs," or "Module Initialization."
Follow the on-screen instructions to complete the reset process.

Pros: More targeted and effective than the battery disconnect method. Can often clear DTCs and re-initialize the BCM. Allows for diagnostic information to be gathered before and after the reset.

Cons: Requires a diagnostic scan tool, which can be expensive. Requires some familiarity with automotive diagnostic procedures.

3. Using Manufacturer-Specific Procedures (The Advanced Approach)

Some manufacturers have specific procedures for resetting the BCM that involve a combination of key sequences, button presses, and other actions. These procedures are typically outlined in the vehicle's owner's manual or service manual.

Procedure:

Consult your vehicle's owner's manual or service manual for the specific BCM reset procedure.
Follow the instructions precisely. These procedures can vary significantly between different makes and models.

Pros: Can be very effective for certain types of BCM issues. May not require any special tools.

Cons: Requires access to the vehicle's owner's manual or service manual. The procedure can be complex and difficult to execute correctly.

Pros and Cons of Resetting the BCM

Pros:

Can resolve minor electrical glitches and malfunctions.
May restore functionality to malfunctioning systems, such as power windows, locks, and lights.
Can clear DTCs and improve overall vehicle performance.
Potentially saves money by avoiding costly repairs.

Cons:

May not be effective for all types of BCM issues. Hardware failures or deeply rooted software problems may require professional repair or replacement.
Can erase stored settings, such as radio presets, seat positions, and navigation settings.
In rare cases, a reset can exacerbate existing problems or create new ones.
May require specialized tools and knowledge.

Use Cases and Manufacturer Examples

Use Cases:

Power windows or locks not working.
Interior or exterior lights flickering or not functioning correctly.
Remote key fob unresponsive.
Anti-theft alarm malfunctioning.
Instrument panel errors.

Manufacturer Examples:

General Motors: GM vehicles often exhibit BCM-related issues with power windows and door locks. A battery disconnect reset is often the first step in troubleshooting these problems.

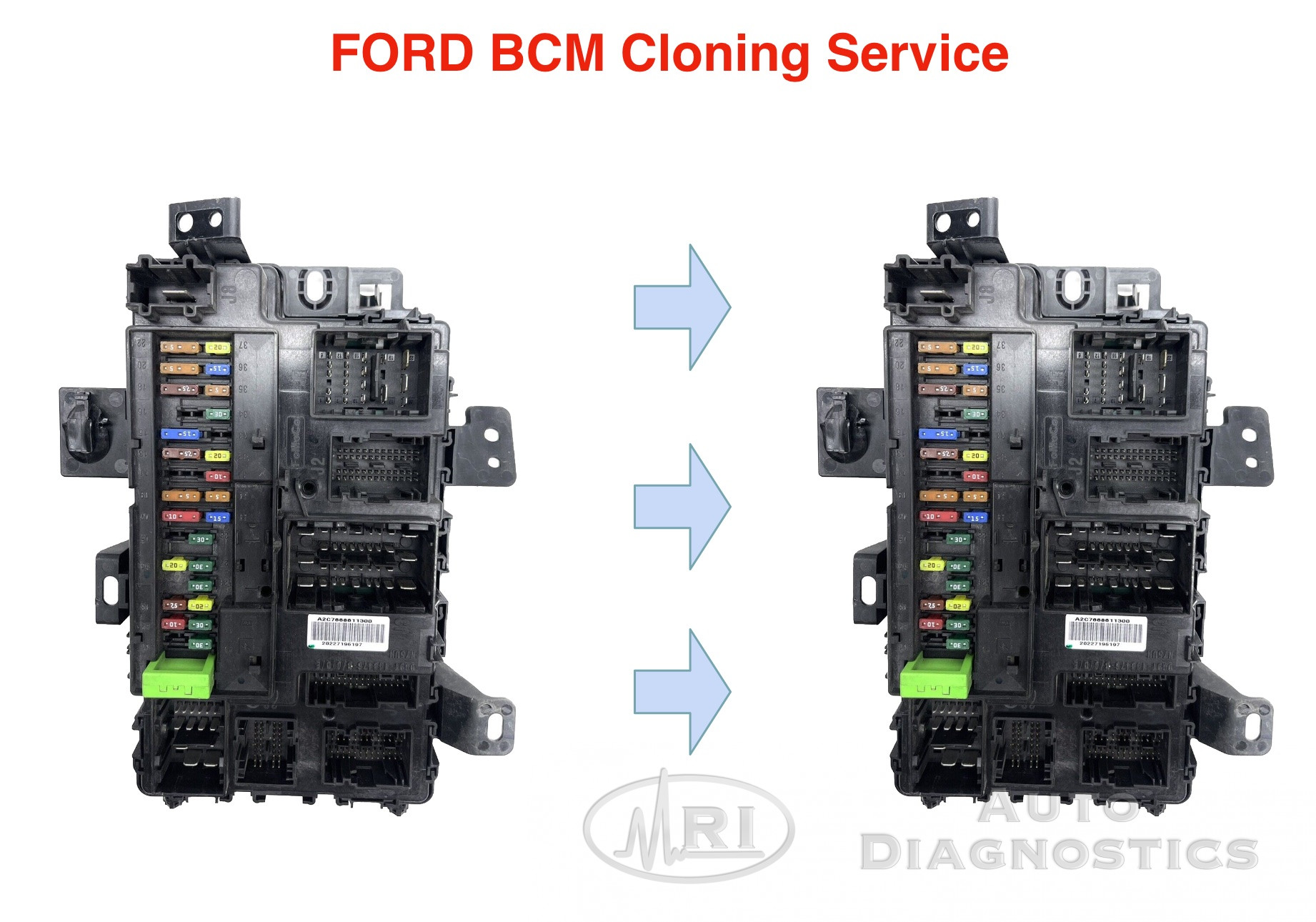

Ford: Ford vehicles may experience BCM issues related to the anti-theft system and remote keyless entry. A diagnostic scan tool is often required to properly diagnose and reset the BCM.
Toyota: Toyota vehicles are generally reliable, but BCM issues can occur related to lighting and security systems. Manufacturer-specific reset procedures may be available.

Insights and Recommendations

Resetting the BCM can be a valuable troubleshooting step, but it's important to approach it with caution and a clear understanding of the potential risks and benefits. If you're experiencing electrical issues with your vehicle, start by checking the fuses and relays related to the affected systems. If the fuses are good, a BCM reset may be worth trying.

Begin with the simplest method – the battery disconnect. If this doesn't resolve the issue, consider using a diagnostic scan tool to gather more information and attempt a more targeted reset. If you're not comfortable working on your vehicle's electrical system, or if the problem persists after attempting a reset, it's best to consult a qualified automotive technician.

Always remember to consult your vehicle's owner's manual or service manual for specific information about the BCM and its reset procedures. Following the manufacturer's recommendations can help you avoid damaging the BCM or other electrical components.

In conclusion, understanding the BCM and its functions allows you to be more proactive in diagnosing and addressing common electrical issues. While a reset can often provide a quick fix, it's essential to recognize its limitations and seek professional help when necessary. By combining knowledge, caution, and the right tools, you can effectively troubleshoot and maintain your vehicle's complex electrical systems.
