How To Reset Electronic Control Module

The dreaded check engine light. It's a beacon of potential doom, a symbol of impending repair bills, and often, a complete mystery. While sometimes it signals a serious mechanical fault, more often than not, it's triggered by something relatively minor, a blip in the complex electronic symphony that controls your modern vehicle. In many cases, a simple reset of the Electronic Control Module (ECM), also known as the Powertrain Control Module (PCM) in some vehicles, can clear the code and get you back on the road. But how exactly does this "reset" work, and is it something you can safely do yourself?

The Problem: Transient Errors and the Check Engine Light

Imagine your car's engine as a highly sensitive athlete. It needs precise inputs and outputs to perform optimally. Sensors constantly monitor things like air intake, fuel pressure, engine temperature, and exhaust composition. These sensors feed information to the ECM, which acts as the brain, adjusting parameters like fuel injection, ignition timing, and even transmission shifts to ensure smooth and efficient operation. Now, picture that athlete occasionally stumbling during a race. They might recover instantly, but a watchful coach might still make note of the stumble, just in case. The ECM does something similar.

A transient error is a temporary glitch, a fleeting anomaly that doesn't necessarily indicate a permanent problem. For example, a momentary drop in battery voltage during a cold start, a slight misfire due to a piece of debris momentarily obstructing a fuel injector, or a faulty sensor reading caused by electromagnetic interference. These events can trigger a Diagnostic Trouble Code (DTC) and illuminate the check engine light. The ECM stores these codes, even if the underlying issue has resolved itself. While the car might be running perfectly fine, the light remains, a constant reminder of a past event.

In many instances, clearing these stored codes via an ECM reset can resolve the issue, at least temporarily. However, it's crucial to understand why the code appeared in the first place. A reset shouldn't be a substitute for proper diagnosis and repair if a genuine problem exists.

How the ECM Works: A Deep Dive

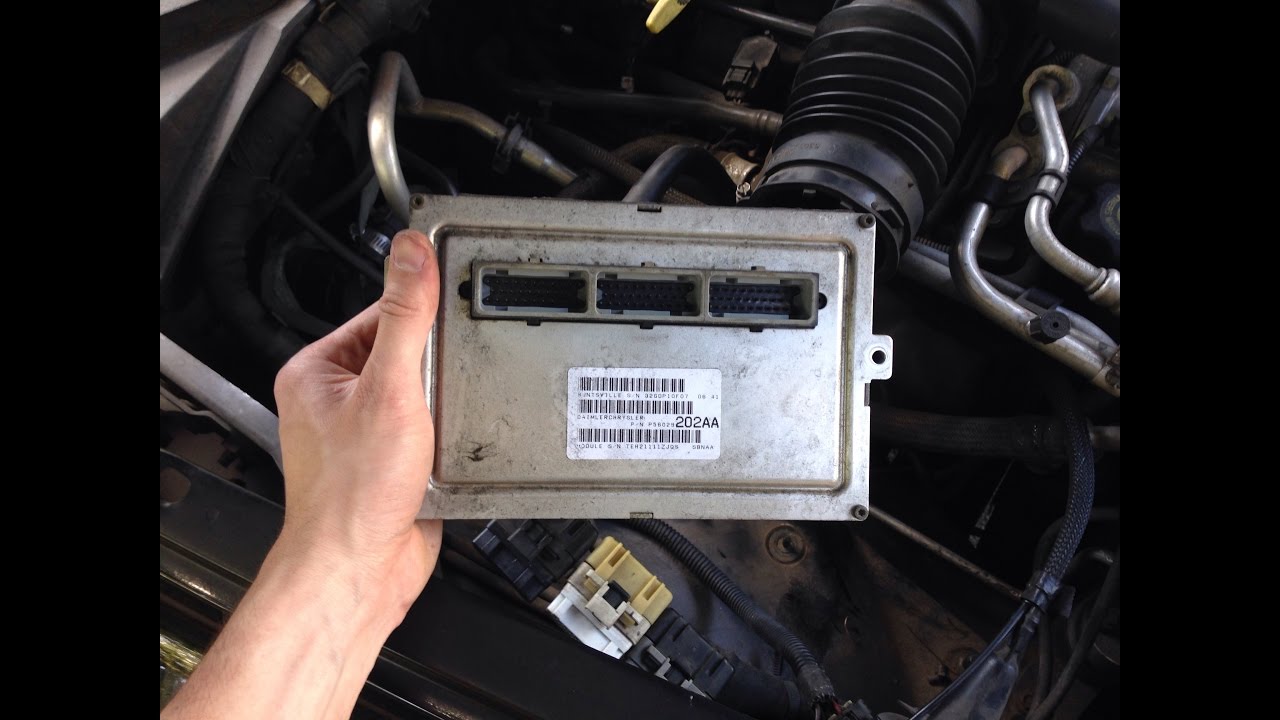

The ECM is essentially a specialized computer responsible for managing almost every aspect of your vehicle's powertrain. It's built around a microprocessor, memory chips (ROM, RAM, EEPROM), and input/output interfaces. Here's a simplified breakdown:

Sensors: These are the ECM's eyes and ears. They convert physical parameters into electrical signals. Examples include:
- Mass Airflow (MAF) Sensor: Measures the amount of air entering the engine.
- Oxygen (O2) Sensors: Monitor the oxygen content in the exhaust.
- Crankshaft Position Sensor: Determines the engine's rotational speed and position.
- Throttle Position Sensor (TPS): Indicates how far the throttle is open.
- Engine Coolant Temperature (ECT) Sensor: Measures the engine's temperature.
Microprocessor: The "brain" of the ECM. It receives signals from the sensors, processes the data, and makes decisions based on pre-programmed algorithms (maps or tables) stored in memory.
Memory:
- ROM (Read-Only Memory): Contains the permanent operating system and calibration data specific to the vehicle model.
- RAM (Random Access Memory): Used for temporary storage of data during operation.
- EEPROM (Electrically Erasable Programmable Read-Only Memory): Stores learned data, such as fuel trim adjustments and diagnostic trouble codes. This is the key area we're concerned with when resetting the ECM.
Actuators: These are the ECM's "hands." They execute the commands issued by the microprocessor. Examples include:
- Fuel Injectors: Control the amount of fuel injected into the engine.
- Ignition Coils: Generate the spark that ignites the air-fuel mixture.
- Idle Air Control (IAC) Valve: Regulates the engine's idle speed.
- Electronic Throttle Control (ETC): Controls the throttle plate electronically.

When a sensor reading falls outside of the acceptable range, or the ECM detects a malfunction in an actuator, it triggers a DTC and stores it in the EEPROM. The check engine light is then illuminated to alert the driver. Resetting the ECM essentially clears the DTCs stored in the EEPROM.

Methods for Resetting the ECM

There are several ways to reset an ECM, each with its own pros and cons:

1. Disconnecting the Battery:

This is the simplest and most common method. By disconnecting the negative battery terminal, you cut off the power supply to the ECM, effectively forcing it to reset. The process typically involves:

Locating the negative battery terminal (usually marked with a "-" symbol).
Loosening the nut or clamp securing the cable to the terminal.
Carefully disconnecting the cable and isolating it from the terminal to prevent accidental contact.
Waiting for a period of time (typically 15-30 minutes) to allow the ECM to completely discharge. Some sources recommend longer, even overnight, for older vehicles.
Reconnecting the cable to the negative terminal and tightening the nut or clamp.

Pros: Simple, requires no special tools.

Cons: Can erase other learned settings, such as radio presets, seat memory positions, and adaptive transmission settings. May require re-entering security codes for the radio. Some newer vehicles have complex electronics that can be disrupted by power loss. On some vehicles, this method is ineffective.

2. Using an OBD-II Scanner:

An OBD-II (On-Board Diagnostics II) scanner is a diagnostic tool that plugs into your vehicle's OBD-II port, typically located under the dashboard. These scanners can read and clear DTCs, as well as monitor live data from the ECM.

Plug the OBD-II scanner into the diagnostic port.
Turn the ignition key to the "on" position (without starting the engine).
Navigate the scanner's menu to find the "Read Codes" or "Diagnostic Trouble Codes" option.
Note down any DTCs that are displayed. This is important for future reference.
Select the "Clear Codes" or "Erase Codes" option.
Confirm the action when prompted.
Turn off the ignition and unplug the scanner.

Pros: Targeted reset, clears only DTCs, avoids erasing other settings. Can also read and diagnose codes to identify the underlying problem.

Cons: Requires an OBD-II scanner, which can range in price from inexpensive handheld units to professional-grade tools. Requires some knowledge of interpreting DTCs.

3. Using a Specialized Scan Tool/Programmer:

Advanced tools, often used by professional mechanics, offer a greater range of functions beyond just clearing codes. They may allow for re-flashing the ECM with updated software, adjusting specific parameters, and performing more in-depth diagnostics.

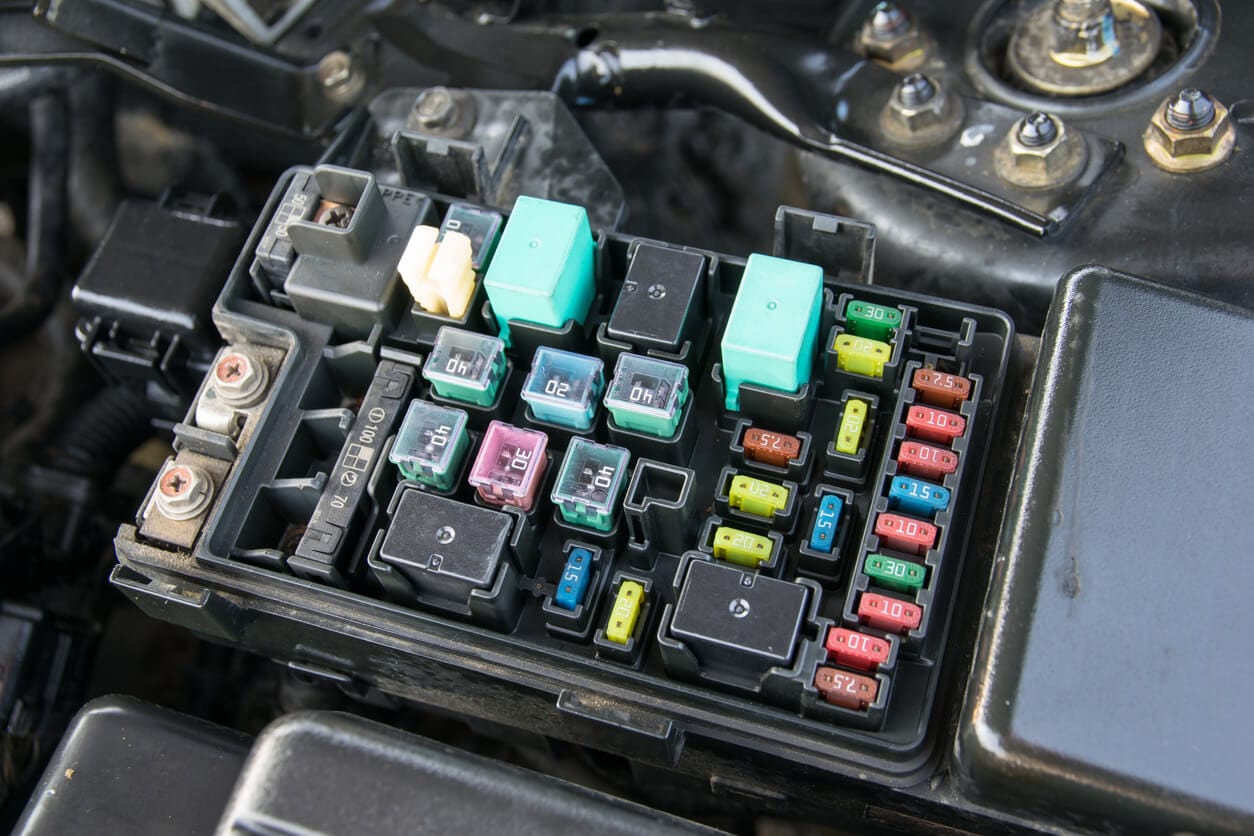

4. Fuse Removal (Less Common):

Some vehicles have a dedicated fuse for the ECM. Removing this fuse for a short period can achieve the same effect as disconnecting the battery, but it's generally less reliable and can sometimes cause more problems than it solves. This method is generally not recommended unless specifically instructed by the vehicle manufacturer or a qualified technician.

Pros and Cons of Resetting the ECM

Pros:

Can clear transient error codes and turn off the check engine light.
Can potentially improve engine performance by resetting learned adaptations.
Can be a quick and easy solution for minor issues.
Potentially avoids unnecessary trips to the mechanic.

Cons:

Does not fix underlying mechanical problems. The check engine light will likely return if the root cause is not addressed.
Can erase learned settings, affecting engine performance and fuel economy until the ECM relearns the optimal parameters.
May temporarily mask a more serious issue, potentially leading to further damage.
In some cases, it may be ineffective on some vehicles.

Use Cases and Manufacturer Examples

Use Cases:

After minor repairs: If you've recently replaced a sensor or fixed a minor issue, resetting the ECM can clear the code and allow the system to relearn.
After fueling up: A loose gas cap can trigger an EVAP (Evaporative Emission Control System) code. Tightening the gas cap and resetting the ECM can often resolve the issue.
After experiencing unusual driving conditions: Extreme weather, rough roads, or changes in altitude can sometimes trigger transient errors.

Manufacturer Examples:

General Motors (GM): GM vehicles often have a relearn procedure for the idle air control (IAC) valve after resetting the ECM.
Ford: Ford vehicles may require a drive cycle to fully relearn engine parameters after a reset.
Toyota: Toyota vehicles often have specific diagnostic modes that can be accessed through the OBD-II port for more precise troubleshooting.

Real-World Insights and Recommendations

Resetting the ECM can be a useful troubleshooting technique, but it should always be approached with caution and a healthy dose of skepticism. Before resetting the ECM, it's crucial to understand why the check engine light is on in the first place. A quick scan with an OBD-II scanner can provide valuable information about the nature of the problem.

If the check engine light returns shortly after resetting the ECM, it's a clear indication that there's a persistent underlying issue that needs to be addressed. In these cases, it's best to consult with a qualified mechanic for a proper diagnosis and repair. Ignoring the problem or repeatedly resetting the ECM can lead to further damage and potentially more expensive repairs down the road.

Keep in mind that modern vehicles are complex and sensitive machines. While resetting the ECM can sometimes resolve minor issues, it's not a magic bullet. A thoughtful and systematic approach to troubleshooting is always the best course of action.
