How To Reset Fuel Pump Shut Off Switch

Experiencing difficulty starting your vehicle after a minor fender-bender or even a seemingly unexplained stall? The culprit might be your fuel pump shut-off switch, also known as an inertia switch or fuel cut-off switch. This safety device is designed to prevent fuel from continuously pumping in the event of a collision, reducing the risk of fire. Knowing how to reset it can save you time, money, and the inconvenience of being stranded. This article will guide you through the process, explain the symptoms, the reason behind the switch's activation, and provide vital information to get you back on the road.

Symptoms of a Tripped Fuel Pump Shut-Off Switch

Before you go reaching for the reset button, it's essential to correctly diagnose the issue. A tripped fuel pump shut-off switch presents with a distinct set of symptoms:

No Start: This is the most common and obvious symptom. The engine cranks, but it won't fire up. You might hear the starter motor engaging, but the engine simply won't catch.
Engine Stalling: In some cases, the switch might be overly sensitive and trip due to a hard bump or pothole, causing the engine to stall suddenly while driving. This is less common but can be quite dangerous.
Fuel Pump Not Priming: When you turn the ignition key to the "ON" position (without starting the engine), you should hear a brief whirring sound from the rear of the vehicle. This is the fuel pump priming, building up pressure in the fuel lines. If the switch is tripped, you won't hear this sound.
Lack of Fuel Pressure: If you have the tools and knowledge, you can test the fuel pressure at the fuel rail. A tripped switch will prevent the fuel pump from operating, resulting in little to no fuel pressure.
Check Engine Light (potentially): While not always present, a tripped fuel pump shut-off switch can sometimes trigger the check engine light. The code might indicate a fuel pump circuit issue or a lean fuel condition.

Understanding the Root Cause: Why the Switch Trips

The fuel pump shut-off switch is a relatively simple but crucial safety device. It contains a ball or pendulum held in place by a magnet or spring. In the event of a sudden impact, the force overcomes the retaining force, causing the ball or pendulum to move and break the electrical circuit to the fuel pump. This instantly cuts off the fuel supply.

Here's a more detailed breakdown of the triggering events:

Collisions: Even minor fender-benders can generate enough force to trip the switch. This is its primary purpose.
Hard Impacts: Driving over a large pothole, striking a curb, or experiencing a rough off-road excursion can sometimes activate the switch.
Faulty Switch: In rare cases, the switch itself can be faulty and overly sensitive. Internal components might wear out, making it more prone to tripping.
Electrical Issues: A sudden electrical surge or short circuit *could* theoretically trigger the switch, but this is highly uncommon.

Ignoring a Tripped Fuel Pump Shut-Off Switch: The Consequences

The immediate consequence of ignoring a tripped fuel pump shut-off switch is the inability to start or operate your vehicle. However, the potential problems extend beyond mere inconvenience:

Stranded Vehicle: Being stuck on the side of the road is never a pleasant experience, especially in inclement weather or dangerous locations.
Delayed Repairs: Assuming other more costly and unnecessary repairs could arise because the issue is not correctly identified.
Towing Costs: If you can't reset the switch yourself, you'll need to have your vehicle towed to a mechanic, incurring additional expenses.
Potential for Accidents: If the switch is overly sensitive and causes the engine to stall while driving, it could lead to an accident, especially in heavy traffic.
Safety Hazard (in theory): While the switch is *designed* to prevent a fire, bypassing it permanently or failing to address the underlying cause could, in a very specific scenario (major collision), increase the risk of fuel leakage in the event of an accident.

Recommended Fixes: Resetting the Fuel Pump Shut-Off Switch

Resetting the fuel pump shut-off switch is typically a straightforward process. However, *always* consult your vehicle's owner's manual for the precise location and reset procedure, as it can vary depending on the make and model. Here's a general guide:

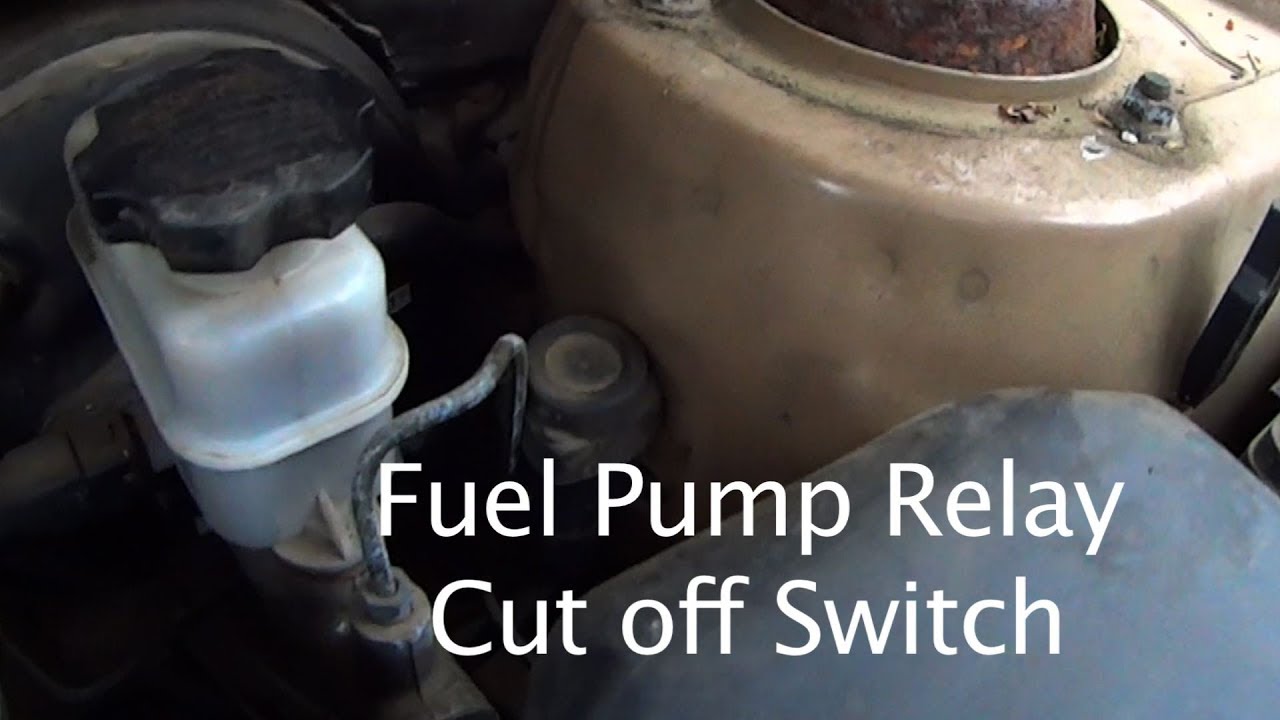

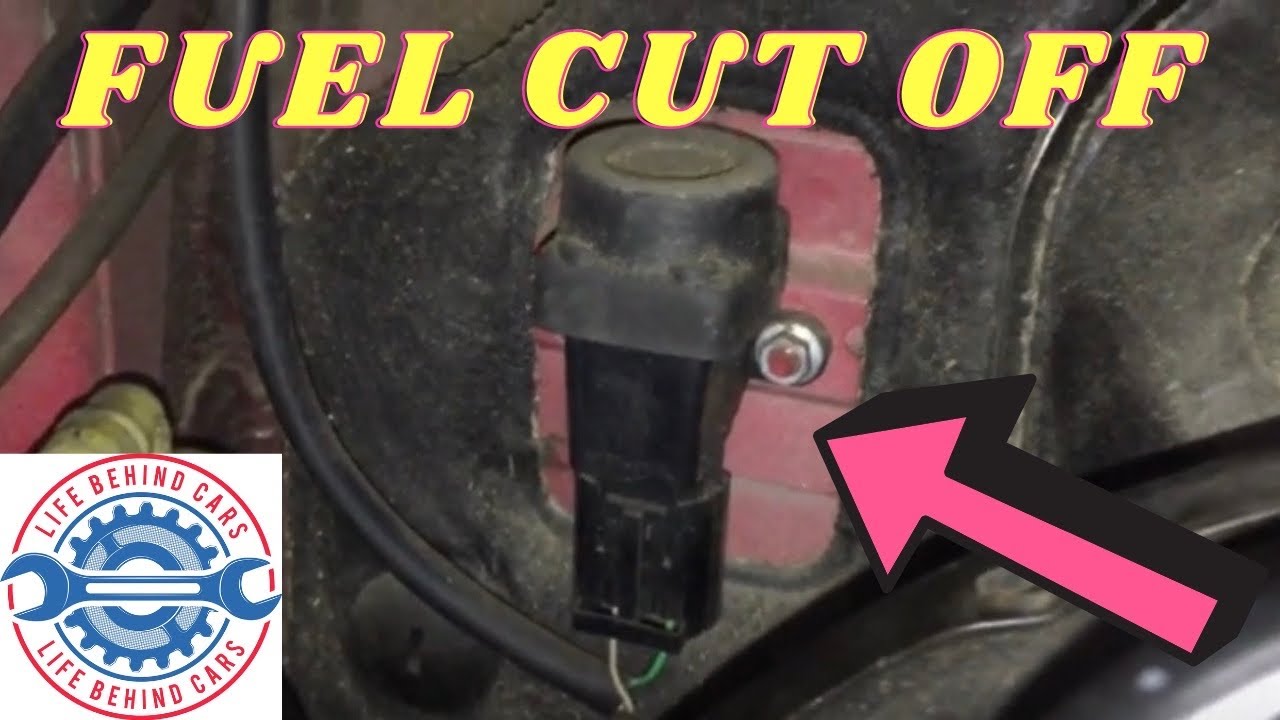

Locate the Switch: The switch is commonly found in one of the following locations:
- Glove Compartment: Sometimes mounted inside or behind the glove box.
- Kick Panel: Near the driver's or passenger's side kick panel (the area next to your feet).
- Trunk: In the trunk, often near the spare tire or in a side compartment.
Visually Inspect: Once you've located the switch, examine it for any obvious damage.

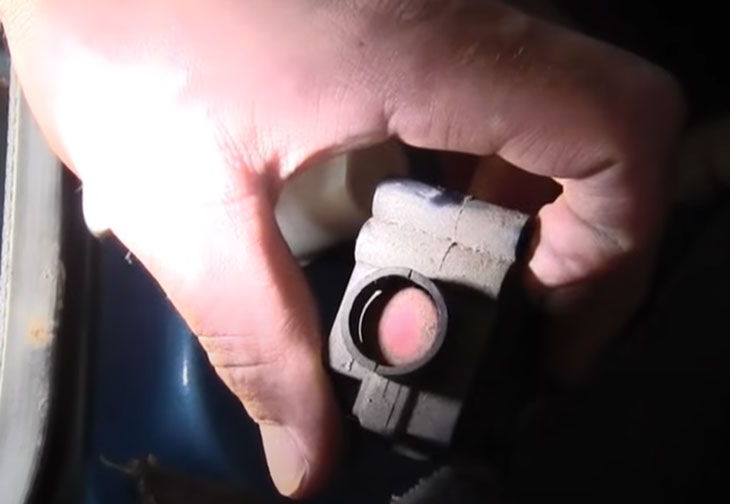

Reset the Switch: The switch usually has a small button or lever.
- Button Type: If it's a button, firmly press it down. You might feel a click.
- Lever Type: If it's a lever, move it to the "ON" or "RESET" position.
Test the Reset: After resetting the switch, turn the ignition key to the "ON" position (without starting the engine) and listen for the fuel pump priming. If you hear the whirring sound, the switch has likely been successfully reset.
Start the Engine: Attempt to start the engine. If it starts and runs normally, you've solved the problem.
If it Doesn't Reset: If the switch doesn't reset, or if it trips again soon after being reset, there may be a more serious underlying issue. Do not repeatedly reset the switch without investigation. This could be a sign of a faulty fuel pump, a short circuit in the fuel pump wiring, or a malfunctioning switch itself. In this case, a professional diagnosis is required.

Important Considerations:

Check for Leaks: Before and after resetting the switch, carefully inspect for any signs of fuel leaks, especially around the fuel tank, fuel lines, and fuel injectors. If you detect any leaks, do not attempt to start the vehicle and call a professional immediately.
Rule Out Other Causes: A tripped fuel pump shut-off switch is just one possible cause of a no-start condition. Other common causes include a dead battery, a faulty starter motor, a clogged fuel filter, or a malfunctioning ignition system. Be sure to rule out these other possibilities before focusing solely on the fuel pump shut-off switch.
Persistent Problems: If the fuel pump shut-off switch continues to trip repeatedly, even without any apparent impact, it's crucial to have the system professionally diagnosed. This could indicate a more serious electrical issue or a faulty switch that needs to be replaced.

Cost Estimates and Shop Advice

Resetting the fuel pump shut-off switch yourself is free. If you're unable to reset the switch or if it continues to trip repeatedly, you'll need to seek professional assistance.

Diagnosis: A mechanic will typically charge an hourly rate (typically $100-$200 per hour) to diagnose the issue. A diagnostic scan might be needed to check for any related trouble codes.
Switch Replacement: If the switch itself is faulty, replacing it is a relatively inexpensive repair. The cost of the switch itself is usually between $20 and $100, and the labor charge is typically less than an hour.
Wiring Repair: If the problem is caused by a short circuit or damaged wiring, the repair cost will depend on the complexity of the wiring harness and the time required to locate and repair the fault. This can range from $100 to several hundred dollars.
Fuel Pump Replacement: In very rare cases, a recurring issue with the fuel pump shut-off switch *might* be indirectly related to a failing fuel pump that's drawing excessive current. Replacing the fuel pump is a more expensive repair, typically costing between $400 and $1000, including parts and labor.

Shop Advice: When taking your vehicle to a mechanic, be sure to clearly explain the symptoms you've experienced and mention that you suspect the fuel pump shut-off switch might be the problem. This can help the mechanic focus their diagnostic efforts and potentially save you time and money.

Credibility and Common Issues

While specific Technical Service Bulletins (TSBs) related directly to fuel pump shut-off switch problems are not exceedingly common, TSBs often address related issues such as fuel pump failures, electrical problems in the fuel system, or diagnostic procedures for no-start conditions. It's always a good idea for your mechanic to check for any relevant TSBs that might apply to your specific vehicle model.

Data from online forums and automotive communities suggests that fuel pump shut-off switch issues are more prevalent in vehicles after accidents, even minor ones. Additionally, some owners have reported issues with overly sensitive switches in older vehicles (10+ years old), potentially due to wear and tear on the switch mechanism.

By understanding the function of the fuel pump shut-off switch, recognizing the symptoms of a tripped switch, and knowing how to reset it, you can potentially save yourself time, money, and the inconvenience of being stranded. Remember to always consult your vehicle's owner's manual for specific instructions and to seek professional assistance if the problem persists or if you suspect a more serious underlying issue.
