How To Reset Tire Sensors After Rotation

Rotating your tires is a crucial part of vehicle maintenance, ensuring even wear and extending their lifespan. But what happens after you've meticulously swapped those front tires to the back and vice-versa? Often, your Tire Pressure Monitoring System (TPMS) light stubbornly refuses to go off. This article delves into the why and how of resetting your TPMS after a tire rotation, providing you with the knowledge and practical steps to tackle this task like a seasoned DIYer.

Understanding TPMS: The Basics

Before diving into the reset procedure, let's establish a firm understanding of what TPMS is and how it functions. TPMS is an electronic system designed to monitor the air pressure inside your vehicle's tires. It's a vital safety feature, alerting you to underinflated tires, which can lead to reduced fuel efficiency, premature tire wear, and, most importantly, a significantly increased risk of tire failure or blowouts.

Direct vs. Indirect TPMS

There are two primary types of TPMS: direct and indirect. Understanding which type your vehicle uses is key to choosing the right reset method.

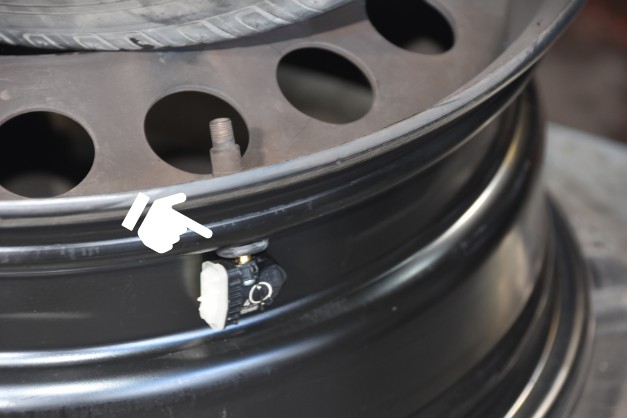

Direct TPMS: This system employs pressure sensors physically mounted inside each wheel. These sensors constantly measure tire pressure and transmit this data wirelessly to the vehicle's Electronic Control Unit (ECU), typically via a Radio Frequency (RF) signal. Each sensor has a unique identification number (ID). When a tire is rotated, the ECU still associates a particular sensor ID with its original location. This mismatch triggers the TPMS warning light because the system thinks the tire pressure is incorrect in that specific location.
Indirect TPMS: Unlike direct systems, indirect TPMS doesn't use physical pressure sensors. Instead, it relies on the vehicle's Anti-lock Braking System (ABS) wheel speed sensors. The system monitors the rotational speed of each wheel. An underinflated tire will have a smaller diameter and therefore rotate faster than a properly inflated one. By comparing the rotational speeds of all four wheels, the system can infer if one or more tires are underinflated. Consequently, rotating tires doesn't inherently disrupt an indirect TPMS, as the system is concerned with relative wheel speeds, not absolute pressure values. However, an initial calibration or reset is still often required after any tire pressure adjustment.

Technical Breakdown: Resetting Direct TPMS

Resetting a direct TPMS after tire rotation typically involves re-teaching or reprogramming the ECU to recognize the new sensor locations. There are several methods to accomplish this, varying depending on the vehicle's make and model.

The 'Automatic Relearn' Procedure

Many newer vehicles feature an automatic relearn procedure. This is the simplest method, as the system automatically learns the new sensor locations after a short drive. Here's the general process:

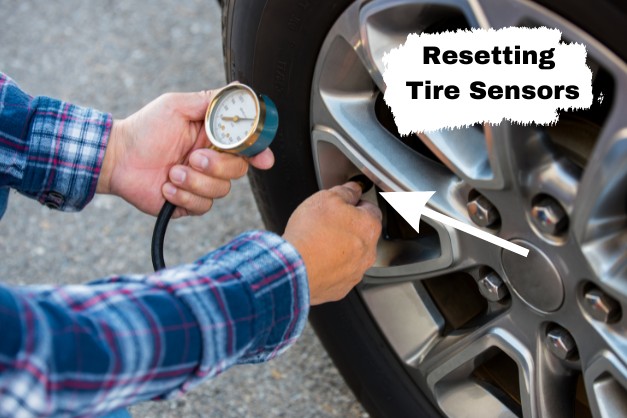

Ensure all tires are inflated to the correct pressure as specified on the tire placard (usually located on the driver's side doorjamb). This is absolutely critical.
Drive the vehicle for a specified period (usually 10-20 minutes) at a consistent speed (often between 25-50 mph). The ECU will continuously monitor the sensor signals and, after detecting consistent readings, will automatically update the sensor locations.
The TPMS light should extinguish automatically once the relearn process is complete.

Consult your vehicle's owner's manual for the specific parameters (speed and duration) required for the automatic relearn on your particular model.

The 'Relearn Tool' Method

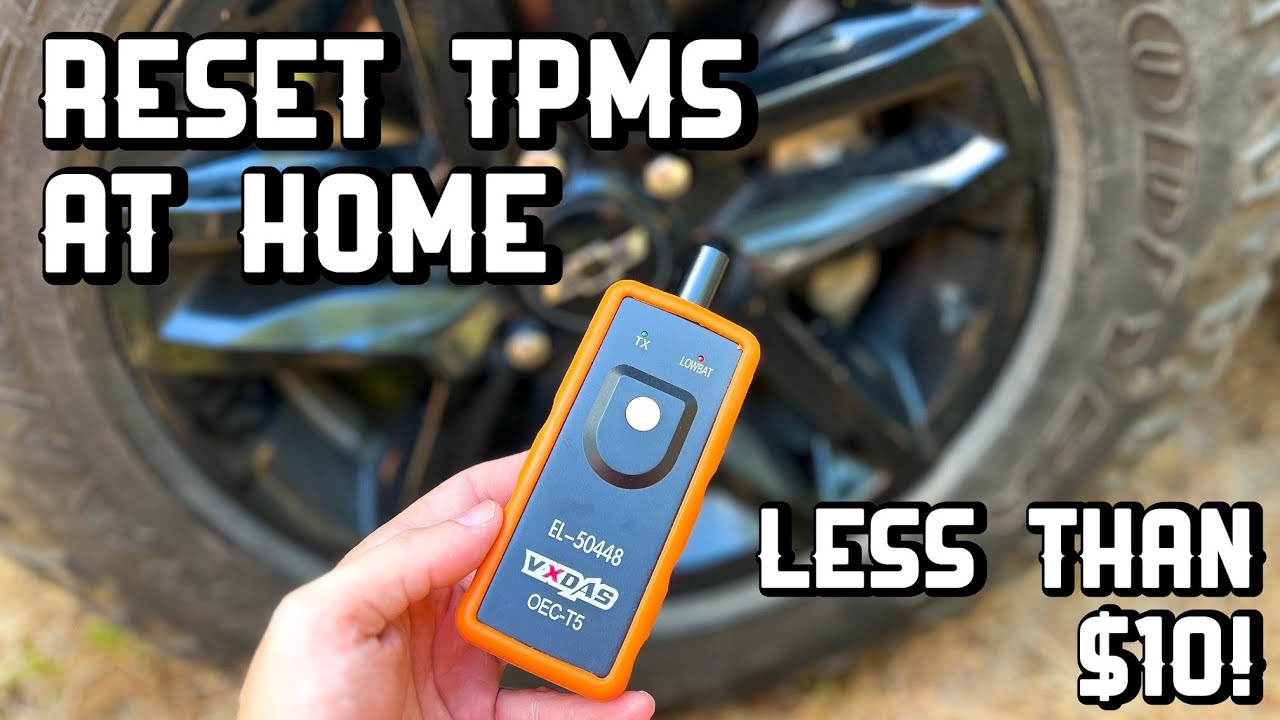

If the automatic relearn procedure doesn't work, or if your vehicle doesn't support it, you'll likely need a TPMS relearn tool. This tool communicates with the TPMS sensors and the vehicle's ECU to manually program the sensor locations.

Ensure all tires are inflated to the correct pressure.
Enter the vehicle's make, model, and year into the relearn tool.
The tool will guide you through the relearn procedure, which typically involves holding the tool near each tire valve stem in a specific sequence (e.g., front left, front right, rear right, rear left).
The tool will transmit a signal to the sensor, triggering it to transmit its ID to the ECU. The ECU then associates the sensor ID with the corresponding wheel location.
Once all sensors have been programmed, the TPMS light should turn off.

There are different types of TPMS relearn tools available, ranging from basic models that only perform relearn functions to more advanced tools that can also diagnose TPMS issues and program new sensors. Investing in a quality TPMS relearn tool can be a worthwhile investment if you frequently rotate your tires or work on multiple vehicles.

The 'OBDII Scan Tool' Method

Some advanced OBDII (On-Board Diagnostics II) scan tools offer TPMS relearn functionality. These tools connect to the vehicle's OBDII port (typically located under the dashboard) and allow you to access and modify various ECU parameters, including TPMS settings. This method generally requires more technical knowledge and a more sophisticated scan tool.

Connect the OBDII scan tool to the vehicle's OBDII port.
Navigate to the TPMS relearn function in the scan tool's menu.
Follow the on-screen instructions to program the sensor locations. This often involves entering the sensor IDs manually or triggering the sensors using a separate TPMS activation tool.
Once the relearn process is complete, the TPMS light should turn off.

Technical Breakdown: Resetting Indirect TPMS

As mentioned earlier, resetting an indirect TPMS is generally simpler than resetting a direct TPMS. Since the system relies on wheel speed data, a simple recalibration is usually sufficient.

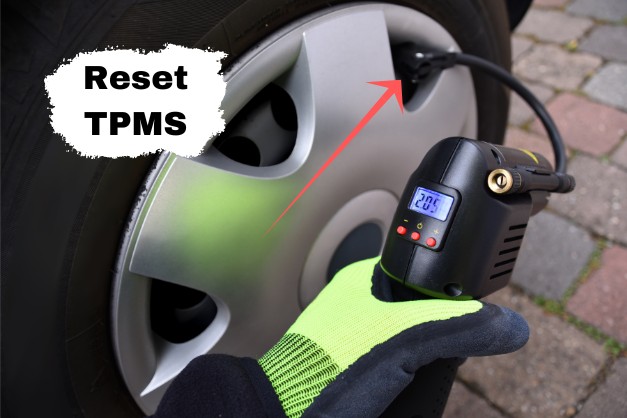

Ensure all tires are inflated to the correct pressure.

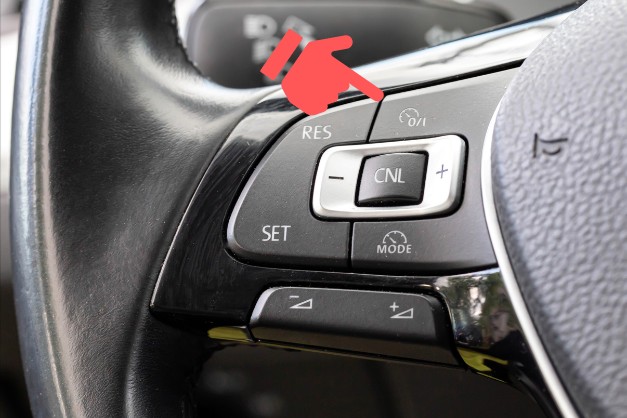

Locate the TPMS reset button in your vehicle. The location varies depending on the make and model, but it's often found in the glove box, under the steering wheel, or on the center console. Consult your owner's manual if you're unsure.
With the vehicle stationary and the ignition on (but the engine not running), press and hold the TPMS reset button until the TPMS light flashes.
Release the button. The TPMS system will now recalibrate itself based on the current tire pressures.
Drive the vehicle for a short distance to allow the system to learn the new wheel speed data.
The TPMS light should extinguish once the recalibration is complete.

Common Issues and Maintenance Concerns

Dead TPMS Sensor Batteries: TPMS sensors have limited battery life (typically 5-10 years). If a sensor's battery dies, it will need to be replaced. A TPMS relearn tool can often diagnose low battery levels.
Sensor Damage: TPMS sensors can be damaged during tire changes or by road debris. Inspect sensors carefully for any signs of damage.
Incorrect Tire Pressure: Always ensure your tires are inflated to the correct pressure before attempting a TPMS reset. An incorrect tire pressure will prevent the system from learning the new sensor locations or recalibrating correctly.
Faulty ECU: In rare cases, a faulty ECU can prevent the TPMS system from functioning correctly.
Interference: Strong radio frequency (RF) signals can sometimes interfere with TPMS sensor communication. Try performing the relearn procedure in an area away from potential sources of interference.

Do's and Don'ts / Best Practices

Do's:

Do consult your vehicle's owner's manual for specific TPMS reset procedures.
Do ensure all tires are inflated to the correct pressure before attempting a reset.
Do use a quality TPMS relearn tool if necessary.
Do inspect TPMS sensors for damage during tire changes.
Do replace TPMS sensors when their batteries are low or when they are damaged.

Don'ts:

Don't ignore the TPMS warning light. It's a safety feature that can help prevent accidents.
Don't attempt to disable the TPMS system. It's illegal to do so in many jurisdictions.
Don't overtighten the TPMS sensor valve stem. This can damage the sensor.
Don't use incompatible TPMS sensors. Make sure you use sensors that are specifically designed for your vehicle.

Conclusion

Resetting your TPMS after a tire rotation is a crucial step in maintaining your vehicle's safety and performance. Understanding the type of TPMS your vehicle uses and following the correct reset procedure will ensure that the system functions correctly and alerts you to any potential tire pressure issues. While the automatic relearn procedure is the simplest method, investing in a TPMS relearn tool can be a worthwhile investment for DIYers who frequently rotate their tires. If you're unsure about any aspect of the TPMS reset process, don't hesitate to consult a qualified mechanic. Addressing TPMS issues promptly and correctly is essential for ensuring a safe and enjoyable driving experience.
