How To Reverse In Nissan Rogue

Reversing a car might seem like a simple act, ingrained in our muscle memory after a few driving lessons. But beneath the surface of simply shifting a lever and applying the gas pedal lies a fascinating interplay of mechanical and electronic components that allows a Nissan Rogue, or any modern vehicle, to execute this seemingly effortless maneuver. Let's delve into the inner workings of how a Nissan Rogue engages reverse gear, exploring the mechanics, electronics, and considerations involved.

The Problem: Moving Backwards

The fundamental problem is this: internal combustion engines are designed to rotate in one primary direction. Transmitting that power to the wheels to move the car forward is straightforward. But how do you effectively change the direction of rotation at the wheels without reversing the engine itself? The answer lies within the transmission, specifically the reverse gear mechanism.

Imagine a bicycle. You pedal forward, and the bike moves forward. You can't simply pedal backward to make the bike move backward – the freewheel mechanism prevents it. Similarly, a car's engine spins in a consistent direction. We need a 'trick' to make the wheels rotate in the opposite direction, and that trick is the reverse gear.

The Mechanical Heart: Gear Ratios and the Idler Gear

At its core, a transmission is a complex system of gears with varying sizes and tooth counts. These gears interact to provide different gear ratios, allowing the engine to operate efficiently at various speeds and loads. When you shift into drive (D), you're selecting one of these forward gear ratios. The reverse gear, however, employs an additional component: the idler gear.

Consider this scenario: you have two gears directly meshed together. If one gear rotates clockwise, the other will rotate counter-clockwise. This is the principle behind the reverse gear. In a typical forward gear setup, the input shaft (connected to the engine) drives an output shaft (connected to the wheels) through a series of gears. The reverse gear system inserts the idler gear between the input and output shafts. This idler gear changes the direction of rotation of the output shaft, allowing the wheels to spin in the opposite direction. Think of it as a mechanical "U-turn" for the power flow.

Specifically for the Nissan Rogue, the reverse gear mechanism resides within its Continuously Variable Transmission (CVT). While a traditional automatic transmission uses planetary gearsets and clutches to engage different gear ratios, a CVT utilizes a belt and pulley system. However, the principle of the idler gear remains consistent, even in the CVT design. A dedicated reverse gear set with an idler gear is incorporated to provide the reverse functionality.

Here’s a simplified breakdown:

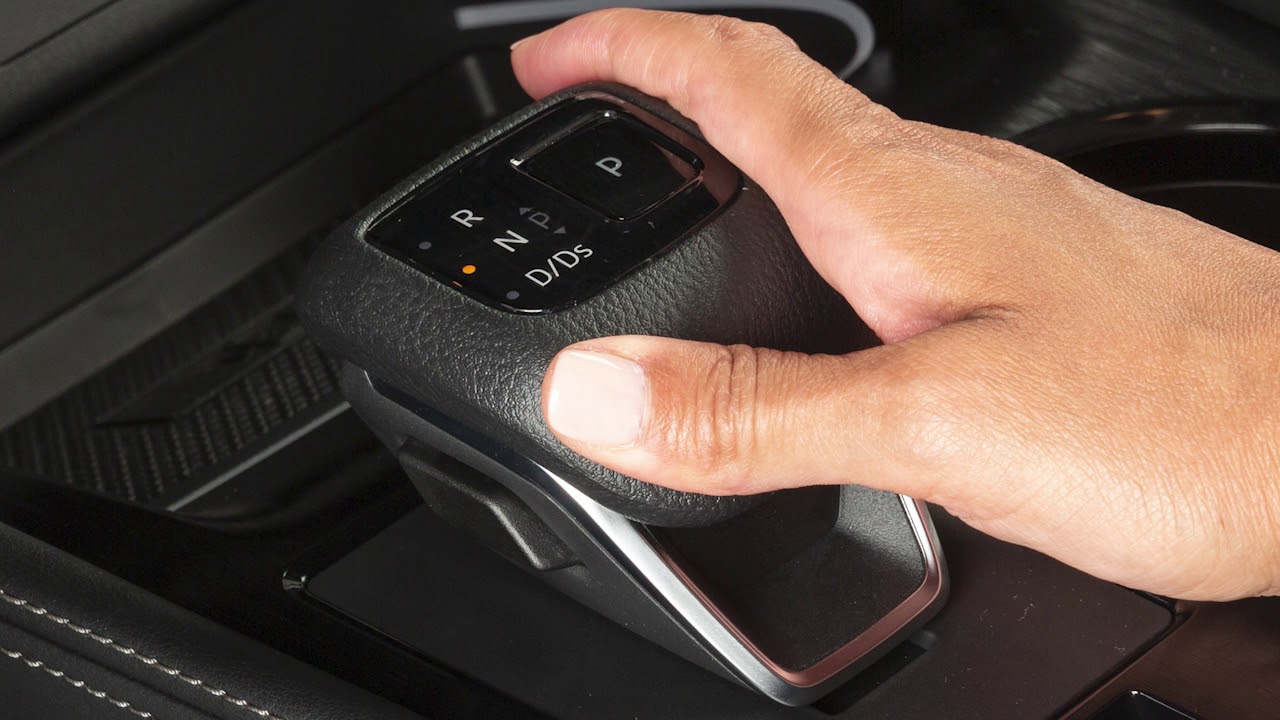

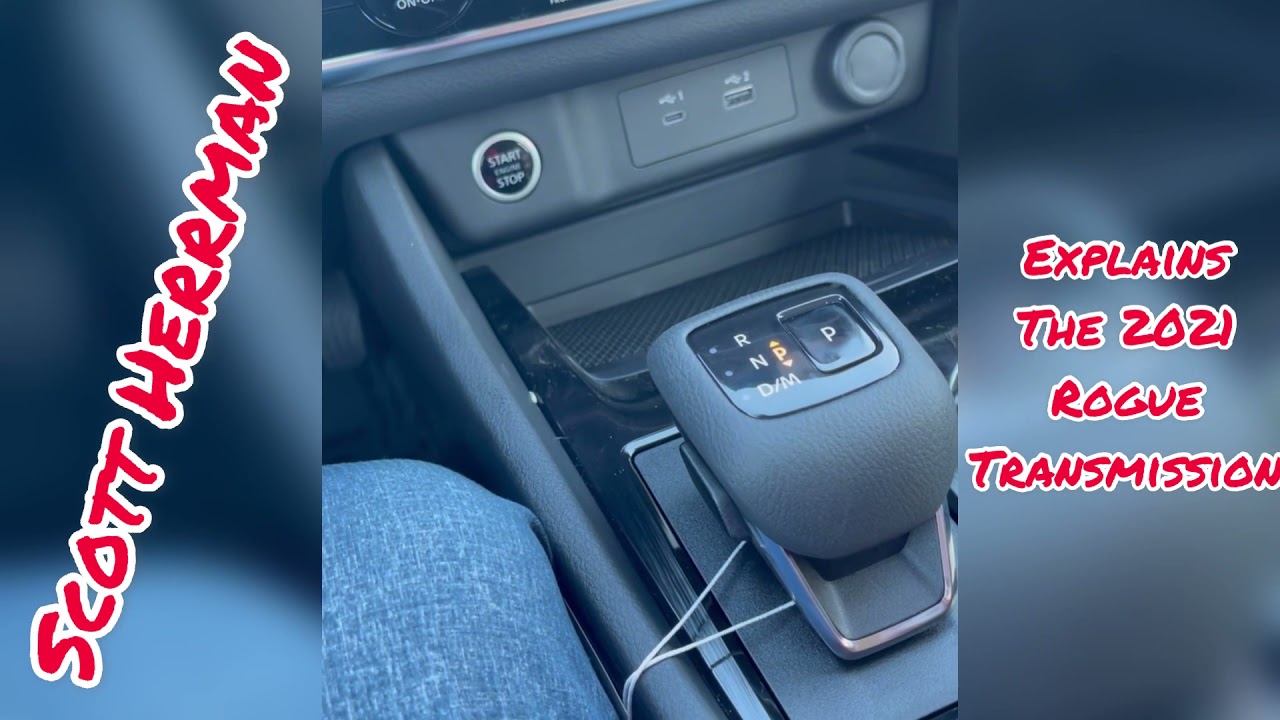

Shifter Position: The driver selects 'R' (Reverse) on the gear selector.
Control System Activation: This sends a signal to the Transmission Control Module (TCM).
Hydraulic System Engagement (Simplified for CVT): The TCM activates hydraulic actuators (or electronic controls in newer models) to engage the reverse gear set within the CVT. This involves shifting the belt position on the pulleys and engaging the reverse idler gear.
Power Flow Reversal: The engine's power now flows through the forward gear system, then the idler gear, and finally to the output shaft. This reverses the direction of rotation of the output shaft.
Wheel Rotation: The reversed rotation of the output shaft is transmitted to the wheels via the differential and axles, causing the car to move backward.

The Role of Electronics: Sensors, Actuators, and Control Modules

While the mechanics of the reverse gear are relatively straightforward, modern vehicles like the Nissan Rogue rely heavily on electronics to ensure smooth and safe operation. The Transmission Control Module (TCM) is the brain of the operation. It receives input from various sensors, including:

Gear selector position sensor: Detects when the driver has selected 'R' for reverse.
Vehicle speed sensor: Monitors the vehicle's speed to prevent abrupt shifts into reverse at higher speeds.
Throttle position sensor: Indicates the driver's demand for power (how much the gas pedal is pressed).
Engine speed sensor: Monitors the engine's RPM.

Based on these inputs, the TCM controls various actuators, such as hydraulic valves (or electronic actuators in newer CVT designs), to engage the reverse gear and adjust the transmission's behavior. For instance, the TCM might limit the engine's power output when reversing to prevent excessive wheelspin or adjust the engagement speed of the reverse gear to minimize jerking.

Pros, Cons, and Use Cases

Pros:

Essential Functionality: Reverse gear is crucial for maneuvering in tight spaces and exiting parking spots.
Relatively Simple Design: The idler gear concept is mechanically straightforward.
Controlled Operation: Modern electronic control systems ensure smooth and safe reverse gear engagement.

Cons:

Limited Speed: Reverse gear is typically designed for low-speed operation. Attempting to reverse at high speeds can damage the transmission.
Potential for Damage: Abruptly shifting into reverse while moving forward can put excessive stress on the transmission components.
Complexity in CVTs: Integrating a reverse gear into a CVT requires a dedicated reverse gear set, adding to the overall complexity of the transmission.

Use Cases:

Parking: Backing into or out of parking spaces.
Maneuvering: Navigating tight driveways or narrow streets.
Correcting Errors: Adjusting position after overshooting a turn or making a wrong maneuver.

Manufacturer Examples: From Simple Gears to Electronic Controls

The fundamental principle of the reverse gear remains consistent across different manufacturers, but the implementation can vary. In older vehicles with manual transmissions, the engagement of the reverse gear was entirely mechanical, relying on the driver's skill to synchronize the gears and avoid grinding. Modern vehicles, including the Nissan Rogue, incorporate sophisticated electronic controls to smooth out the process and prevent damage.

Examples of variations:

Electronic Shift-by-Wire: Some modern vehicles use electronic shift-by-wire systems, where the gear selector is not directly connected to the transmission. Instead, the driver's input is transmitted electronically to the TCM, which then controls the actuators to engage the reverse gear.
Reverse Assist Technologies: Many manufacturers offer features like rear-view cameras, parking sensors, and cross-traffic alert to aid drivers when reversing, further enhancing safety and convenience.

Nissan Rogue Specifics: The Rogue's CVT employs electronic controls to manage the reverse gear engagement, ensuring smooth transitions and preventing over-revving. The rear-view camera is standard equipment and contributes to the enhanced safety when reversing.

Real-World Insights and Recommendations

Understanding how the reverse gear works in your Nissan Rogue can lead to more mindful driving habits and potentially prevent costly repairs. Here are a few recommendations:

Come to a Complete Stop: Always ensure the vehicle is completely stopped before shifting into reverse. Shifting into reverse while moving forward puts significant stress on the transmission components and can lead to premature wear or damage.
Avoid Abrupt Acceleration: Gentle acceleration when reversing is crucial. Rapidly pressing the gas pedal can cause wheelspin and loss of control, especially on slippery surfaces.
Utilize Reverse Assist Features: Take advantage of the rear-view camera, parking sensors, and other reverse assist technologies available in your Nissan Rogue. These features can significantly enhance safety and prevent accidents.
Listen for Unusual Noises: Pay attention to any unusual noises coming from the transmission when shifting into or reversing. Grinding or clunking sounds could indicate a problem that needs to be addressed by a qualified mechanic.
Regular Maintenance: Adhere to the manufacturer's recommended maintenance schedule for your transmission. Regular fluid changes can help keep the transmission components lubricated and prevent wear.

In conclusion, reversing a Nissan Rogue, while seemingly a simple task, involves a complex interaction of mechanical and electronic systems. Understanding the function of the idler gear, the role of the TCM, and the importance of proper operating procedures can help you drive more safely and extend the life of your vehicle's transmission. So, next time you shift into reverse, remember the intricate engineering at play that allows you to effortlessly navigate in the opposite direction.
