How To Set Idle Air Control Valve

Ever noticed your car idling a bit rough, especially when the engine is cold, or perhaps stalling when you come to a stop? The culprit could very well be a malfunctioning Idle Air Control (IAC) valve. While often overlooked, this small component plays a crucial role in maintaining smooth and consistent engine operation. Let's delve into the inner workings of the IAC valve, explore its functions, and understand how to diagnose and, in some cases, even adjust it.

The Idle Problem: Why Cars Need Help to Idle

Imagine trying to ride a bicycle really slowly without putting your feet down. It's a challenge, right? You need to constantly adjust your balance and pedal input. An internal combustion engine faces a similar issue at idle. When you lift your foot off the accelerator, the throttle plate (the "gas pedal" essentially controls how much air enters the engine) closes, restricting airflow. Without any intervention, the engine would simply stall. This is where the IAC valve steps in.

Think of it like a tiny air regulator constantly working to keep your engine breathing just enough to stay alive when you are not pressing on the accelerator. It provides a controlled air leak around the throttle plate, ensuring a minimum amount of air reaches the engine, allowing it to maintain a stable idle speed.

IAC Valve: The Mechanical Heart of Idle Speed Control

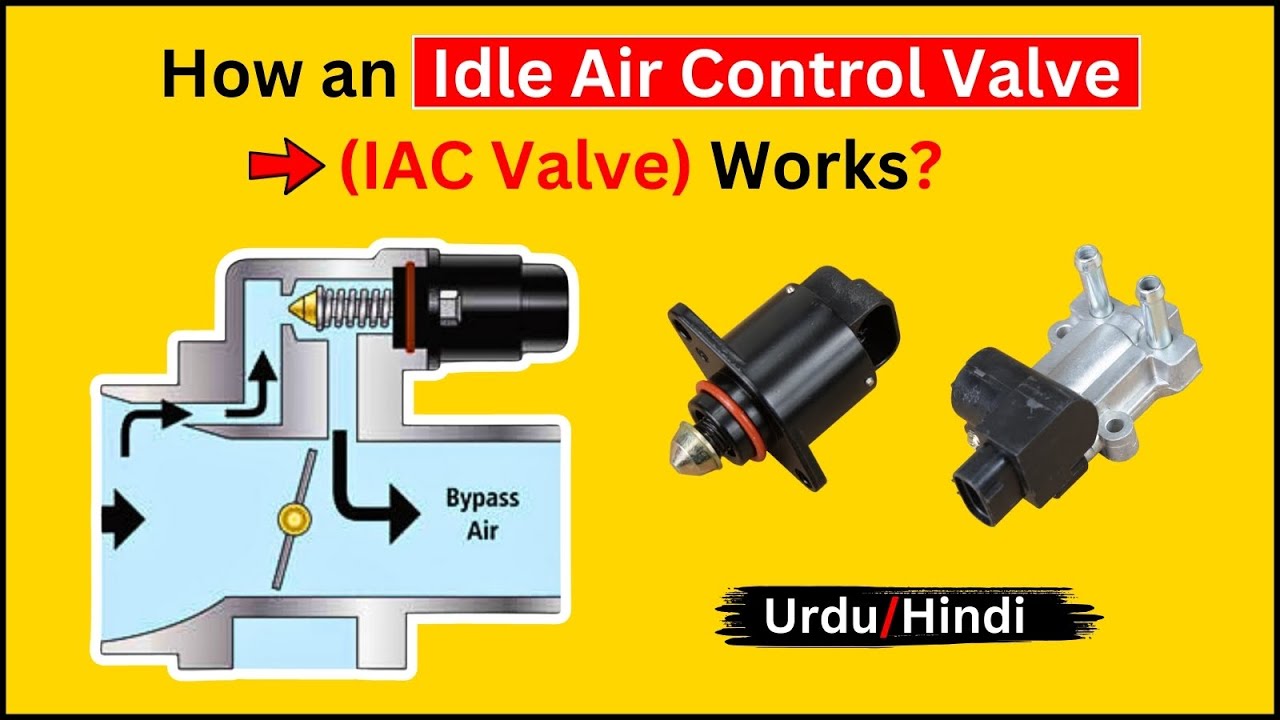

The IAC valve is essentially an electronically controlled bypass valve. It's typically mounted on the throttle body, and its job is to regulate the amount of air that bypasses the closed throttle plate. Here's how it works mechanically:

Types of IAC Valves

Several different designs of IAC valves exist, but the most common types are:

• Stepper Motor IAC Valves: These valves use a stepper motor, which rotates in precise increments, to move a pintle (a small, pointed rod) in or out of an air passage. The further the pintle is withdrawn, the larger the air passage becomes, and the more air bypasses the throttle plate. The Engine Control Unit (ECU) controls the stepper motor, telling it how many "steps" to move the pintle based on engine temperature, load, and other factors. These are very common on older vehicles.
• Rotary Solenoid IAC Valves: These use a rotary solenoid to open and close a valve. The ECU controls the solenoid, adjusting the valve's position based on engine requirements. Instead of linear movement like a stepper motor, the solenoid rotates a valve, altering the airflow through a bypass passage.
• PWM (Pulse Width Modulated) IAC Valves: These valves use a solenoid that rapidly opens and closes a passage. The ECU controls the "duty cycle" of the pulse – the percentage of time the valve is open versus closed. A higher duty cycle means the valve is open for a longer period, allowing more air to bypass the throttle plate. These are found on more modern vehicles.

ECU Control and Feedback Loops

Regardless of the specific design, the IAC valve is always controlled by the ECU. The ECU monitors various engine sensors, including:

• Engine Coolant Temperature Sensor (ECT): When the engine is cold, the ECU signals the IAC valve to open wider, allowing more air to bypass the throttle plate and increase the idle speed. This helps the engine warm up faster and prevents stalling.
• Throttle Position Sensor (TPS): The TPS tells the ECU the position of the throttle plate. This information is used to ensure a smooth transition between idle and off-idle operation.
• Manifold Absolute Pressure (MAP) or Mass Airflow (MAF) Sensor: These sensors measure the amount of air entering the engine. This information helps the ECU fine-tune the IAC valve position to maintain the correct air-fuel ratio at idle.
• Oxygen (O2) Sensors: O2 sensors provide feedback to the ECU about the exhaust gas composition. This allows the ECU to adjust the air-fuel ratio at idle for optimal emissions and fuel economy.

The ECU uses this sensor data in a closed-loop feedback system. It constantly monitors the engine's performance and adjusts the IAC valve position to maintain the desired idle speed. If the idle speed is too low, the ECU will open the IAC valve further; if it's too high, the ECU will close it.

Pros and Cons of IAC Valve Systems

Pros:

• Smooth and Stable Idle: Provides a consistent and reliable idle speed, preventing stalling.
• Improved Cold Starts: Increases idle speed during cold starts, facilitating faster engine warm-up.
• Load Compensation: Adjusts idle speed to compensate for additional loads, such as air conditioning or power steering.
• Emissions Control: Helps maintain the correct air-fuel ratio at idle, reducing emissions.

Cons:

• Potential for Failure: IAC valves can become clogged with dirt and debris, or the electrical components can fail.
• Complexity: Requires an ECU and various sensors to function properly.
• Troubleshooting: Diagnosing IAC valve problems can require specialized tools and knowledge.

Use Cases and Manufacturer Examples

The IAC valve is a nearly ubiquitous component in fuel-injected vehicles. Here are some examples of how it's implemented in different makes and models:

• GM Vehicles (e.g., Chevrolet, GMC, Cadillac): Often uses stepper motor IAC valves. Many older GM vehicles are known to develop issues with carbon buildup in the IAC valve passage, leading to rough idling.

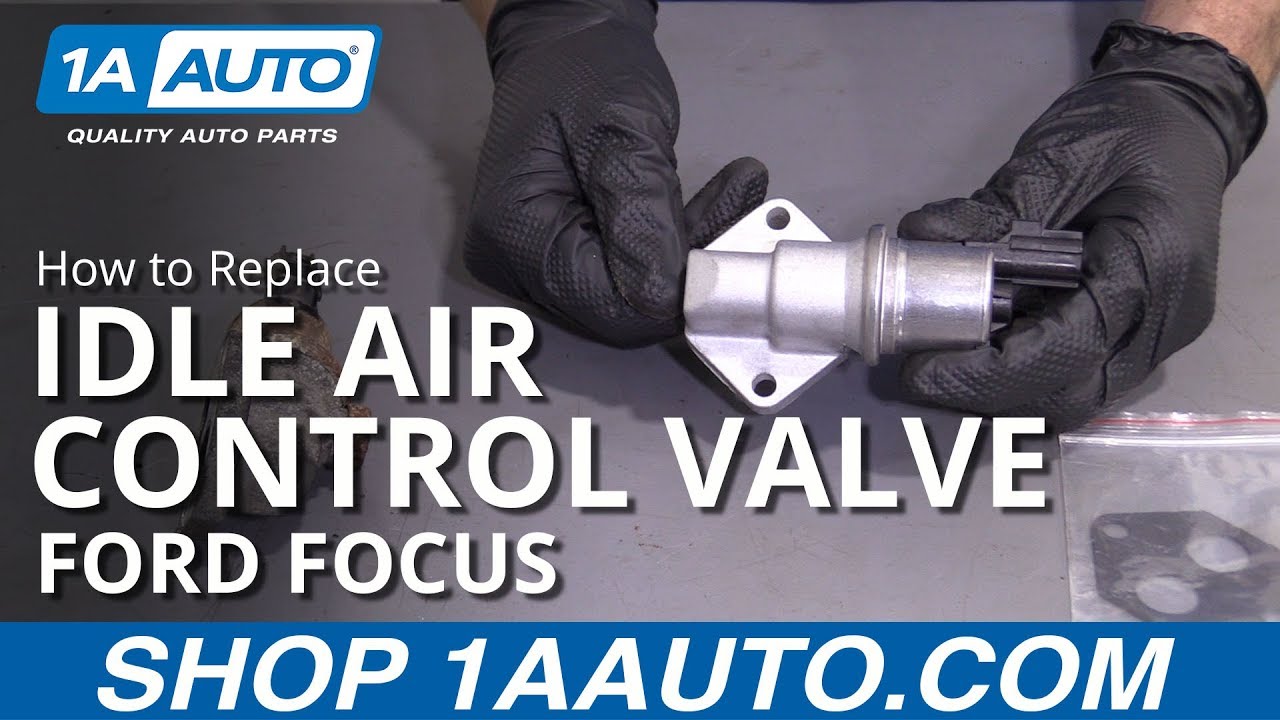

• Ford Vehicles (e.g., Ford, Lincoln, Mercury): Employs various IAC valve designs, including stepper motor and PWM types. Ford IAC valves are sometimes prone to electrical failures, especially on older models.
• Japanese Vehicles (e.g., Toyota, Honda, Nissan): Typically uses robust IAC valve designs, but carbon buildup can still be a problem. Some Honda models use a Fast Idle Valve in conjunction with the IACV to control cold start idle.
• European Vehicles (e.g., BMW, Mercedes-Benz, Volkswagen): May utilize sophisticated IAC valve systems integrated with other engine management functions.

Diagnosis and Adjustment: Getting Your Hands Dirty

If you suspect a problem with your IAC valve, here's a basic troubleshooting guide:

Symptoms of a Faulty IAC Valve

• Rough or unstable idle.
• Stalling when coming to a stop.
• High idle speed.
• Difficulty starting the engine.
• Check Engine Light (CEL) with IAC-related codes (e.g., P0505, P0506, P0507).

Diagnosis Steps

1. Visual Inspection: Check the IAC valve for any visible damage or loose connections.

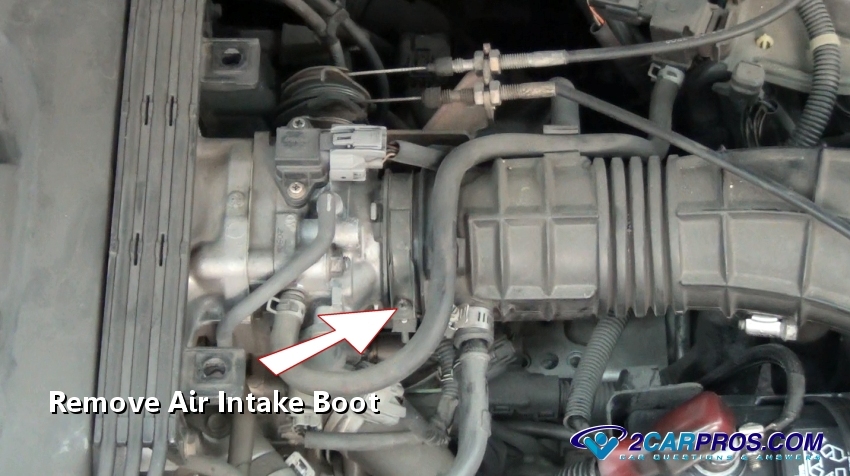

2. Cleaning: Remove the IAC valve and clean it thoroughly with carburetor cleaner. Pay attention to the pintle and the air passages.
3. Electrical Testing: Use a multimeter to check the resistance of the IAC valve's electrical windings. Compare your readings to the manufacturer's specifications.
4. Scan Tool: Use an OBD-II scan tool to read any diagnostic trouble codes (DTCs) related to the IAC valve. You can also use the scan tool to monitor the IAC valve's position and activity while the engine is running.

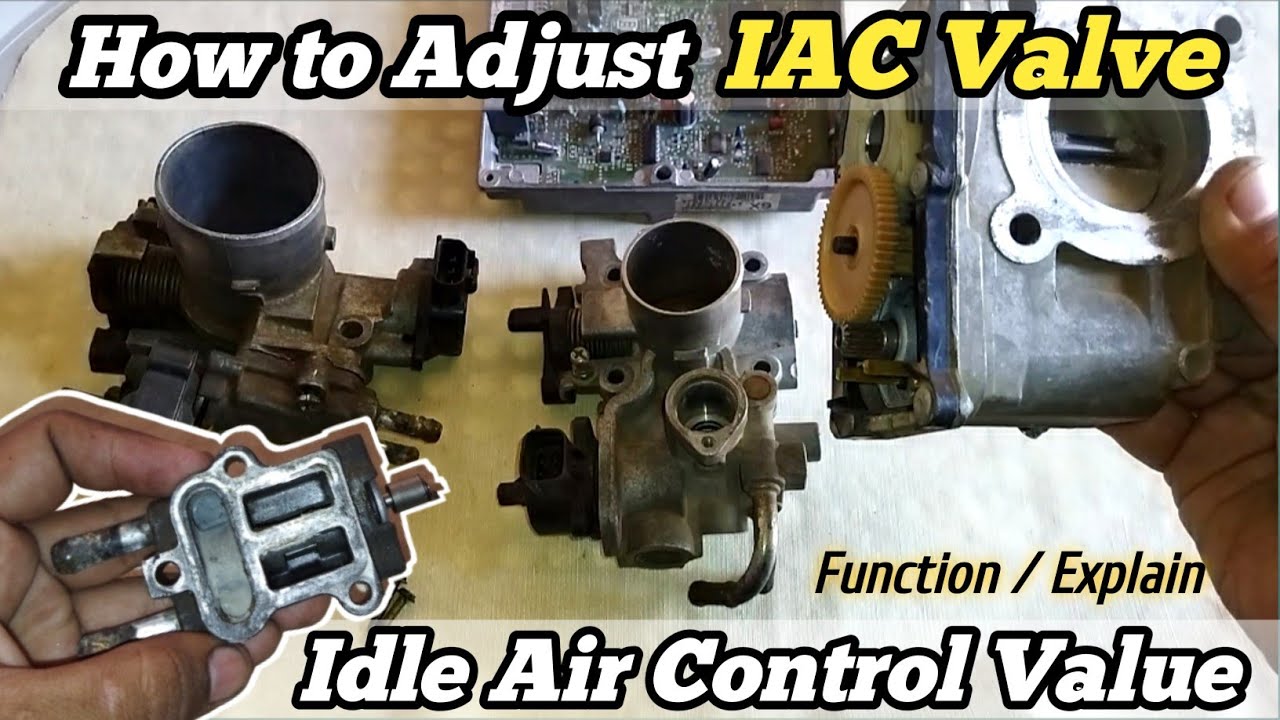

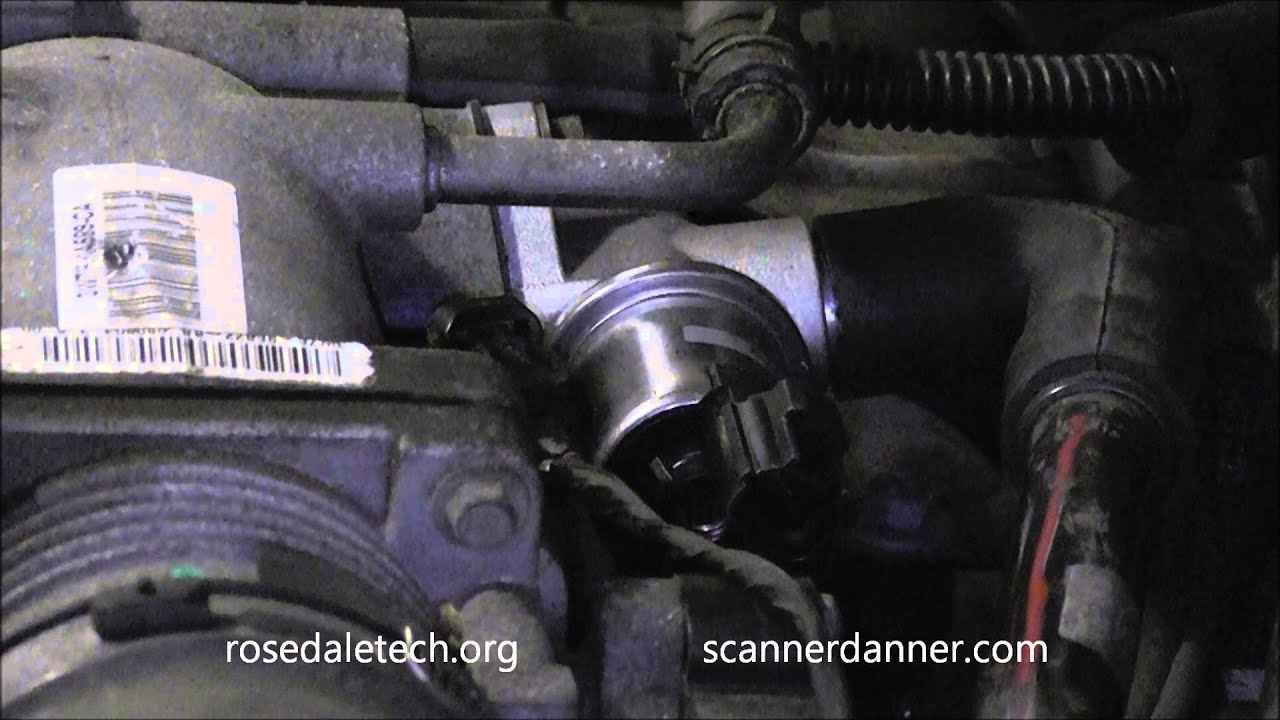

Adjustment (If Possible)

Some IAC valves are adjustable, while others are not. If your IAC valve is adjustable, the procedure will vary depending on the vehicle. Refer to your vehicle's service manual for specific instructions. However, a general guideline is:

1. Locate the Adjustment Screw: The adjustment screw is typically located on the IAC valve or the throttle body nearby.
2. Warm Up the Engine: Allow the engine to reach its normal operating temperature.
3. Adjust the Screw: Turn the adjustment screw slowly while monitoring the engine's idle speed. Aim for the manufacturer's specified idle speed.
4. Secure the Adjustment: Once the idle speed is correct, tighten the locknut (if present) to secure the adjustment screw.

Important Note: Adjusting the IAC valve without proper knowledge or tools can lead to further problems. If you're unsure about the procedure, it's best to consult a qualified mechanic.

Real-World Insights and Recommendations

In practical terms, preventative maintenance can significantly extend the lifespan of your IAC valve. Regularly cleaning the throttle body and the IAC valve passages (every 30,000-50,000 miles) can prevent carbon buildup and ensure smooth operation. When cleaning, be careful not to damage any sensitive electrical components.

Furthermore, be aware of the quality of replacement parts. Opting for a genuine OEM (Original Equipment Manufacturer) IAC valve or a reputable aftermarket brand can ensure proper fitment and performance. Cheaper, unbranded IAC valves may be tempting, but they often have poor quality control and can lead to premature failure.

Finally, remember that the IAC valve is just one component in a complex engine management system. If you're experiencing idle problems, it's essential to consider other potential causes, such as vacuum leaks, faulty sensors, or a dirty mass airflow sensor. A thorough diagnosis is crucial for identifying the root cause of the issue and implementing the correct repair.
